Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S

Dni Kuchni EN

Dni Kuchni EN

(0)
Questions
(0)

Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S

  • Sample
Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S
search
  • Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S
  • Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S
Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S
Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S
SPC SPC
System Uniclick 2G System Uniclick 2G
Abrasion Class: AC4 Abrasion Class: AC4
Brand:
Mexen
Series:
Concord
Ean:
5905315468741
Index:
F1174-S
Length:
635 mm
Width:
127 mm
Thickness:
6.5 mm
Structure:
Oak
Pattern - Chevron - ()
Sample - Yes - ()
No
Yes

Mexen Concord vinyl panel sample herringbone SPC 6.5 mm, IPEX 1.5 mm underlay, 4 V-Groove, Oak - F1174-S

The Mexen Concord sample of vinyl herringbone SPC panels offers a glimpse into high-quality flooring with a sample size of 21 x 12 cm. Despite its size, this sample provides insight into the design distributed across multiple panels. These panels feature a composite polymer-stone structure with oak aesthetics, perfect for a luxurious finish. With a length of 635 mm, width of 127 mm, and a thickness of 6.5 mm (including 1.5 mm IXPE underlay), they promise superior durability. The AC4 abrasion class and 32 utility class ensure they withstand wear and tear. The panels are packaged with 20 pieces (10 left and 10 right), covering 1.61 m². Installation is made easy with the Valinge 2G system, and the product boasts a 4-sided V-groove and integrated IXPE underlay for added comfort. Enjoy peace of mind with its 100% waterproof nature, resistance to mechanical damage and scratches, and easy-to-clean surface. Compatible with low-temperature underfloor heating, it also offers anti-static properties (≤ 2kV) and a slip resistance class of DS, making it a versatile and reliable choice for any space.

The offer concerns a sample of a vinyl panel measuring 21 x 12 cm

The sample is only a fragment of the panel and does not present the entire floor pattern, which is spread across several panels

Product Specification:

Length: 635 mm

Width: 127 mm

Thickness: 6.5 mm (5 mm + 1.5 mm IXPE)

Wear layer thickness: 0.55 mm

Abrasion class: AC4

Utility class: 32

Number of pieces in a package: 20 (10 left and 10 right)

Package area: 1.61 m²

Structure: Oak

Material: Stone-polymer composite

Installation method: Valinge 2G

Slip resistance class: DS

Thermal conductivity: 0.144 W/mK

Antistatic ≤ 2kV

4-sided V-Groove

Integrated IXPE underlay - 1.5 mm

Waterproof - 100%

Surface easy to clean

Resistance to mechanical damage and scratches

Compatibility with low-temperature underfloor heating

Innovative solutions used in this product

SPC

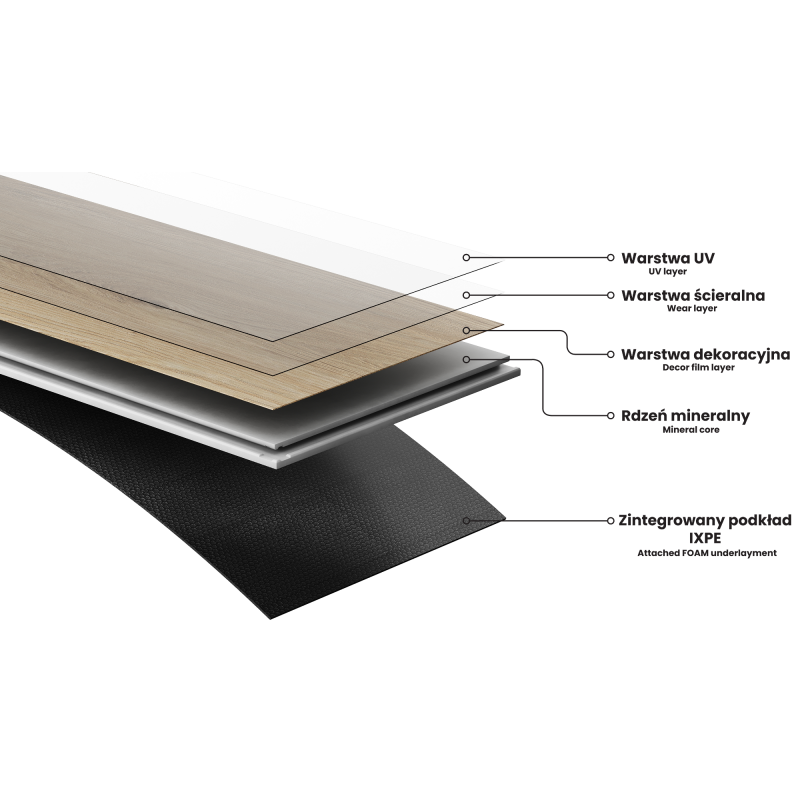

SPC is an innovative material used for flooring production. The panels are distinguished by a special structure, consisting of several layers - the most important being the polymer-stone core, and decorative, wear-resistant, UV, and an integrated underlay. The layered construction makes them flexible and resistant to mechanical factors.

System Uniclick 2G

The snap system, which relies on tongues and grooves, guarantees excellent board connection quality. It involves snapping the panels into each other without using any specialised tools and glue. This innovative method will make laying the floor in your home quick, easy, and above all, durable.

Abrasion Class: AC4

Vinyl panels with an AC4 abrasion class are highly resistant to wear and mechanical damage. The AC4 class means that the panels are suitable for moderate traffic in homes and in commercial spaces with moderate traffic.

Public Utility Class: 32

The floor features a high abrasion class - it is intended for public use with medium traffic intensity and can also be used in heavily used household conditions, such as in corridors, bathrooms, or kitchens.

Integrated Underlay

The underlay serves a thermal and acoustic insulation function, as well as ensuring the stability of the floor. Our product includes an integrated IXPE underlay - 1.5 mm - thanks to this solution, there is no need to lay additional materials on the floor, making the flooring installation much more convenient and faster.

Waterproof

Vinyl panels are a great choice for dry rooms as well as those exposed to moisture, such as the kitchen or bathroom. Their waterproof nature makes them resistant to the effects of water and moisture, allowing for long-term use without fear of damage.

Soft and pleasant to the touch

A huge advantage of vinyl panels is that they are soft to the touch and also can insulate well against cold. This makes walking on them, even barefoot, very comfortable and pleasant, making them an excellent choice for the bedroom, bathroom, or living room.

Wood Structure

The panel stands out with subtle grains and embossments that excellently imitate the chosen wood species. Thanks to this effect, the room gains an elegant yet natural and cosy character.

Perfect Interior Acoustics

One of the biggest advantages of vinyl flooring is its ability to absorb sounds. It perfectly reduces the noise of walking on the floor and minimizes the so-called "echo" in a room. Several factors contribute to this: among others, vinyl panels are flexible and have an integrated underlay that provides cushioning.

Durable

Vinyl panels are characterized by high durability properties, making them an ideal solution for heavily used spaces. Their surface is effectively protected, which makes them resistant to scratches, impacts, and abrasion, allowing them to maintain an aesthetic appearance for a long time.

Fire Resistant

The product meets the requirements of class Bfi-s1, where Bfl indicates a high class of fire resistance, and s1 indicates low smoke emission. These types of classifications are particularly important in the context of designing buildings where fire safety is of crucial importance.

Anti-slip

The floor meets the anti-slip requirements specified by Class DS (dynamic friction coefficient, in dry and clean conditions is > 0.30), which means that the panels are not slippery, ensuring safety when moving around on the floor. Of course, provided they are dry, clean, and not covered with greasy or slippery substances.

V-groove

The panels have a 4-sided groove - each edge has been milled in such a way that when laid, a V-shaped connection is formed. This design makes the floor gain a more pronounced structure, which gives it depth and an aesthetic character. This effect is particularly appreciated in modern arrangements, where details highlight the unique appearance of the interior.

Suitable for underfloor heating

Vinyl panels are distinguished by low thermal resistance, which makes them excellent at conducting heat and distributing it evenly throughout the room. Thanks to this property, they are an ideal solution for use with underfloor heating, both water and electric.

Stain-resistant

A well-protected panel surface, achieved by applying appropriate protective coatings, effectively prevents dirt and pollutants from penetrating the internal structures of the material. As a result, the panel is easier to clean, less prone to mechanical damage, and has a longer lifespan.

Antistatic

Vinyl panels have antistatic properties, which means they reduce electric charges by dissipating them into the ground before a noticeable discharge occurs. Furthermore, they do not attract dust or dirt, which is a great advantage in homes of people with allergies. This makes maintenance easier and the air in the room less polluted.

Series
Concord
Length
635 mm
Width
127 mm
Thickness
6.5 mm
Pattern
Chevron
Material
Polymer-stone composite
Installation method
Valinge 2G
Wear Layer Thickness
0.55 mm
Number of pieces in the package
20
Quantity of m² in the package
1.61
V-Joint
4-sided
Structure
Oak
Shade
Natural
Sample
Yes
User manual
Download
Safety information
Download
Warranty conditions
Download
Manufacturer
See
