Mexen Tex Slim concealed WC frame - 61100
Mexen Tex Slim concealed WC frame - 61100 Mexen Tex Slim concealed WC frame - 61100
Slim Slim
Mechanical Flushing Mechanical Flushing
Economical Flushing Economical Flushing
Brand:
Mexen
Series:
Tex Slim
Ean:
5905315968852
Index:
61100
Height:
114 cm
Button included:
No
Button Installation:
From the Front
Mechanism:
Mechanical

Mexen Tex Slim concealed WC frame - 61100

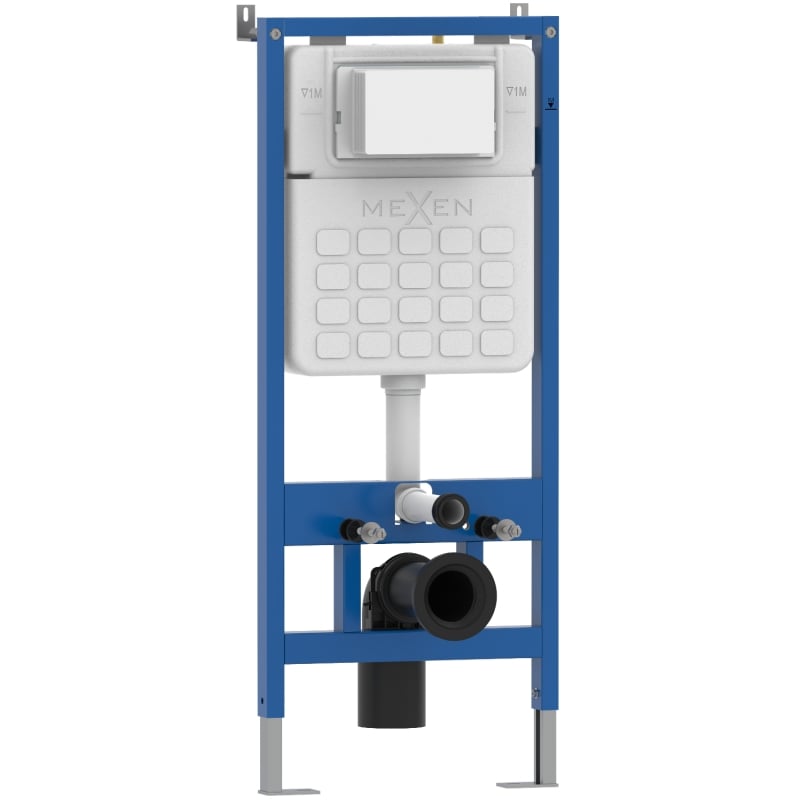

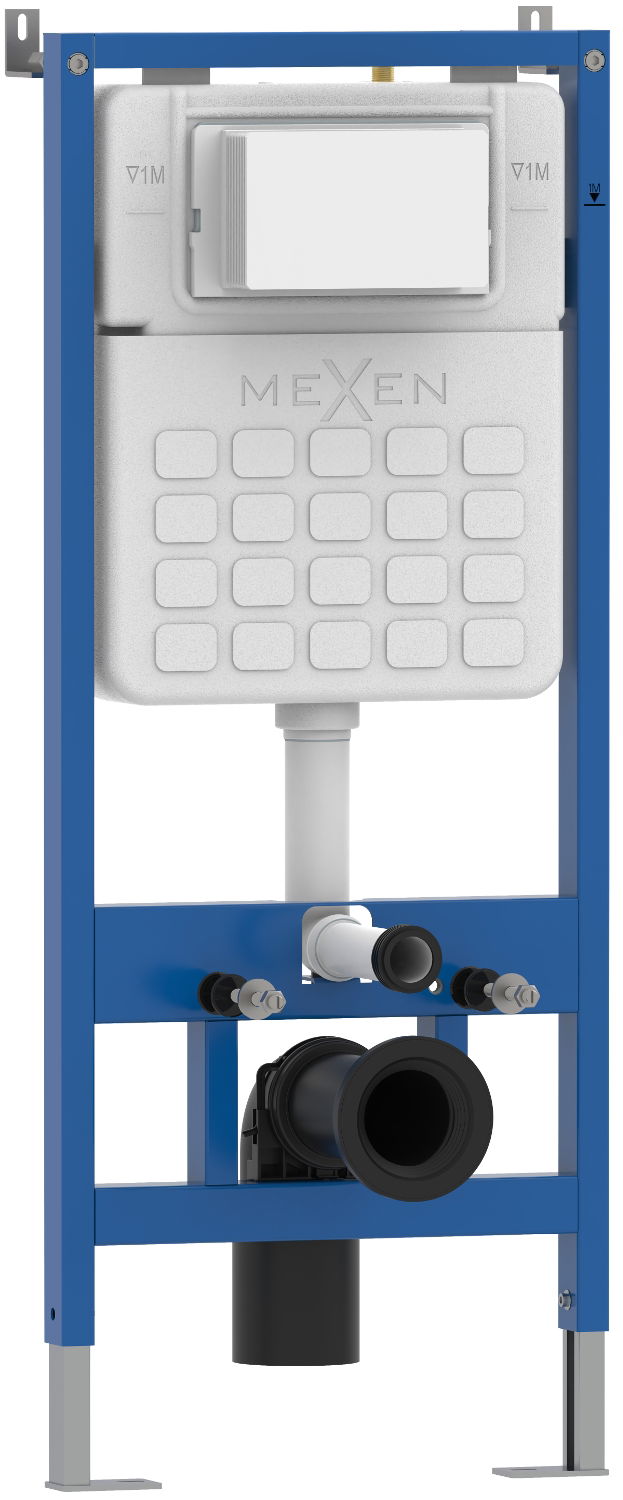

The Mexen Tex Slim concealed WC frame is the ideal solution for modern bathrooms. With a slim thickness of 12 cm and height of 114 cm, it is compact and can be mounted in both full walls and plasterboard. Designed for wall-hung bowls with a hole spacing of 18 cm or 23 cm, with adjustable legs up to 20 cm and supports adjustable within the range of 150-190 mm. The tank with anti-condensation insulation and the option to set flushed water ensures savings. Compatible with Mexen buttons from the Tex series, it provides a complete solution for any bathroom.

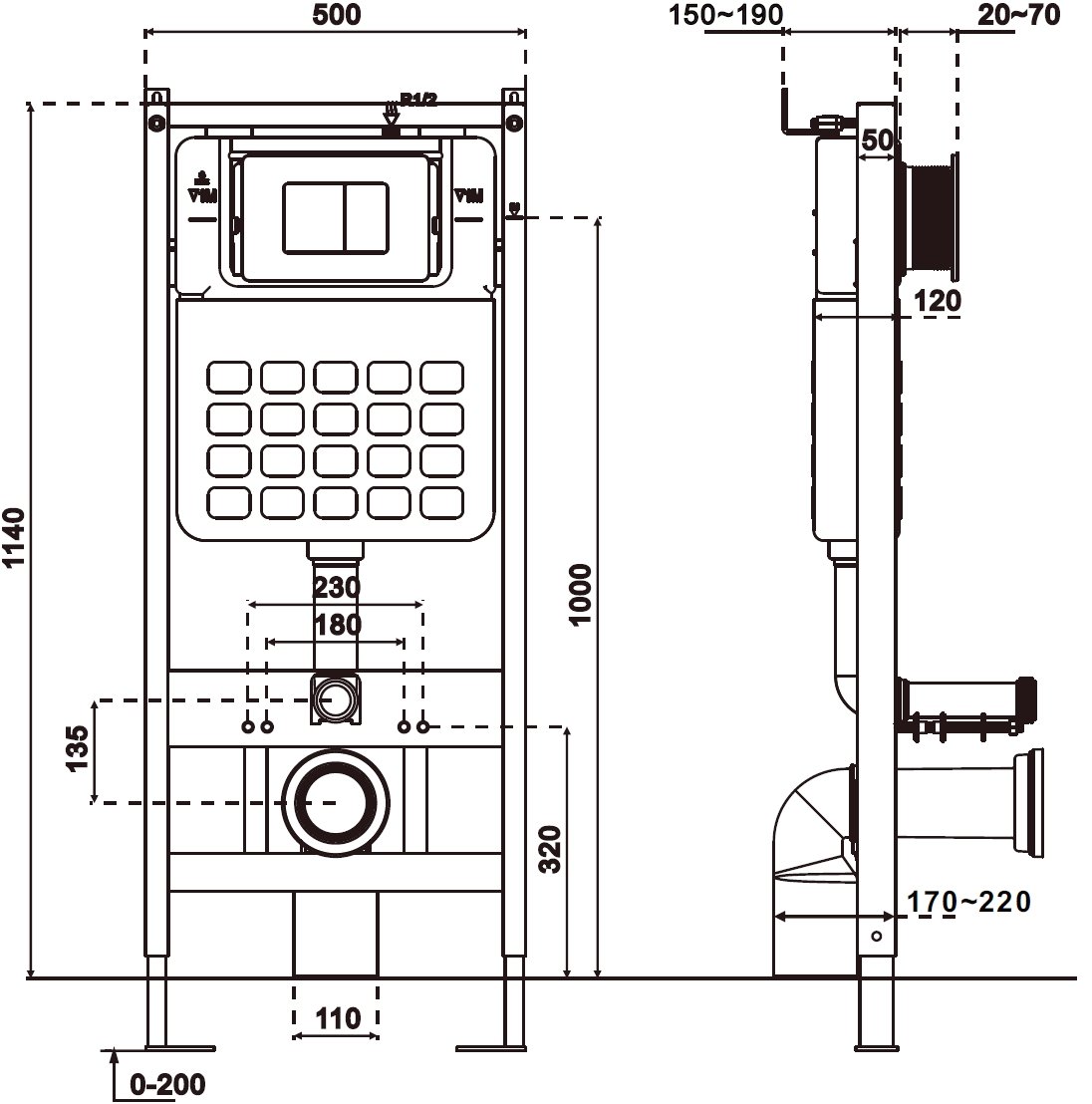

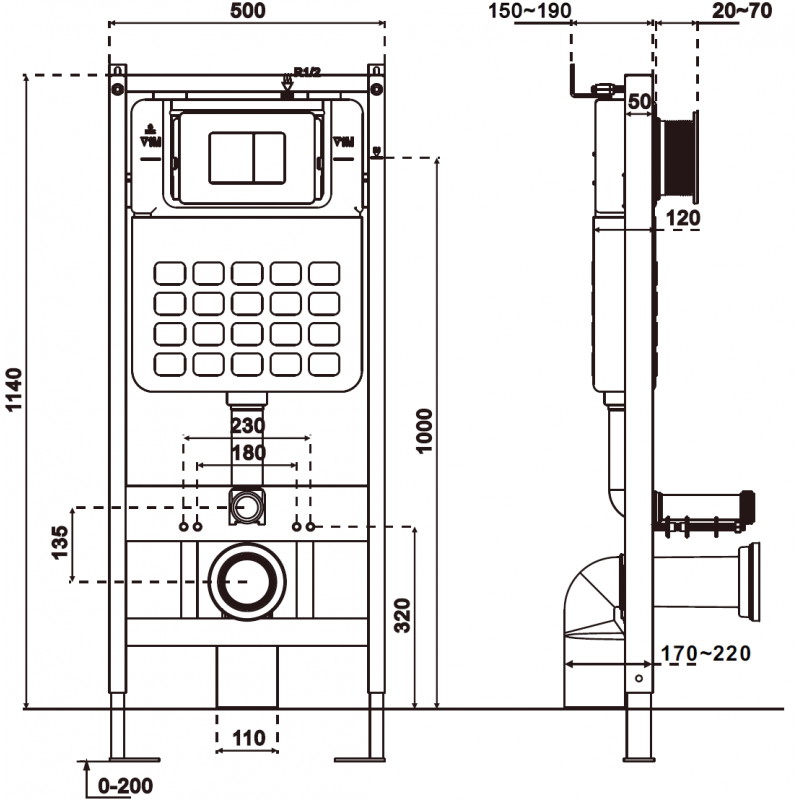

Product specification:

Height: 114 cm

Width: 50 cm

Thickness: 12 cm

SLIM version

For installation in full walls or plasterboard walls

For wall-hung toilet bowls with a hole spacing of 18 cm or 23 cm

For installation on floors with a thickness of 0-20 cm

Galvanized legs, adjustable within the range of 0-20 cm

Galvanized supports, adjustable within the range of 150-190 mm

Tank with anti-condensation insulation

Ability to set the flushed water amount: 6/9 L, 3/4.5L

Soundproofing mat included

To be completed with Mexen buttons from the Tex series

Innovative solutions used in this product

Slim

The concealed frame with reduced depth, which allows for installation even in very small rooms. Its thin construction perfectly fits into a modern bathroom interior, maintaining high aesthetics and giving a sense of lightness.

Mechanical Flushing

Flushing is activated in the traditional way – pressing the button activates a lever that opens the valve and flushes the water. It is a simple and intuitive solution, commonly found in bathrooms.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Tex Slim
Width
50 cm
Height
114 cm
Button included
No
Button Installation
From the Front
Mechanism
Mechanical
Warranty conditions
Download
User manual
Download
Safety information
Download
Manufacturer
See
