Mexen Tex Air Slim pneumatic concealed frame for WC - 61100A
Mexen Tex Air Slim pneumatic concealed frame for WC - 61100A Mexen Tex Air Slim pneumatic concealed frame for WC - 61100A
Pneumatic system Pneumatic system
Economical Flushing Economical Flushing
Adjustable Brackets Adjustable Brackets
Brand:
Mexen
Series:
Tex Air Slim
Ean:
5905315968869
Index:
61100A
Height:
114 cm
Button included:
No
Button Installation:
From the Front
Mechanism:
Pneumatic

Mexen Tex Air Slim pneumatic concealed frame for WC - 61100A

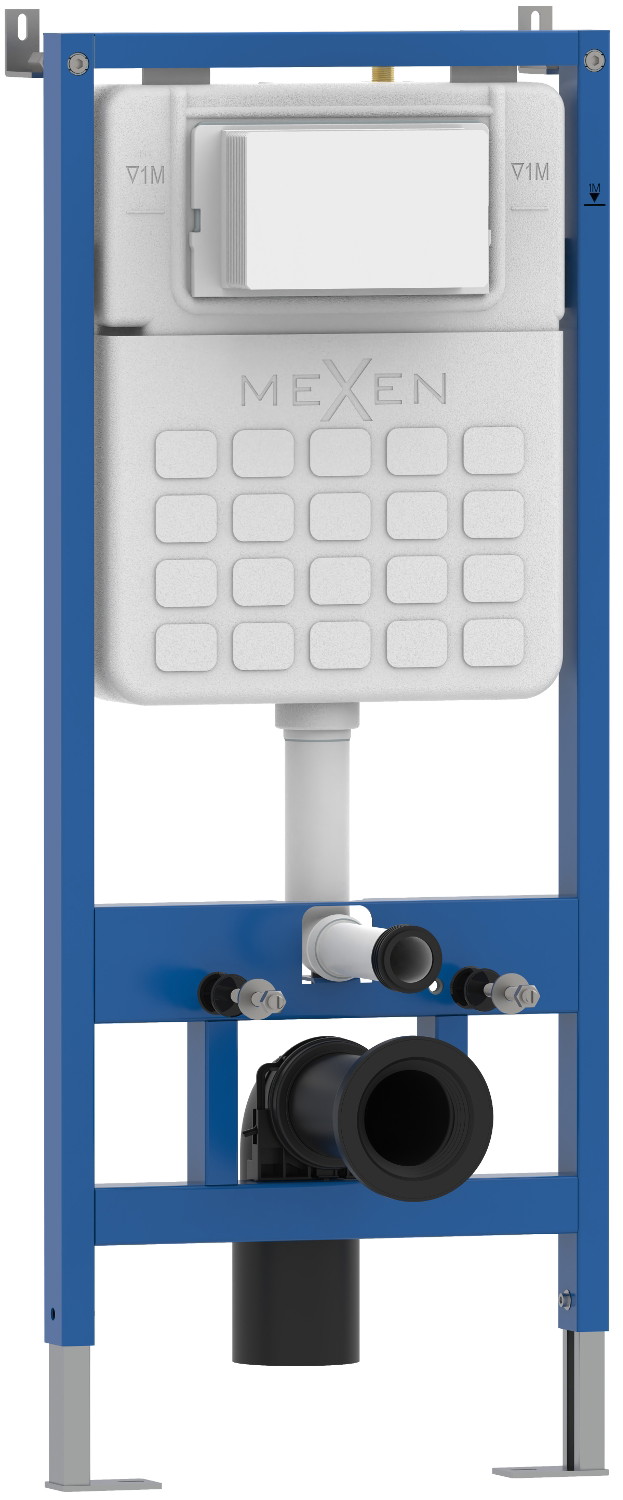

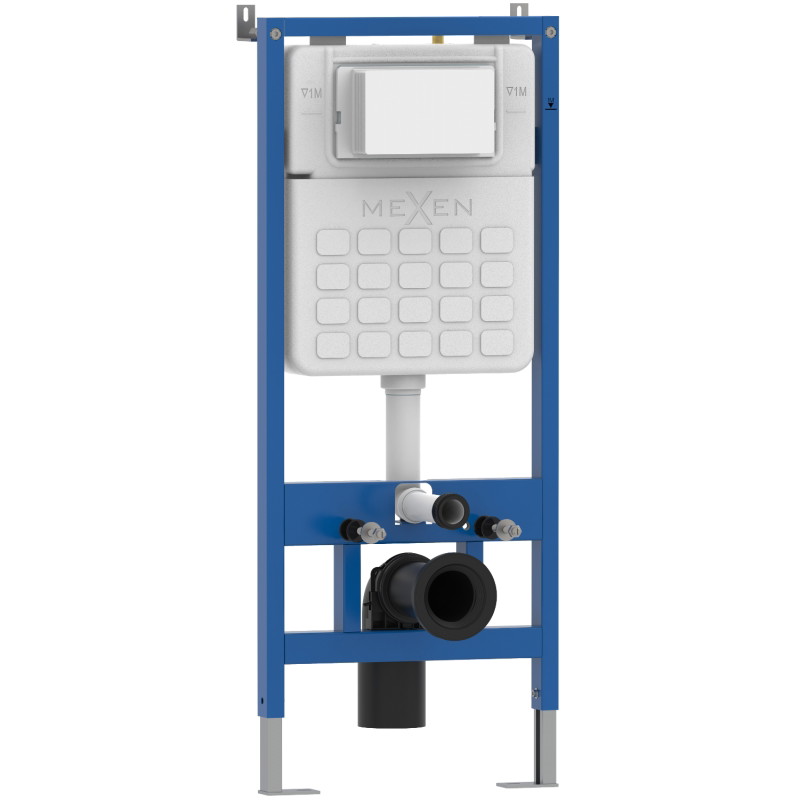

Mexen Tex Air Slim is a modern pneumatic concealed frame for WC, ideal for installation both in full walls and plasterboard walls. Thanks to the SLIM version and compact dimensions (height 114 cm, width 50 cm, thickness 12 cm), it is perfect even in small spaces. It features adjustable, galvanized legs and brackets, as well as a tank with anti-condensation insulation, ensuring durability and reliability. The flushing system allows for individual water amount settings, enhancing its functionality and water savings. The frame is compatible with buttons from the Tex series, allowing it to fit a wide range of bathroom designs.

Product Specification:

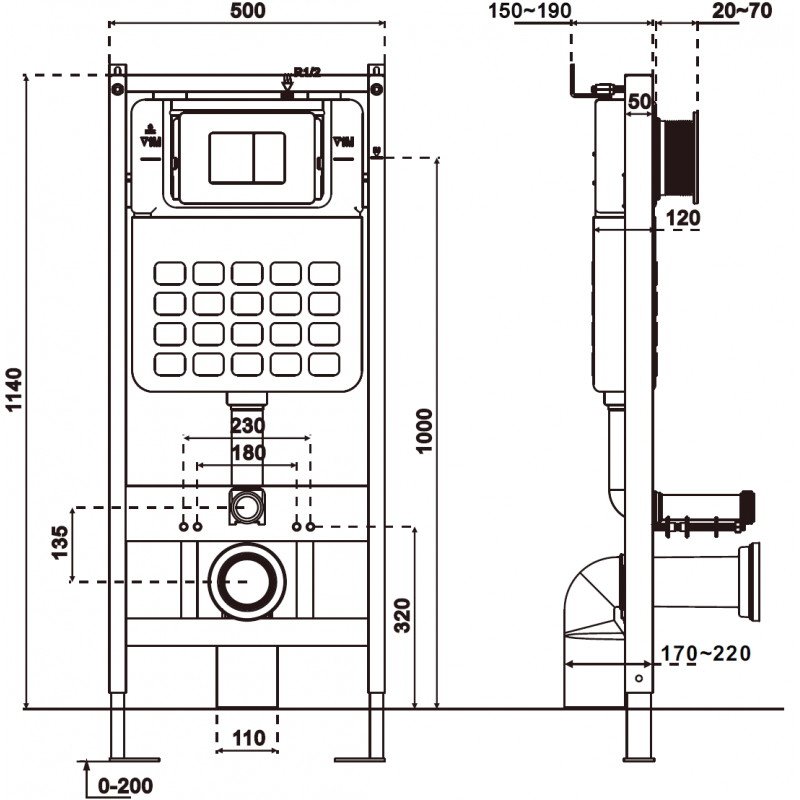

Height: 114 cm

Width: 50 cm

Thickness: 12 cm

SLIM version

Pneumatic flushing

For installation in a full wall or plasterboard wall

For wall-hung toilet bowl with hole spacing of 18 cm or 23 cm

For mounting on a substrate with floor layer thickness of 0-20 cm

Galvanized legs, adjustable in the range of 0-20 cm

Galvanized brackets, adjustable in the range of 150-190 mm

Tank with anti-condensation insulation

Possibility of setting the amount of flush water: 6/9 L, 3/4.5 L

Soundproof mat included

To be completed with Mexen buttons from the Tex series

Innovative solutions used in this product

Pneumatic system

The pneumatic flushing system is advanced technology that provides exceptional user comfort. Thanks to the use of compressed air, the flush buttons operate incredibly smoothly and quietly. Additionally, these systems are very precise, which makes flushing more efficient and economical.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Tex Air Slim
Width
50 cm
Height
114 cm
Button included
No
Button Installation
From the Front
Mechanism
Pneumatic
Warranty conditions
Download
User manual
Download
Safety Information
Download
Manufacturer
See
