Mexen Tex W narrow, corner concealed WC frame - 61105

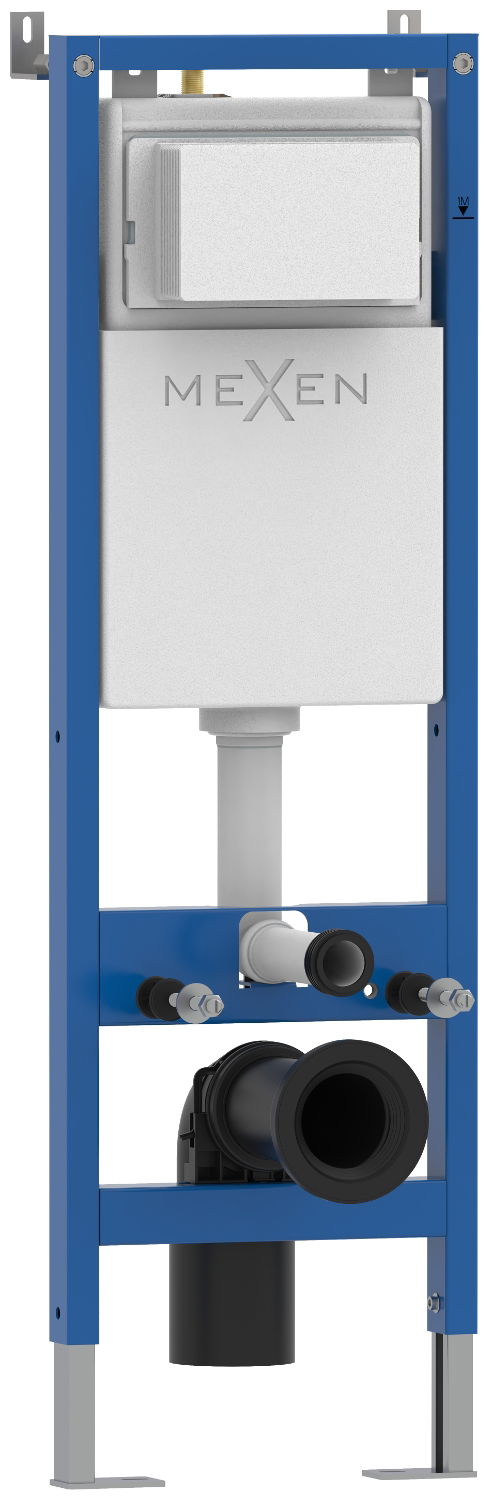

Mexen Tex W is the ideal solution for modern bathrooms. A narrow, corner concealed WC frame with a height of 114 cm, width of 38 cm, and thickness of 13.5 cm fits perfectly into any space. Thanks to mechanical flushing and the possibility of installation in solid and gypsum walls, it guarantees versatility and ease of installation. Adjustable legs and brackets ensure precise alignment, while the tank's anti-condensation insulation enhances user comfort. The product works with Mexen Tex buttons, allowing you to set the amount of flushed water to 6/9 L or 4.5/3 L, making it both an economical and ecological choice.

Product Specification:

Height: 114 cm

Width: 38 cm

Thickness: 13.5 cm

Mechanical flushing

For installation in solid walls or gypsum board walls

For wall-hung toilet with hole spacing of 18 cm or 23 cm

For installation on floor with floor layer thickness 0-20 cm

Zinc-coated legs, adjustable in range 0-20 cm

Zinc-coated support brackets, adjustable in range 160-230 mm

Tank with anti-condensation insulation

Possibility of setting the amount of flushed water: 6/9 L, 4.5/3 L

Includes a soundproofing mat

To be completed with Mexen buttons from the Tex series

Innovative solutions used in this product

Mechanical Flushing

Flushing is activated in the traditional way – pressing the button activates a lever that opens the valve and flushes the water. It is a simple and intuitive solution, commonly found in bathrooms.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Tex W
Width
38 cm
Height
114 cm
Button included
No
Button Installation
From the Front
Mechanism
Mechanical
