Mexen Tex Air E pneumatic concealed frame for WC - 61109A
Mexen Tex Air E pneumatic concealed frame for WC - 61109A Mexen Tex Air E pneumatic concealed frame for WC - 61109A
Pneumatic system Pneumatic system
Economical Flushing Economical Flushing
Adjustable Brackets Adjustable Brackets
Brand:
Mexen
Seria:
Tex Air E
Ean:
5905315968937
Index:
61109A
Button included:
No
Button Installation:
From the front
Mechanism:
Pneumatic
Height:
114 cm

Mexen Tex Air E pneumatic concealed frame for WC - 61109A

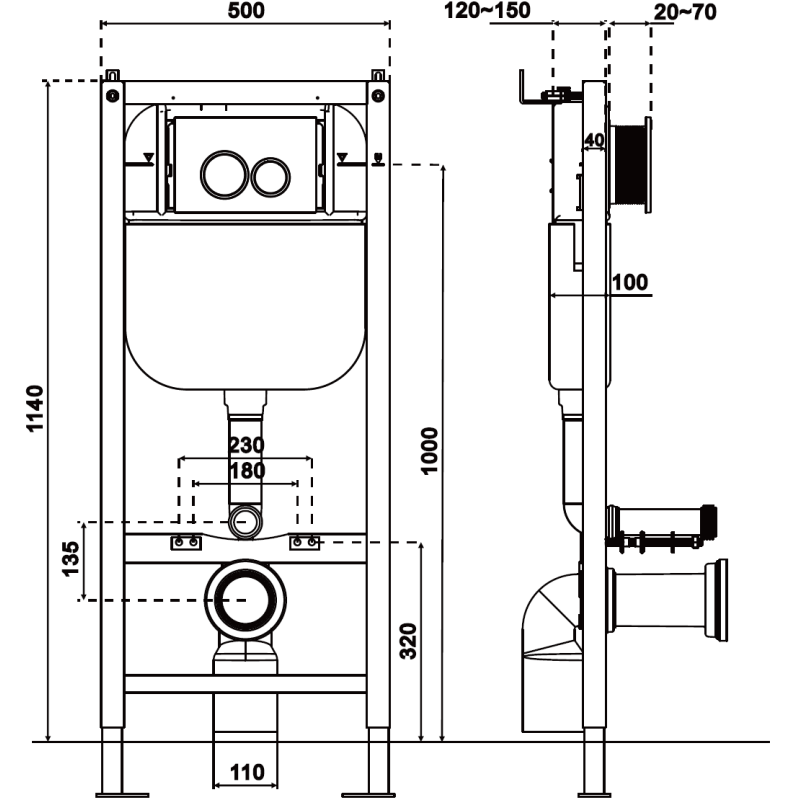

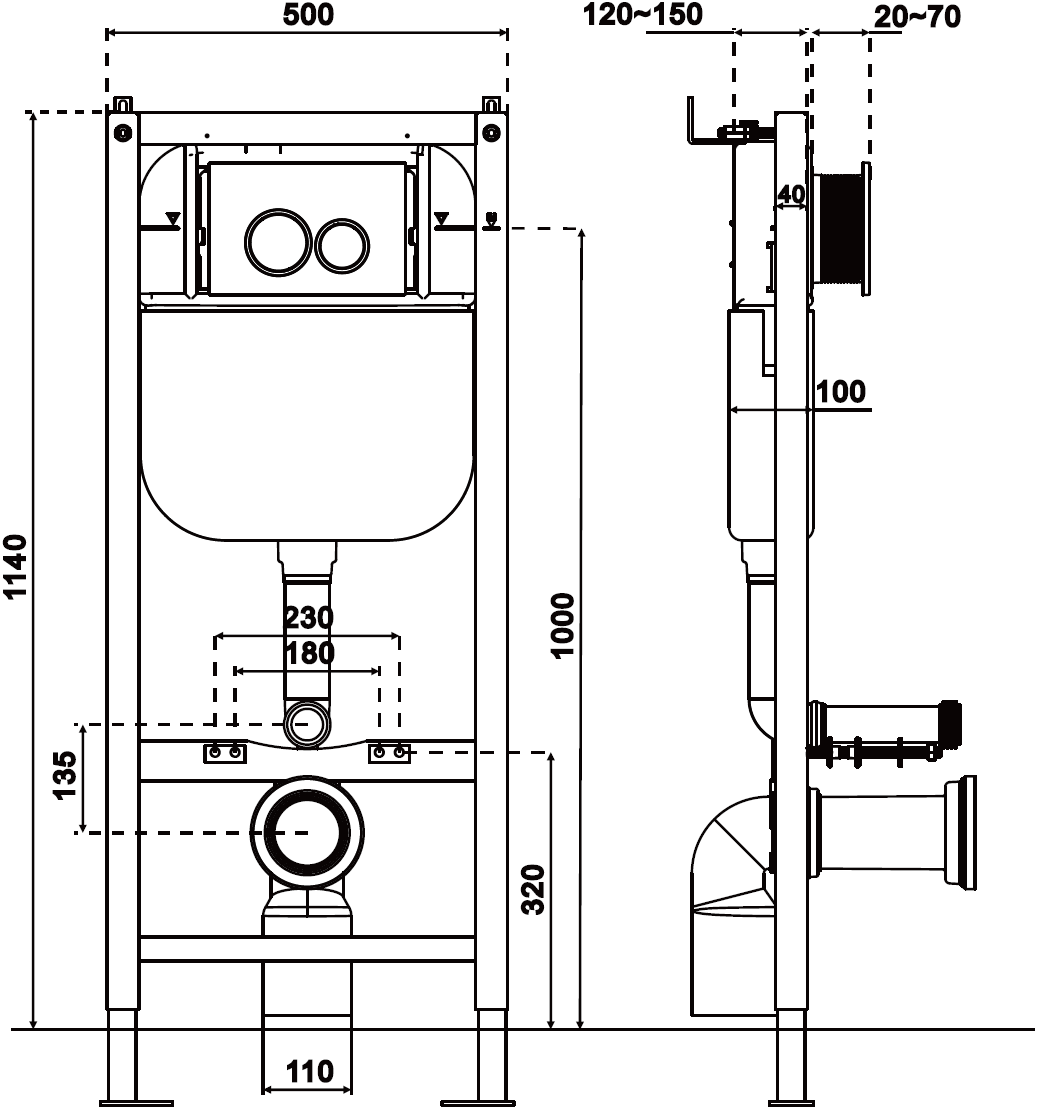

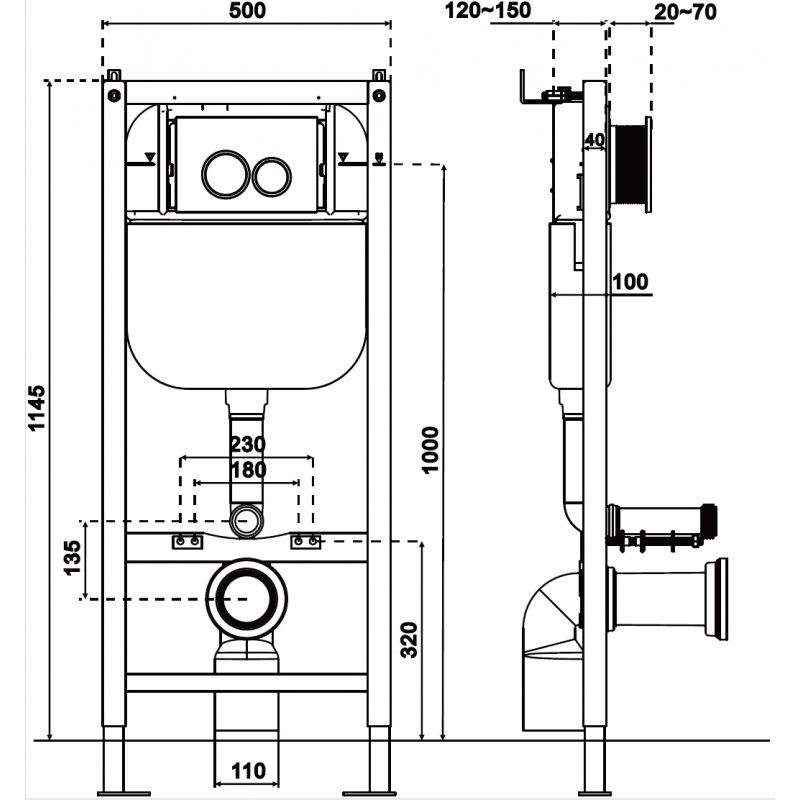

Product Specification:

Height: 114 cm

Width: 50 cm

Thickness: 10 cm

Pneumatic flushing

For installation in a full wall or gypsum board wall

For a hanging bowl with a hole spacing of 18 cm or 23 cm

For installation on a floor with a floor thickness of 0 - 20 cm

Galvanized, adjustable legs in the range of 0-20 cm

Galvanized brackets, adjustable in the range of 120-150 mm

Tank with anti-condensation insulation

Possibility to adjust the amount of flushing water: 6/7.5 L, 3/4.5 L

Innovative solutions used in this product

Pneumatic system

The pneumatic flushing system is advanced technology that provides exceptional user comfort. Thanks to the use of compressed air, the flush buttons operate incredibly smoothly and quietly. Additionally, these systems are very precise, which makes flushing more efficient and economical.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Serial
Tex Air E
Width
50 cm
Height
114 cm
Button included
No
Button Installation
From the front
Mechanism
Pneumatic
