Mexen Tex Air XS-F pneumatic concealed frame for WC - 61800A
Mexen Tex Air XS-F pneumatic concealed frame for WC - 61800A Mexen Tex Air XS-F pneumatic concealed frame for WC - 61800A
Pneumatic system Pneumatic system
Economical Flushing Economical Flushing
Adjustable Brackets Adjustable Brackets
Brand:
Mexen
Series:
Tex Air XS-F
Ean:
5905315968968
Index:
61800A
Height:
80 cm
Button included:
No
Button mounting:
From the front
Mechanism:
Pneumatic

Mexen Tex Air XS-F pneumatic concealed frame for WC - 61800A

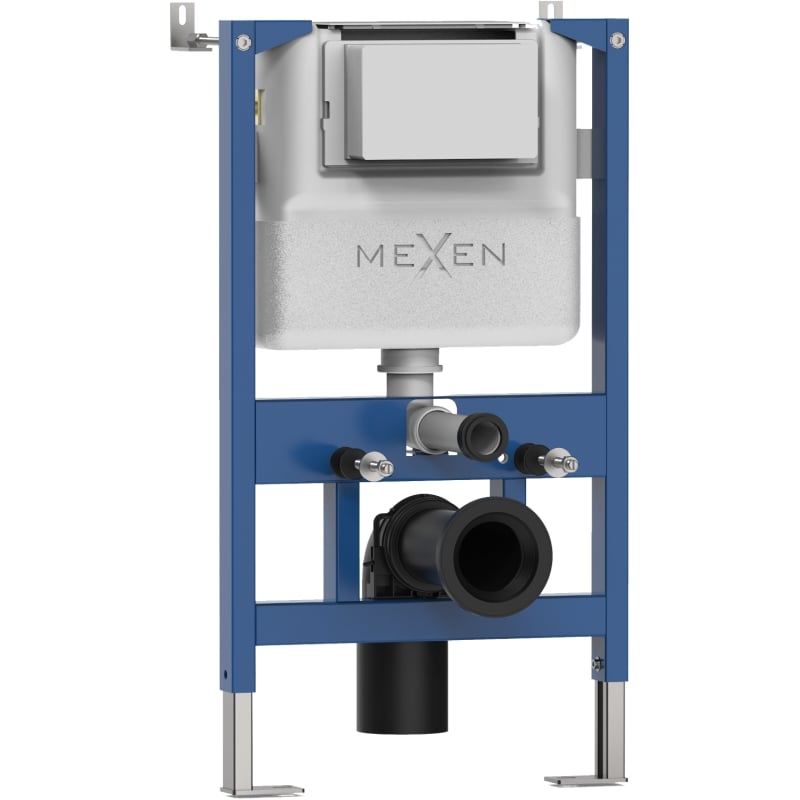

The Mexen Tex Air XS-F is a modern concealed toilet frame characterized by its compact dimensions: height 80 cm, width 50 cm, and thickness 15 cm. Thanks to the pneumatic flushing system, it ensures convenient and efficient use. The legs and brackets are galvanized and adjustable, making it easy to adapt to individual needs. The tank features anti-condensation insulation, and the ability to set the flushing water volume to 3 or 6 liters allows for savings. The product is compatible with Mexen buttons from the Tex series.

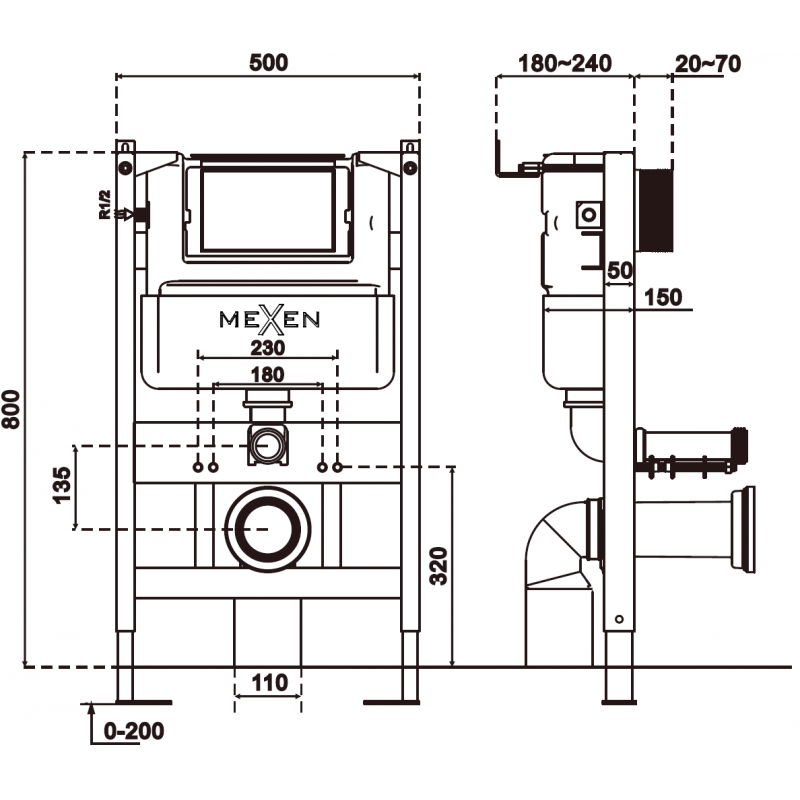

Product specifications:

Height: 80 cm

Width: 50 cm

Thickness: 15 cm

Pneumatic flushing

Galvanized, adjustable legs ranging from 0 to 20 cm

Galvanized brackets, adjustable from 180 to 240 mm

Tank with anti-condensation insulation

Ability to set the flushing water volume: 3/6 L

Soundproofing mat included

To be completed with Mexen buttons from the Tex series

Innovative solutions used in this product

Pneumatic system

The pneumatic flushing system is advanced technology that provides exceptional user comfort. Thanks to the use of compressed air, the flush buttons operate incredibly smoothly and quietly. Additionally, these systems are very precise, which makes flushing more efficient and economical.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Tex Air XS-F
Width
50 cm
Height
80 cm
Button included
No
Mechanism
Pneumatic
Button mounting
From the front
Warranty conditions
Download
User manual
Download
Safety information
Download
Manufacturer
See
