Mexen Tex Air XS-U pneumatic concealed frame for WC - 61850A

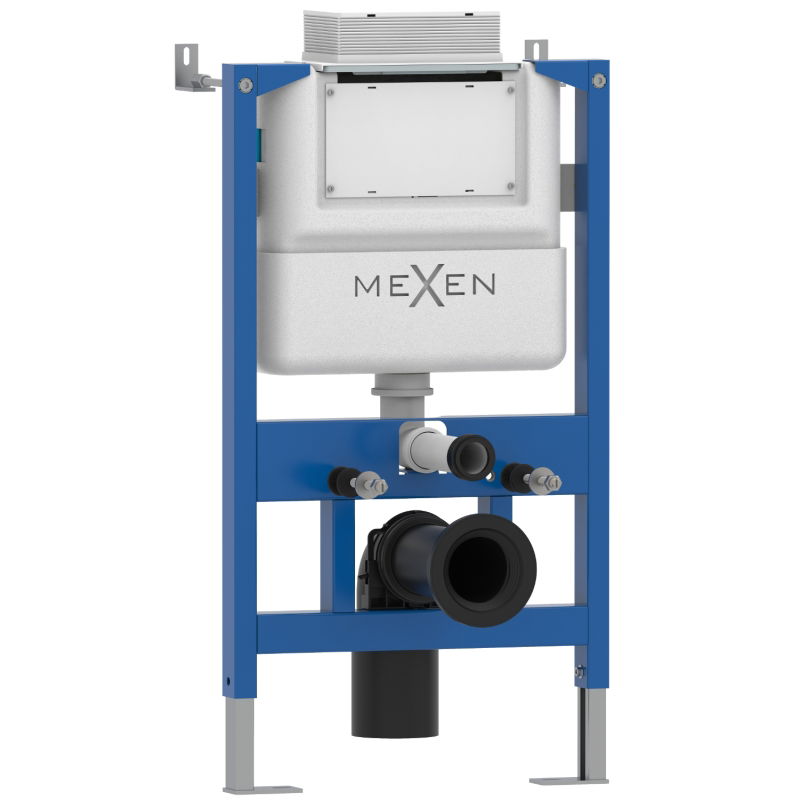

The Mexen Tex Air XS-U concealed frame combines modernity and functionality. It features compact dimensions: height 80 cm, width 50 cm, and thickness 14 cm, allowing for installation in various spaces. Thanks to the pneumatic flushing system and adjustable, zinc-plated legs and supports, you can tailor the installation to your needs. The tank with anti-condensation insulation provides additional protection, and the option to adjust the amount of flushing water 3/6 L increases savings. The product is compatible with Mexen buttons from the Tex series, making it an ideal choice for any bathroom.

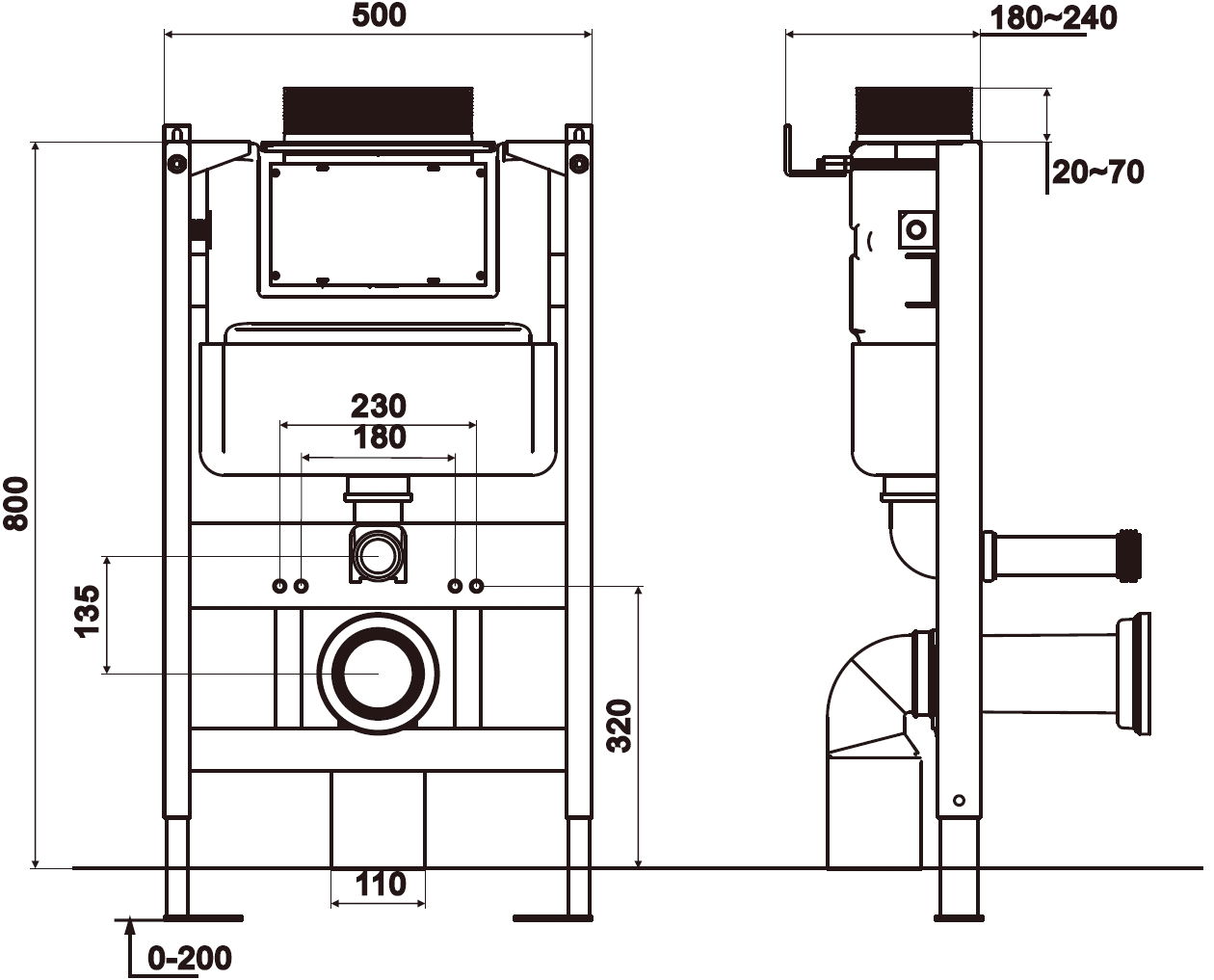

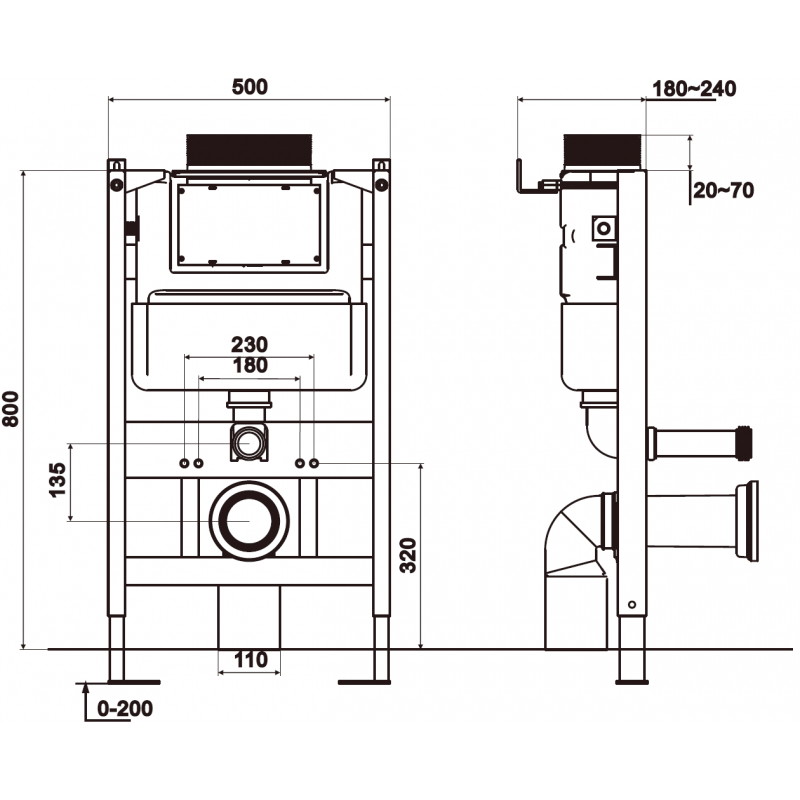

Product Specification:

Height: 80 cm

Width: 50 cm

Thickness: 14 cm

Pneumatic flushing

Zinc-plated, adjustable legs, adjustable from 0-20 cm

Zinc-plated supports, adjustable from 180-240 mm

Tank with anti-condensation insulation

Ability to set the amount of flushing water: 3/6 L

Soundproofing mat included

To be combined with Mexen buttons from the Tex series

Innovative solutions used in this product

Pneumatic system

The pneumatic flushing system is advanced technology that provides exceptional user comfort. Thanks to the use of compressed air, the flush buttons operate incredibly smoothly and quietly. Additionally, these systems are very precise, which makes flushing more efficient and economical.

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Top Button

The button is located at the top of the frame, making it easier to access and conveniently use the flushing function. This is a practical solution especially in bathrooms where top access is more comfortable and allows for convenient use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Tex Air XS-U
Width
50 cm
Height
80 cm
Button included
No
Button Installation
From the Top
Mechanism
Pneumatic
