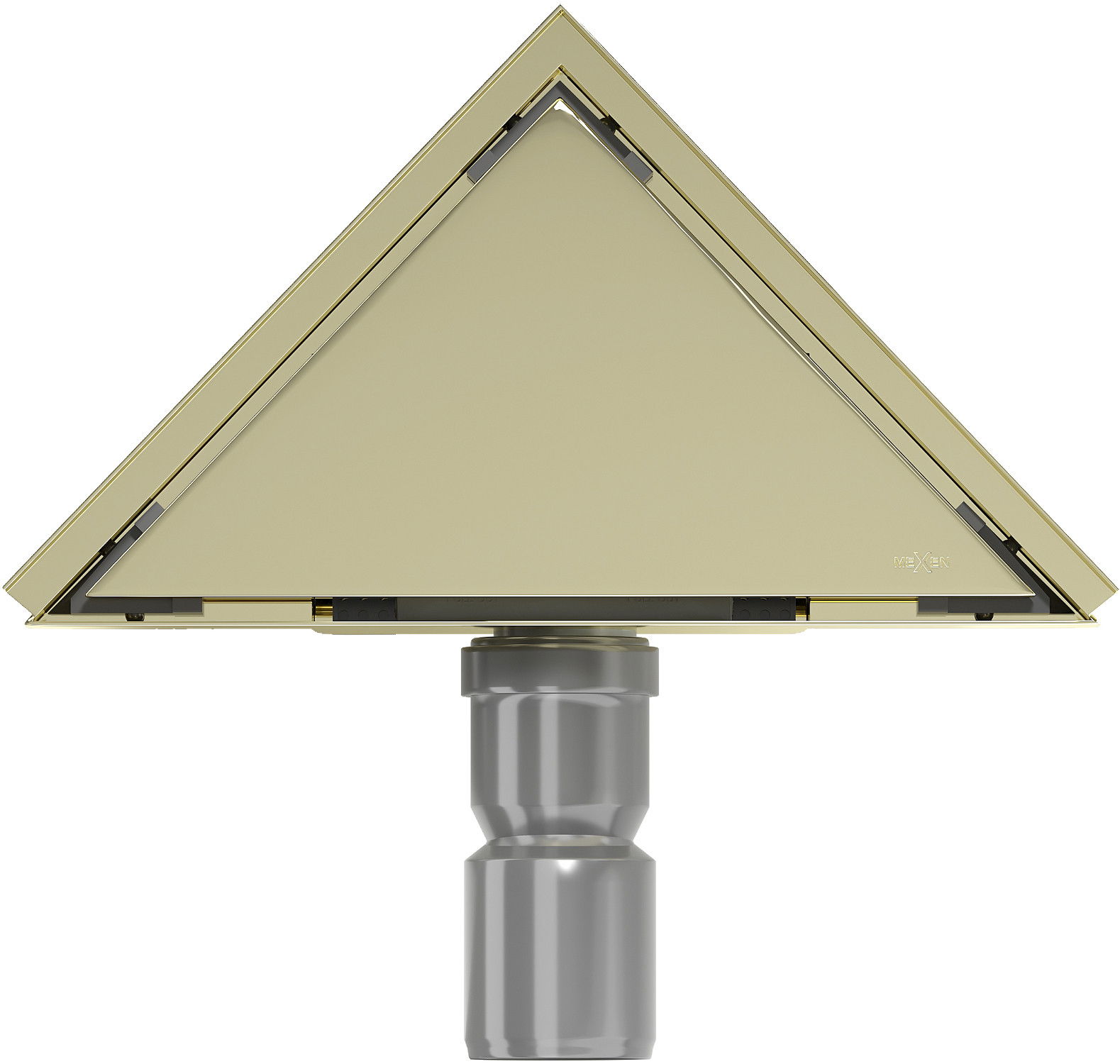

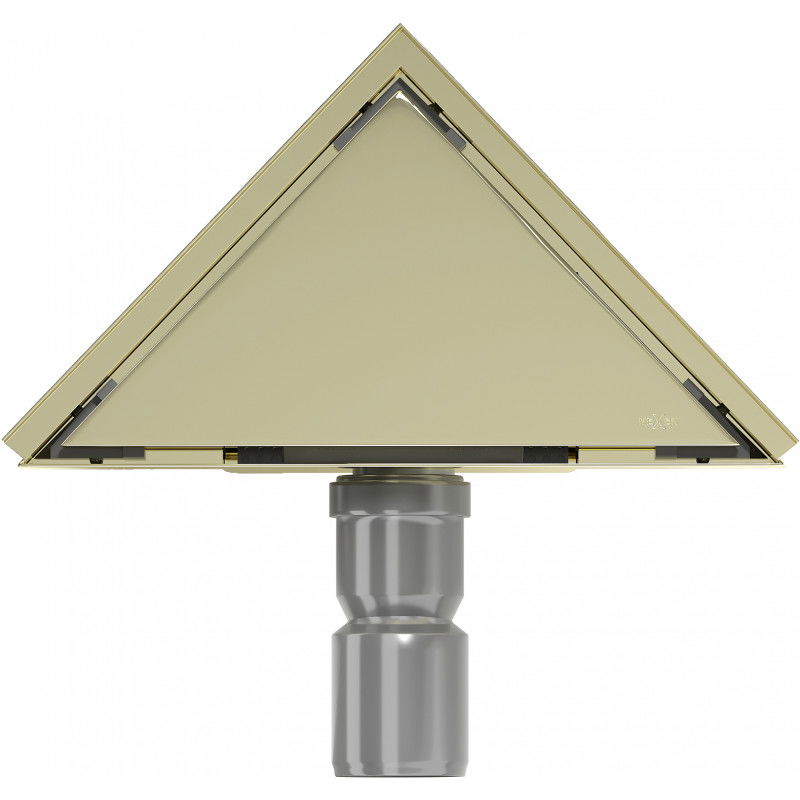

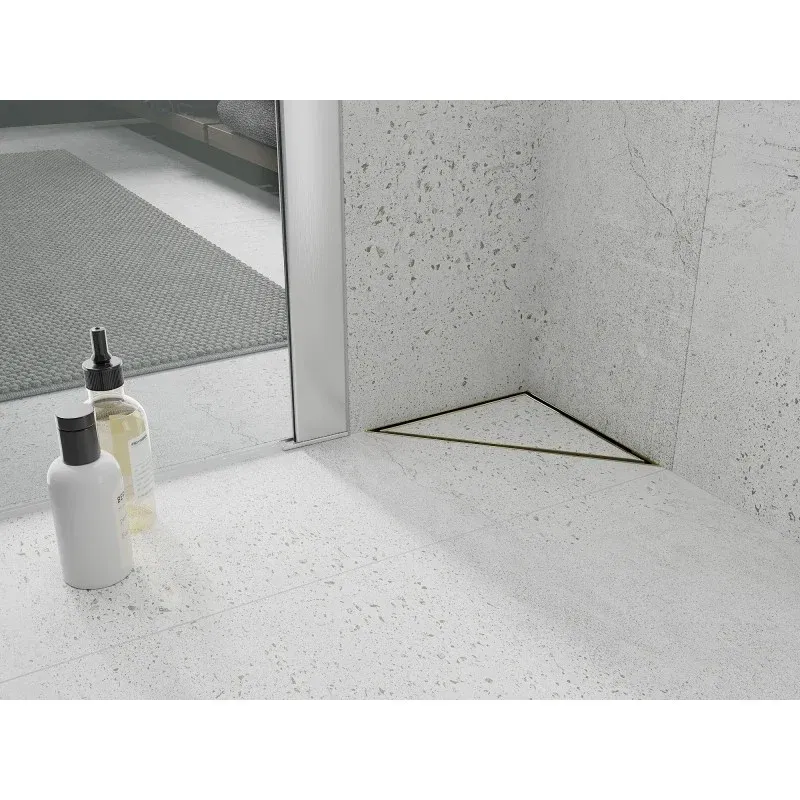

Mexen Flat-T M13 triangular floor drain 20 x 20 cm, gold - 1510320

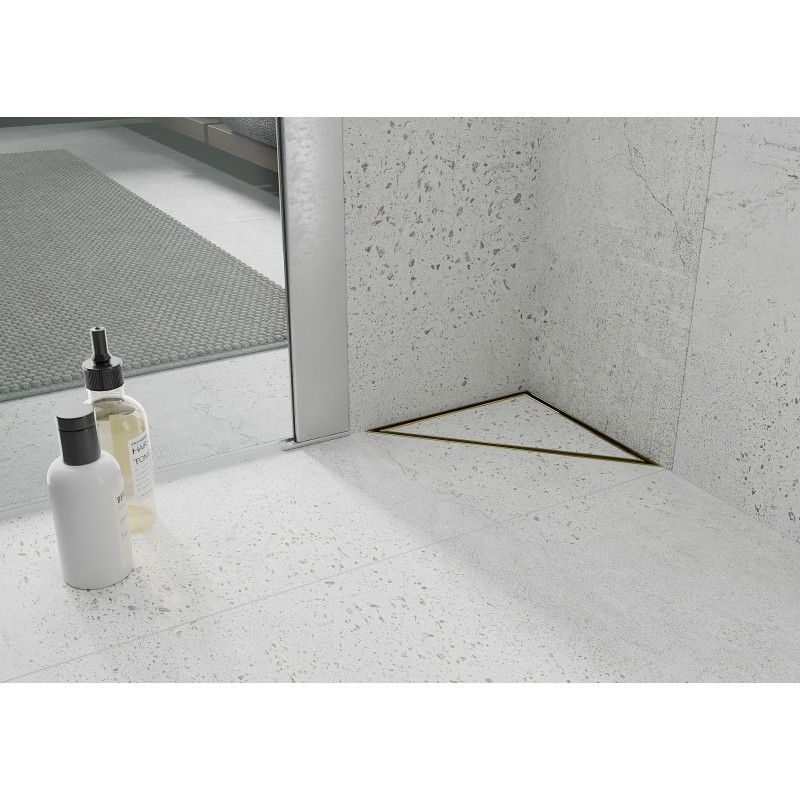

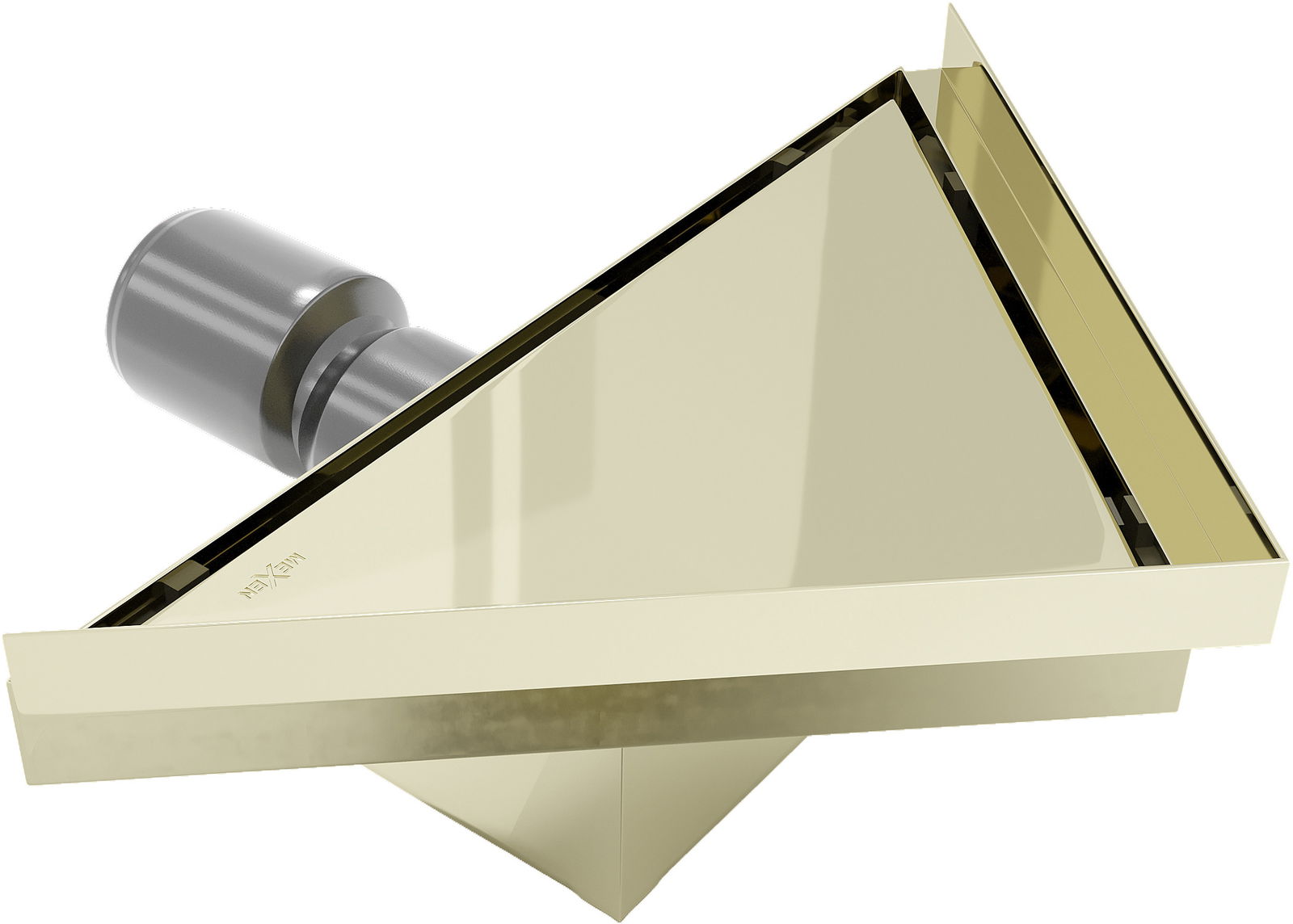

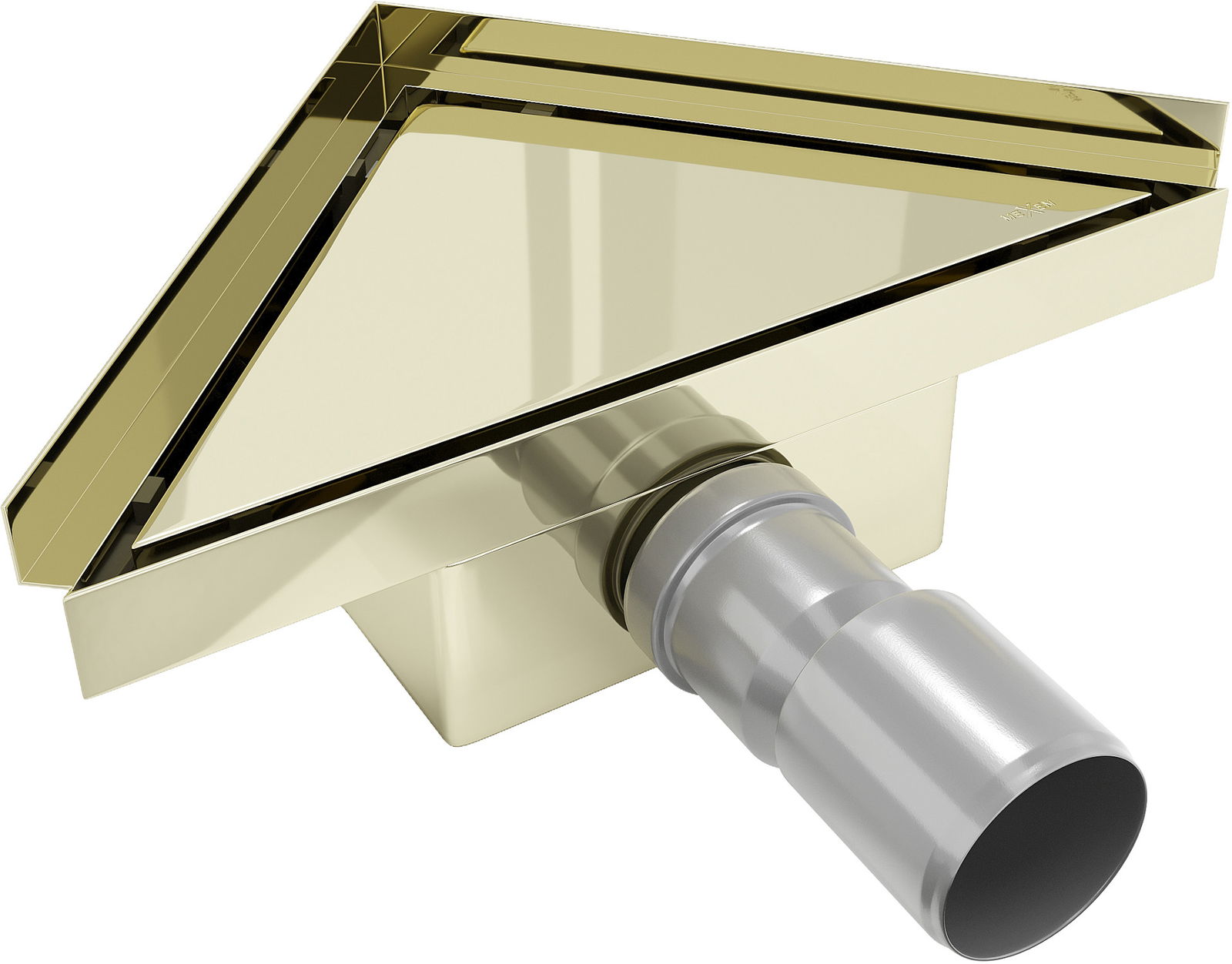

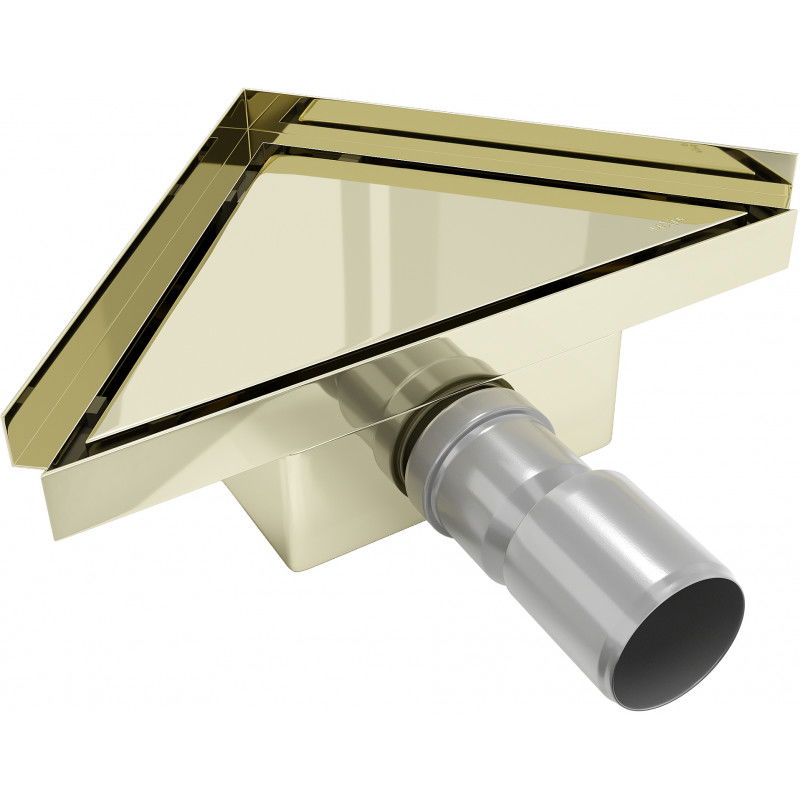

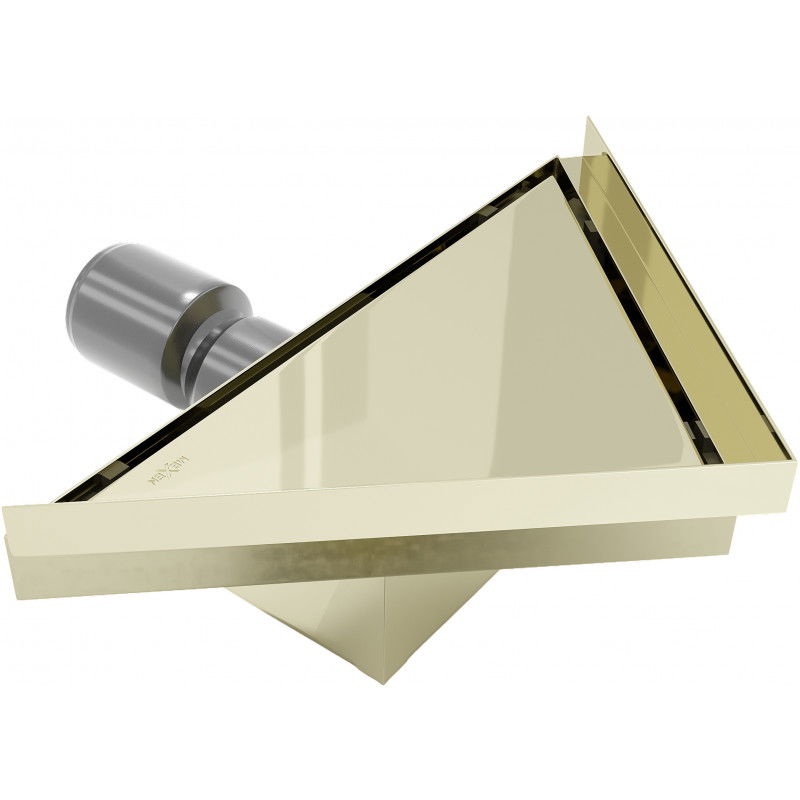

The Mexen Flat-T M13 floor drain is a premium choice for elegant and efficient water management. Made from durable AISI 304 stainless steel, it features a gold tile finish that adds a touch of luxury to any space. With a width of 20 cm and an installation depth of 52 mm, it boasts a high capacity of 50 l/min. The dual-sided grate is designed for easy tile inlay, with a thickness of 1.2 mm. Additional features include a removable dirt filter, odor-trapping siphon, and a sealing sleeve, ensuring reliable and odor-free performance.

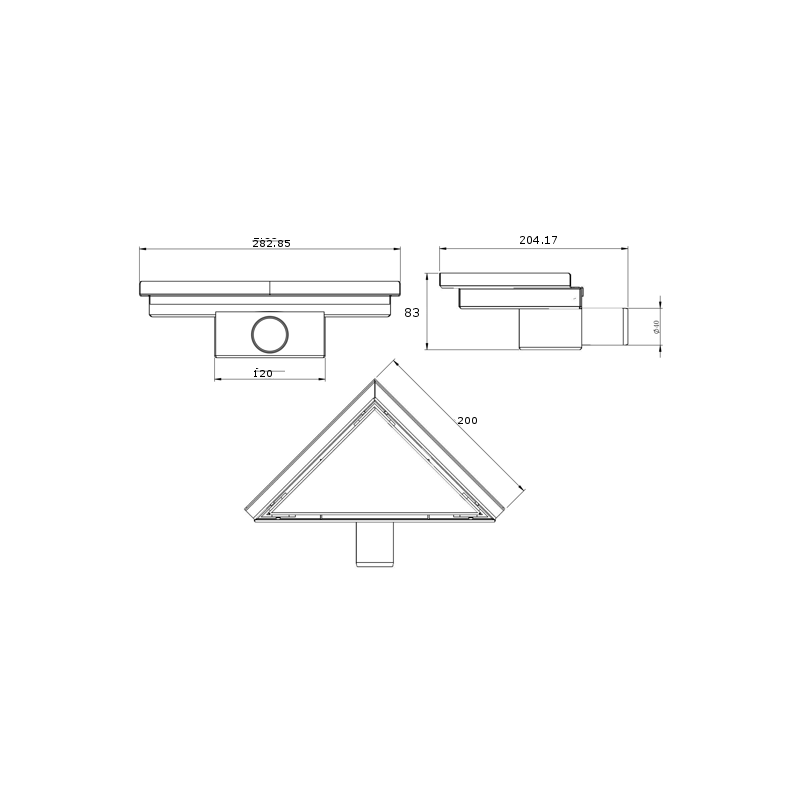

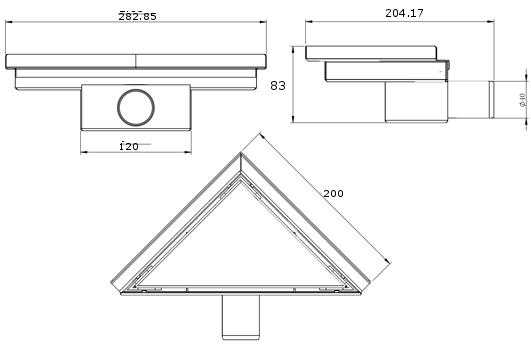

Product Specification:

Material: Stainless steel AISI 304

Finish: Tile/Gold

Width: 20 cm

Installation Depth: 52 mm

Flow Rate: 50 l/min

Tile insert grate

Grate type: Double-sided

Channel and grate thickness: 1.2 mm

Surrounding flange - 2 cm

Grate depth - 12 mm

The set includes:

Double-sided cover with damping spacers

Removable dirt filter

Siphon to prevent unpleasant odors

Water drainage channel

Reduction 50/40 mm

Sealing gasket

Hook for removing the cover

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

High Capacity

A capacity of 50l/min, which means the drainage can handle up to 50 liters of water in 1 minute. This allows the user to enjoy the comfort of a shower without worrying about excessive water accumulation.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

Option to apply tile

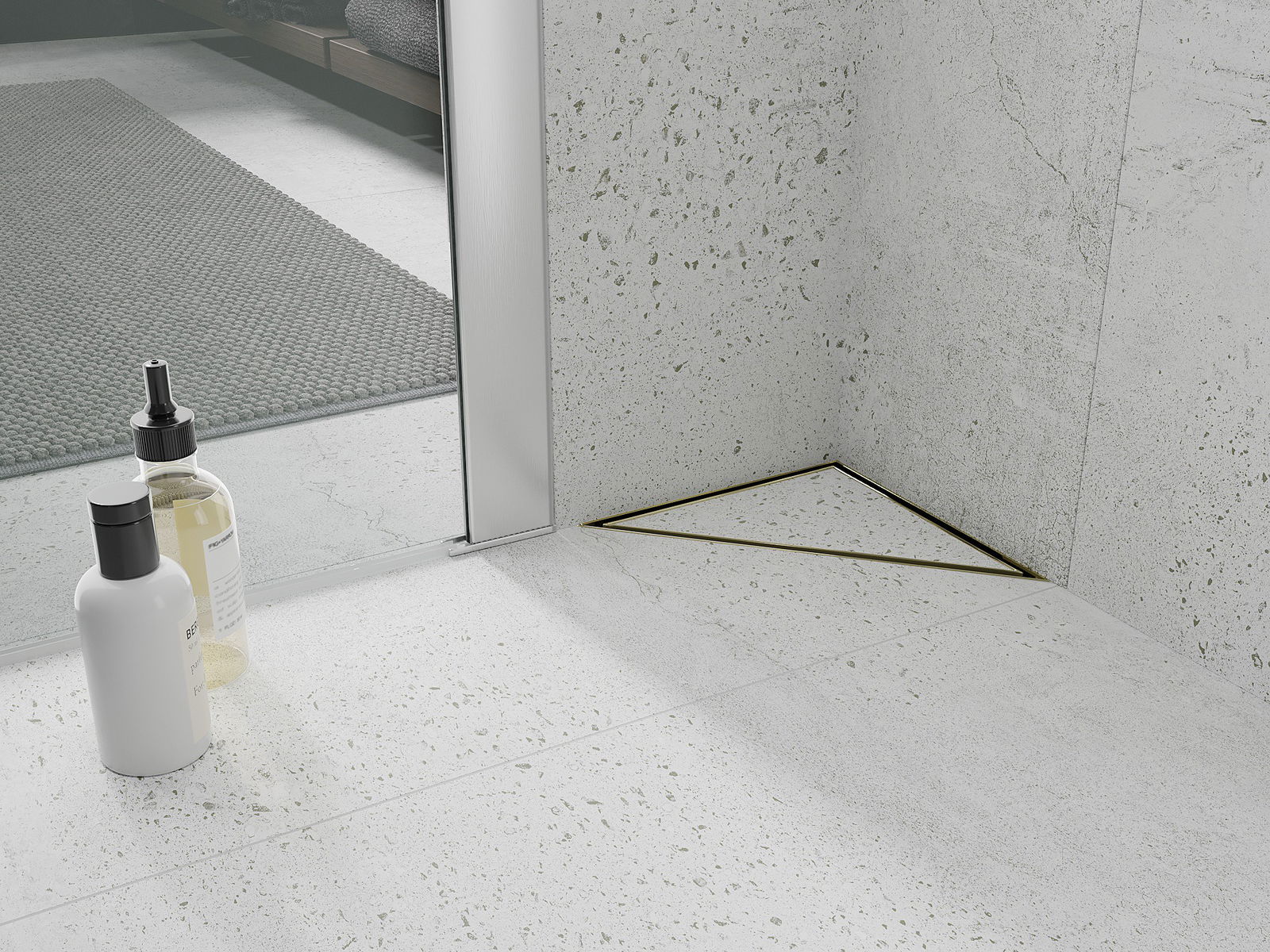

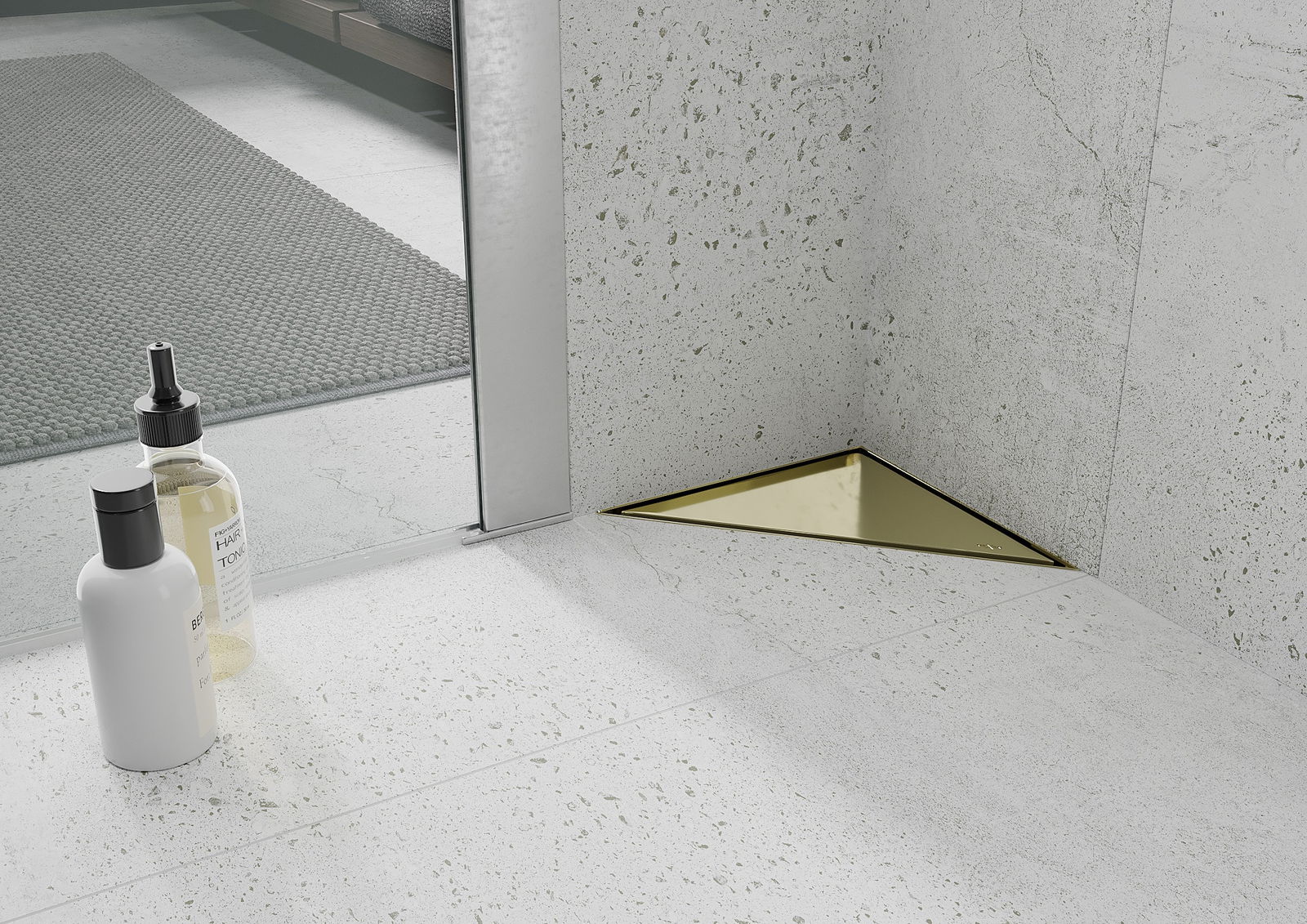

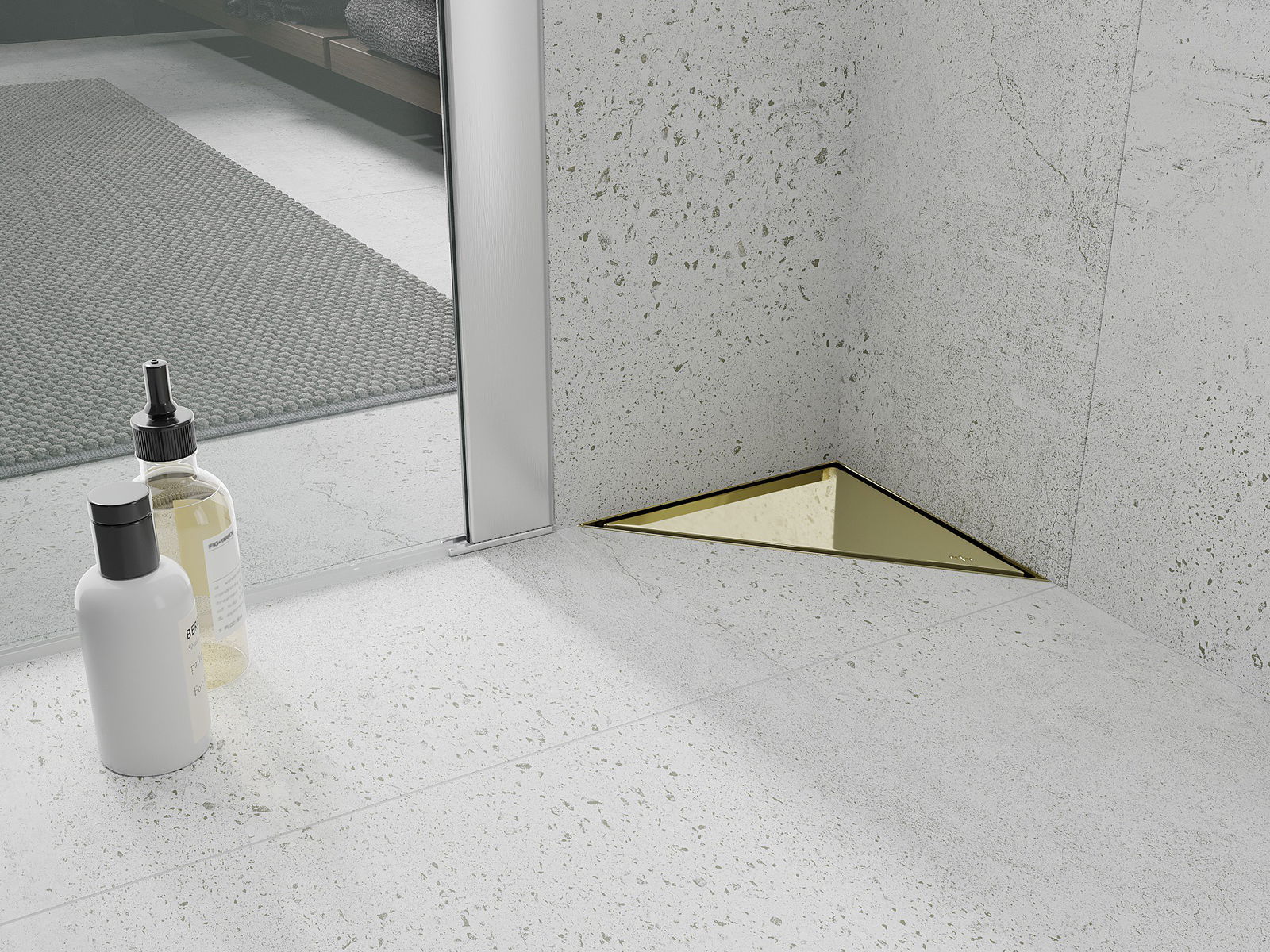

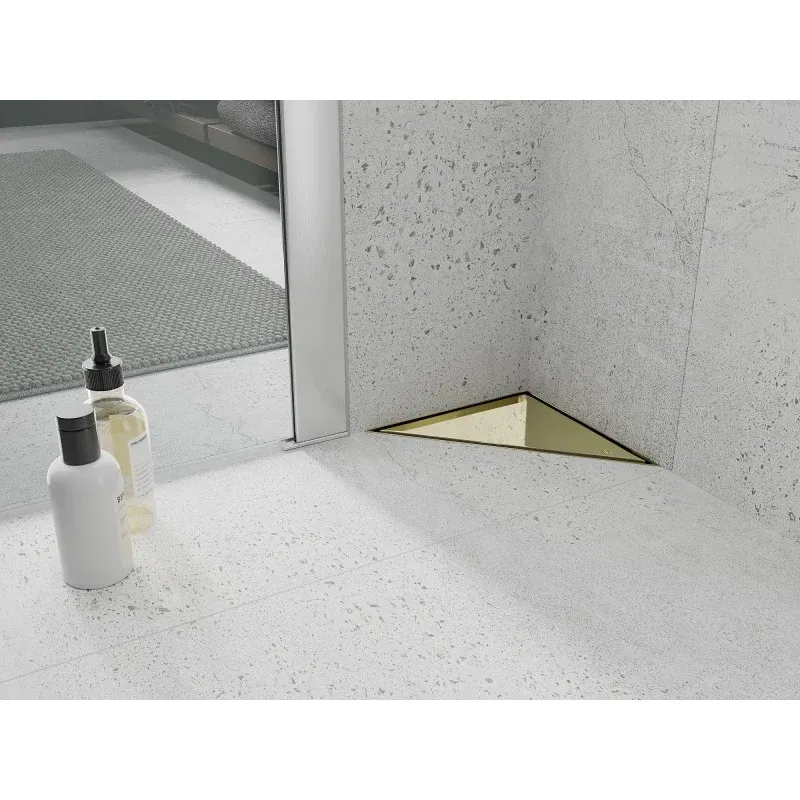

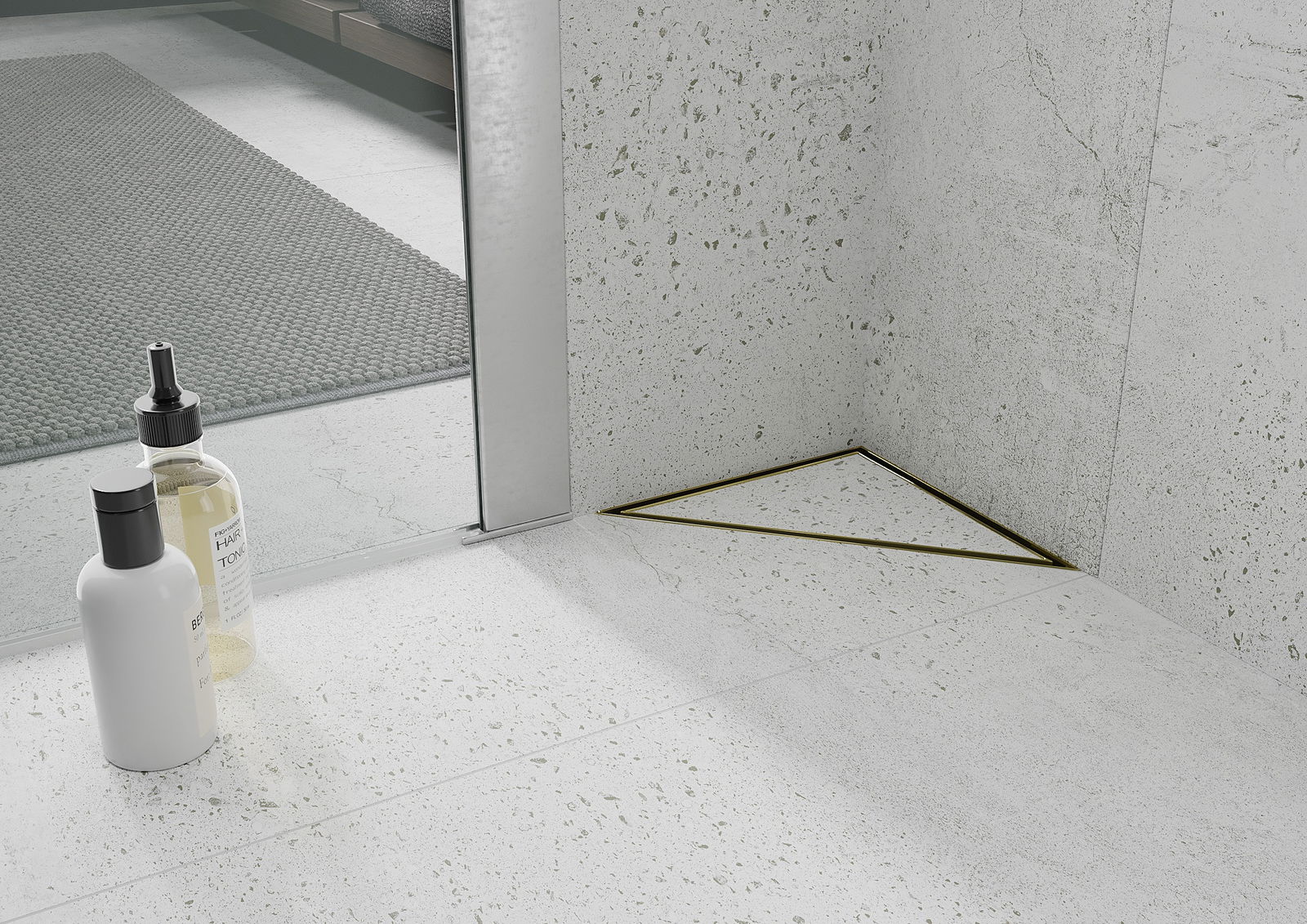

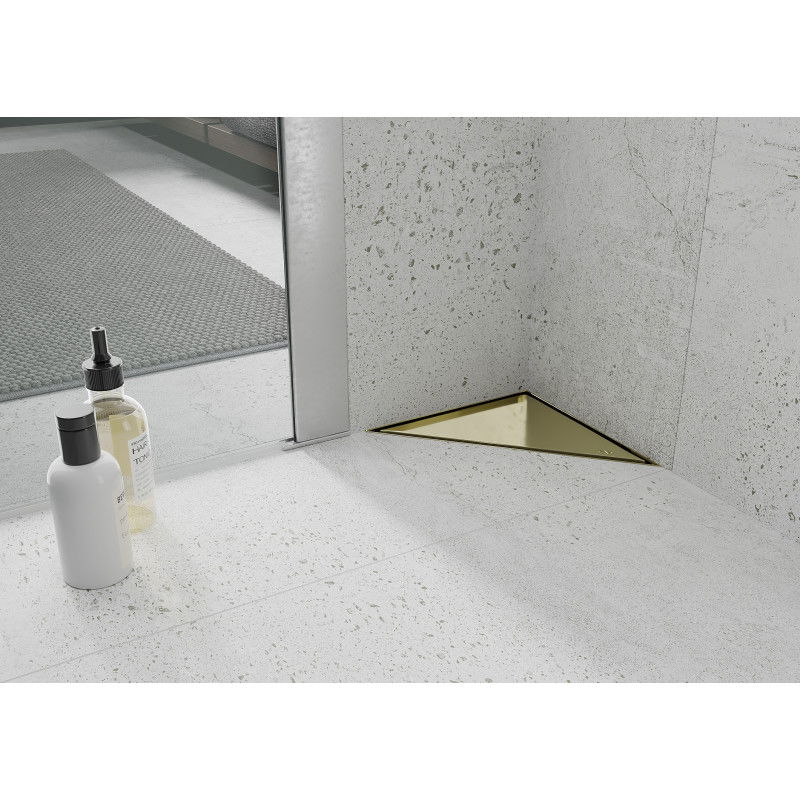

A double-sided cover with the option to rotate at any moment allows for changing the arrangement. On one side, there is smooth stainless steel; when reversed, the cover can be tiled to create a connection with the floor.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Series
Flat-T
Size
20 cm
Color
Gold
Shape
Triangular
Template pattern
M13
Possibility to attach tile
Yes
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
