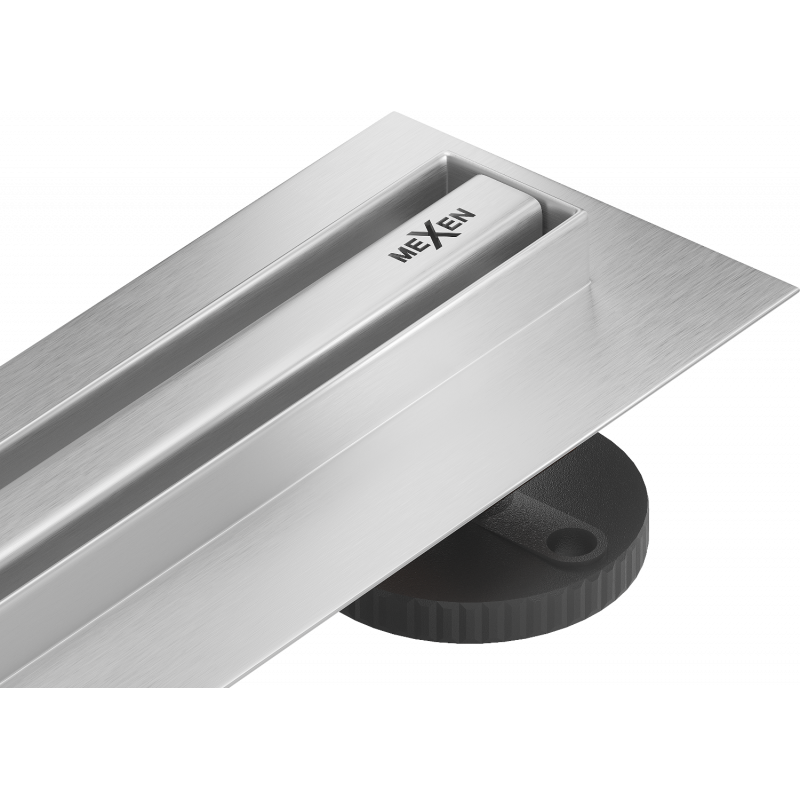

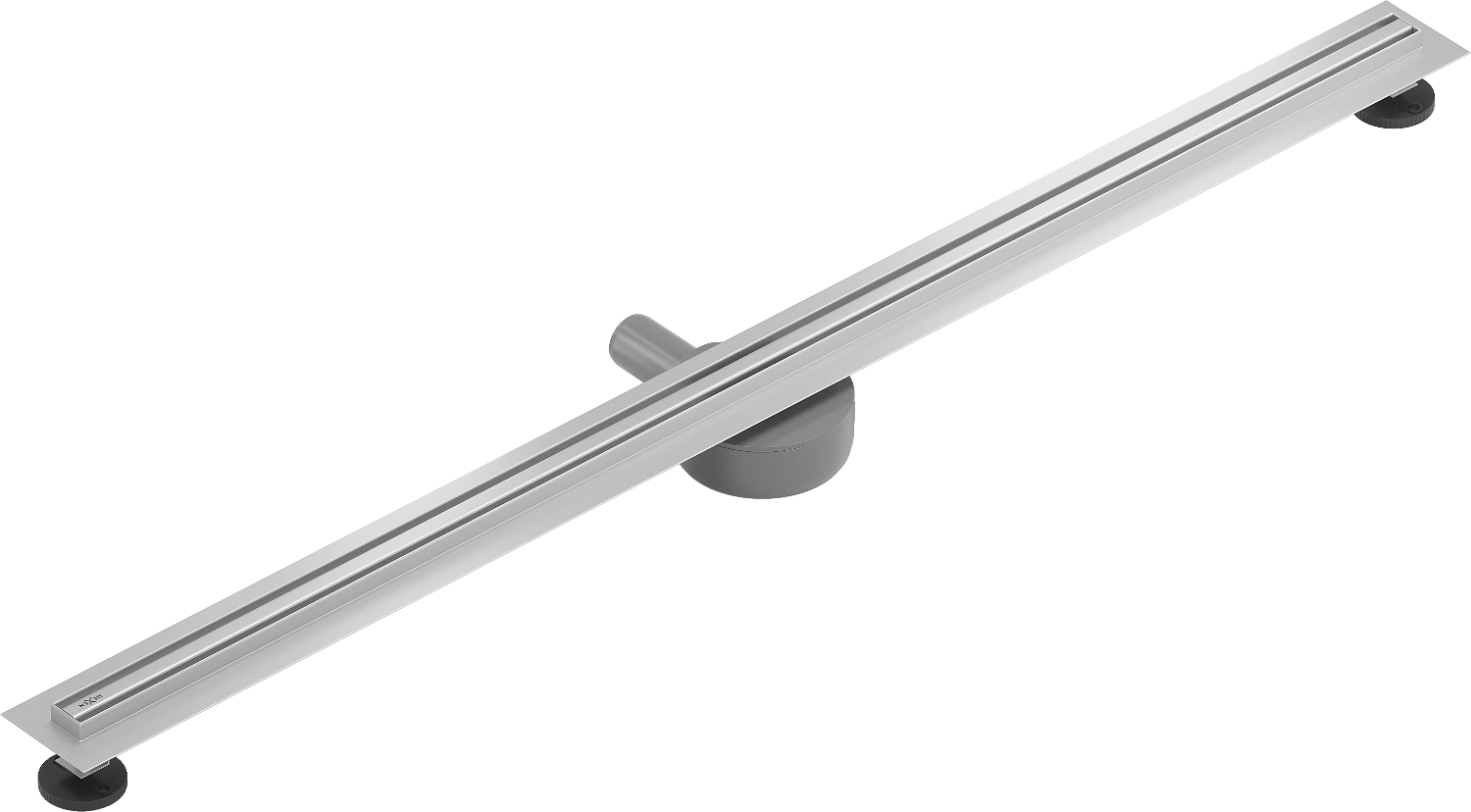

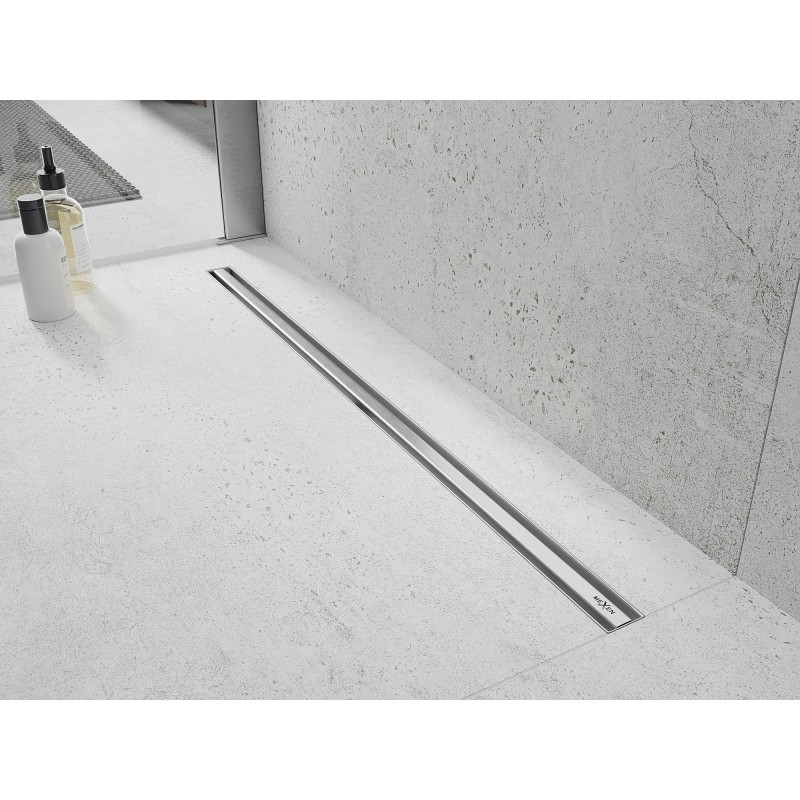

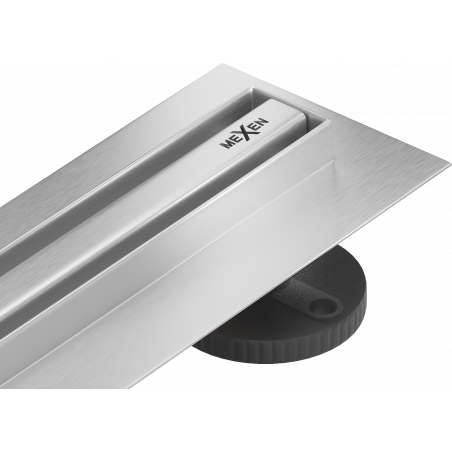

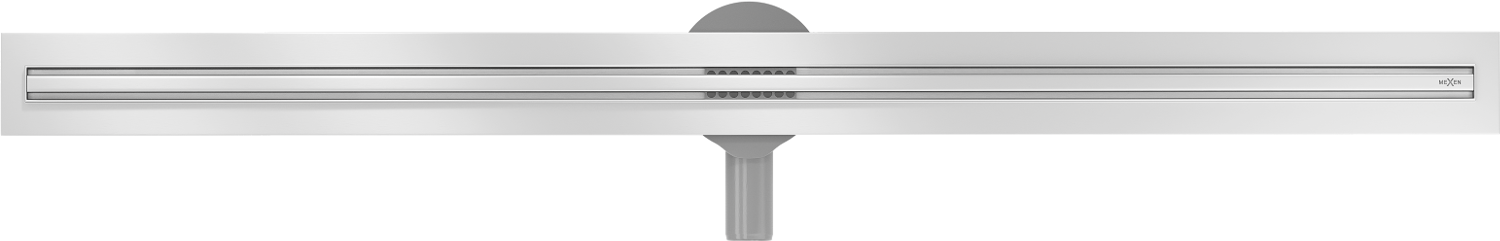

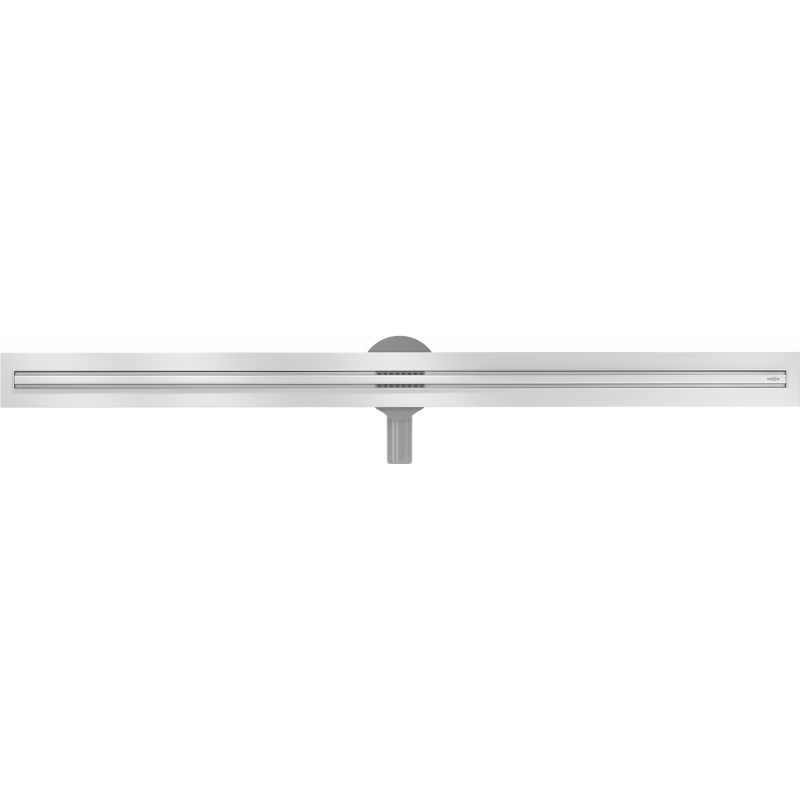

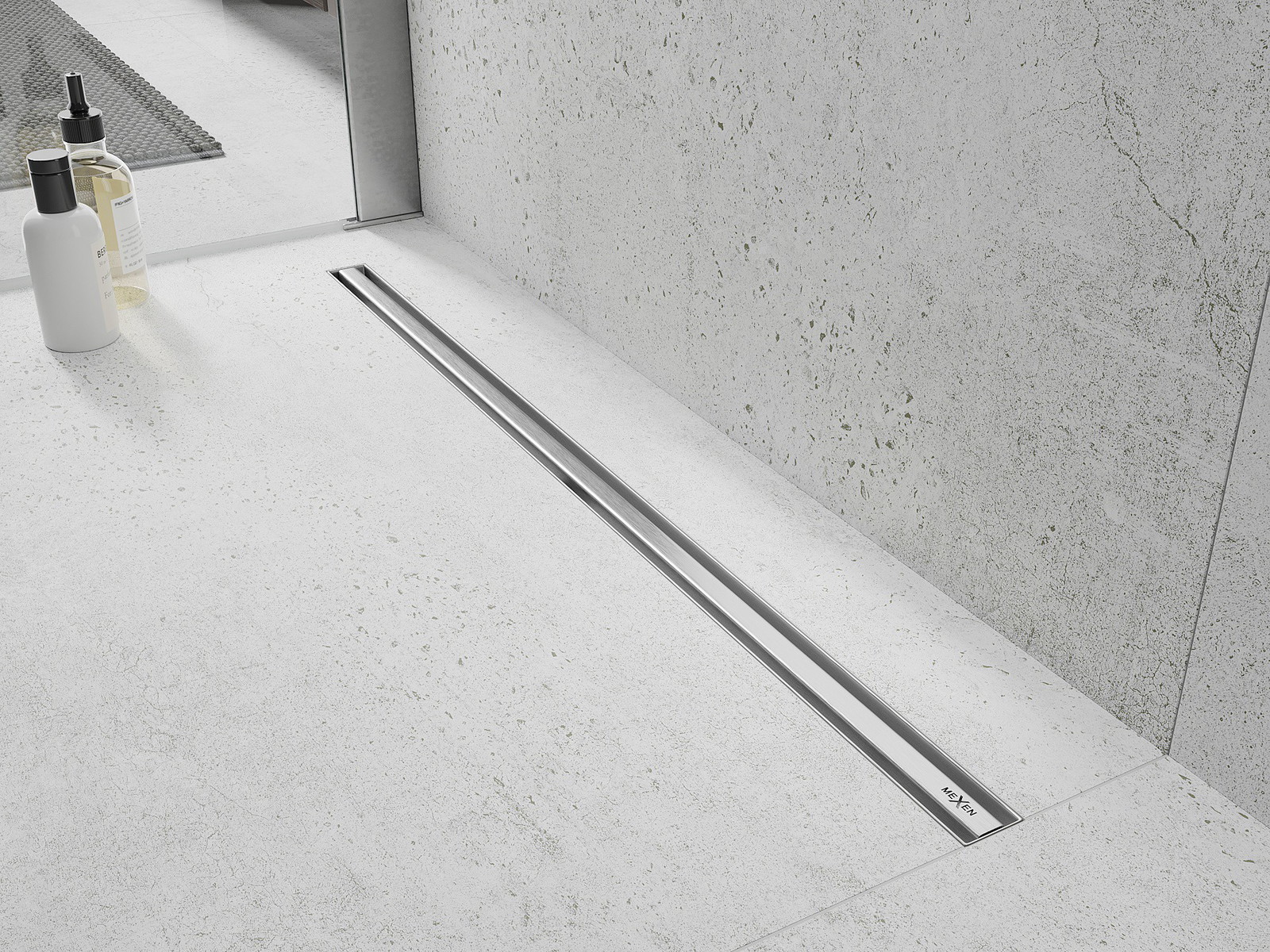

Mexen Flat 360° Slim rotating linear drain 140 cm, inox - 1041140

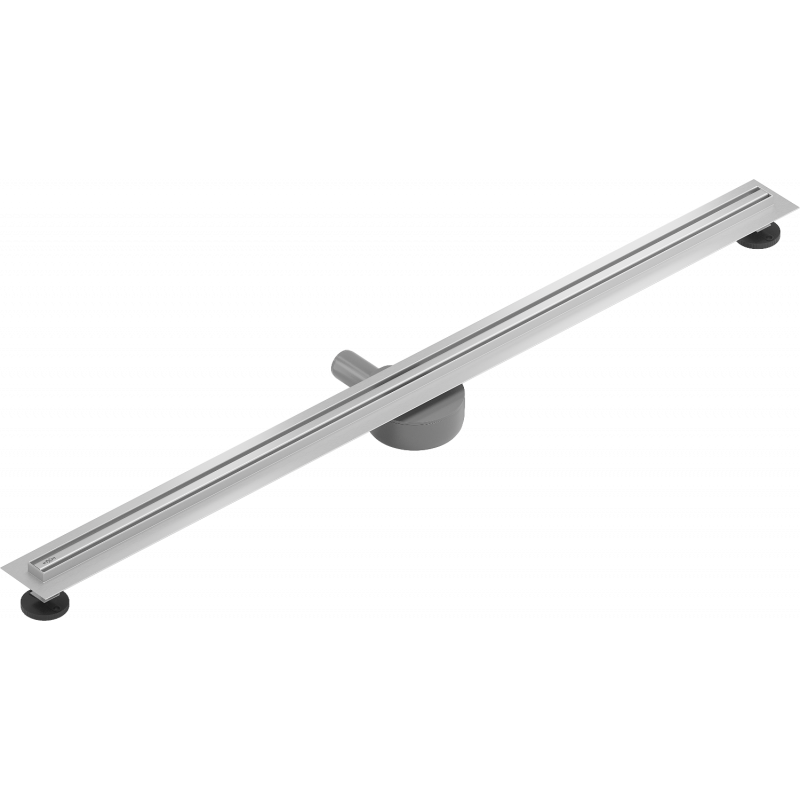

Mexen Flat 360° Slim is a modern linear drain that features a rotating siphon and a high flow rate of 50 l/min. Made of durable stainless steel AISI 304 in an inox finish, it offers both elegance and durability. Its 140 cm width and 52 mm installation depth make it perfect for any bathroom space. The product includes numerous conveniences, such as a removable dirt filter, sealing cuff, and installation stabilizers, making it the ideal choice for demanding users.

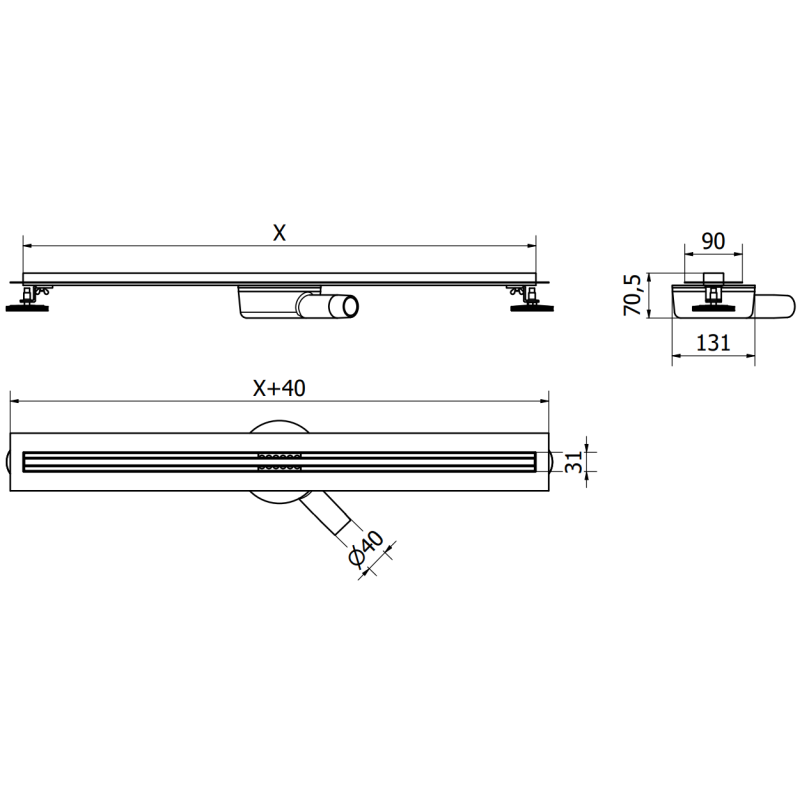

Technical data:

Material: Stainless steel AISI 304

Finish: Inox

Width: 140 cm

Cover width: 31 mm

Installation depth: 52 mm

Flow rate: 50 l/min

Surrounding flange - 2 cm

Grate depth - 23.5 mm

Channel and grate thickness - 1.2 mm

Rotating siphon: Yes

Tile embedding possibility: No

Included:

Cover with damping spacers

Removable dirt filter

Odor-trapping siphon

Water-draining channel

Installation stabilizers

Adjustable feet

Reduction 50/40 mm

Sealing cuff

Hook for removing the cover

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

Slim

The linear drain grate is exceptionally narrow and measures just 31 mm in width. Its slim design perfectly complements a modern bathroom interior, creating a sense of lightness. An excellent choice for minimalist arrangements.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

High throughput

Throughput of 40l/min, which means that drainage in one minute is able to discharge up to 50 litres of water. This allows the user to enjoy the comfort of a shower without worrying about an excessive amount of accumulated water.

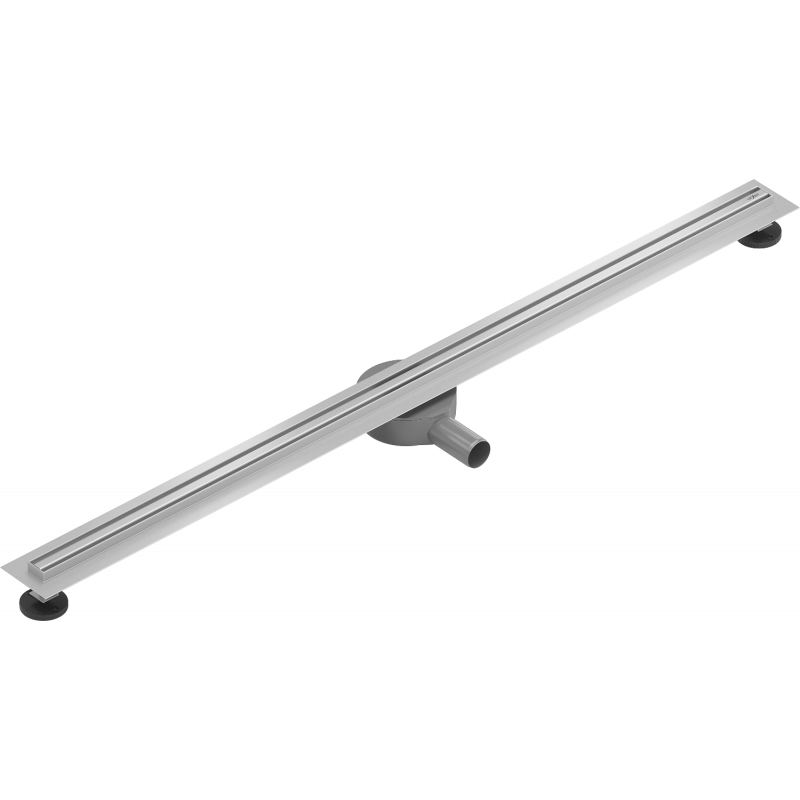

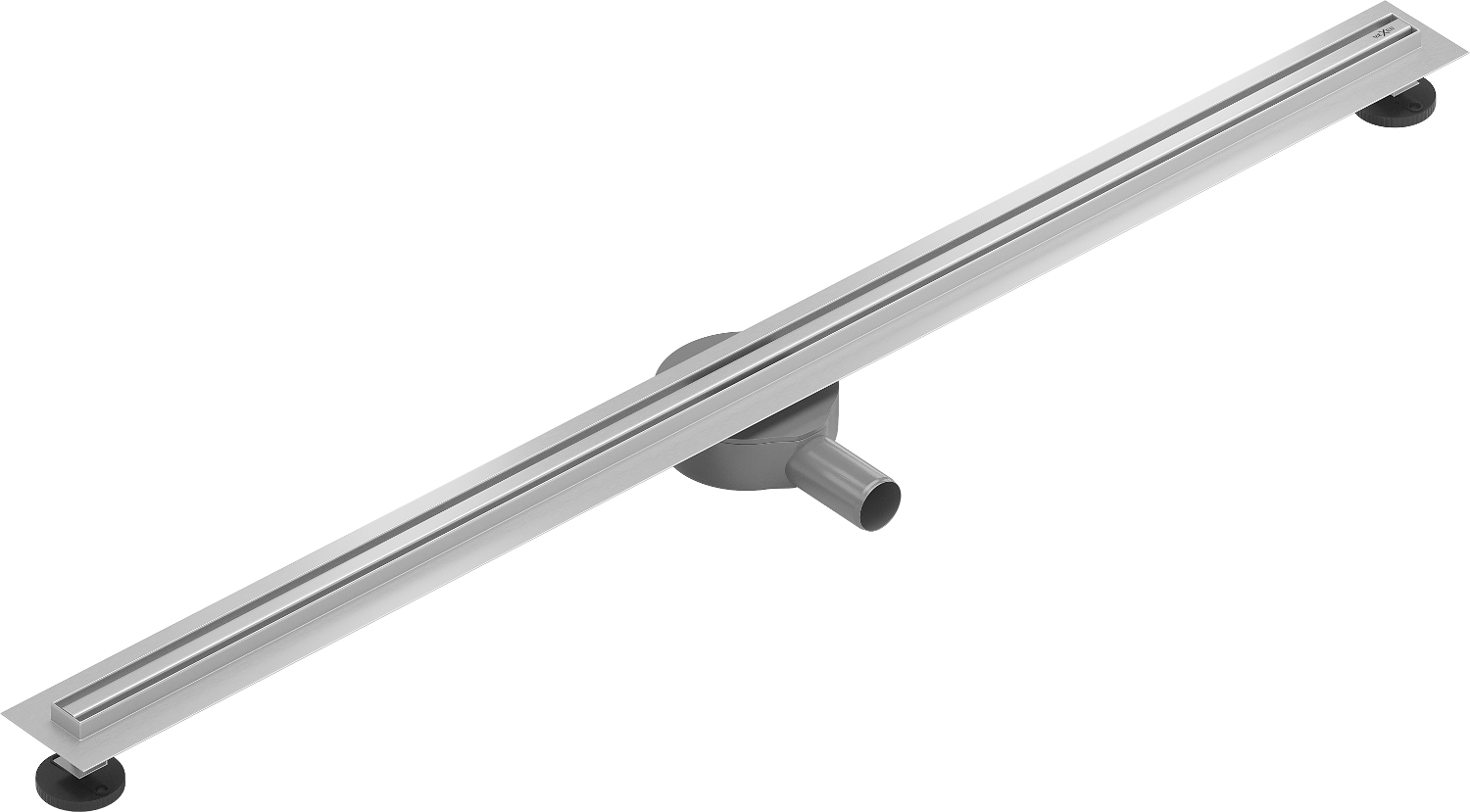

Rotary siphon

The outlet is equipped with a rotary siphon (in a 360° range). It provides greater installation flexibility, allowing easy adjustment to drainage pipes even in hard-to-reach areas. A tailored and convenient installation in any location.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

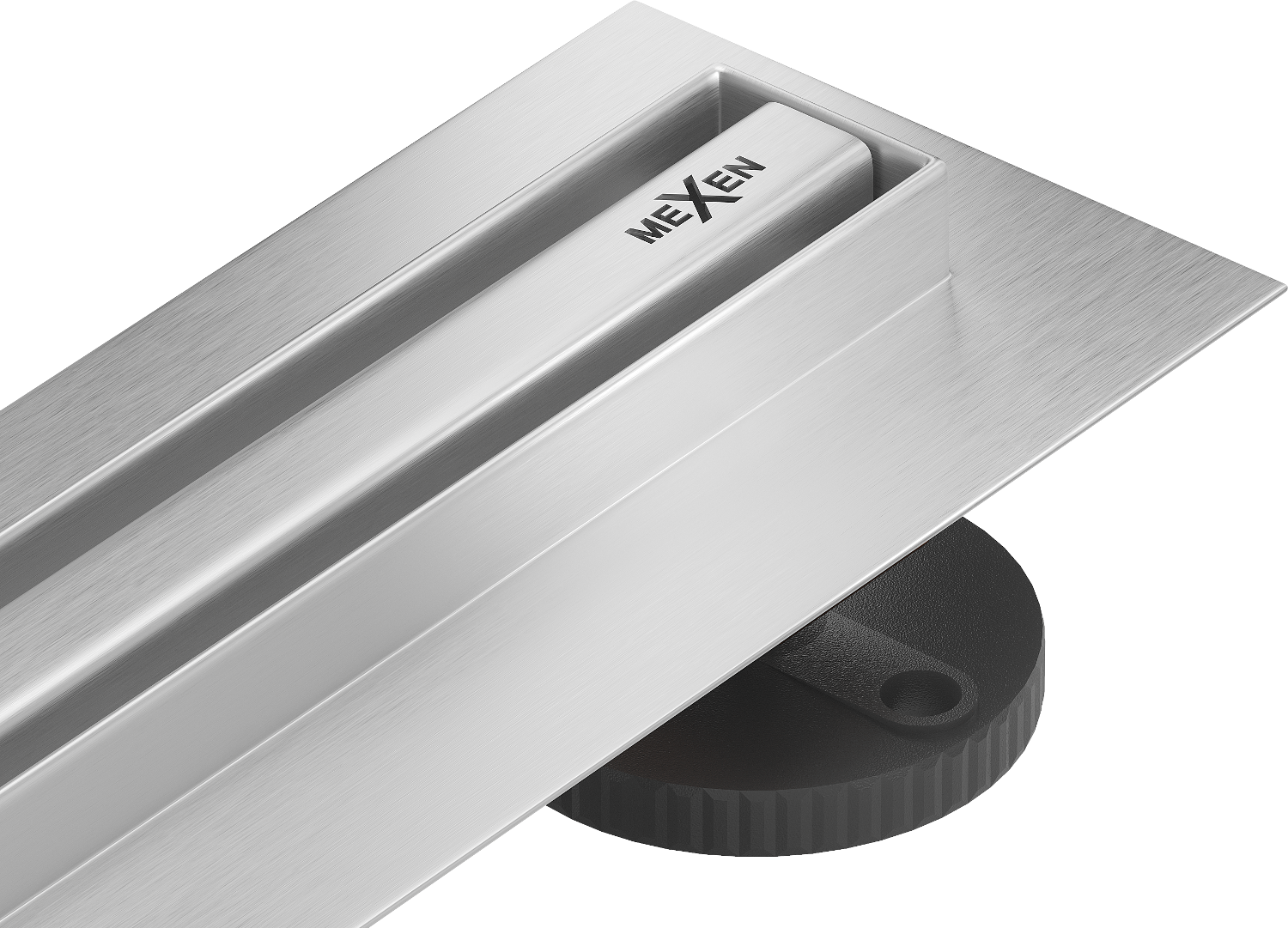

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Series
Flat 360° Slim
Size
140 cm
Color
Stainless steel
Included
Set
Slim version
Yes
Rotating siphon
Yes
Possibility of gluing a tile
No
