Mexen Flat 360° M13 Rotational Linear Drain 2-in-1 90 cm, Gold - 1510090-40

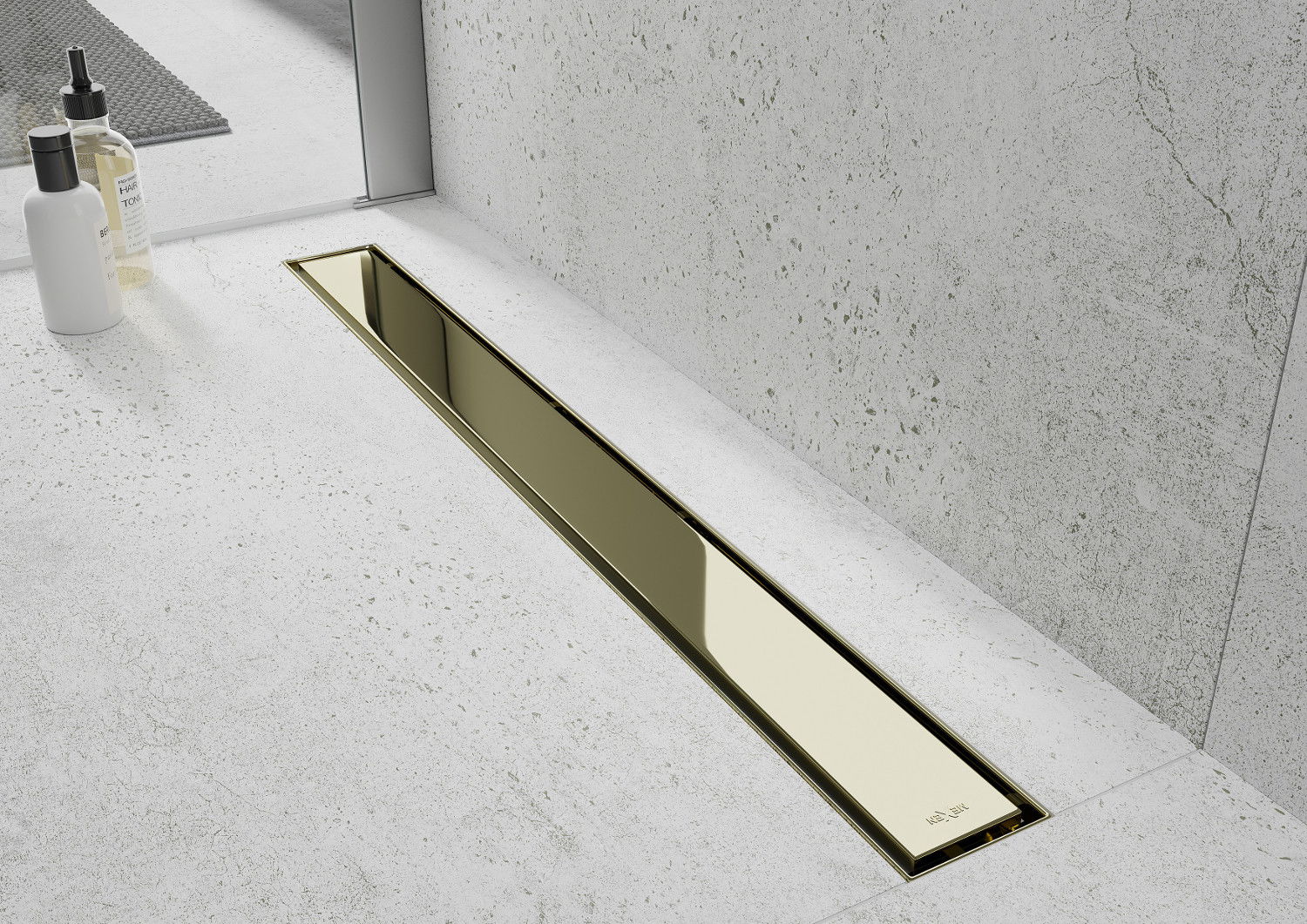

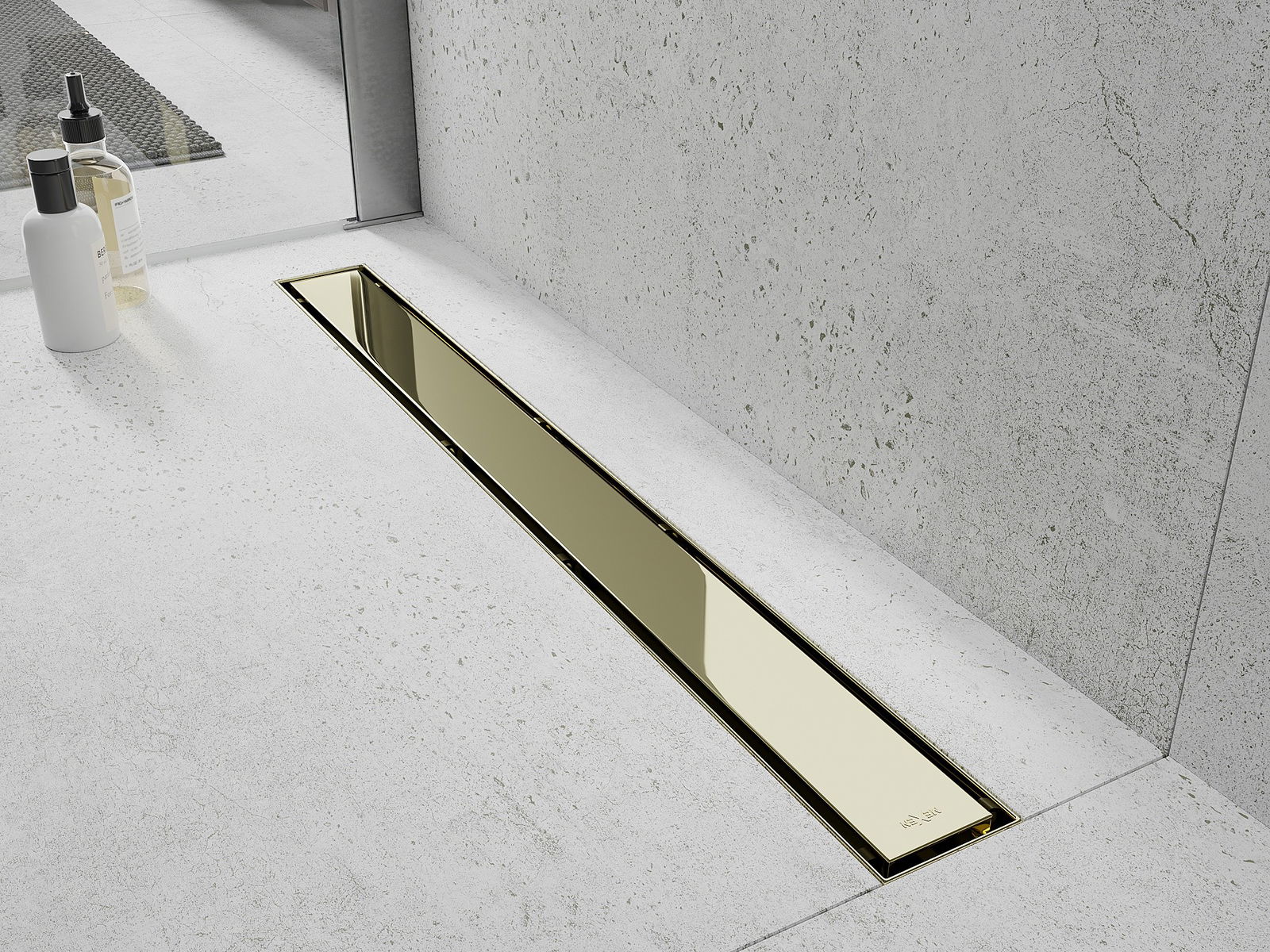

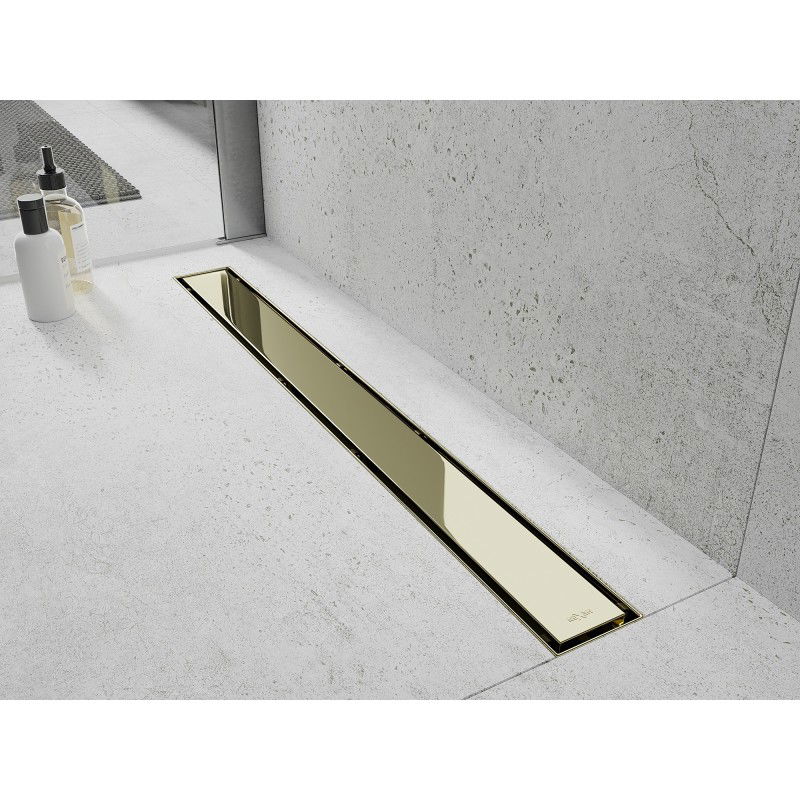

The Mexen Flat 360° M13 offers an elegant and efficient drainage solution for your shower. With its premium stainless steel AISI 304 construction and luxurious gold finish, this 90 cm linear shower drain enhances any bathroom decor. Its innovative 360° swivel trap ensures optimal water flow, while the 50 l/min capacity prevents water buildup. The easy-to-install design features a 52 mm installation depth, adjustable feet, and a two-sided cover with noise-dampening spacers. The included detachable filter and anti-odor swivel trap provide added convenience and freshness. Upgrade your bathroom with the stylish Mexen Flat 360° M13.

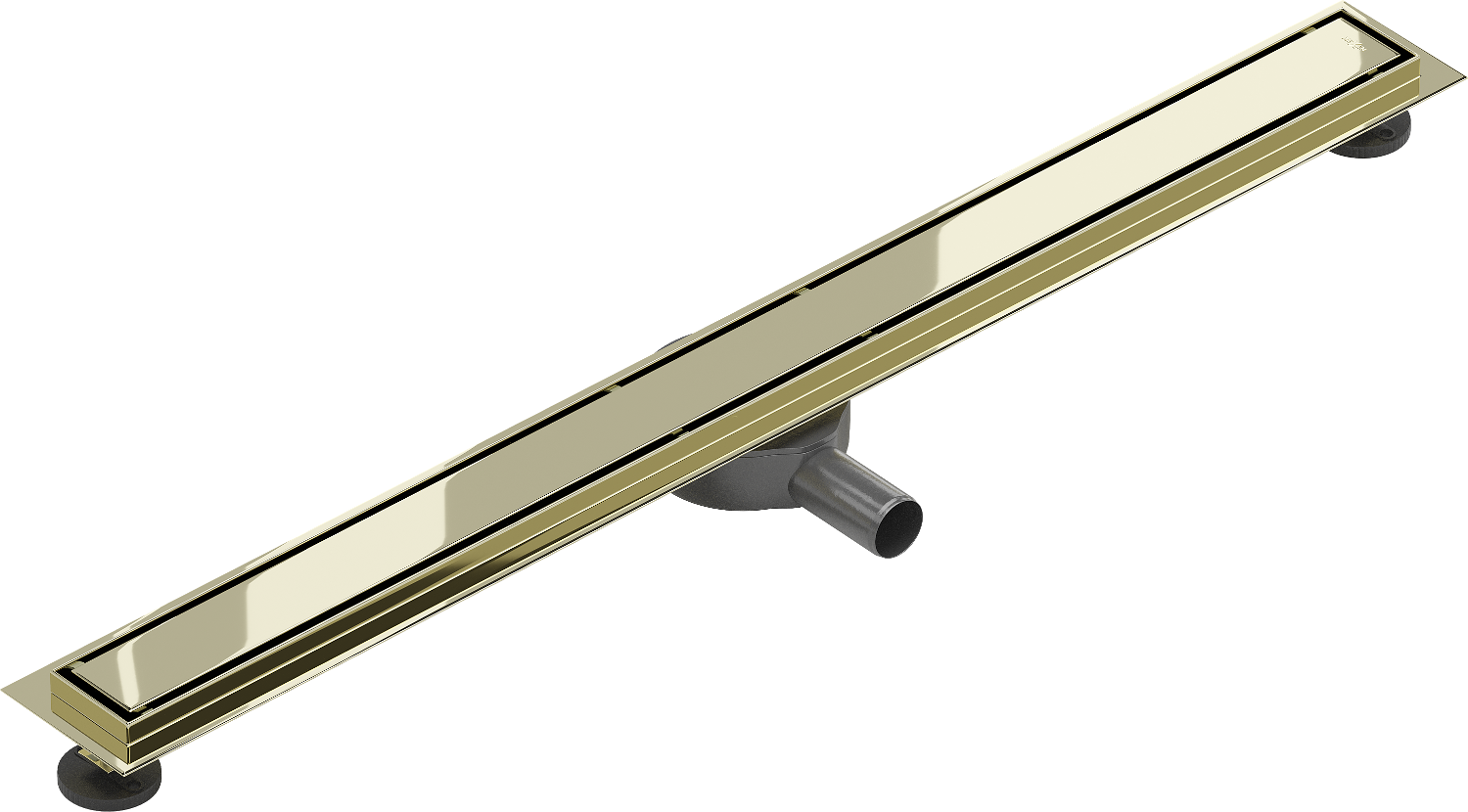

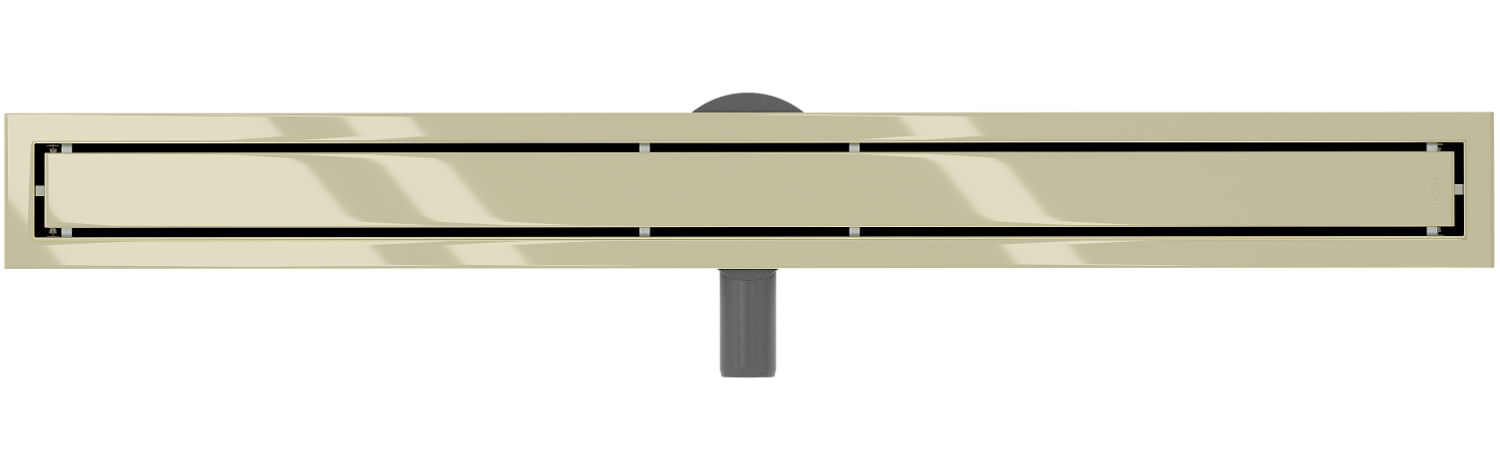

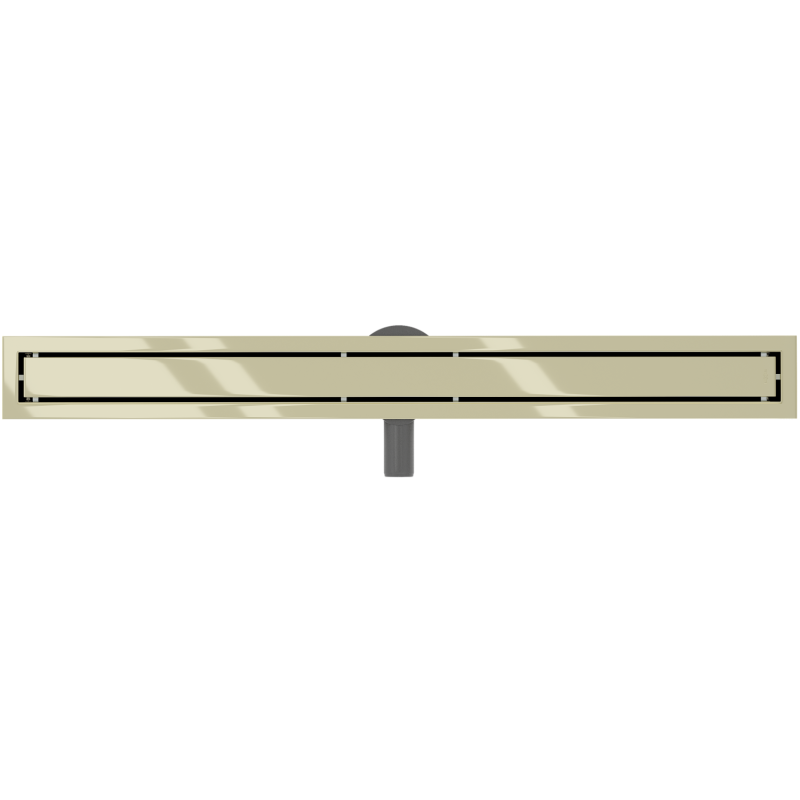

Technical specifications:

Material: Stainless Steel AISI 304

Finish: Gold

Width: 90 cm

360° Rotational Siphon

Installation depth: 52 mm

Flow rate: 50 l/min

Grate for tiling width 50 mm

Channel and grate thickness 1.2 mm

Surrounding flange - 2 cm

Grate depth - 12 mm

Included:

Two-sided cover with dampening spacers

Removable dirt filter

Rotary siphon that prevents unpleasant odours

Water-draining channel

Adjustable legs

Reduction 50/40 mm

Sealing cuff

Hook for removing cover

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

High Capacity

A capacity of 50l/min, which means the drainage can handle up to 50 liters of water in 1 minute. This allows the user to enjoy the comfort of a shower without worrying about excessive water accumulation.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

Option to apply tile

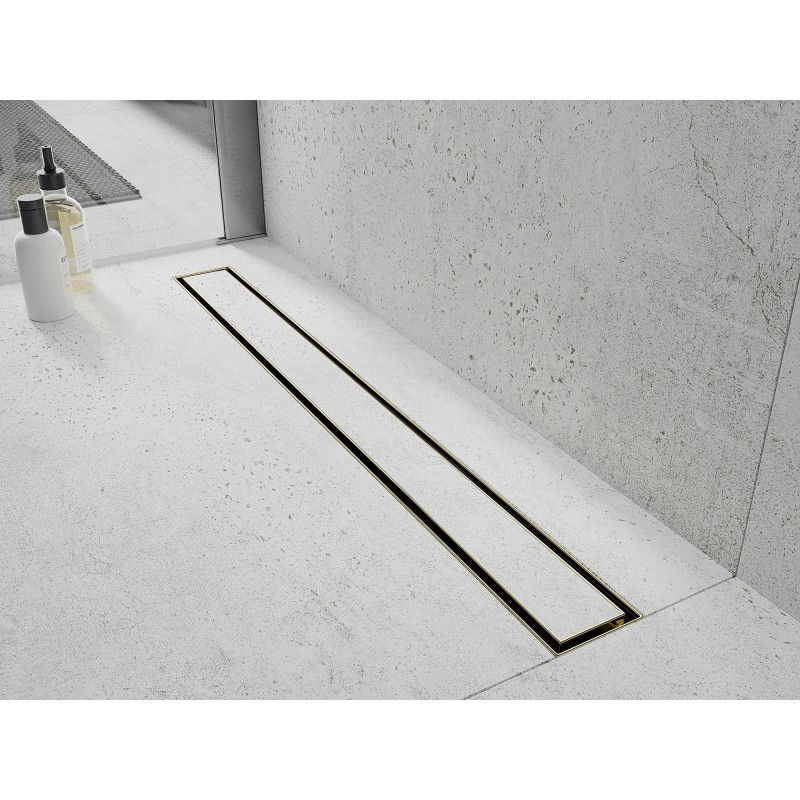

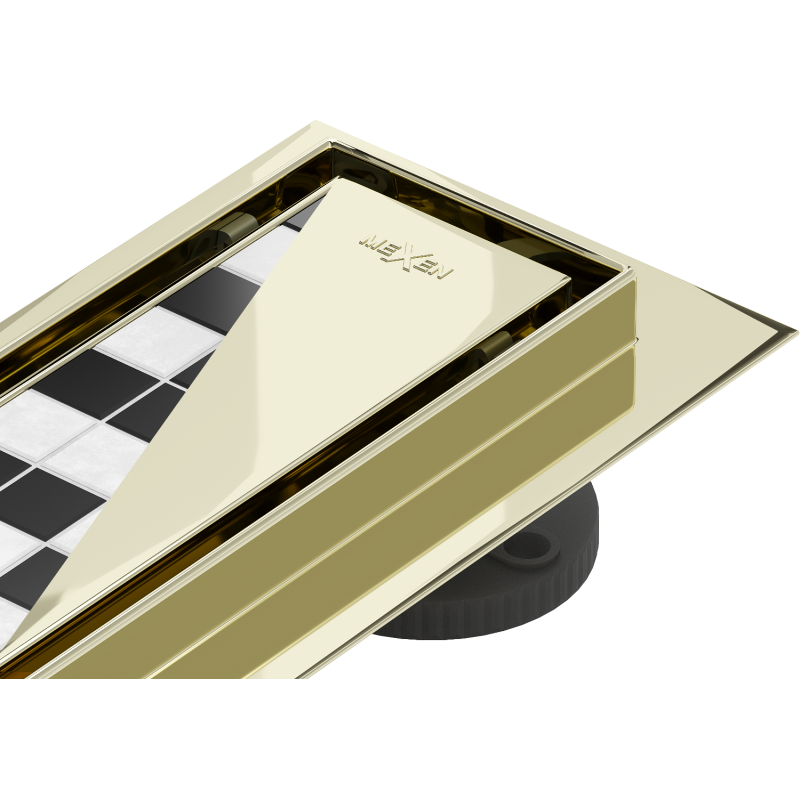

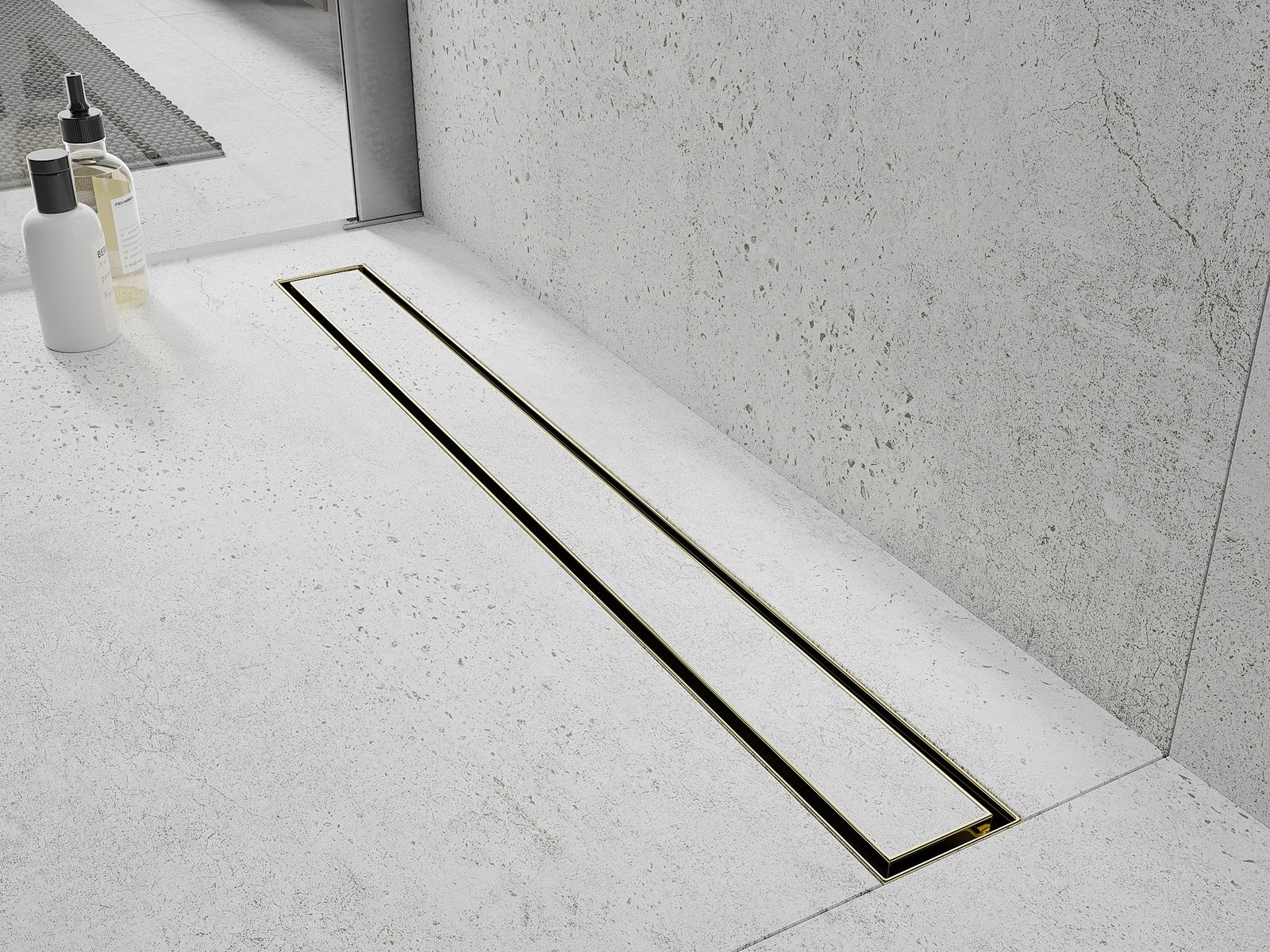

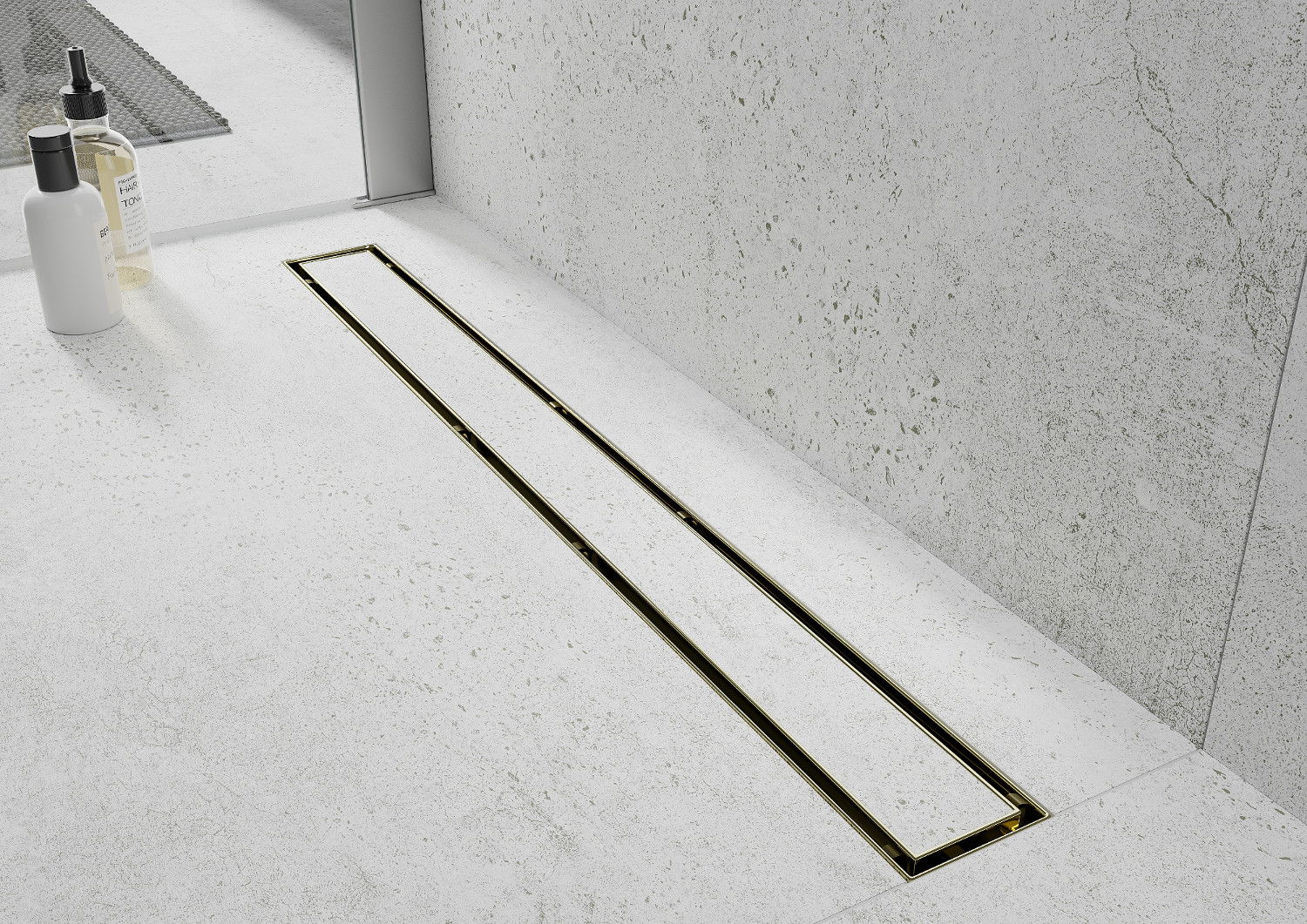

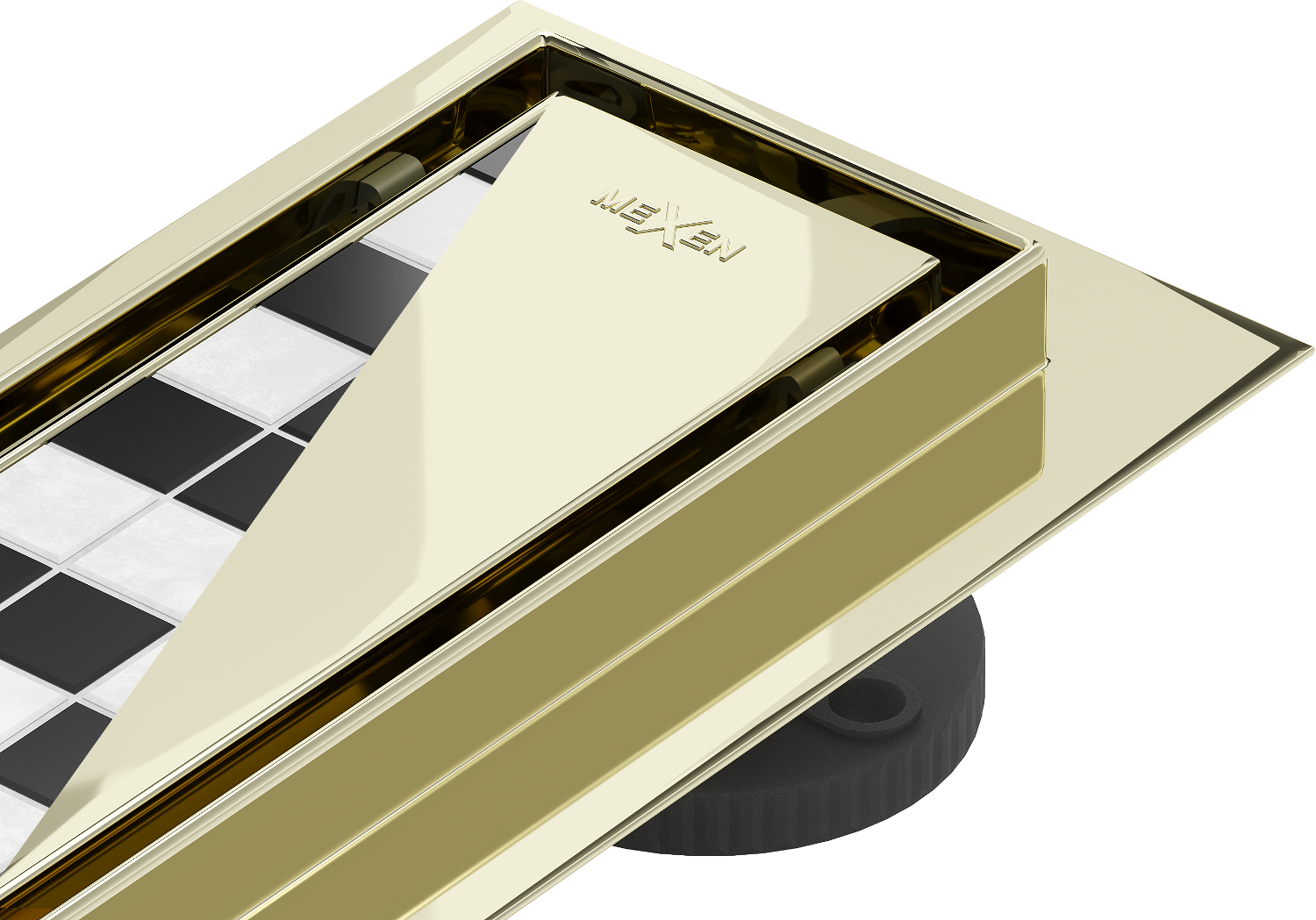

A double-sided cover with the option to rotate at any moment allows for changing the arrangement. On one side, there is smooth stainless steel; when reversed, the cover can be tiled to create a connection with the floor.

Rotary siphon

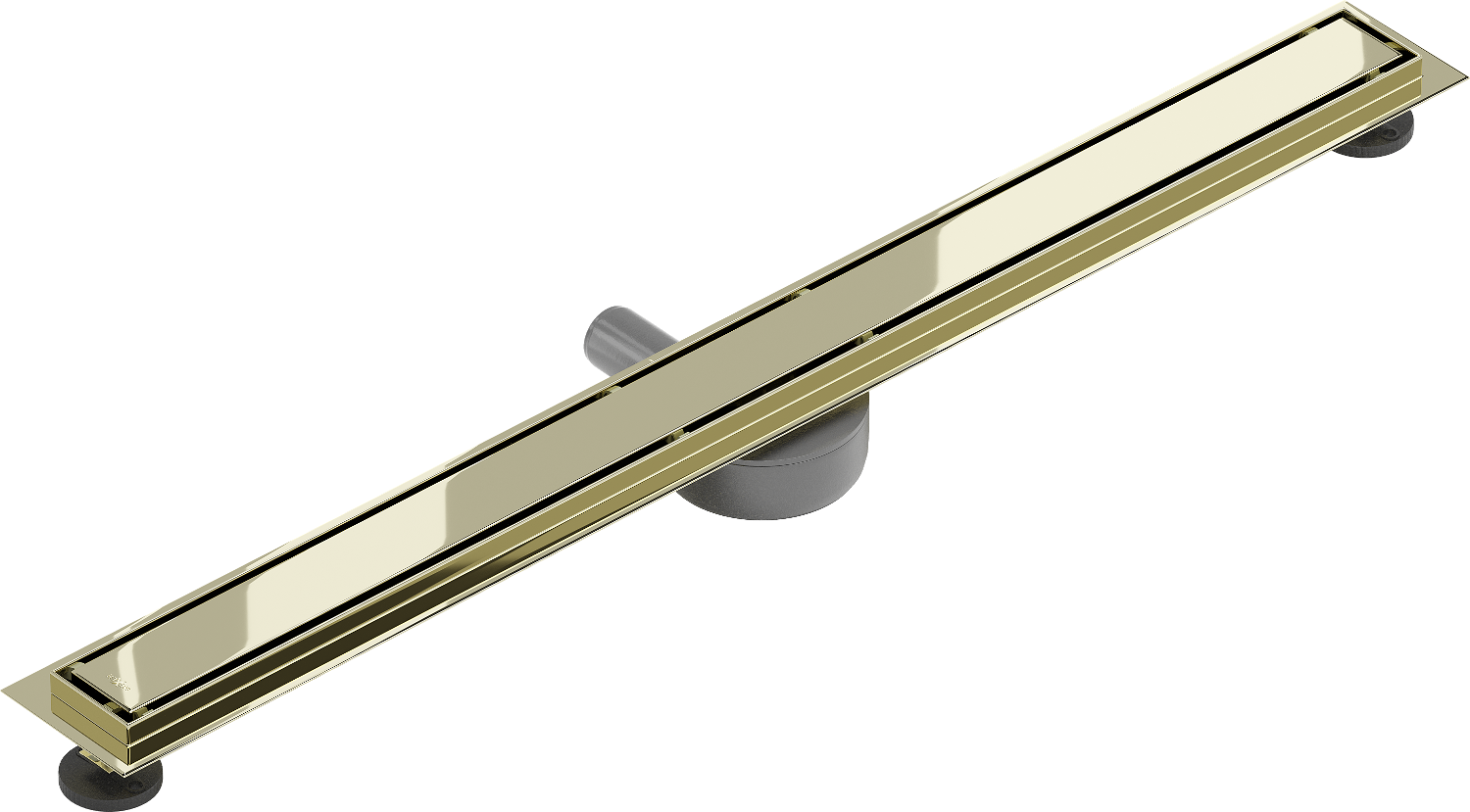

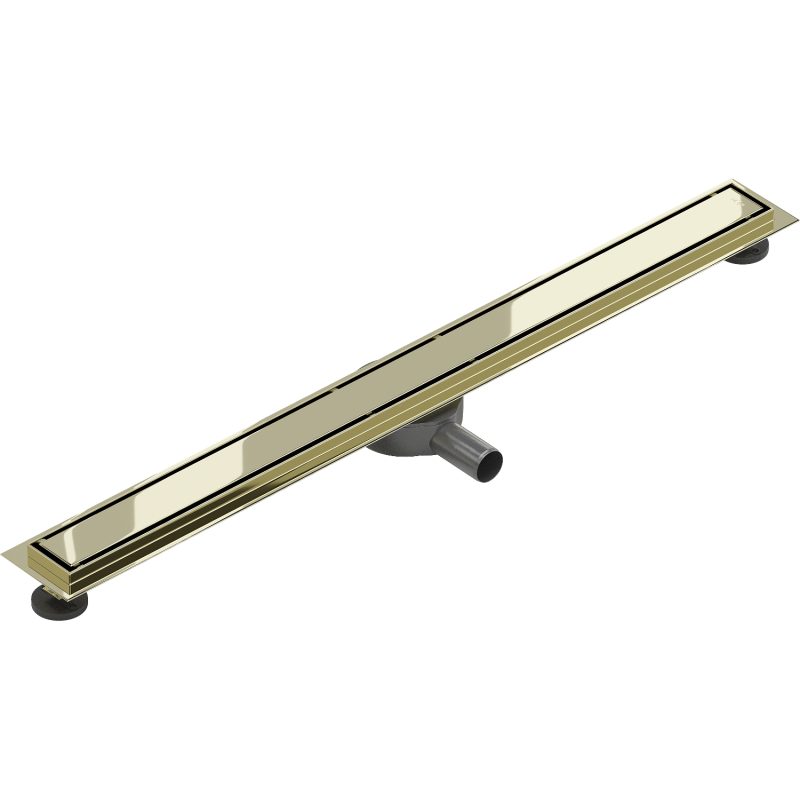

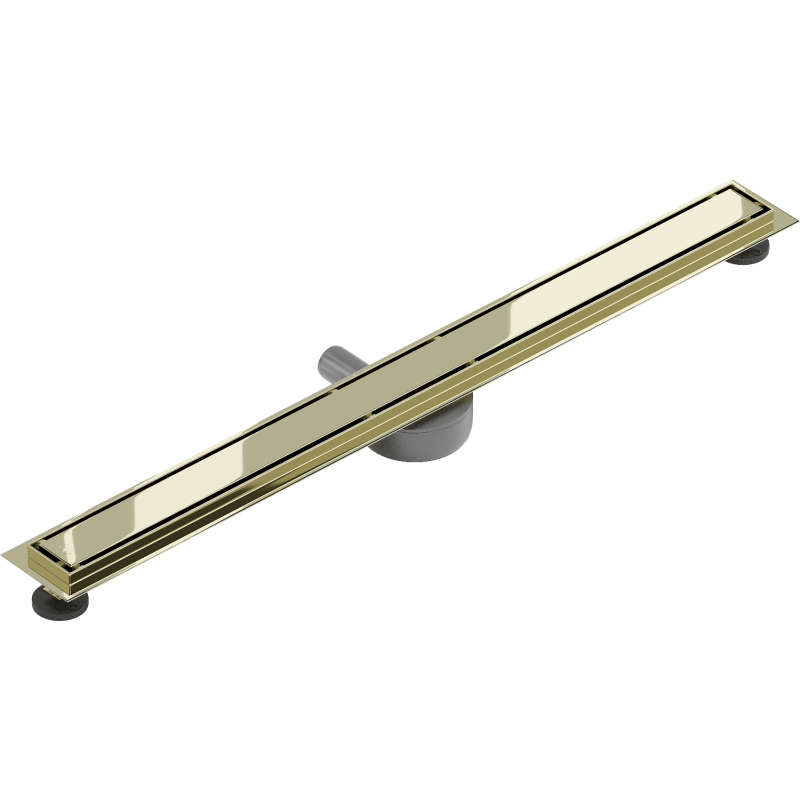

The outlet is equipped with a rotary siphon (in a 360° range). It provides greater installation flexibility, allowing easy adjustment to drainage pipes even in hard-to-reach areas. A tailored and convenient installation in any location.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Series
Flat 360°
Size
90 cm
Color
Gold
In the set
Complete set
Slim version
No
Rotary siphon
Yes
Template pattern
M13
Possibility to attach tile
Yes
