The Mexen C22 Panel Radiator 600 x 1800 mm with side connection offers a powerful heating solution with a maximum output of 2975 W. Measuring 600 mm in height, 1800 mm in width, and 103 mm in depth, this radiator is built with durable steel and features a sleek white RAL 9016 finish. It operates efficiently under a maximum working temperature of 110 °C and pressure of 10 bar. With enhanced features such as a high-quality, durable paint coating (DIN 99500), side panels, and a removable top cover, the radiator comes complete with mounts, an installation set, sealing plugs, and an air vent for easy setup. Designed to fit seamlessly into various environments, it ensures reliable and consistent heating performance.

Technical data:

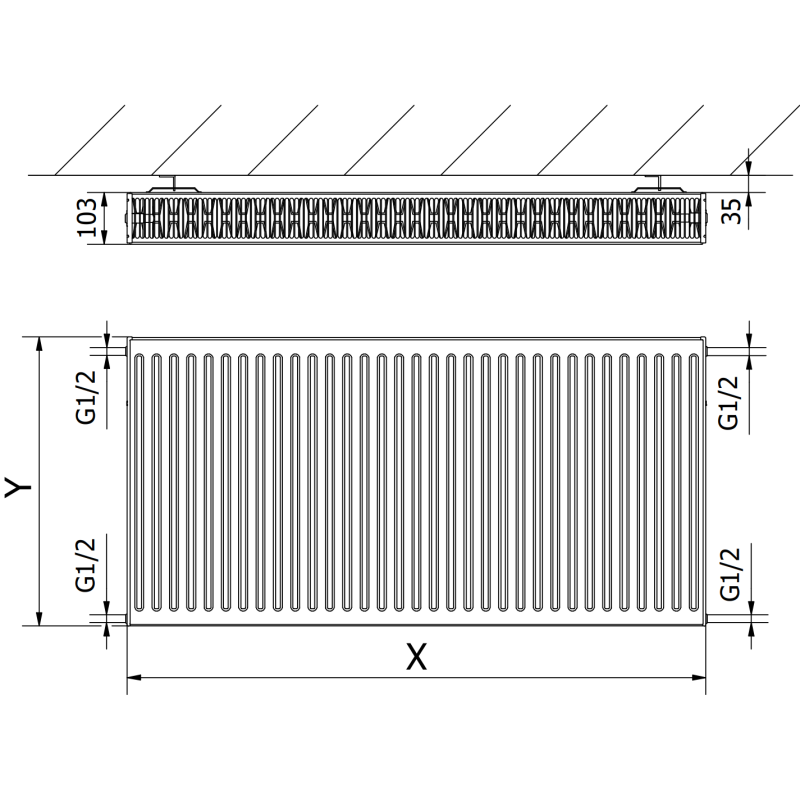

Height (Y): 600 mm

Width (X): 1800 mm

Depth: 103 mm

Connection distance: 55 cm

Distance between vertical water channels: 33.3 mm

Colour: White RAL 9016

Material: Steel

Weight: 53.48 kg

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1538 W

- 75/65/20 °C 2975 W

- 90/70/20 °C 3764 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Set includes: hangers, assembly set, closing caps and air vent

Images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C22
Width
1800 mm
Height
600 mm
Depth
103 mm
Type
Plate / Panel
Heating power
2975 W
Color
White
Material
Steel
Type
22
Mounting Position
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
