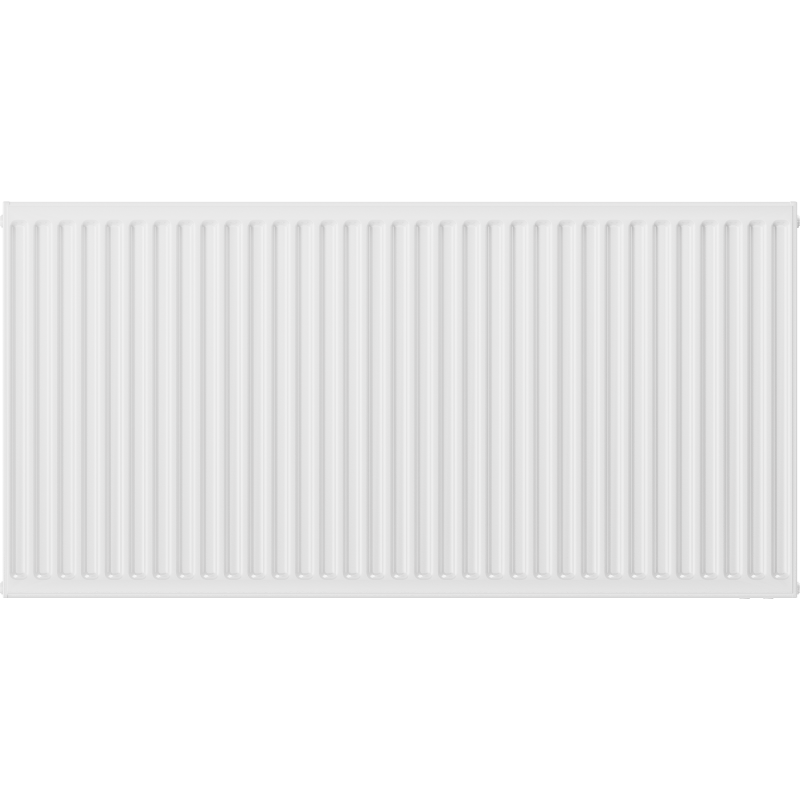

Mexen C22 Plate Radiator 500 x 1200 mm, Side Connection, 1709 W, White - W422-050-120-00
Technical Data:
Height (Y): 500 mm
Width (X): 1200 mm
Depth: 103 mm
Connection Spacing: 45 cm
Vertical Water Channel Spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Weight: 30.12 kg
Operating Temperature: max 110 °C
Maximum Working Pressure: 10 bar
Maximum Test Pressure: 13 bar
Heating Power:
- 55/45/20 °C 885 W
- 75/65/20 °C 1709 W
- 90/70/20 °C 2162 W
Connections:
- 4xG ½ʺ side
High-quality, durable paint coating - DIN 99500

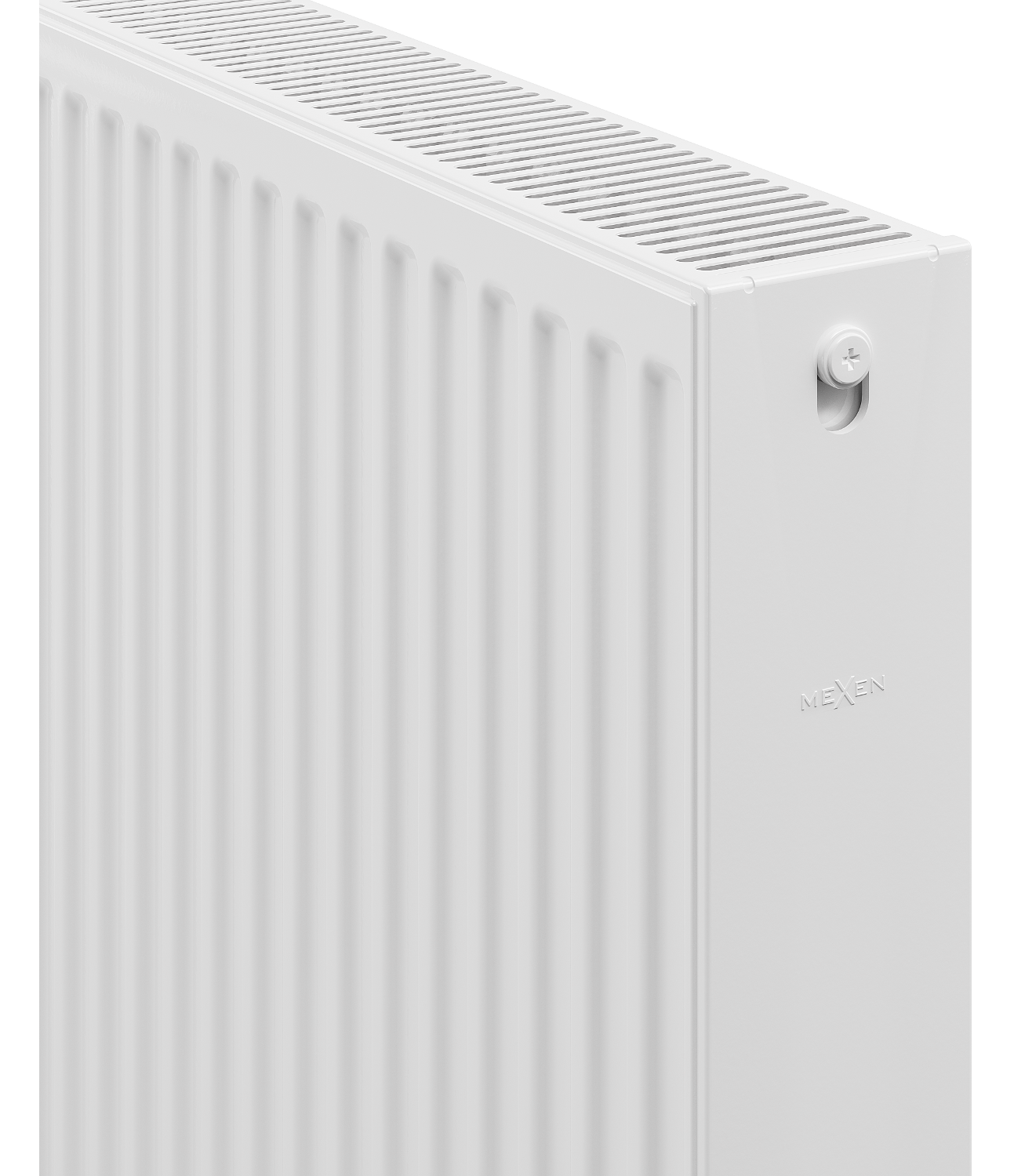

Equipped with side cover and removable top cover
Included: brackets, mounting kit, sealing caps, and air vent
The photos show the radiator in size 600 x 1200 mm.
