Mexen C22 panel radiator 500 x 1200 mm, side connection, 1709 W, white - W422-050-120-00

The Mexen C22 panel radiator 500 x 1200 mm is an excellent choice for modern interiors. Its exceptional heating power, reaching 1709 W at parameters 75/65/20°C, effectively heats rooms. Made of steel, it is characterized by high durability and aesthetics thanks to the white RAL 9016 finish. The radiator, with a height of 500 mm and a width of 1200 mm, has side connections 4xG ½″, which facilitates installation. The maximum operating pressure is 10 bar, and the operating temperature is up to 110 °C. The product is equipped with a side cover, installation kit, and air vent.

Technical data:

Height (Y): 500 mm

Width (X): 1200 mm

Depth: 103 mm

Connection spacing: 45 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Weight: 30.12 kg

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 885 W

- 75/65/20 °C 1709 W

- 90/70/20 °C 2162 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Equipped with a side cover and removable top cover

Included: mounting brackets, installation kit, blanking plugs, and air vent

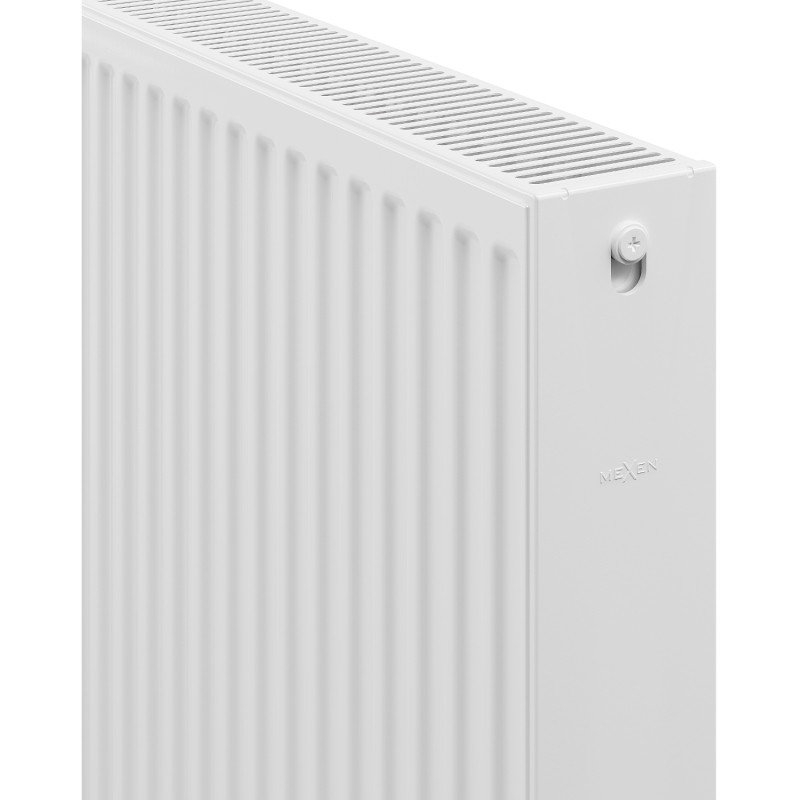

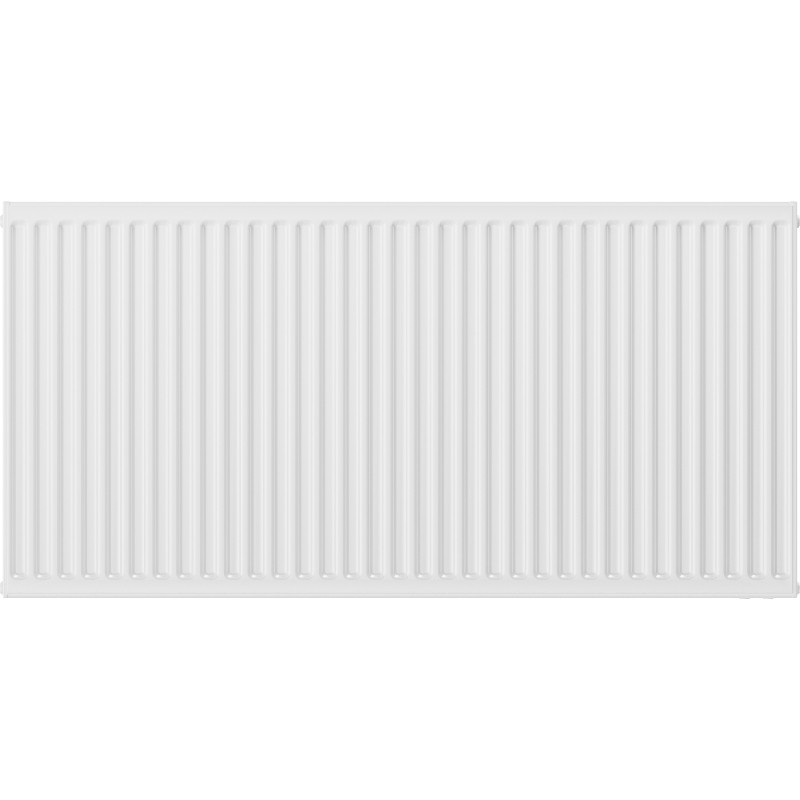

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C22
Width
1200 mm
Height
500 mm
Depth
103 mm
Type
Plate / Panel
Heating power
1709 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
45 cm
Connection
Side
Orientation
Horizontal
