Mexen C33 panel radiator measuring 600 x 1500 mm is an excellent choice for effective interior heating. Its white steel construction in RAL 9016 color provides a modern look and durability. The heating power reaches 3502 W at a temperature of 75/65/20 °C, making it perfect for heating larger rooms. The product features side connections 4xG ½″ and a removable top cover. The set includes brackets, a mounting kit, sealing plugs, and an air vent. Mexen C33 guarantees reliability due to its resistance to high pressure and high operating temperatures.

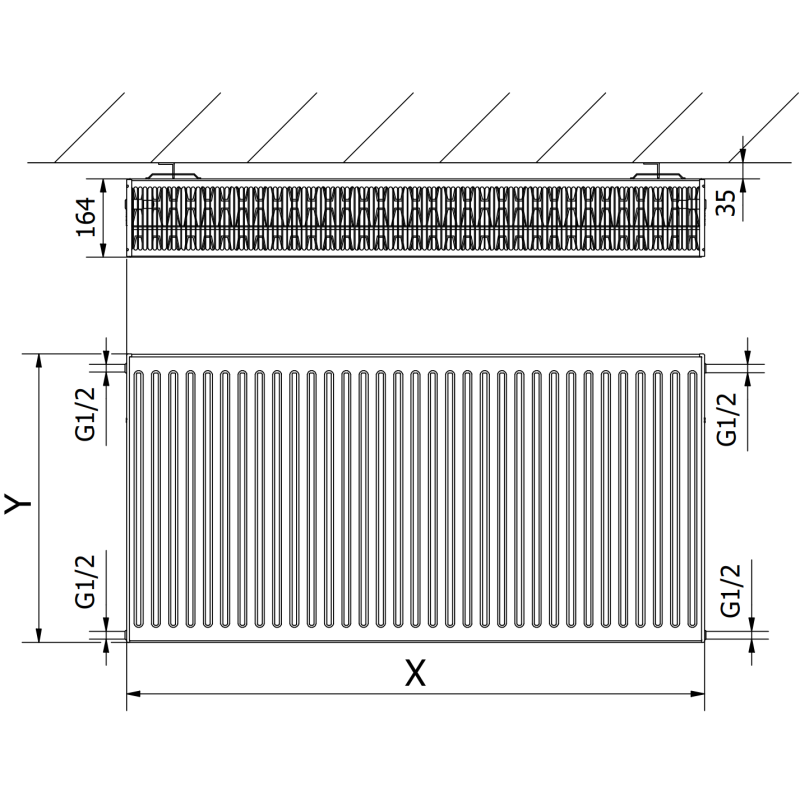

Technical data:

Height (Y): 600 mm

Width (X): 1500 mm

Depth: 164 mm

Connection spacing: 55 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Weight: 66.57 kg

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1811 W

- 75/65/20 °C 3502 W

- 90/70/20 °C 4431 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

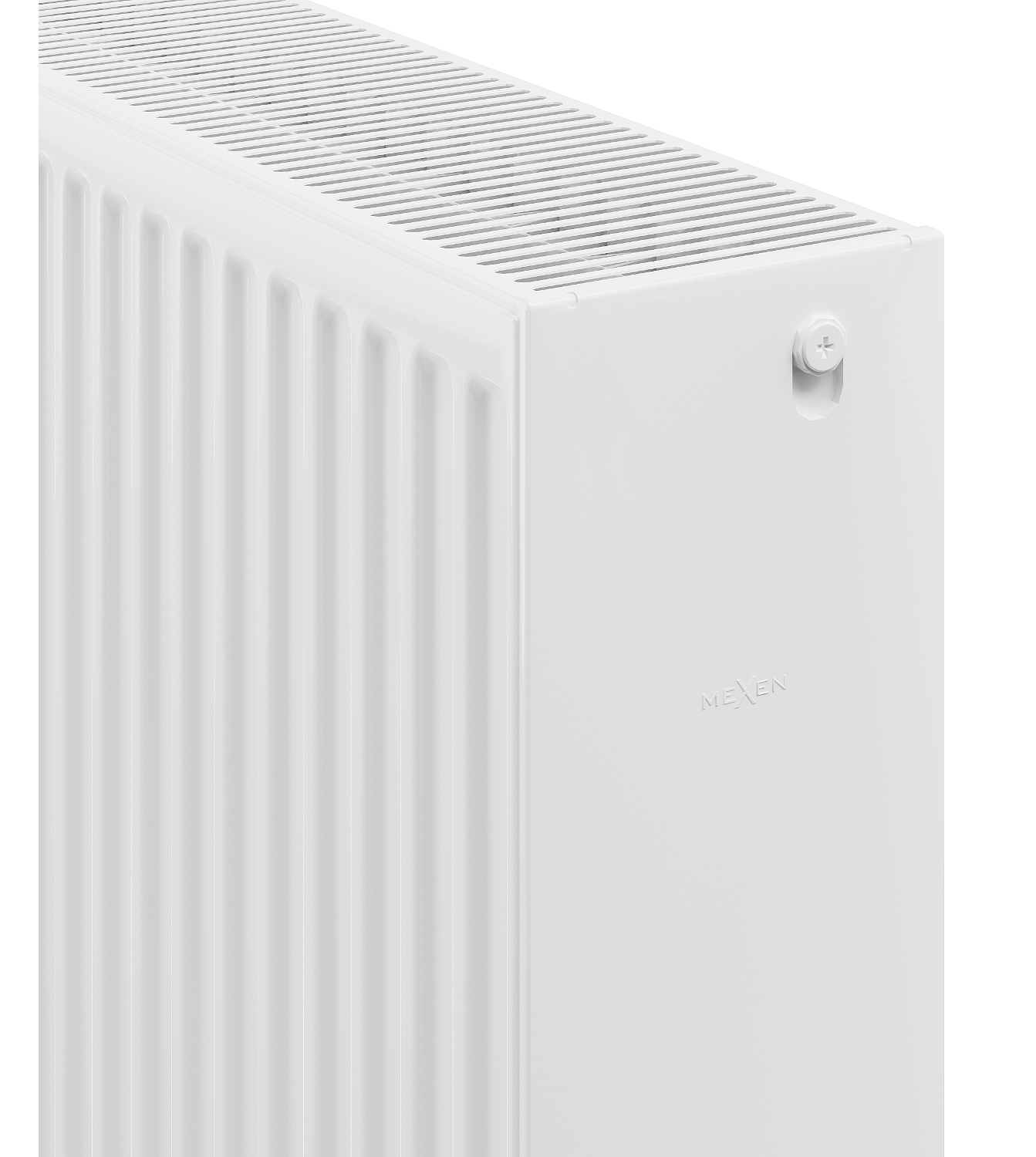

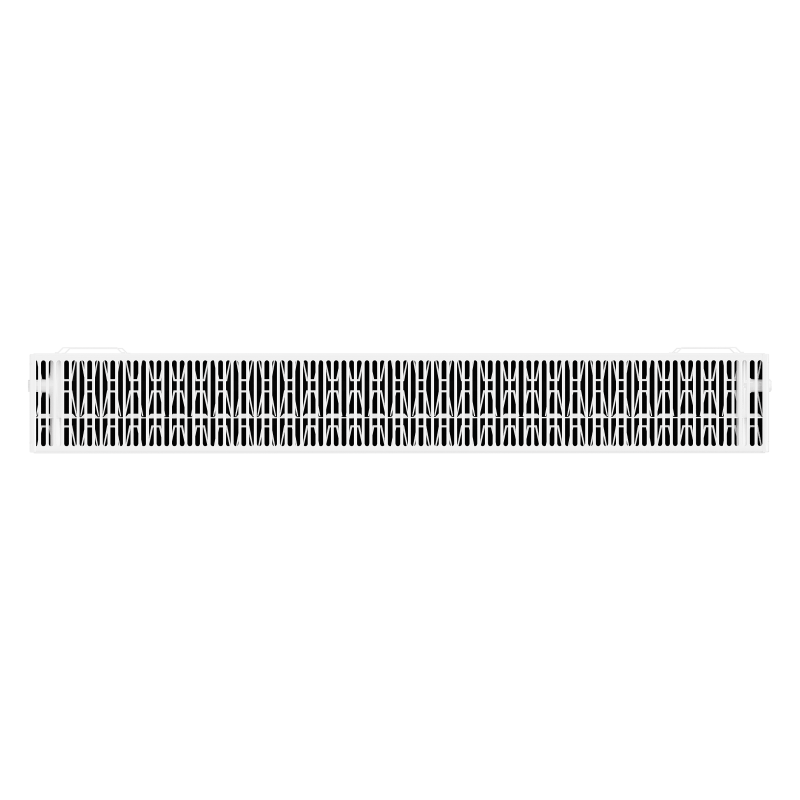

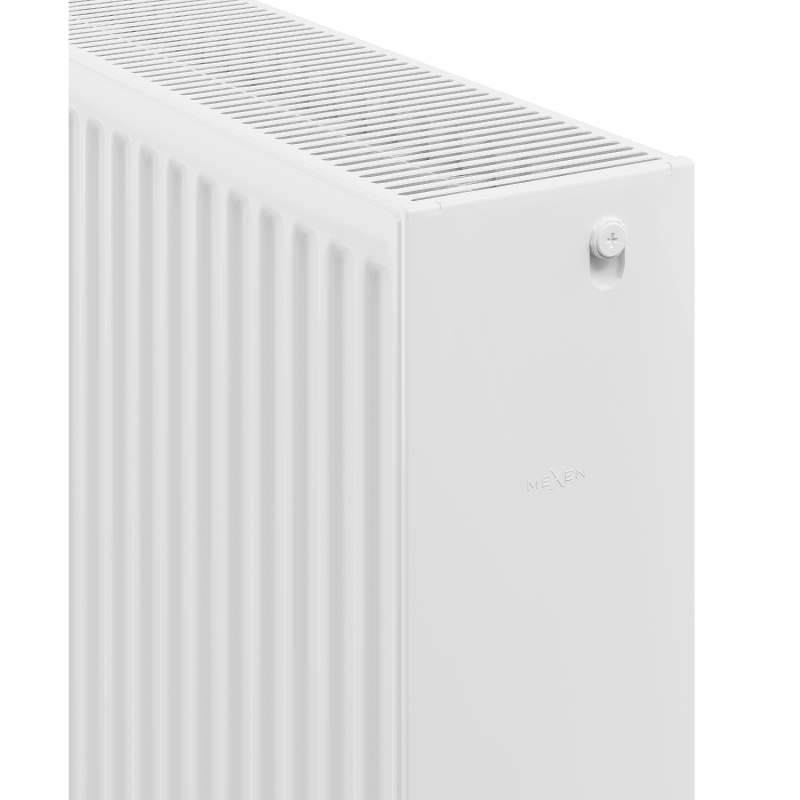

Features side covers and a removable top cover

Includes: brackets, mounting kit, sealing plugs, and air vent

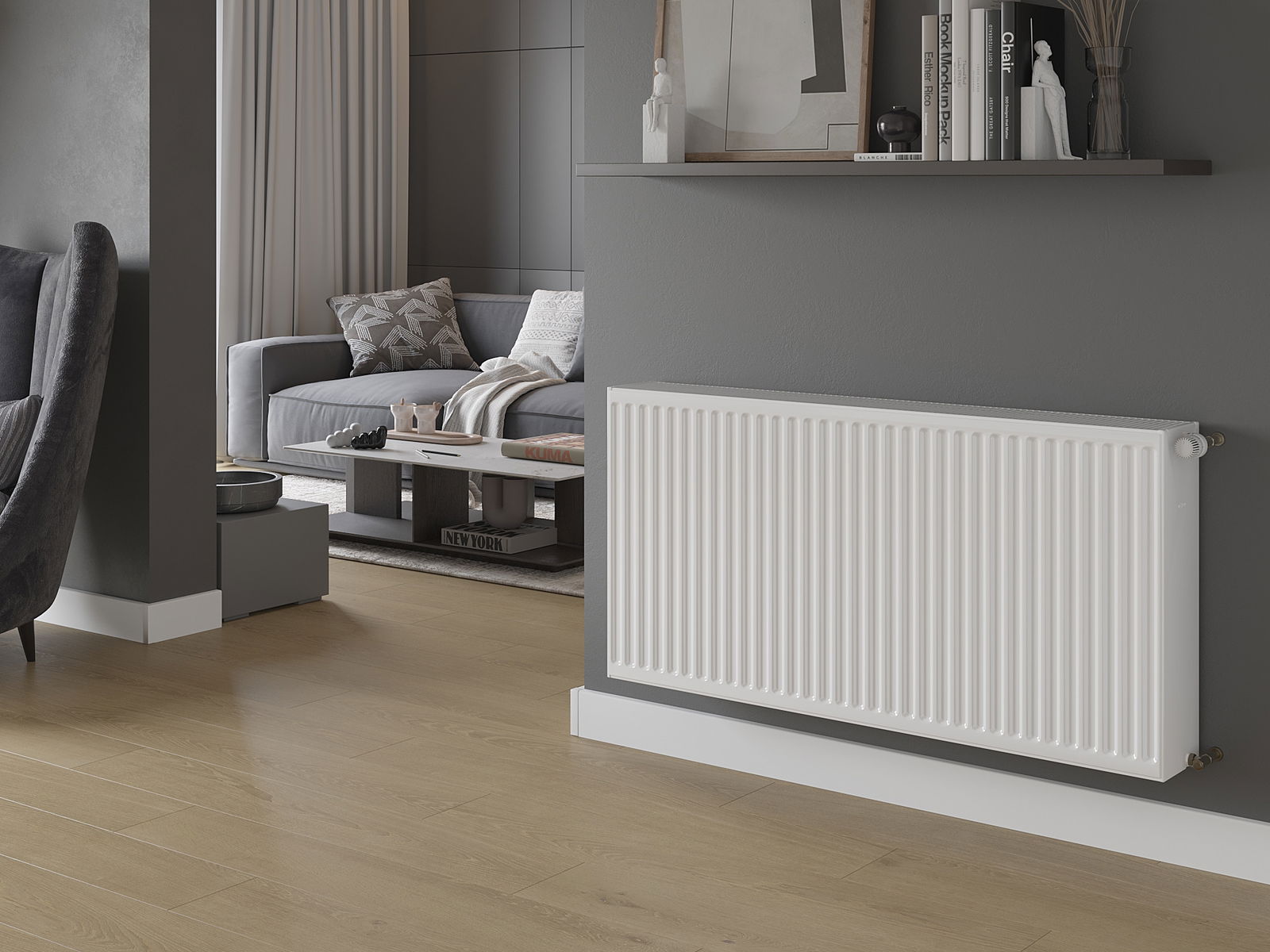

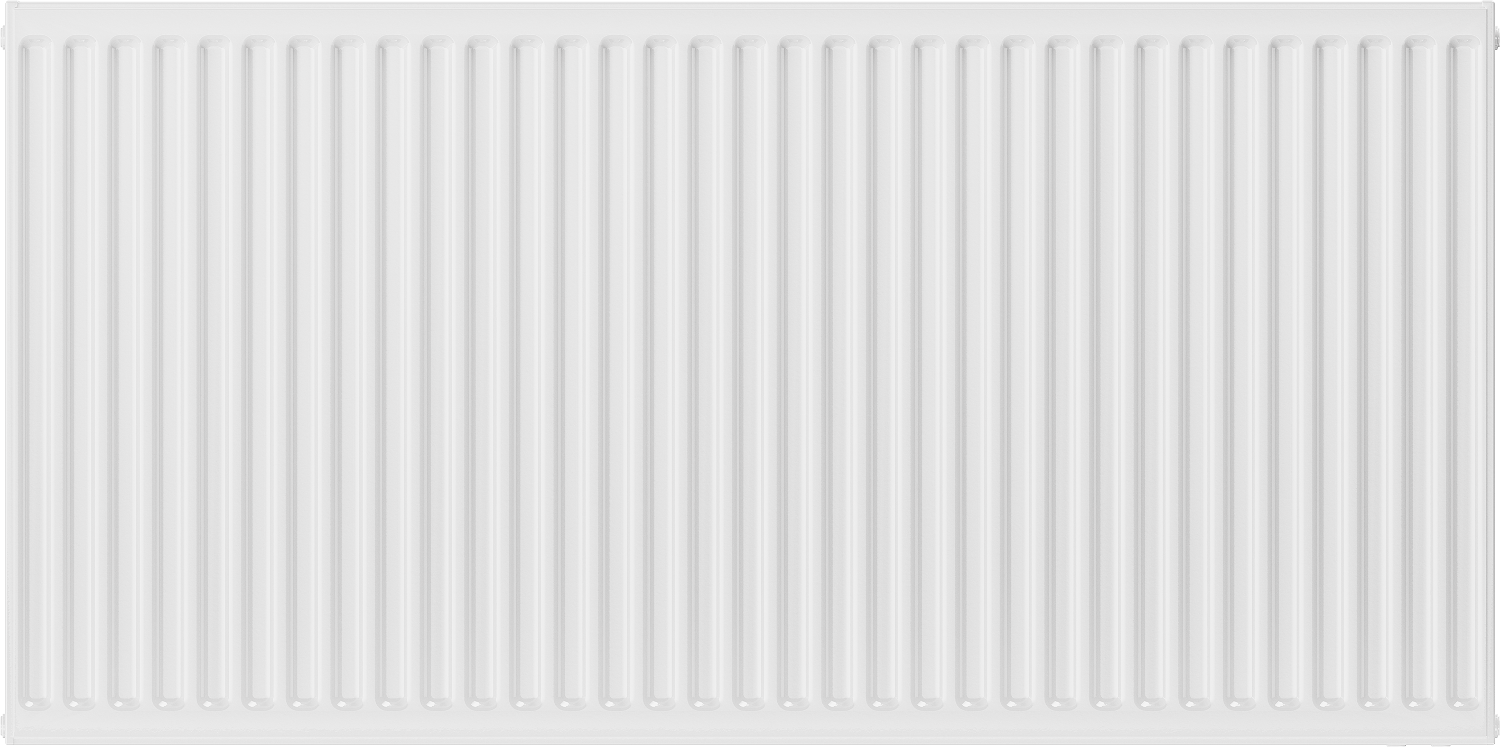

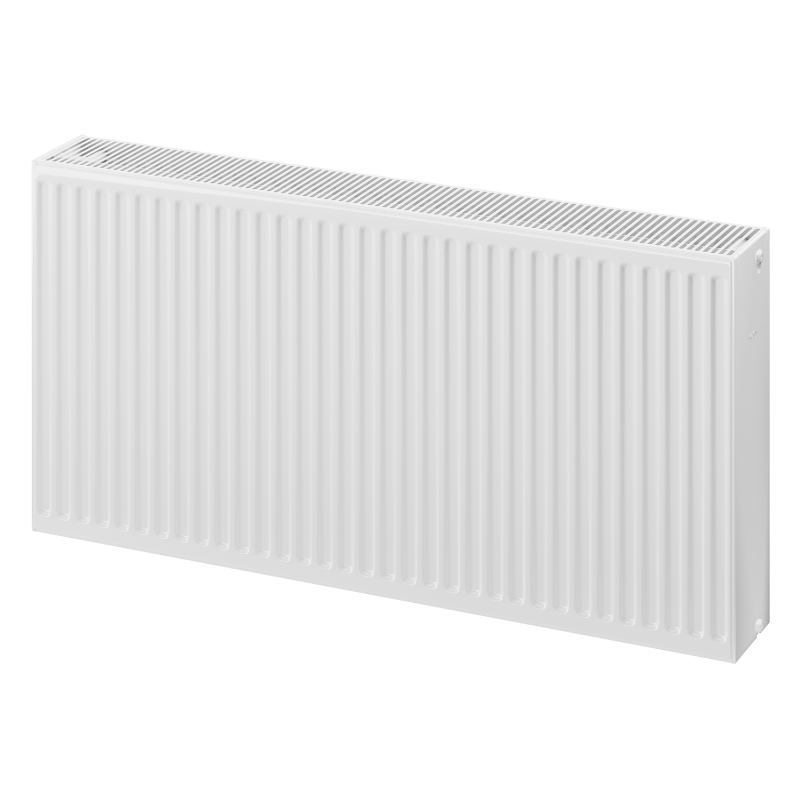

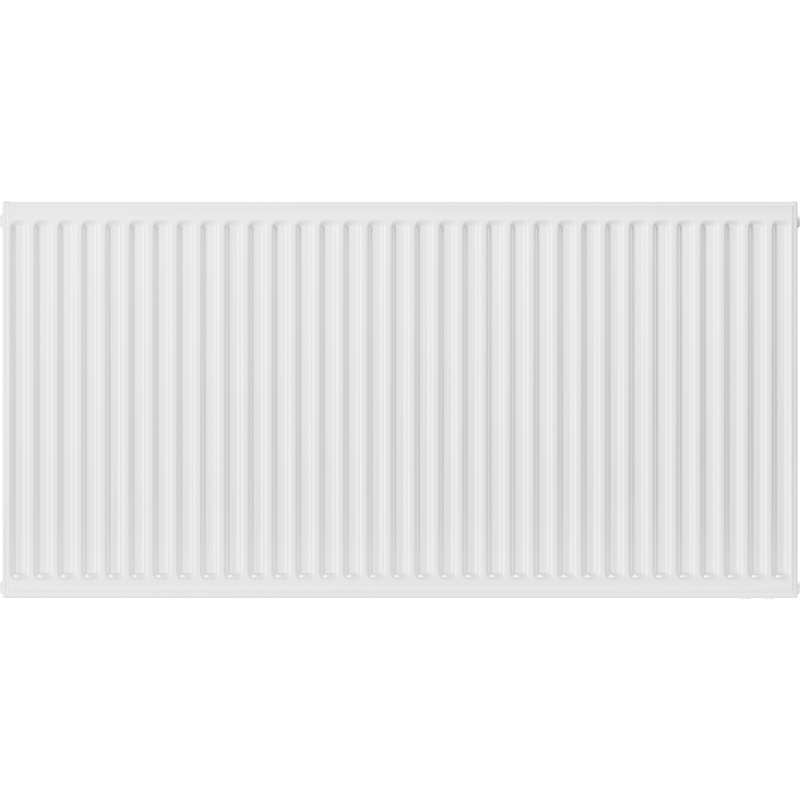

Pictures show the radiator size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C33
Width
1500 mm
Height
600 mm
Depth
164 mm
Type
Plate / Panel
Heating power
3735 W
Color
White
Material
Steel
Type
33
Installation Orientation
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
