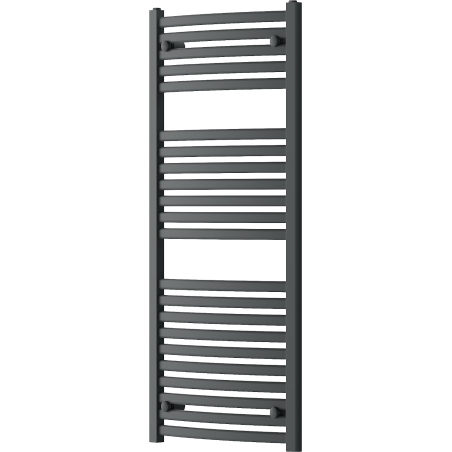

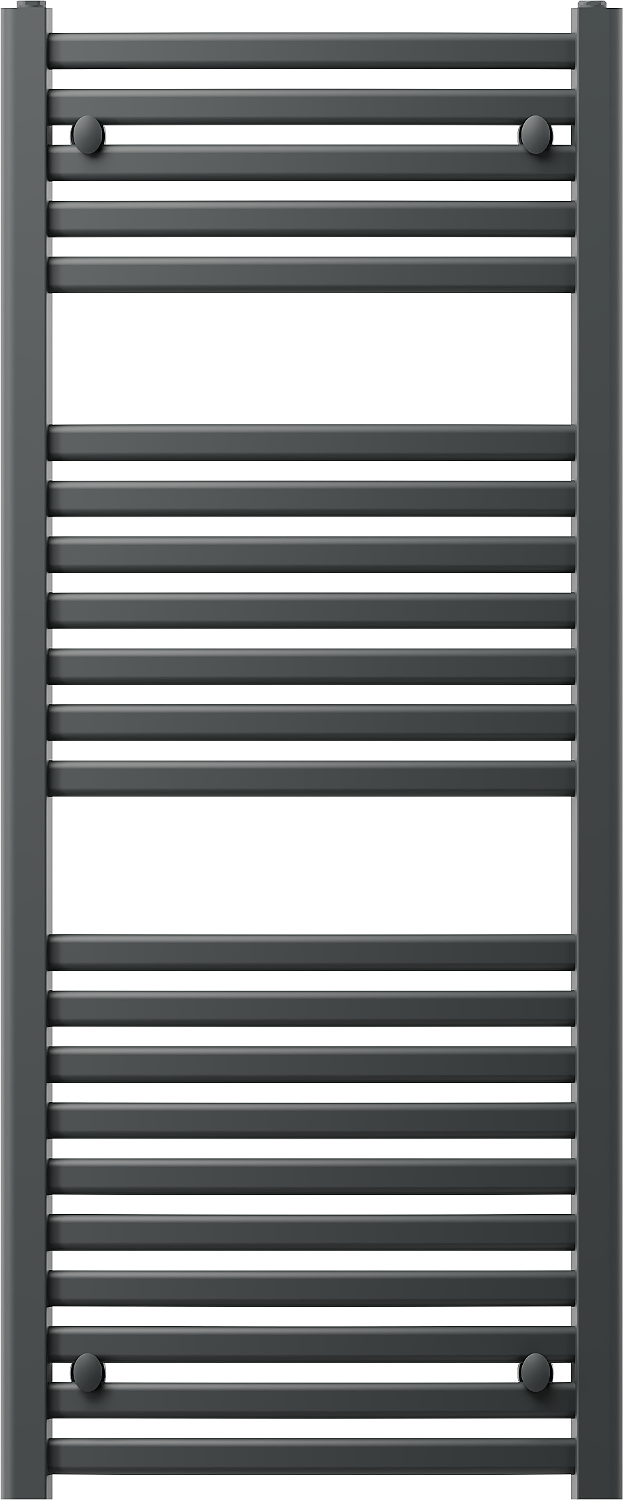

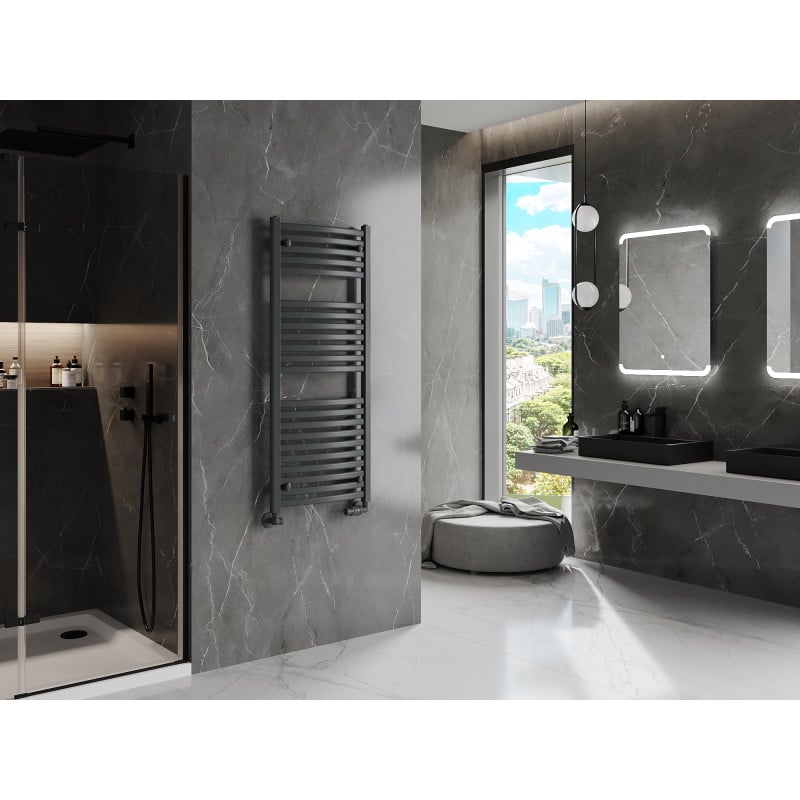

Mexen Helios is a modern bathroom radiator with dimensions of 1200 x 500 mm, featuring a power of 567 W and elegant anthracite finish RAL 7016. Made of steel, it ensures durability and strength. With an A1 fire reaction class and a maximum operating temperature of up to 95 °C, it is safe to use. The radiator has a connection spacing of 45 cm and the ability to install a heater, as well as a durable coating resistant to corrosion. The set includes hangers, installation kit, sealing plugs, and air vent.

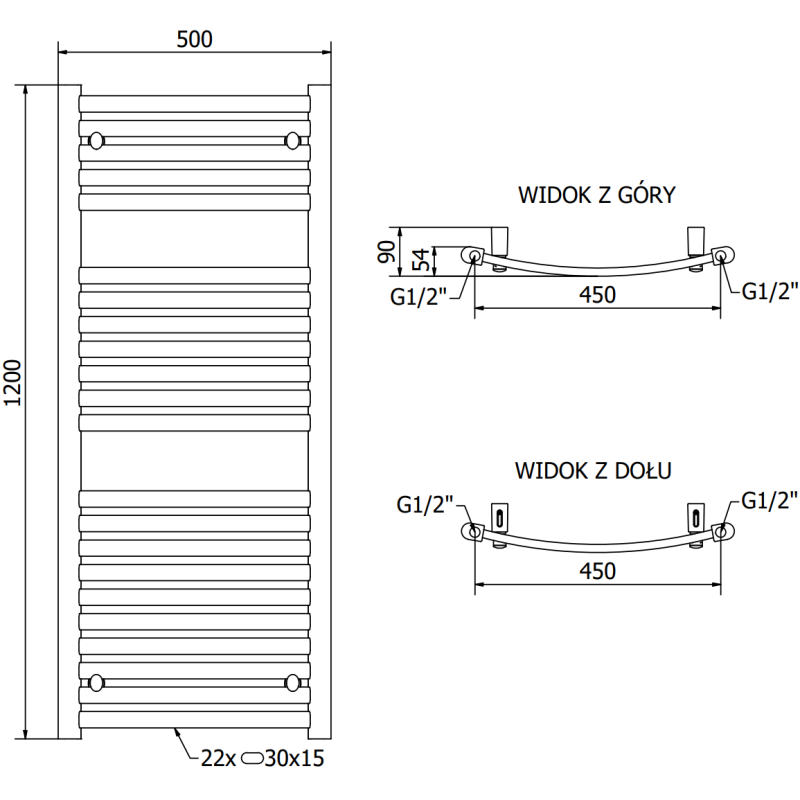

Technical data:

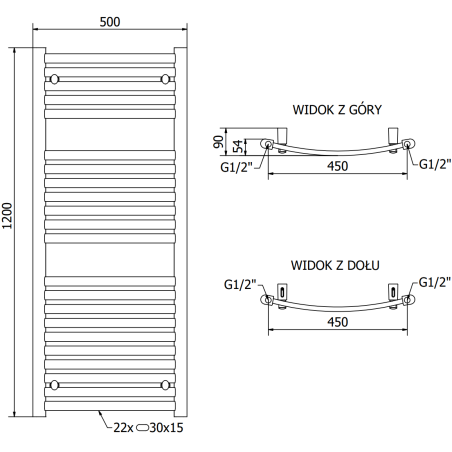

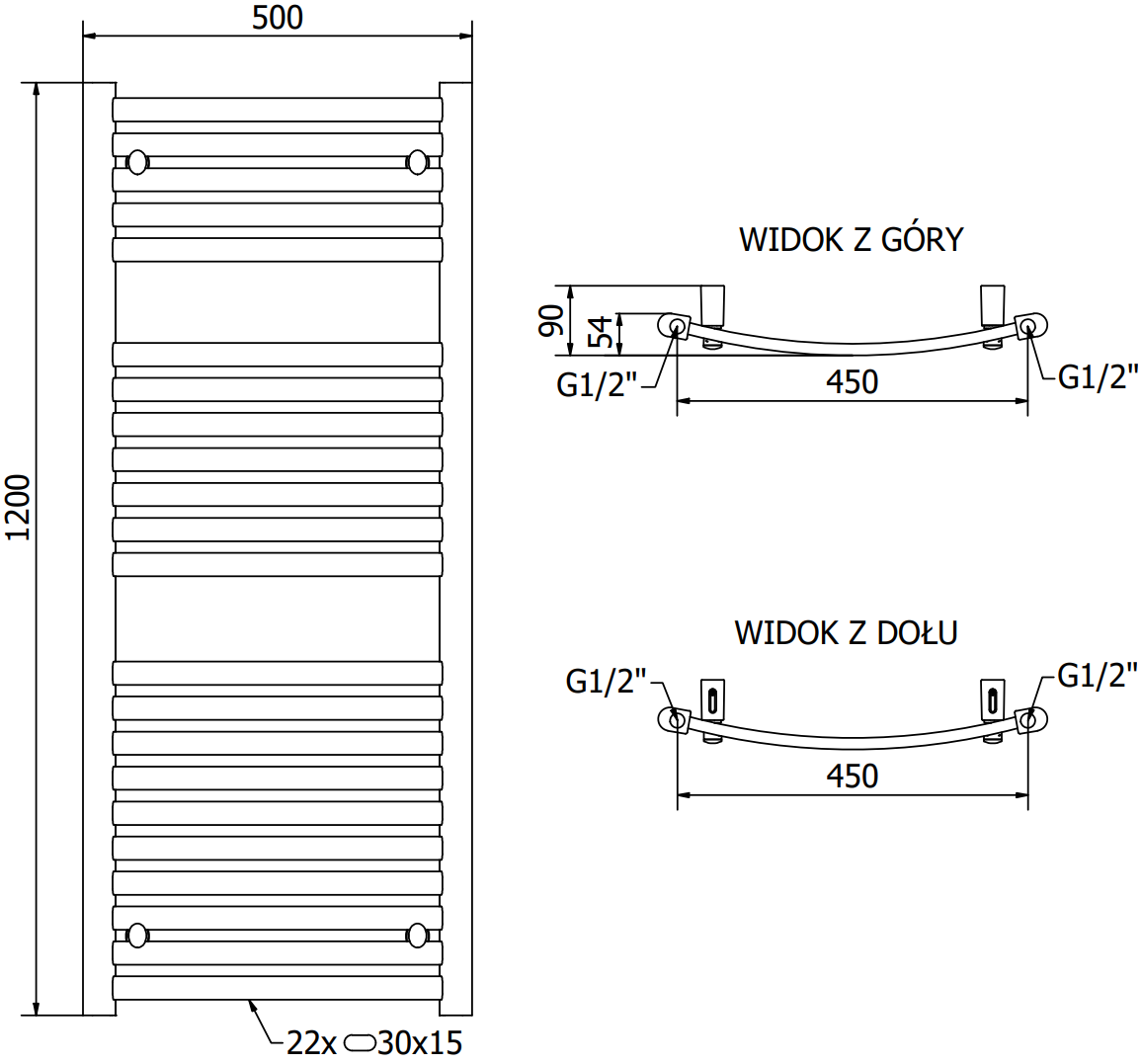

Height: 1200 mm

Width: 500 mm

Depth: 54 mm

Connection spacing: 45 cm

Color: Anthracite RAL 7016

Material: Steel

Weight: 9.65 kg

Capacity: 5.1 l

Fire reaction: A1

Operating temperature: max 95 °C

Max operating pressure: 0.6 Mpa

Heating power:

- 75/65/20 °C - 567 W

Connections:

- 4xG ½″ from the top and bottom on the right or left side

Possibility to install a heater

High-quality, durable lacquer coating resistant to corrosion

Includes: hangers, installation kit, sealing plugs, and air vent

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

Max. 0.6 Mpa

The maximum operating pressure is 0.6 Mpa (6 bar). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 95°C

The maximum temperature reached by the radiator during operation is 95°C. This allows for effective and efficient heating of the room, ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Helios
Width
500 mm
Height
1200 mm
Depth
54 mm
Type
Ladder
Heating power
567 W
Color
Anthracite
Material
Steel
Mounting Orientation
Universal
Connection spacing
45 cm
Connection
Bottom
Orientation
Vertical
