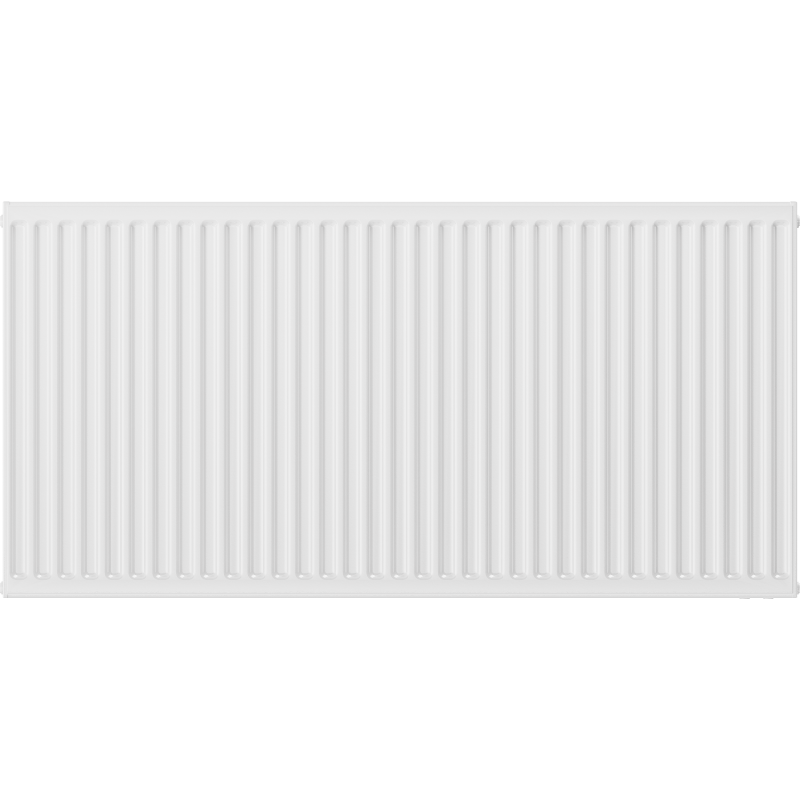

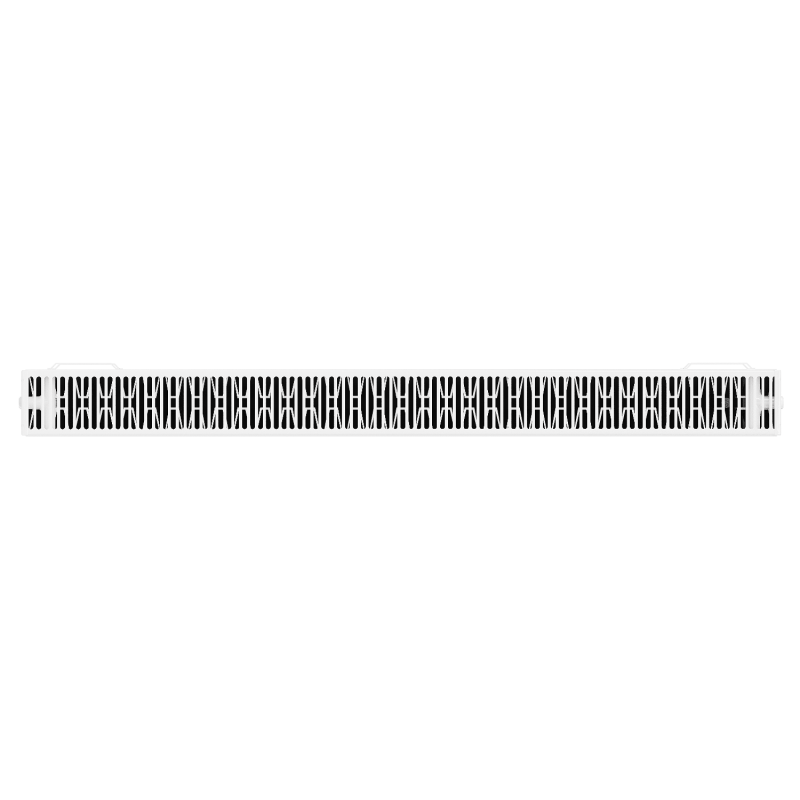

Mexen C22 panel radiator 400 x 1300 mm, side connection, 1541 W, white - W422-040-130-00
Technical data:
Height: 400 mm
Width: 1300 mm
Depth: 103 mm
Connection spacing: 35 cm
Spacing of vertical water channels: 33.3 mm
Colour: White RAL 9016
Material: Steel
Working temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 798 W
- 75/65/20 °C 1541 W
- 90/70/20 °C 1949 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Included: brackets, installation kit, sealing plugs, and air vent

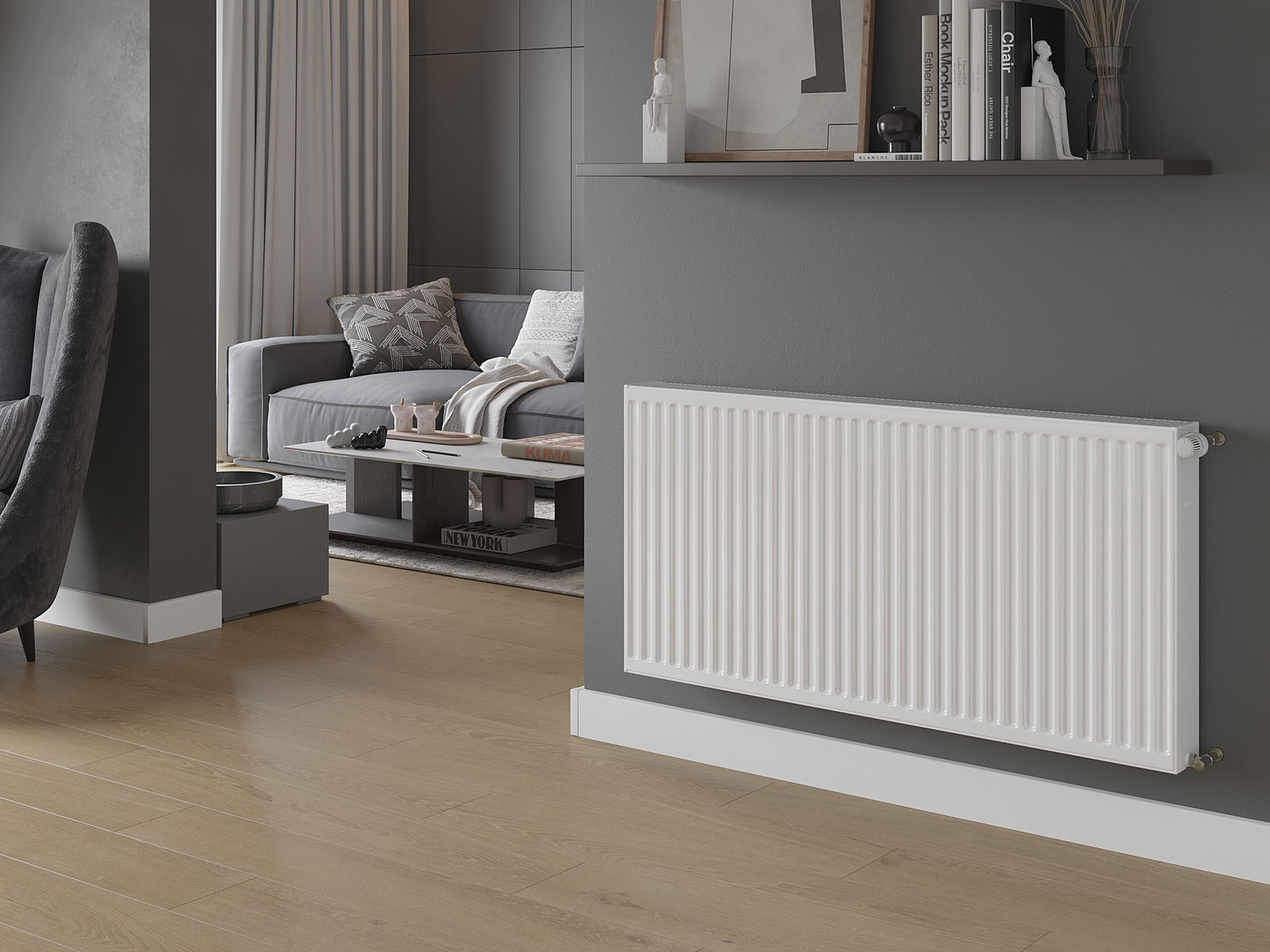

The photos show the radiator in size 600 x 1200 mm.
