Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00

Brodziki EN

Brodziki EN

(0)
Questions
(0)

Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00

Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
search
  • Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
  • Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
  • Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
  • Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
  • Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
  • Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00 Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00 Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00 Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00 Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00 Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00
Steel Steel
High thermal efficiency High thermal efficiency
Paint Coating: DIN 99500 Paint Coating: DIN 99500
Brand:
Mexen
Series:
CV22
Ean:
5905315924865
Index:
W622-040-260-00
Height:
400 mm
Color:
White
Width:
2600 mm
Heating power:
3082 W
Width - 2600 mm - ()
400 mm
500 mm
600 mm
700 mm
800 mm
900 mm
1000 mm
1100 mm
1200 mm
1300 mm
1400 mm
1500 mm
1600 mm
1800 mm
2000 mm
2200 mm
2400 mm
2600 mm
2800 mm
3000 mm
Height - 400 mm - ()
300 mm
400 mm
500 mm
600 mm
900 mm
Color - White - ()

Mexen CV22 panel radiator 400 x 2600 mm, bottom connection, 3082 W, white - W622-040-260-00

The Mexen CV22 panel radiator 400 x 2600 mm is an excellent solution for efficient heating of large rooms. With its heating power reaching up to 3897 W at a temperature of 90/70/20 °C, it provides warmth on cold days. Made from durable steel, finished in white RAL 9016, it fits most modern interiors. Compact dimensions with a height of 400 mm and width of 2600 mm, along with flexible connection options, ensure easy installation. The radiator features a durable paint coating compliant with DIN 99500 as well as a side cover and removable top cover. The set includes hangers, an installation kit, sealing caps, a vent, and a valve insert.

Technical data:

Height: 400 mm

Width: 2600 mm

Depth: 103 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1597 W

- 75/65/20 °C 3082 W

- 90/70/20 °C 3897 W

Connections:

- 2xG ½″ bottom from right or left side

- 4xG ½″ side

High quality, durable paint coating - DIN 99500

Includes side cover and removable top cover

Included: hangers, installation kit, sealing caps, vent and valve insert

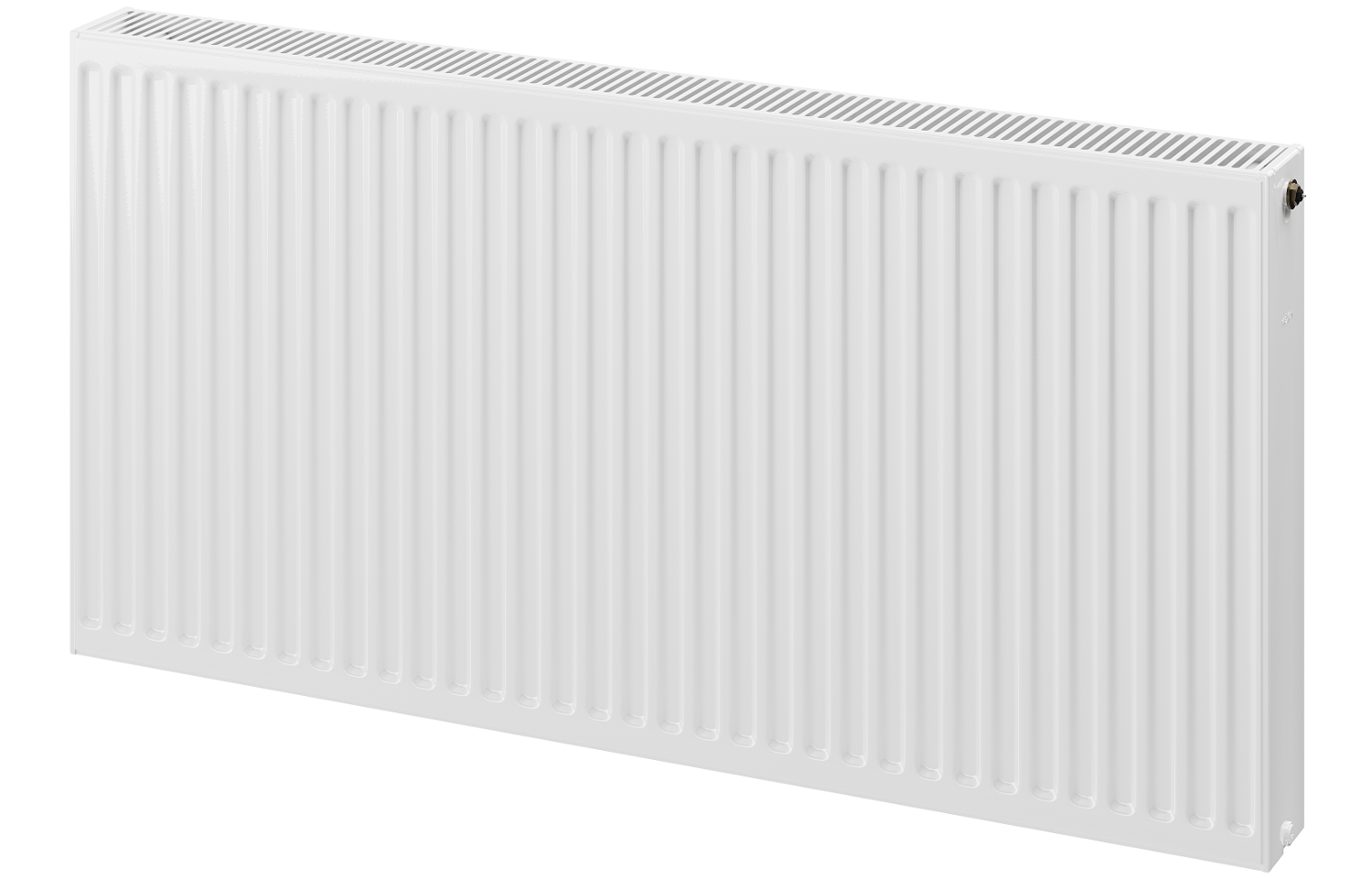

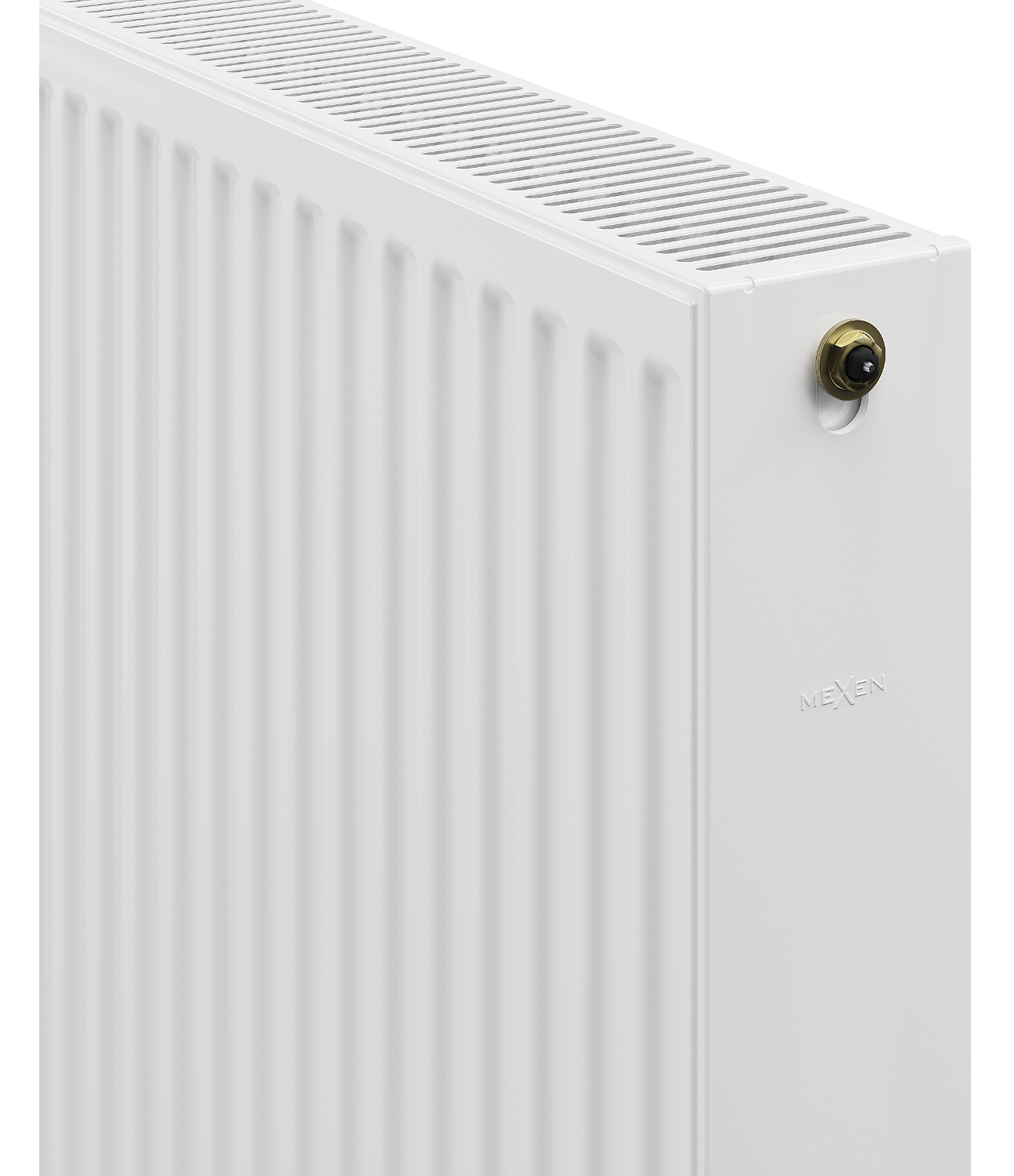

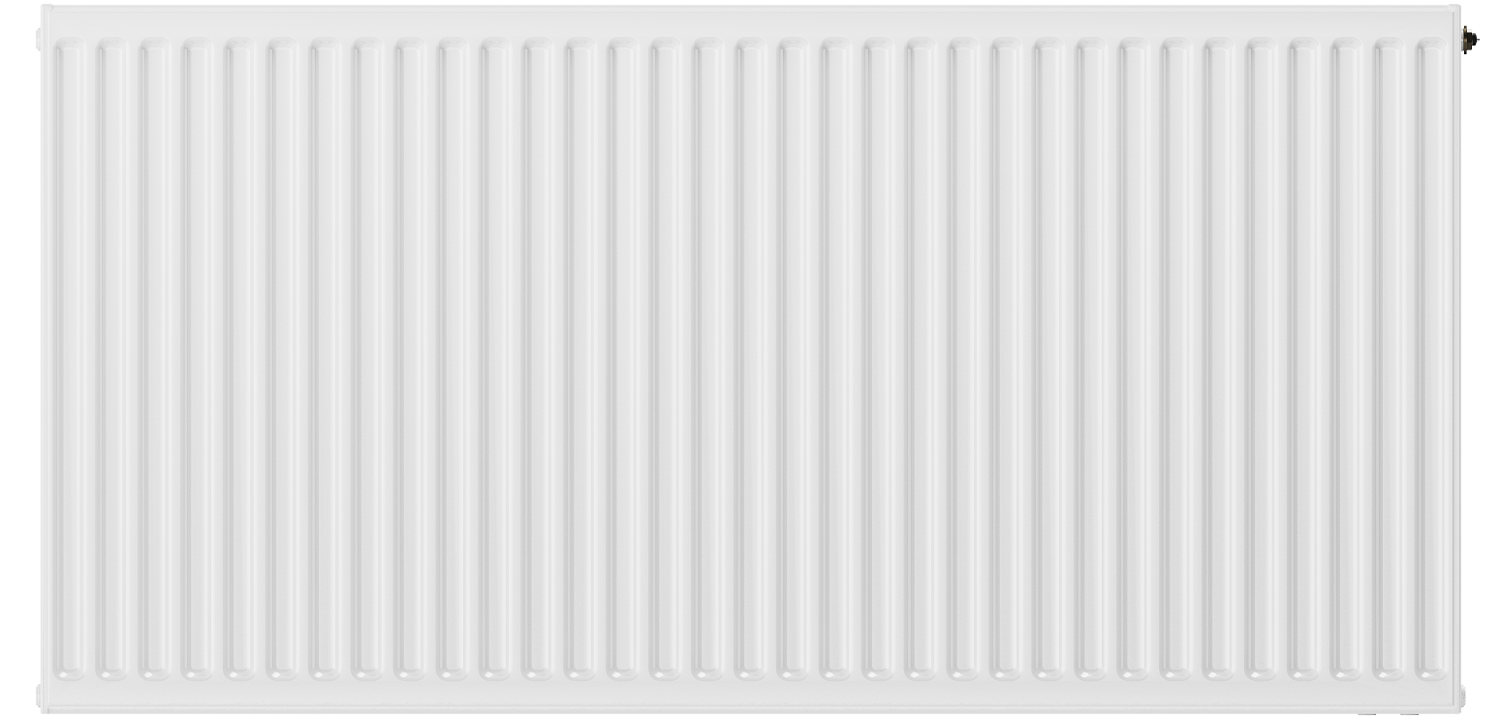

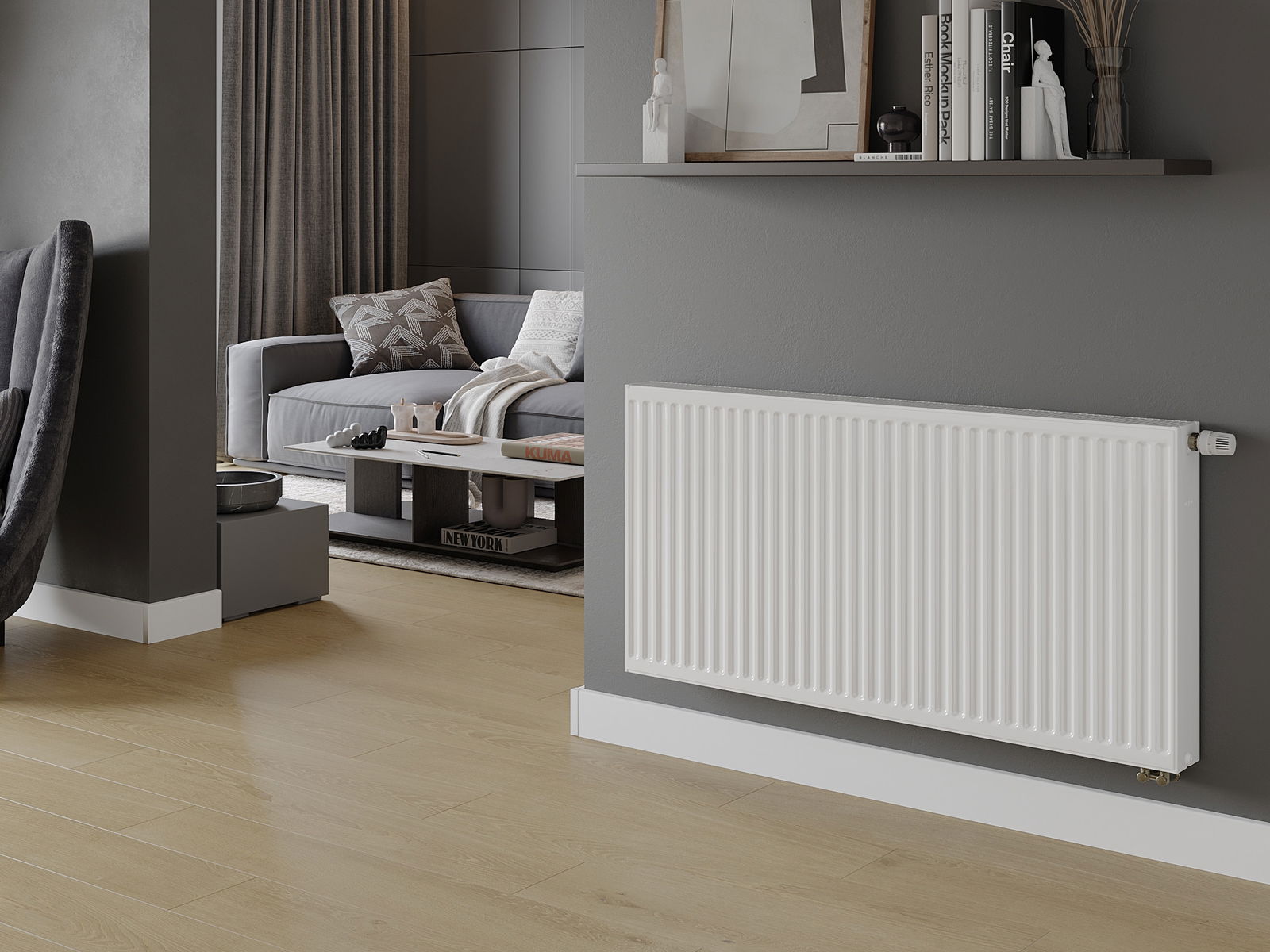

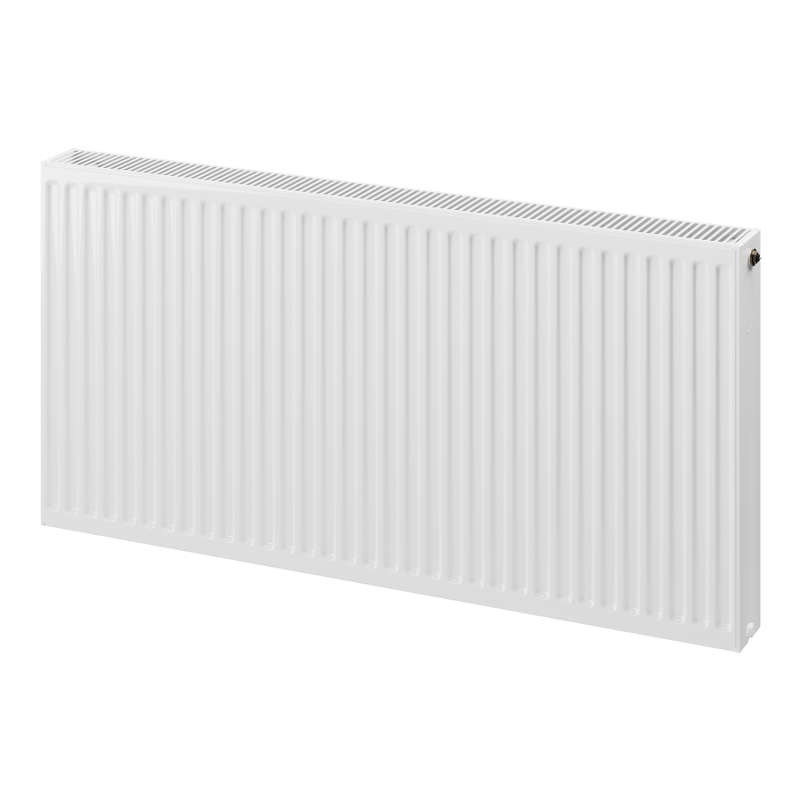

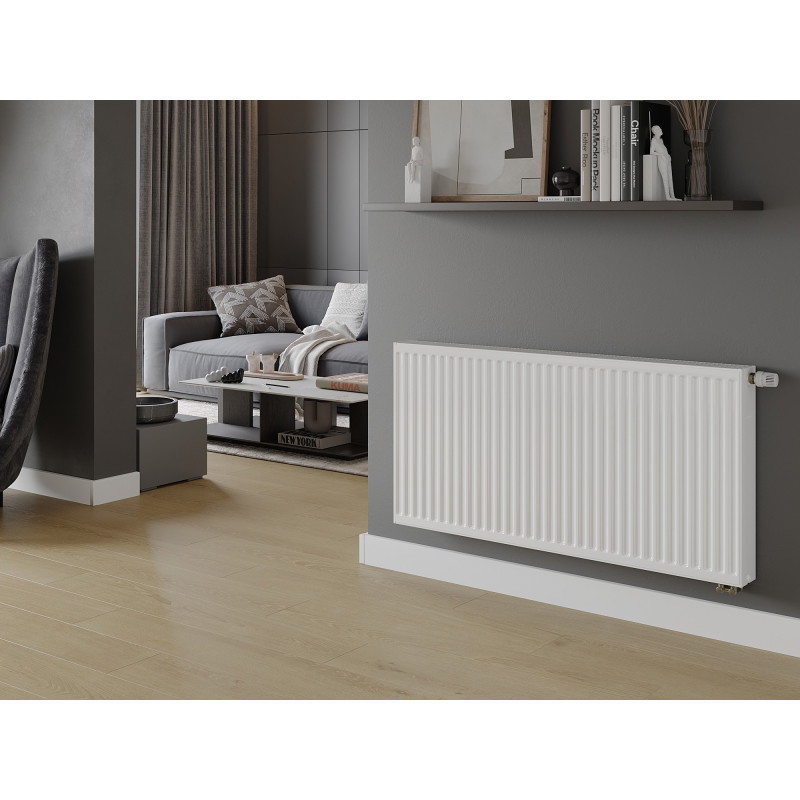

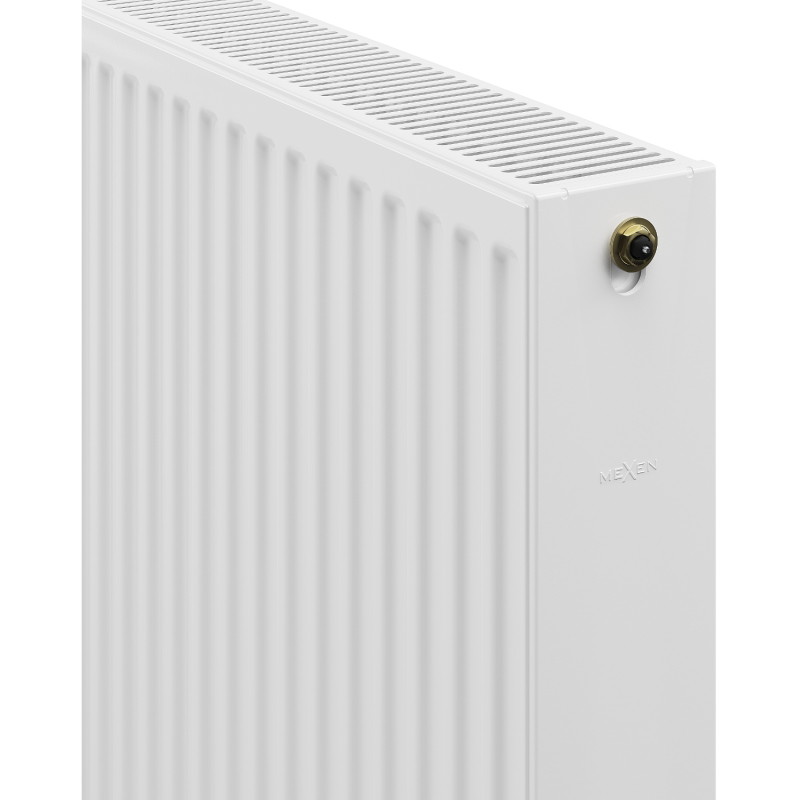

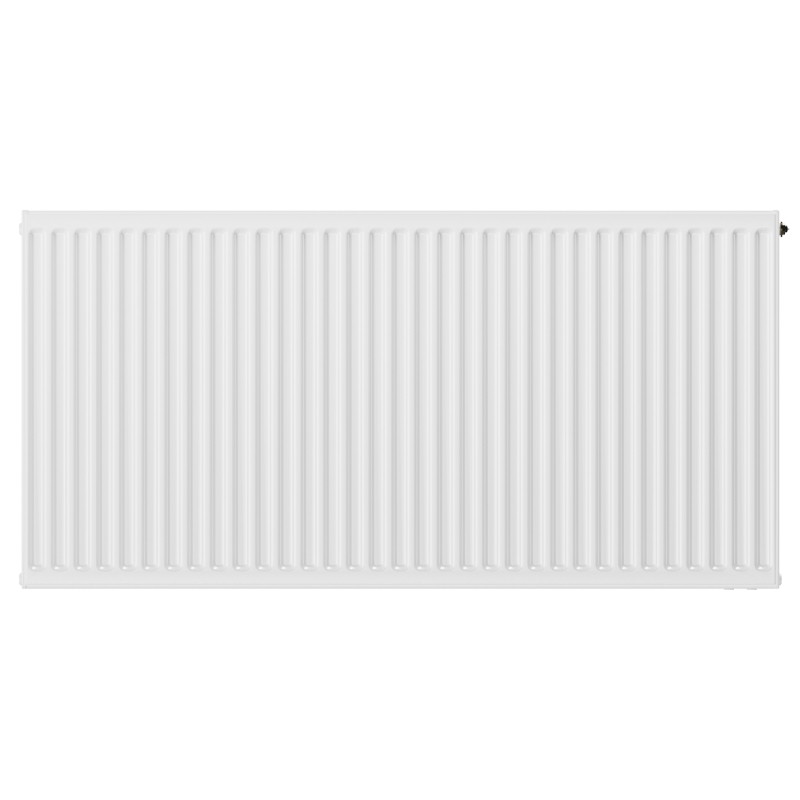

The pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
CV22
Width
2600 mm
Height
400 mm
Depth
103 mm
Type
Plate / Panel
Heating power
3082 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
