Mexen CV21 panel radiator 400 x 2800 mm, bottom connection, 2594 W, white - W621-040-280-00

Mexen CV21 is an elegant panel radiator with dimensions 400 x 2800 mm, perfectly suited for modern interiors. Its heating power is up to 2594 W at 75/65/20 °C, providing efficient heating. The product is made of a steel structure, ensuring durability and resistance to high working pressure (10 bar). The radiator has a bottom connection and is available in classic white color RAL 9016. It features a high-quality paint coating in accordance with DIN 99500, side cover, and removable top cover. The set includes everything needed for installation, including hangers and assembly kit.

Technical data:

Height (Y): 400 mm

Width (X): 2800 mm

Depth: 73 mm

Connection spacing: 5 cm

Distance between vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1347 W

- 75/65/20 °C 2594 W

- 90/70/20 °C 3277 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Has side cover and removable top cover

Includes: hangers, assembly kit, sealing plugs, air vent, and valve insert

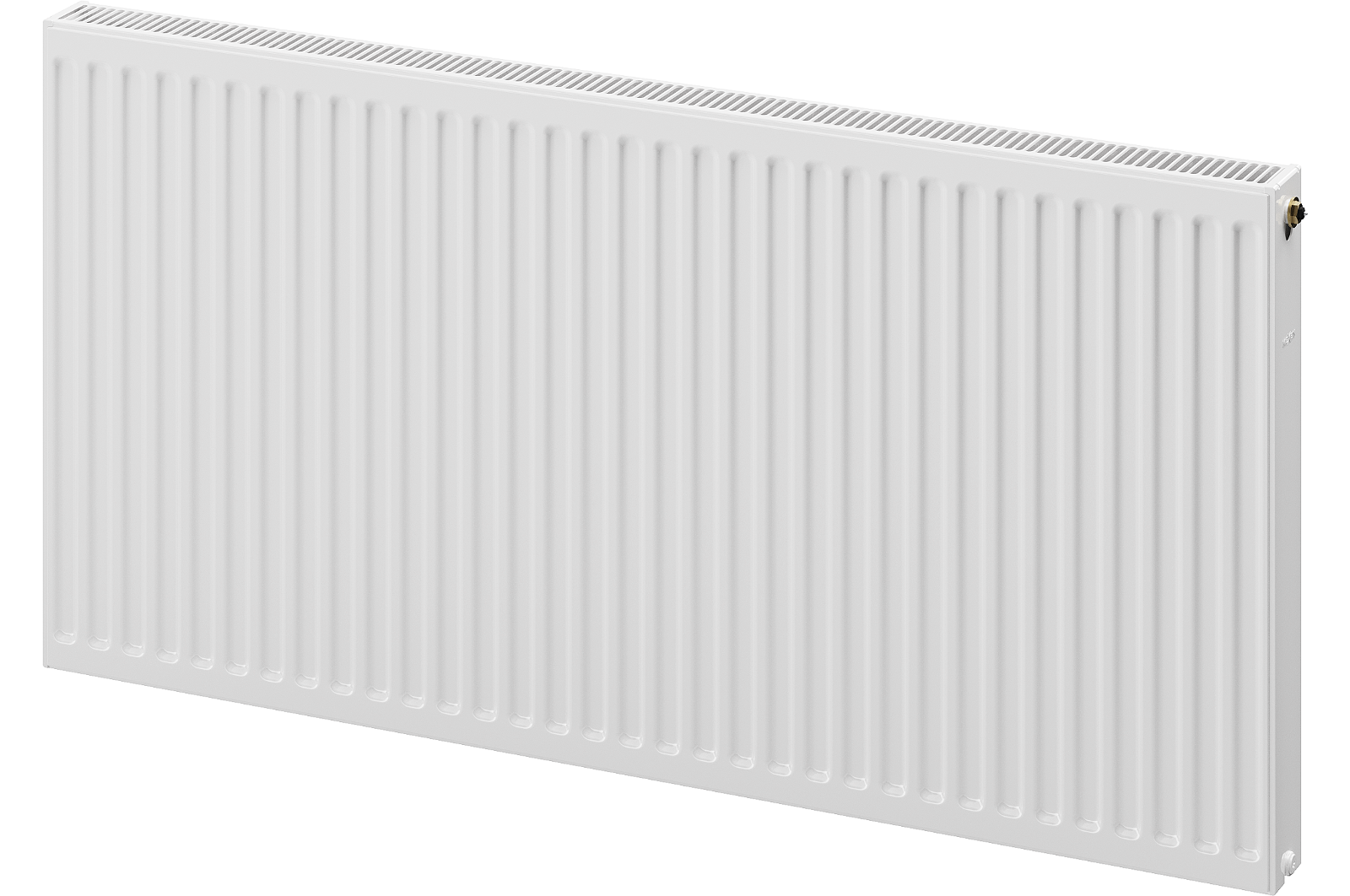

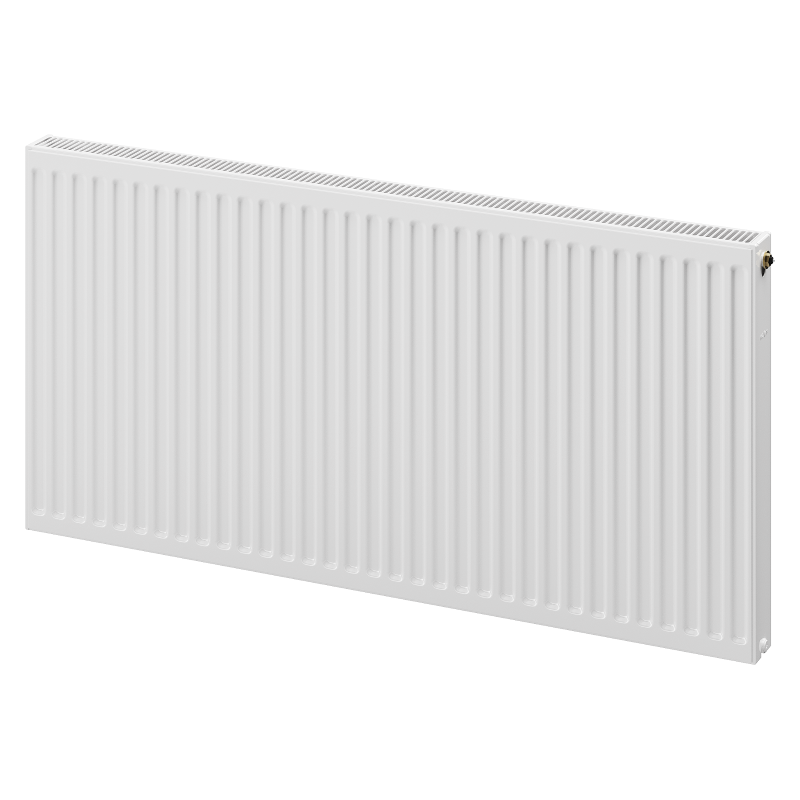

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CV21
Width
2800 mm
Height
400 mm
Depth
73 mm
Type
Plate / Panel
Heating power
2594 W
Color
White
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
