Mexen CL11 Plate Radiator Line 500 x 1800 mm, Side Connection, 1228 W, White - W411L-050-180-00

Mexen Line CL11 plate radiator is a modern and efficient heating solution that fits perfectly in any interior. It offers a heating power of up to 1228 W, providing comfortable warmth even in larger rooms. With its elegant white color RAL 9016 and durable steel construction, this radiator is not only functional but also aesthetic. Compact dimensions of 500 x 1800 mm and side connections (4xG ½″) facilitate installation. The maximum operating temperature is 110 °C, and the working pressure is up to 10 bar. The Mexen Line radiator features a high-quality paint coating compliant with DIN 99500 standard and additional installation accessories, ensuring durability and ease of use.

Technical data:

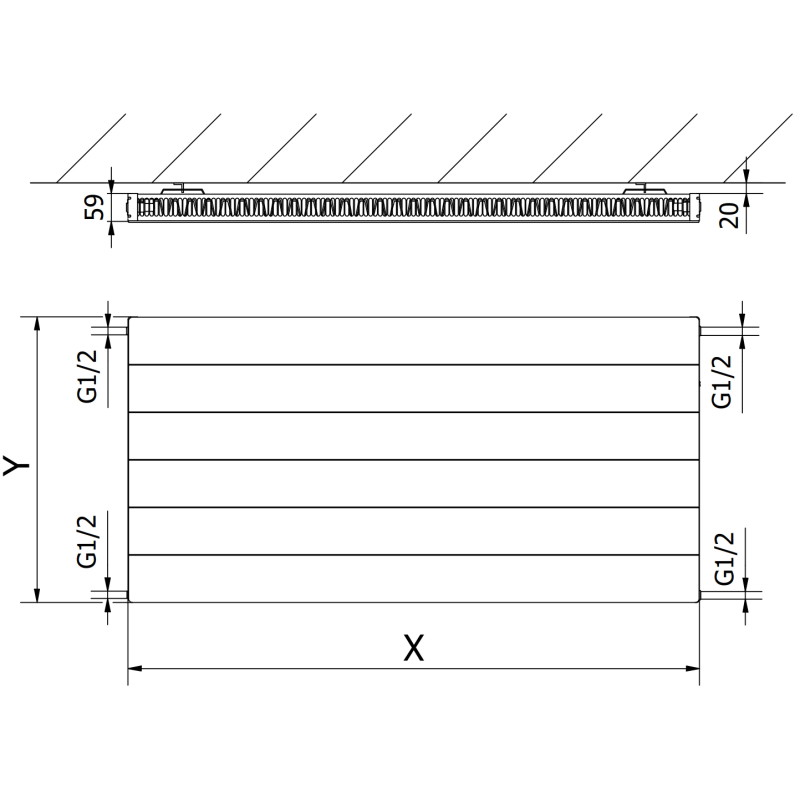

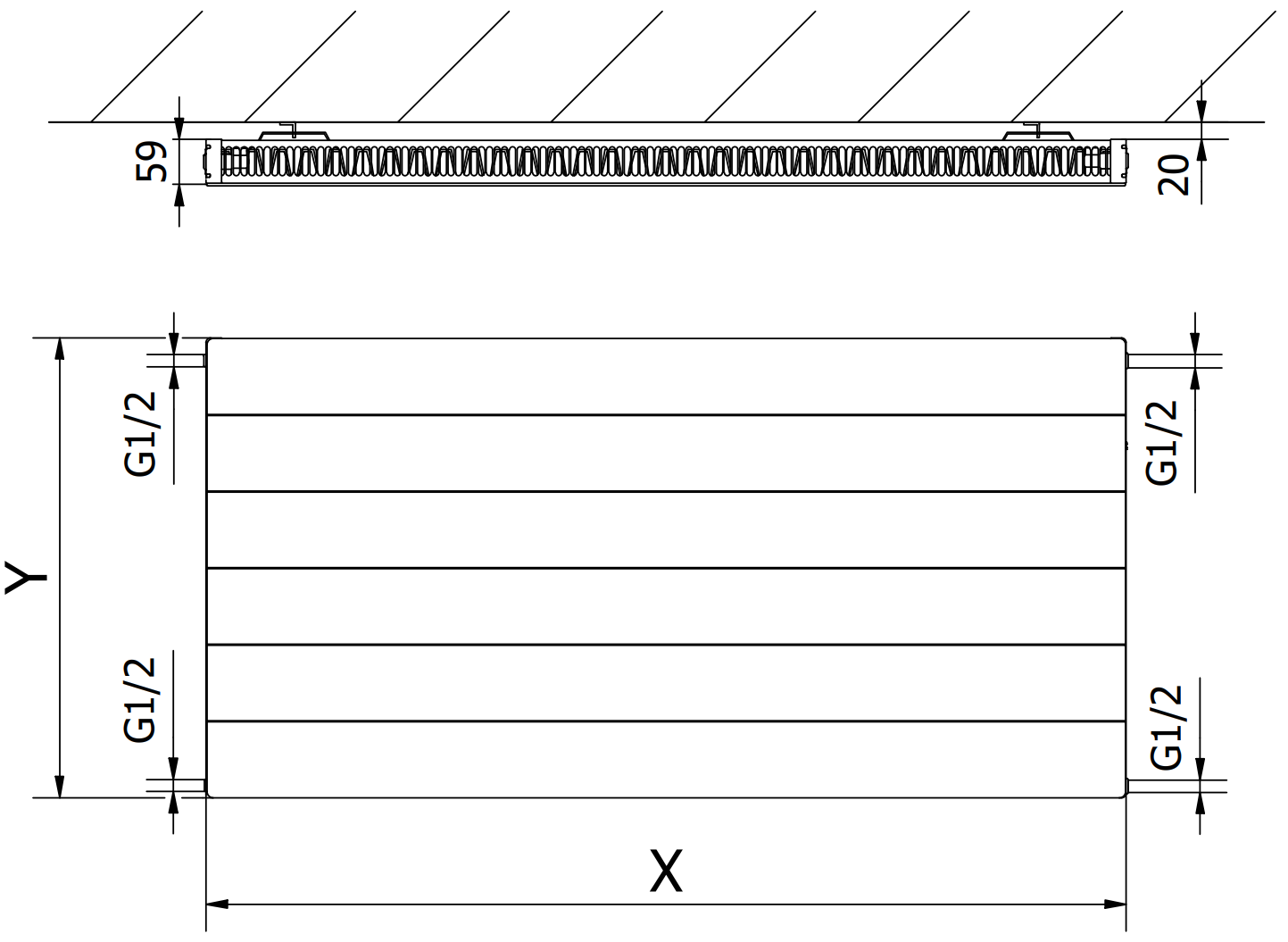

Height (Y): 500 mm

Width (X): 1800 mm

Depth: 59 mm

Connection spacing: 45 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 655 W

- 75/65/20 °C 1228 W

- 90/70/20 °C 1538 W

Connections:

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

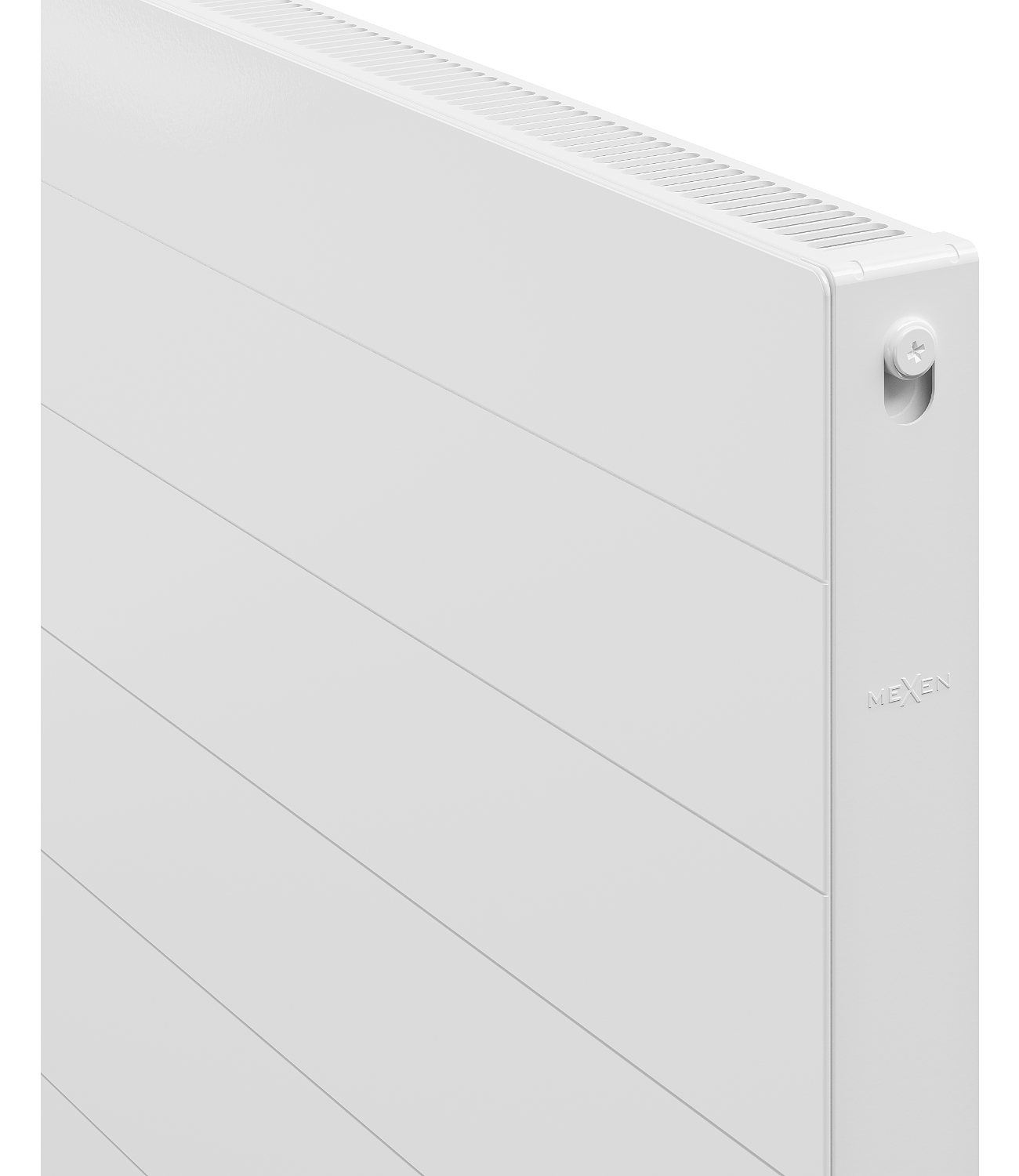

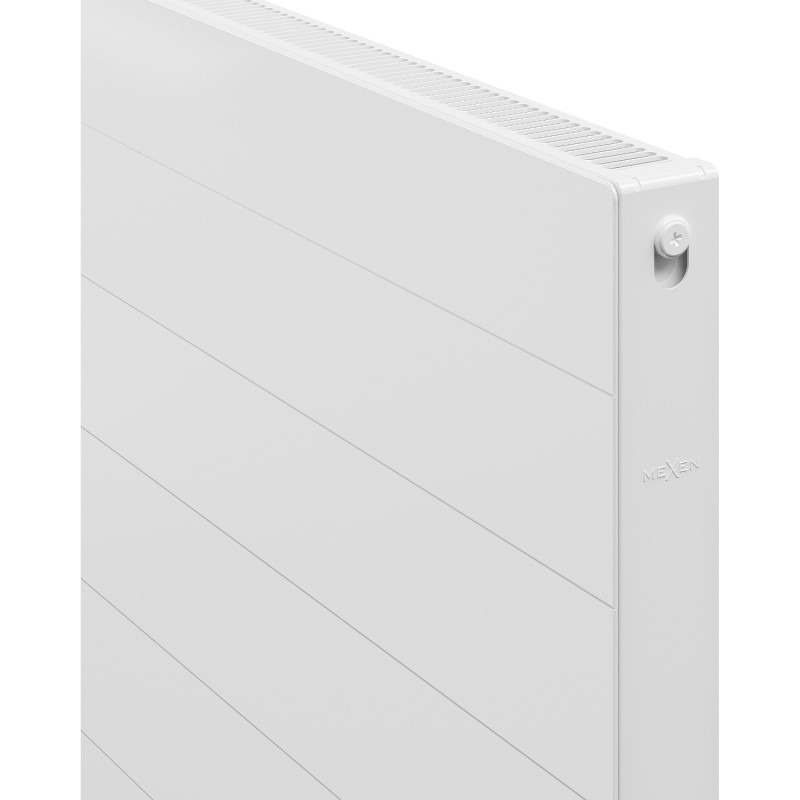

Comes with a side cover and removable top cover

Included: hangers, assembly kit, sealing plugs, and air vent

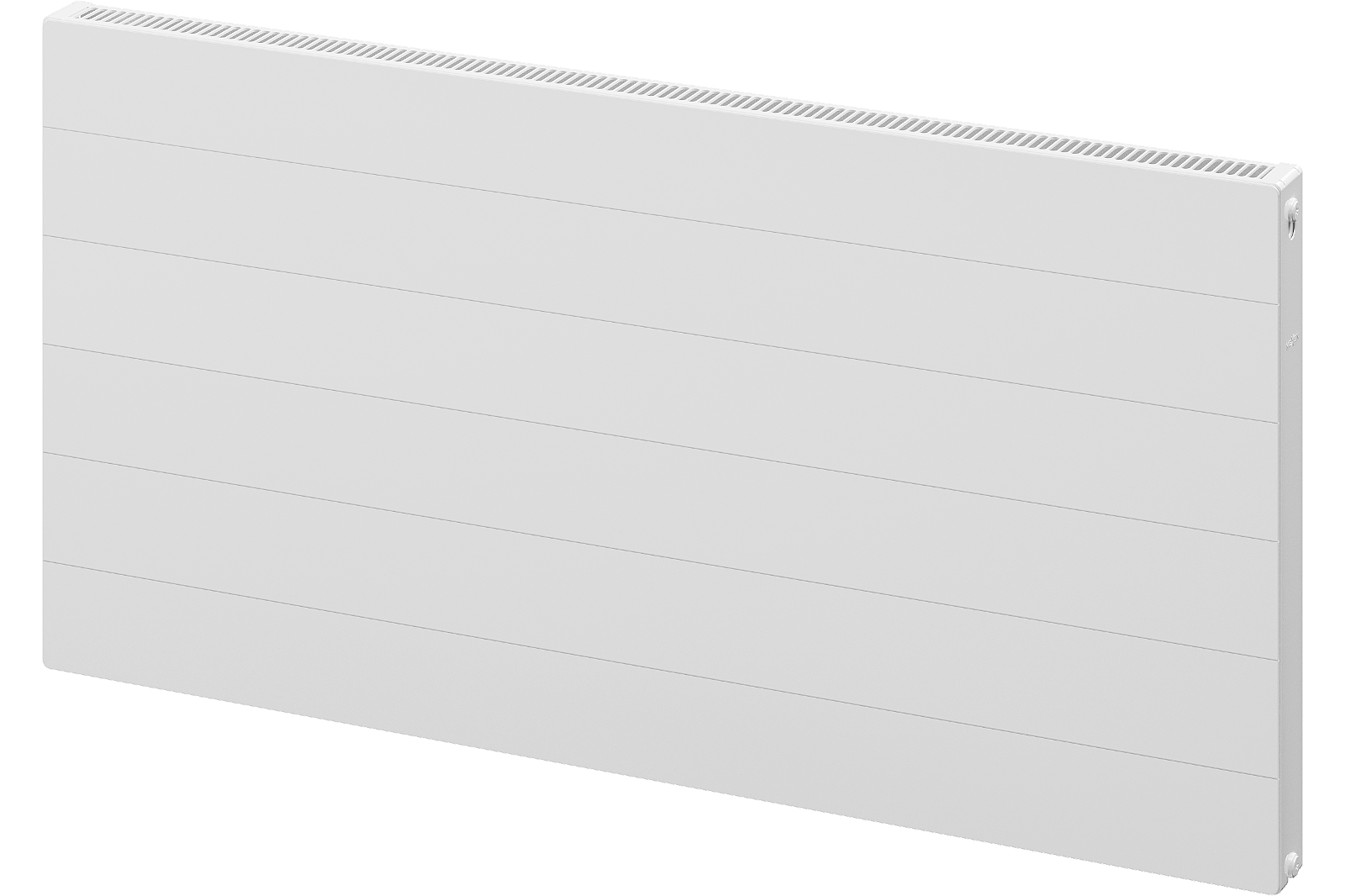

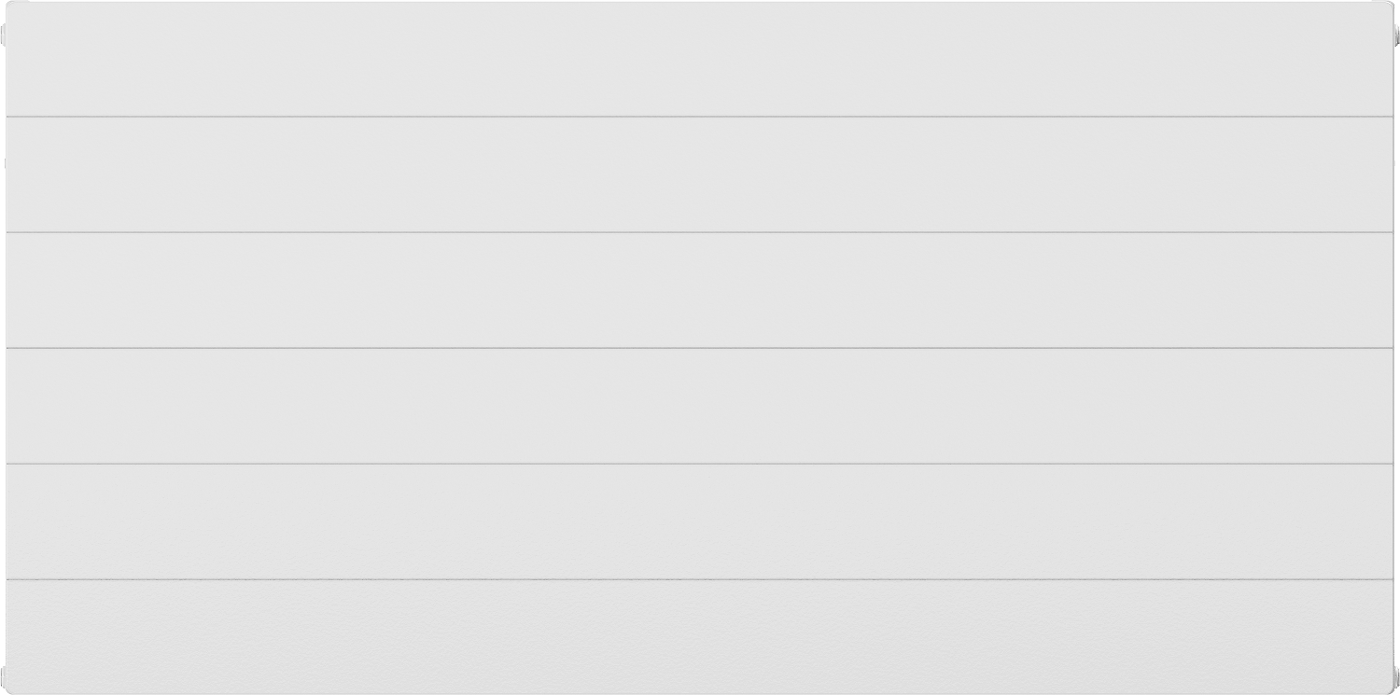

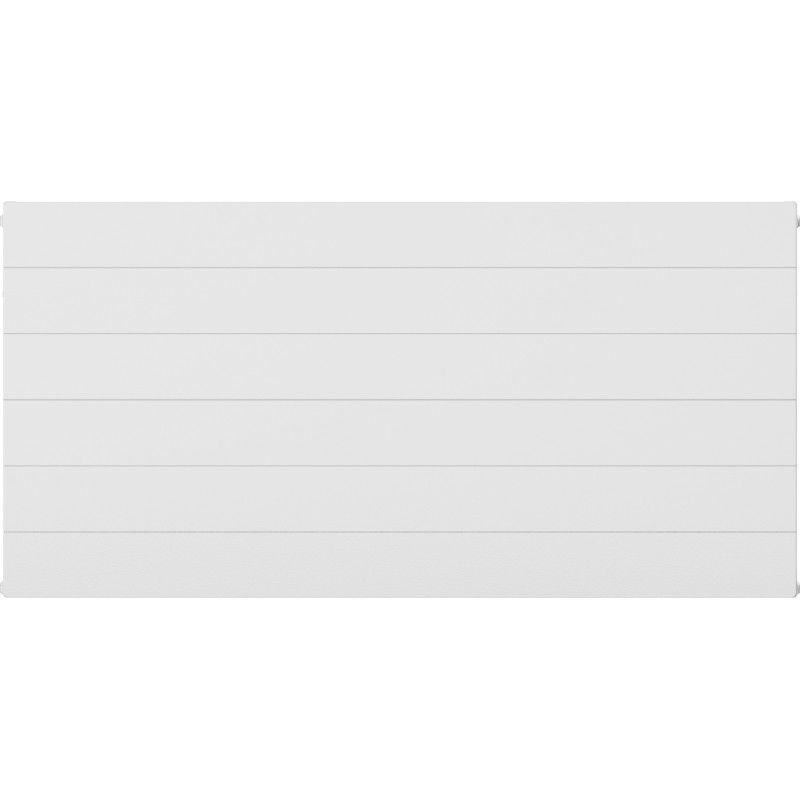

The photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CL11
Width
1800 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
1228 W
Color
White
Material
Steel
Type
11
Mounting Position
Universal
Connection spacing
45 cm
Connection
Side
Orientation
Horizontal
