Mexen CL11 Panel Radiator Line 600 x 1500 mm, Side Connection, 1175 W, White - W411L-060-150-00

The Mexen Line CL11 is a unique panel radiator with dimensions of 600 x 1500 mm and side connection. It offers impressive heating efficiency up to 1175 W at water temperatures of 75/65/20 °C and maximum operation up to 110 °C. Made from high-quality steel, coated with a durable finish according to DIN 99500 standards. The white color RAL 9016 perfectly fits modern interiors. The set includes brackets, installation kit, and vent, facilitating installation. Maximum working pressure is 10 bar.

Technical data:

Height (Y): 600 mm

Width (X): 1500 mm

Depth: 59 mm

Connection spacing: 55 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 622 W

- 75/65/20 °C 1175 W

- 90/70/20 °C 1474 W

Connections:

- 4xG ½″ side

High-quality, durable coating - DIN 99500

Features side cover and removable top cover

Includes: brackets, mounting kit, sealing plugs, and vent

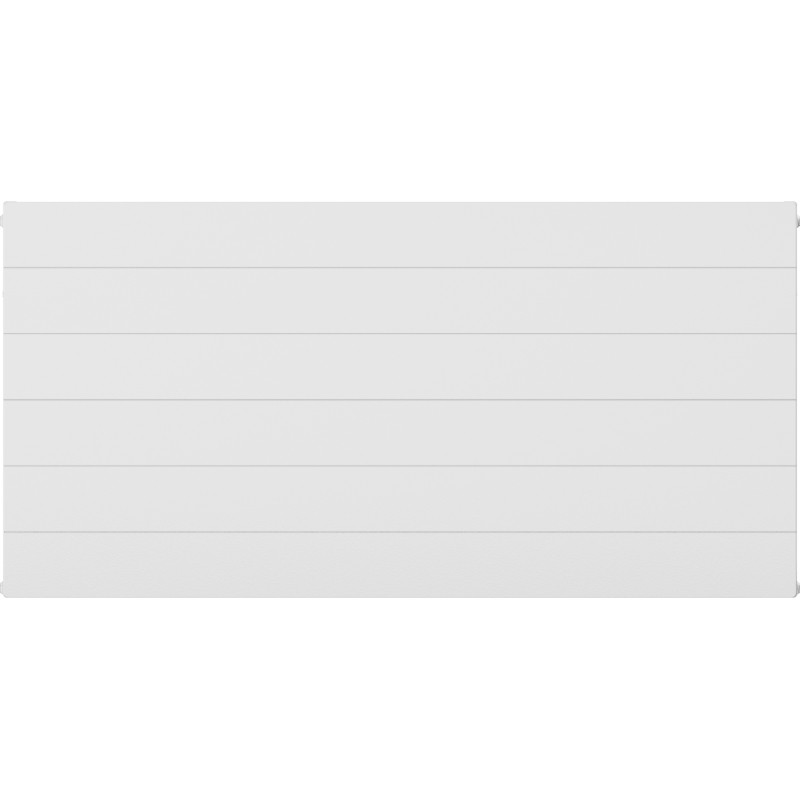

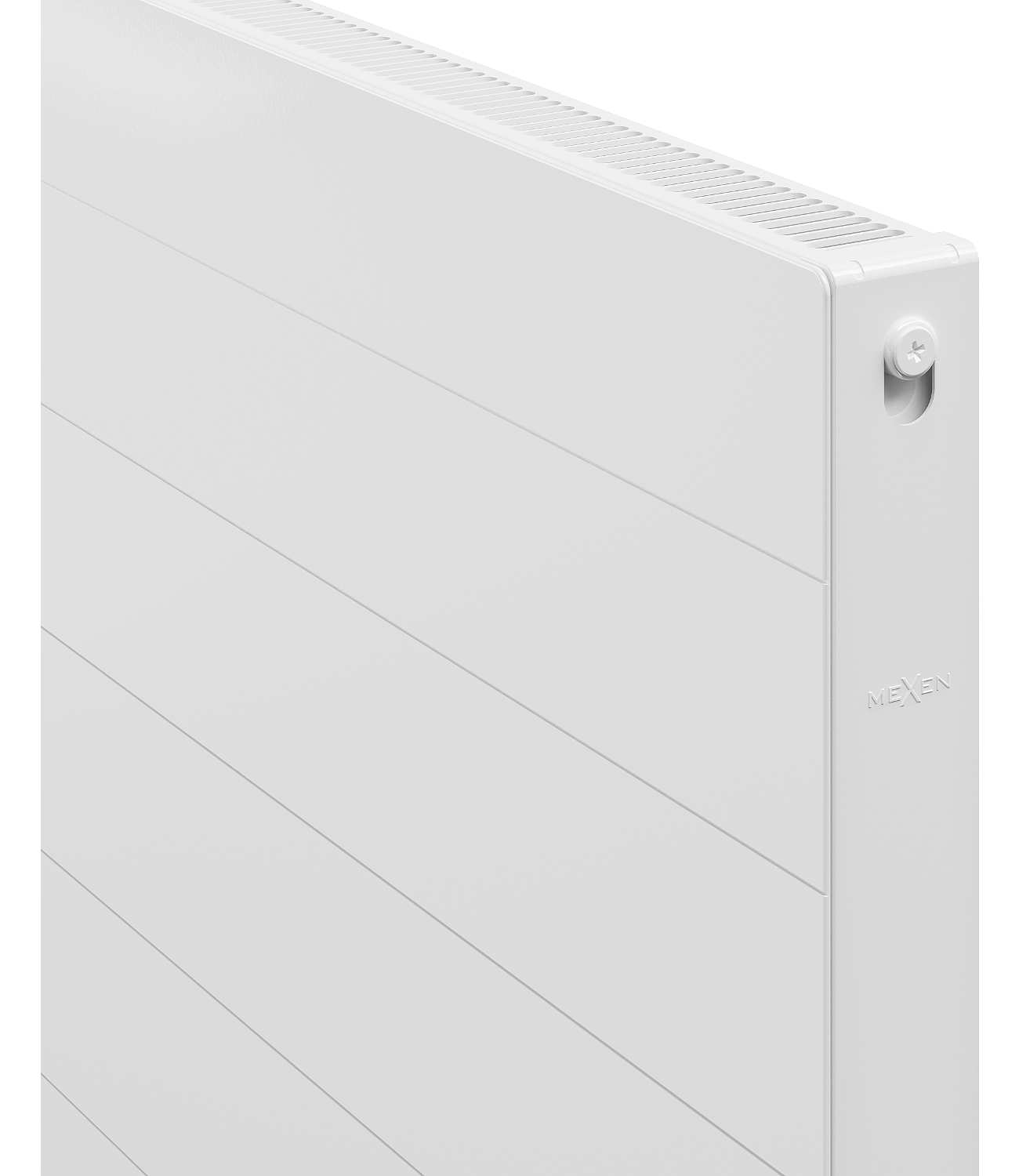

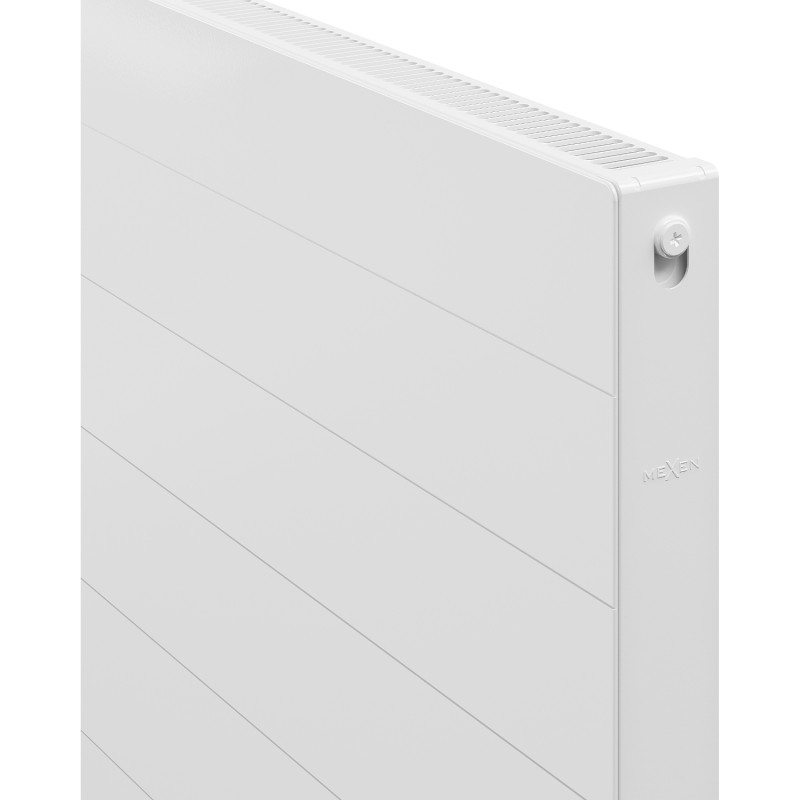

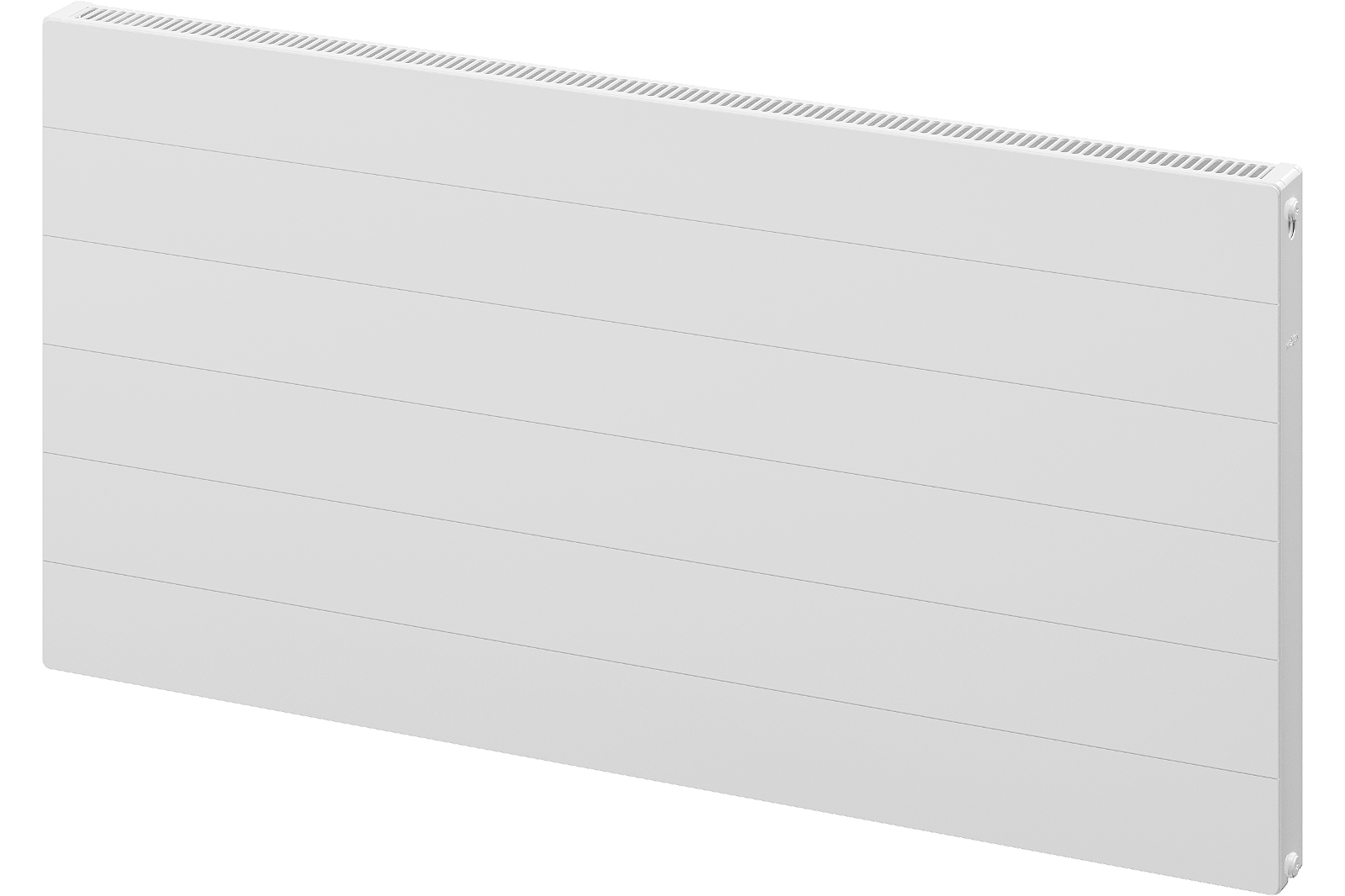

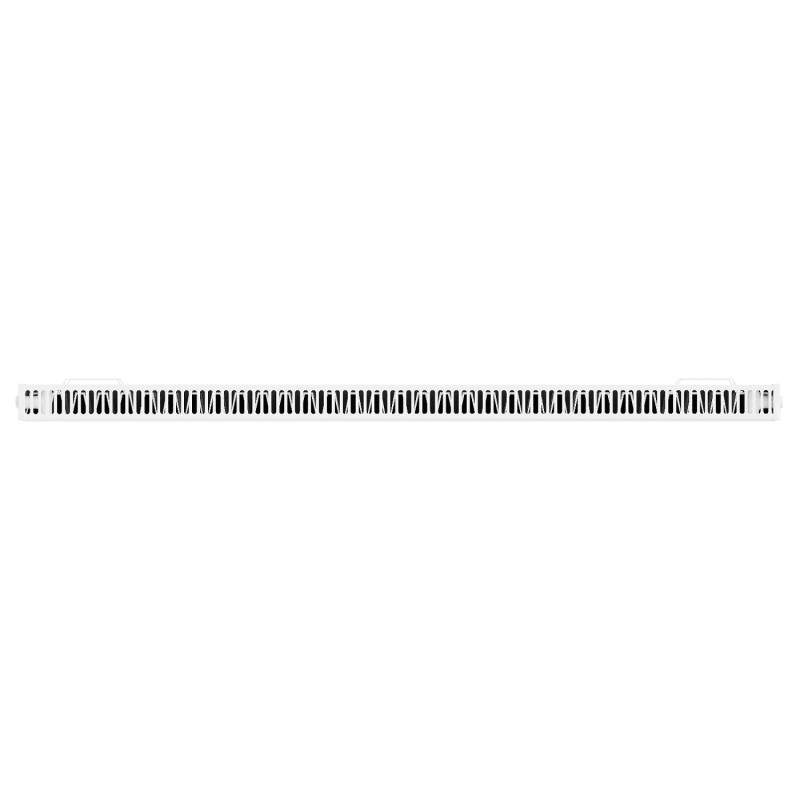

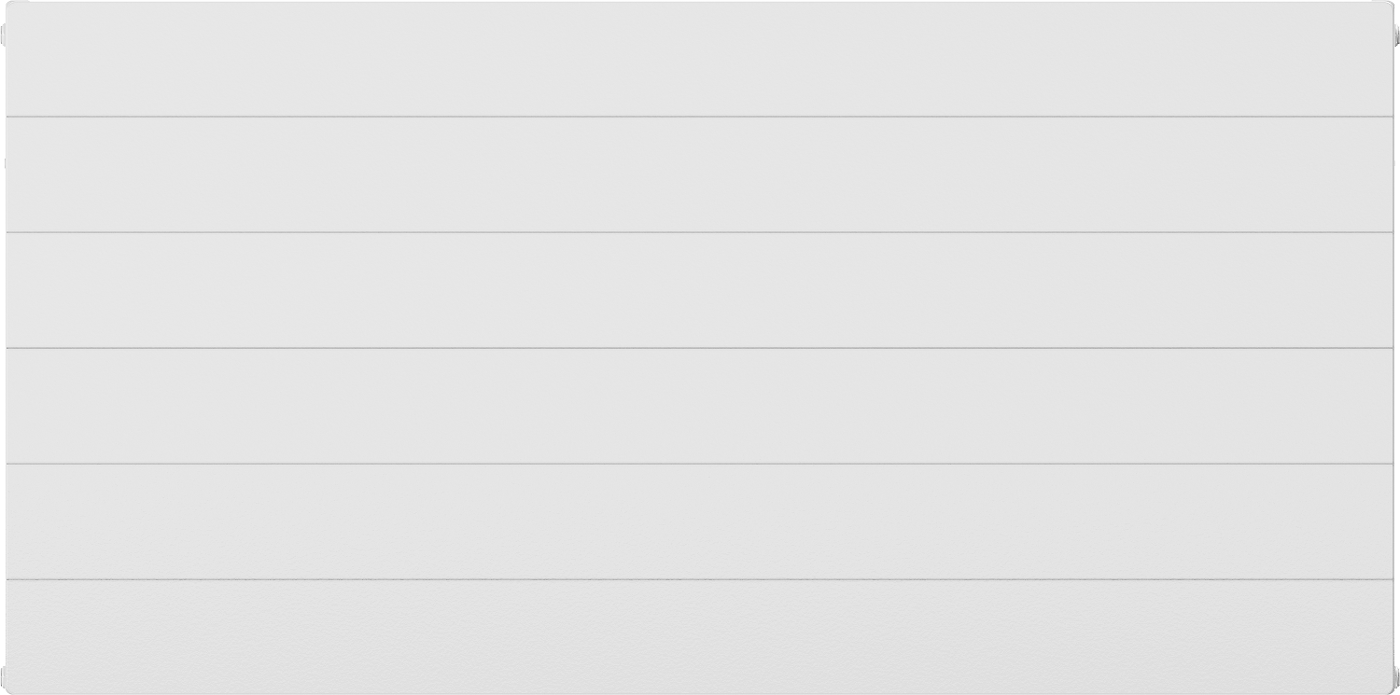

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CL11
Width
1500 mm
Height
600 mm
Depth
59 mm
Type
Plate / Panel
Heating power
1175 W
Color
White
Material
Steel
Type
11
Mounting Position
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
