Mexen CL21 Plate Radiator Line 500 x 1300 mm, Side Connection, 1311 W, White - W421L-050-130-00
Mexen Line CL21 is a modern plate radiator measuring 500 x 1300 mm with side connection, offering a heating power of up to 1311 W at a water temperature of 75/65/20 °C. Made of steel, in beautiful white color RAL 9016, it ensures an aesthetic appearance and effective heating. Its compact dimensions (width 1300 mm, height 500 mm, depth 73 mm) and durable paint coating confirmed by DIN 99500 standard guarantee high quality and durability. The maximum working pressure is 10 bar, and the operating temperature reaches up to 110 °C. The product includes a side cover and a removable top cover and is delivered with the necessary brackets and installation kit.
Technical data:

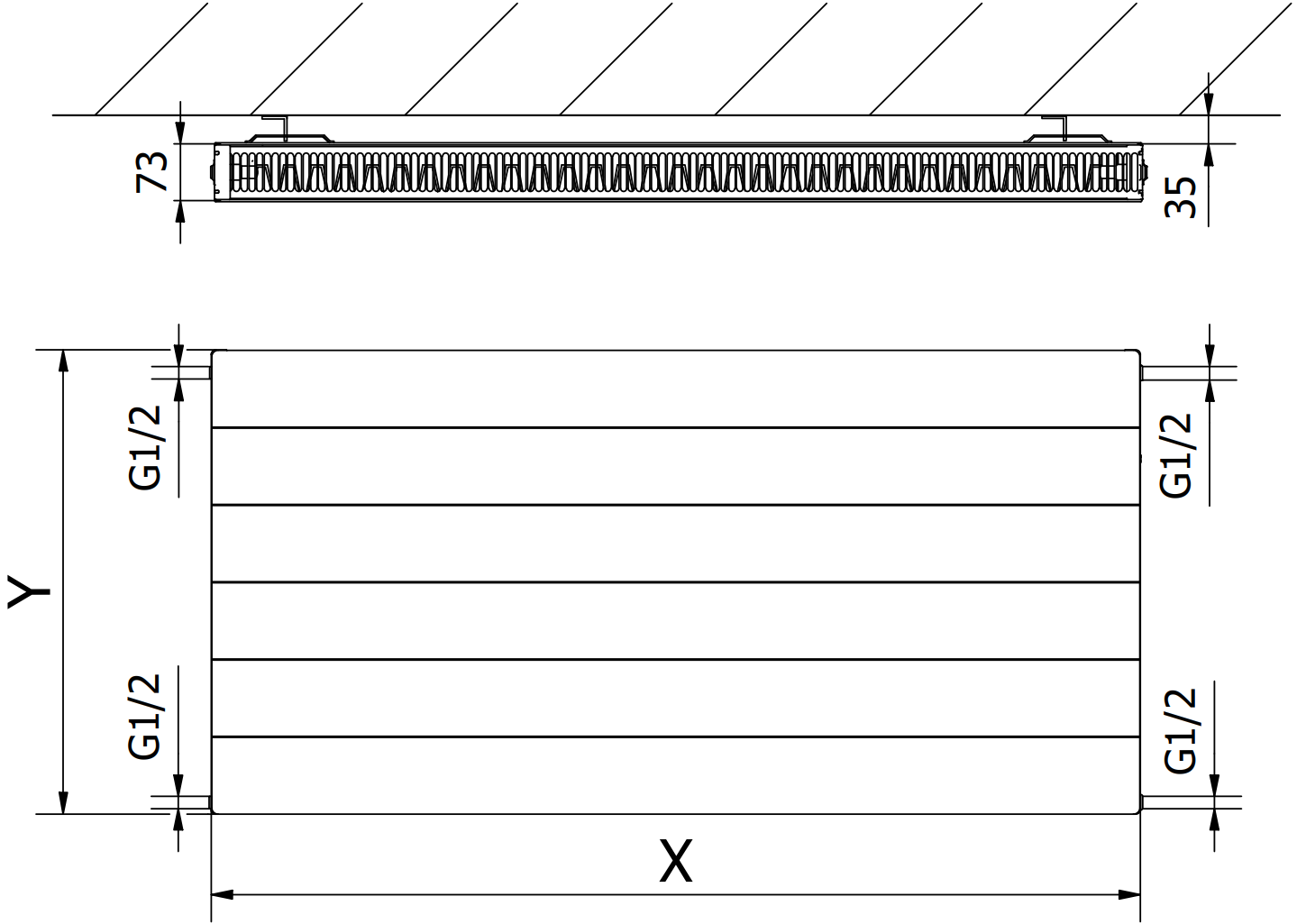

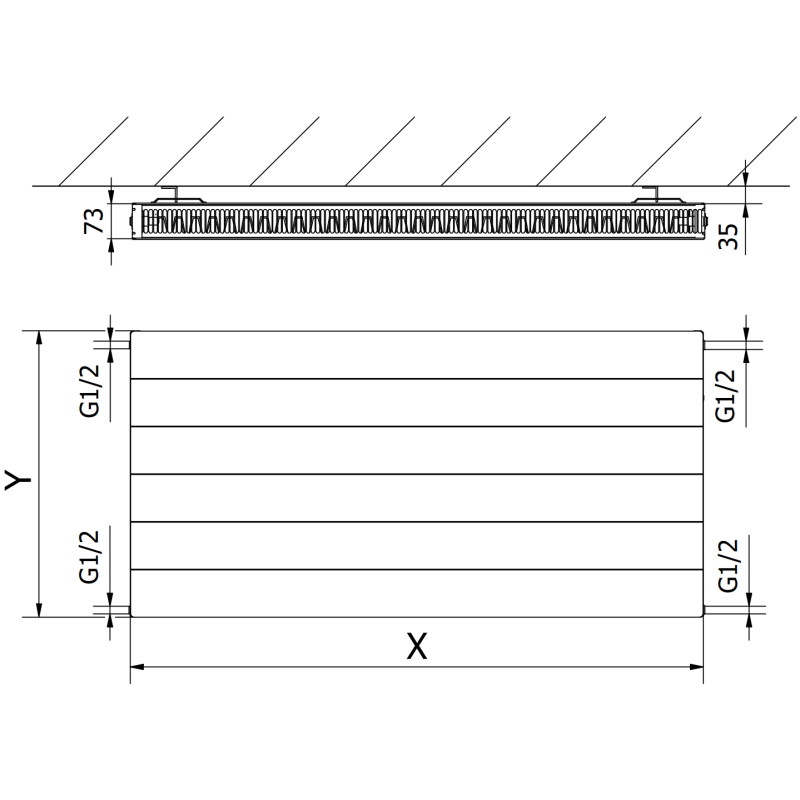

Height (Y): 500 mm
Width (X): 1300 mm
Depth: 73 mm
Connection spacing: 45 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 697 W
- 75/65/20 °C 1311 W
- 90/70/20 °C 1642 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Comes with a side cover and removable top cover
Includes: brackets, installation kit, sealing caps, and air vent

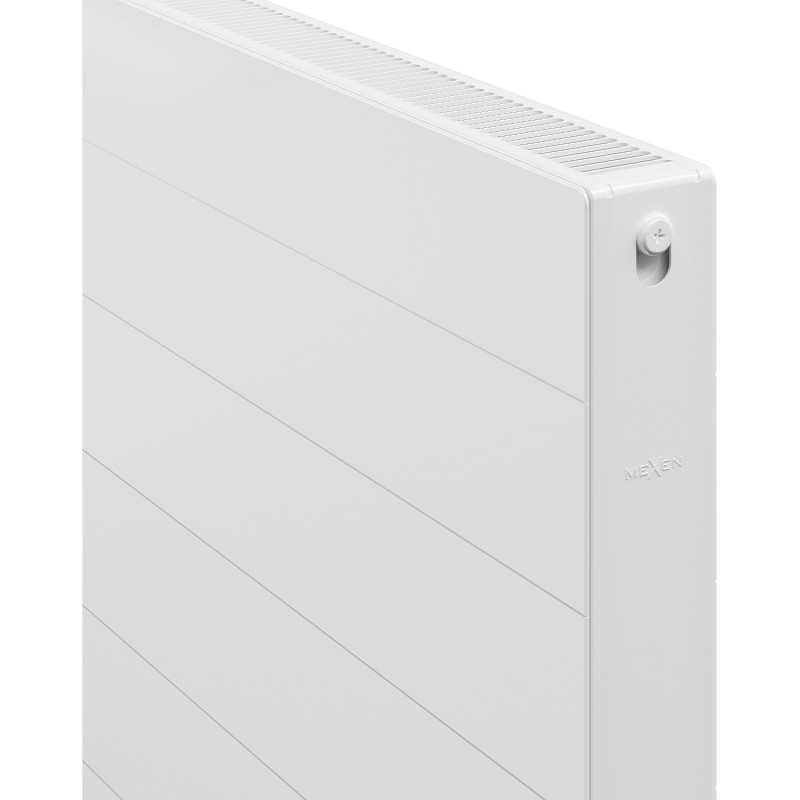

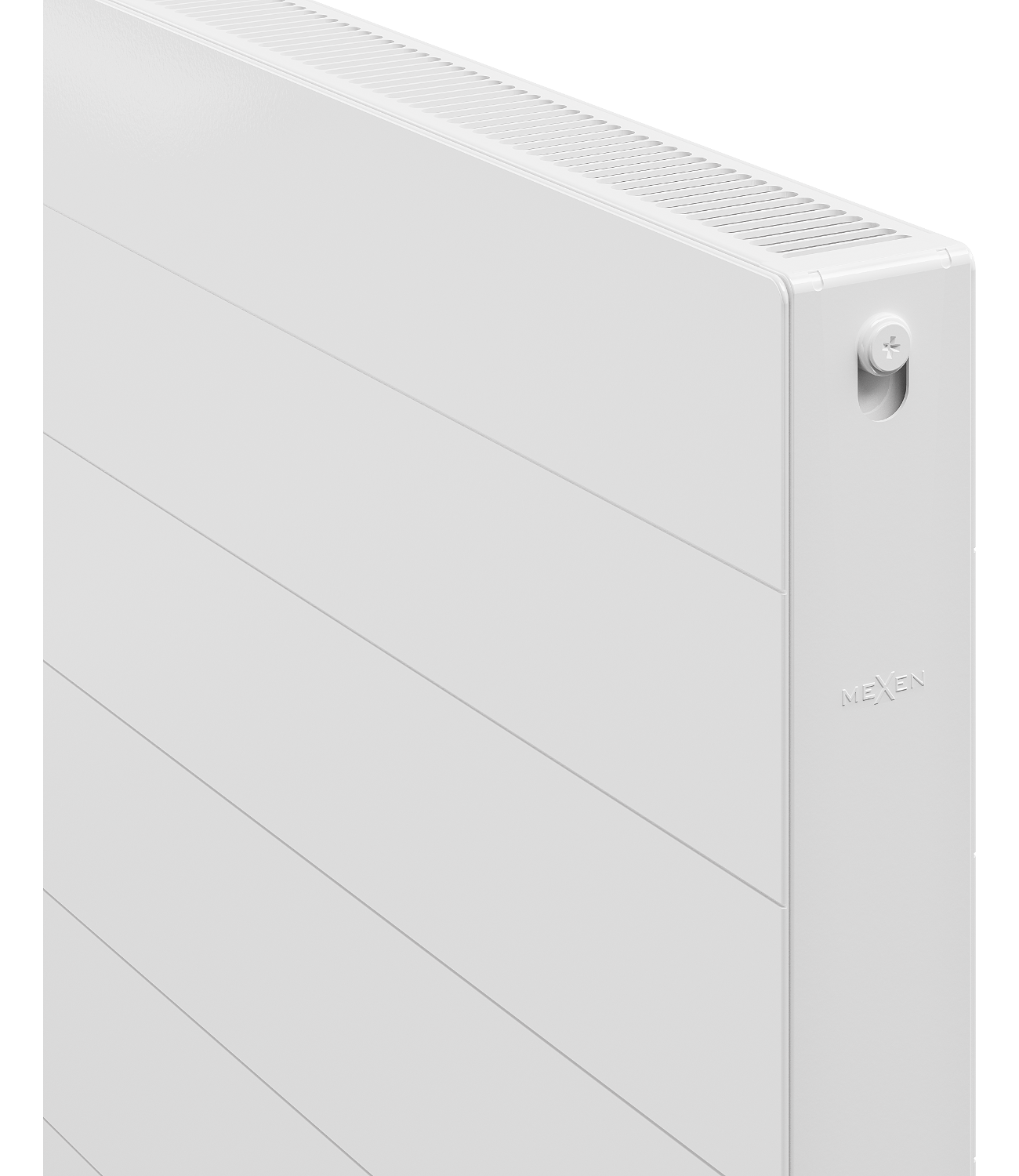

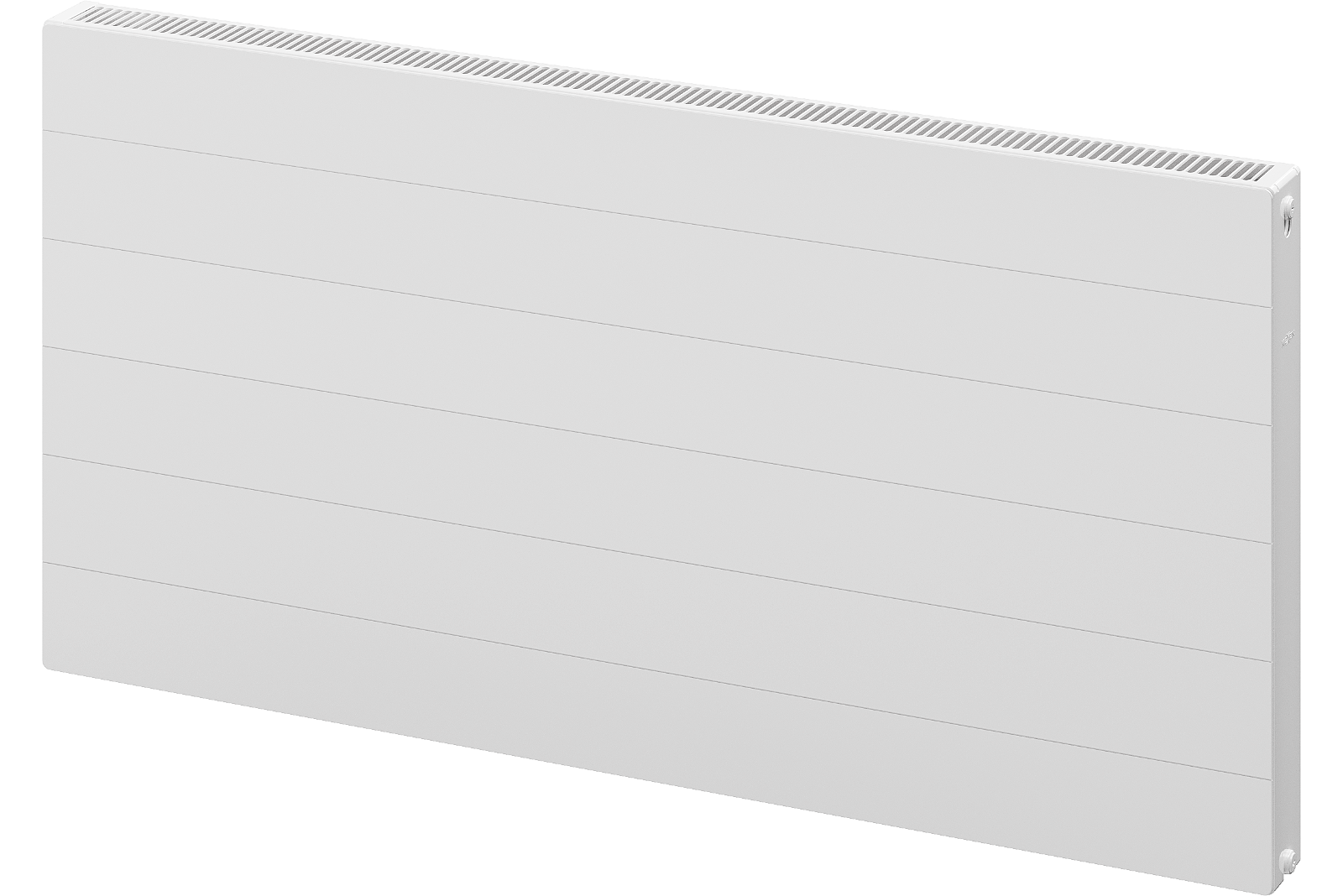

Pictures show the radiator in size 600 x 1200 mm.
