Mexen CVL21 Panel Radiator 500 x 1500 mm, Bottom Connection, 1512 W, White - W621L-050-150-00
Mexen Line CVL21 is a panel radiator with dimensions of 500 x 1500 mm, ideal for any interior. With a heating power of up to 1512 W, it provides efficient room heating. The solid steel construction with a white finish RAL 9016 ensures durability and aesthetics. Compact dimensions and the option for bottom or side connection facilitate installation. Operates at temperatures up to 110 °C and withstands working pressure up to 10 bar. Includes a complete set of mounting accessories and is compliant with DIN 99500 standard.

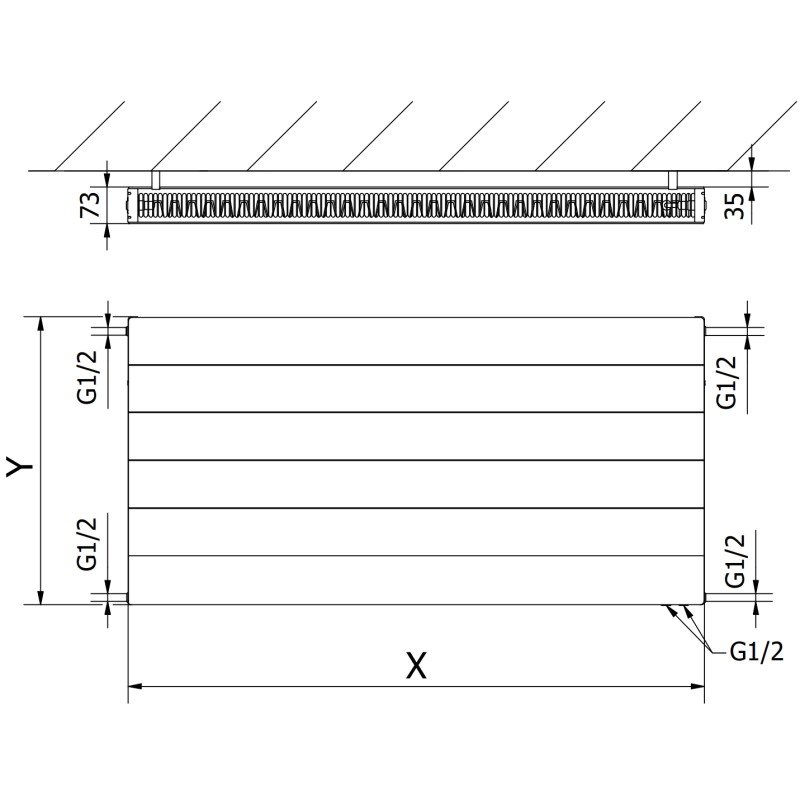

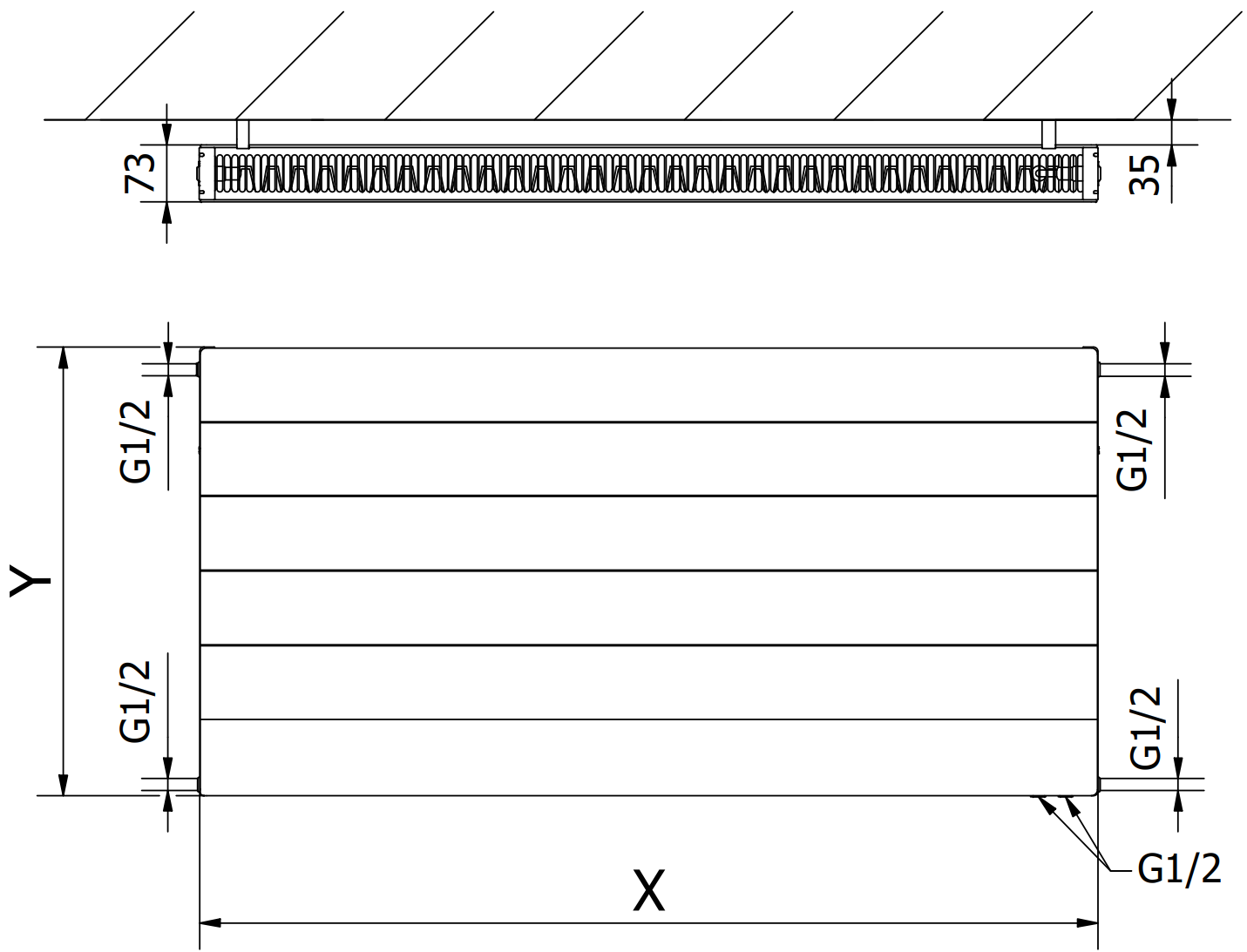

Technical Data:
Height (Y): 500 mm
Width (X): 1500 mm
Depth: 73 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 804 W
- 75/65/20 °C 1512 W
- 90/70/20 °C 1895 W
Connections:
- 2xG ½″ from the bottom on the right or left side
- 4xG ½″ side connections
High-quality, durable paint coating - DIN 99500
Features side and removable top cover
Included: brackets, mounting kit, sealing plugs, air vent, and valve insert

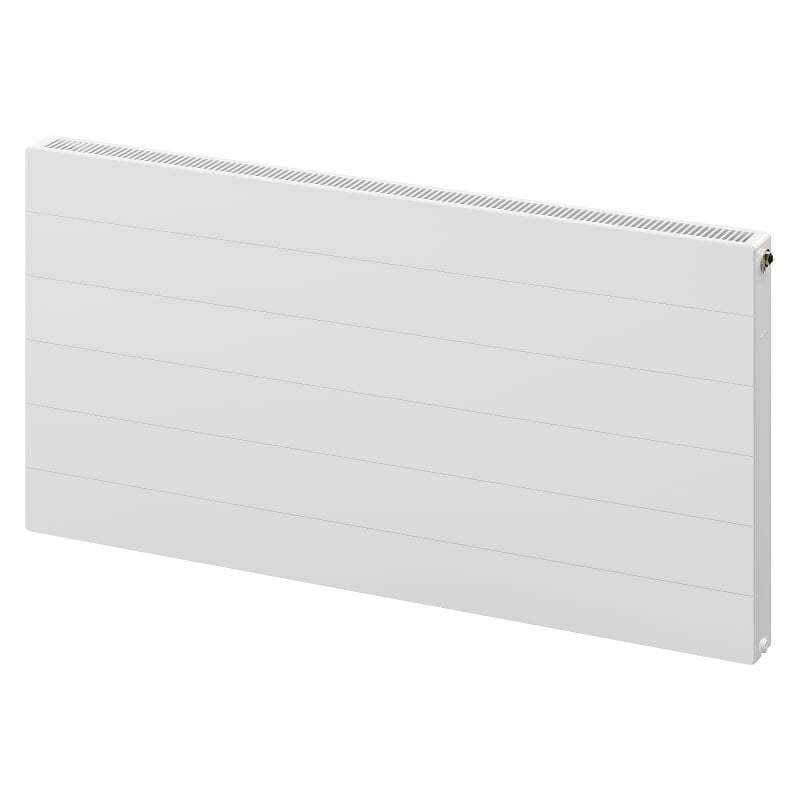

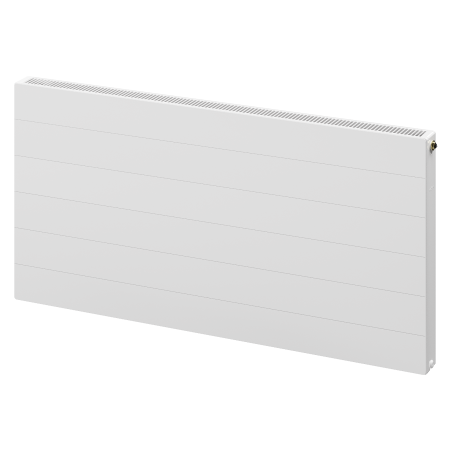

Images show the radiator in size 600 x 1200 mm.
