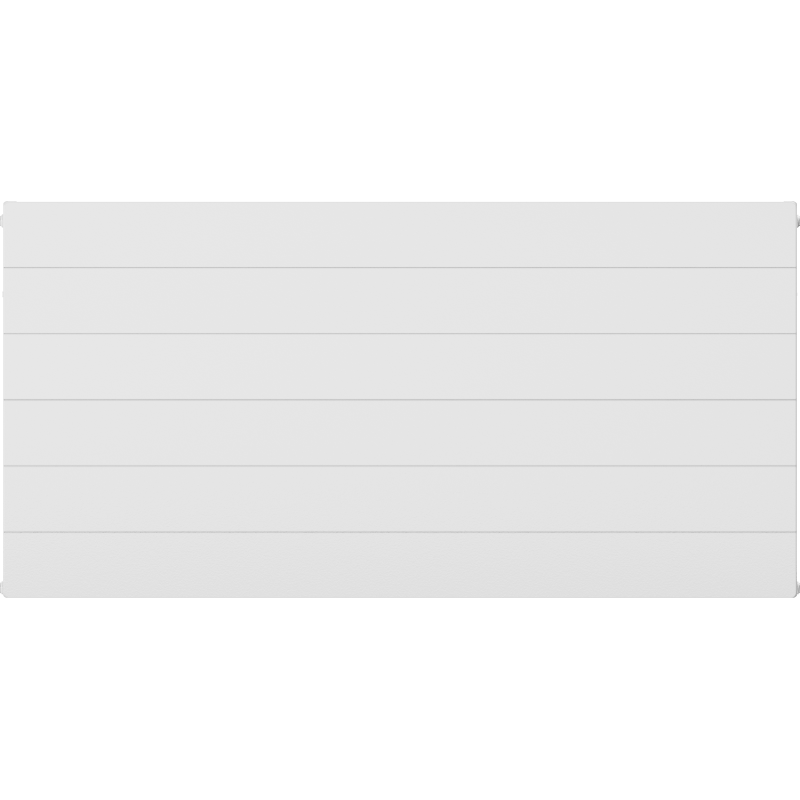

Mexen Line CL33 Plate Radiator 300 x 700 mm, Side Connection, 868 W, White - W433L-030-070-00

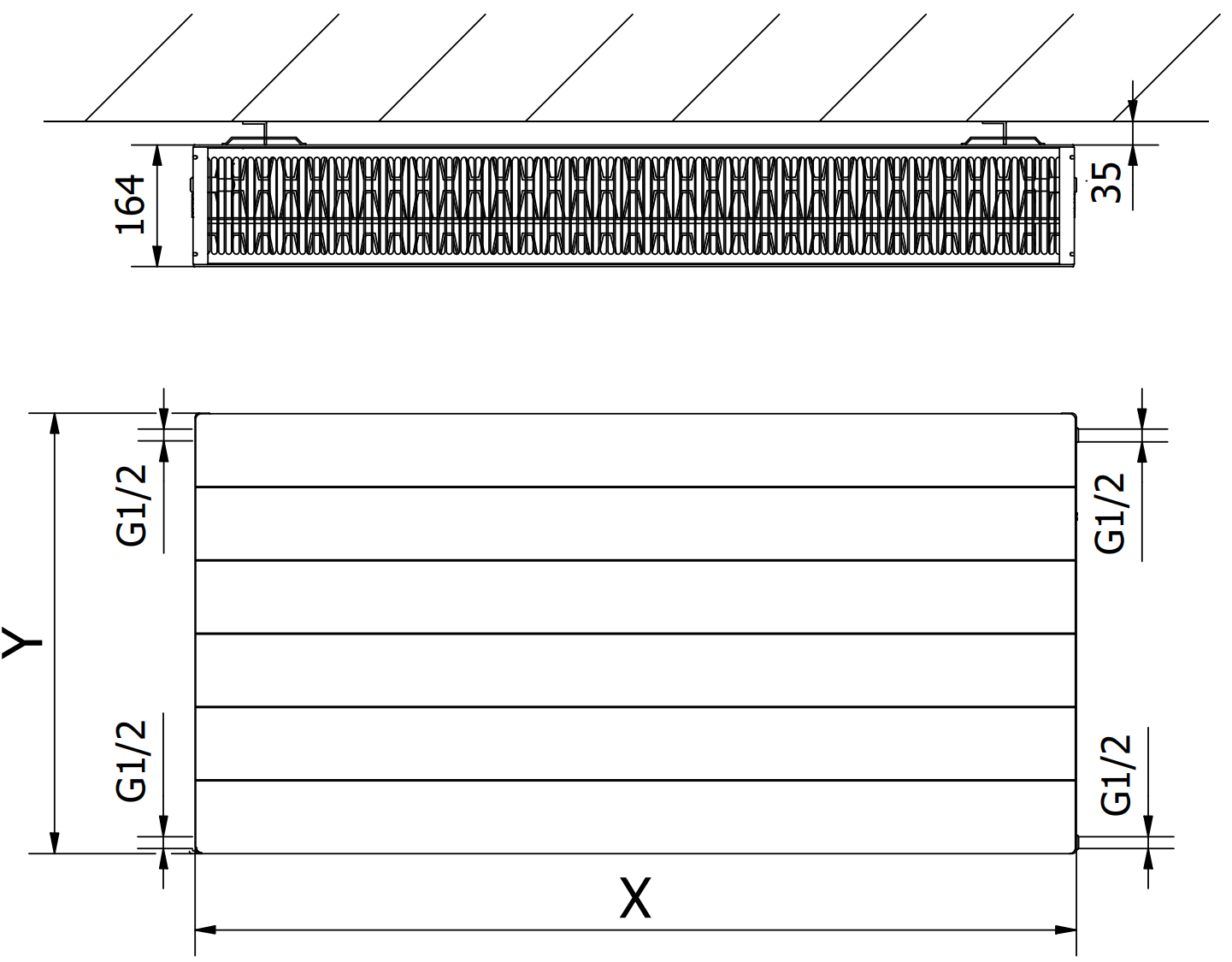

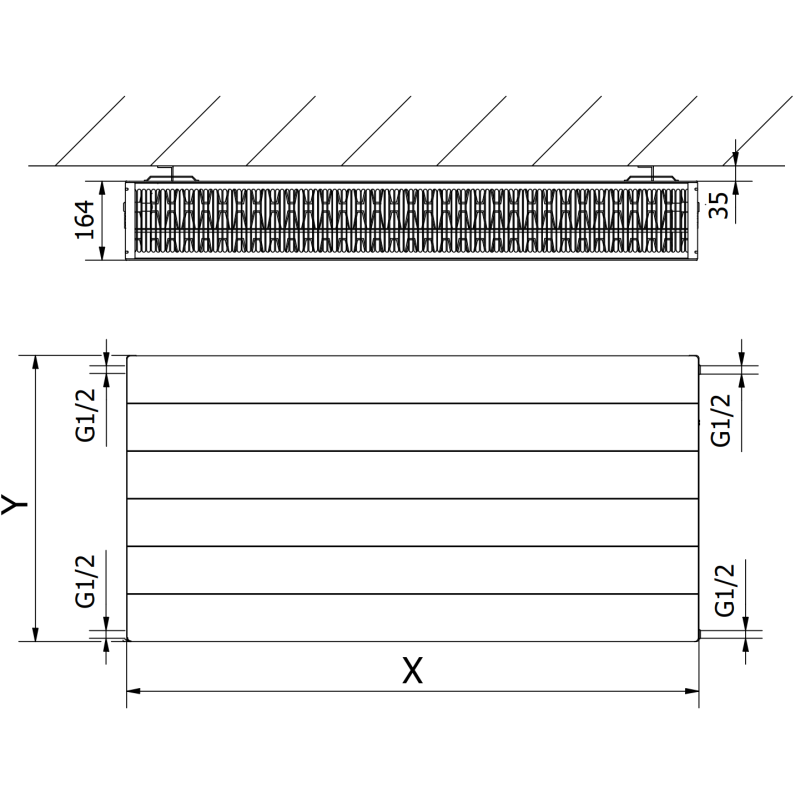

Technical data:
Height (Y): 300 mm
Width (X): 700 mm
Depth: 164 mm
Connection spacing: 25 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Max operating pressure: 10 bar
Max test pressure: 13 bar
Heating power:
- 55/45/20 °C 456 W
- 75/65/20 °C 868 W
- 90/70/20 °C 1092 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Included: hangers, installation kit, sealing plugs, and air vent

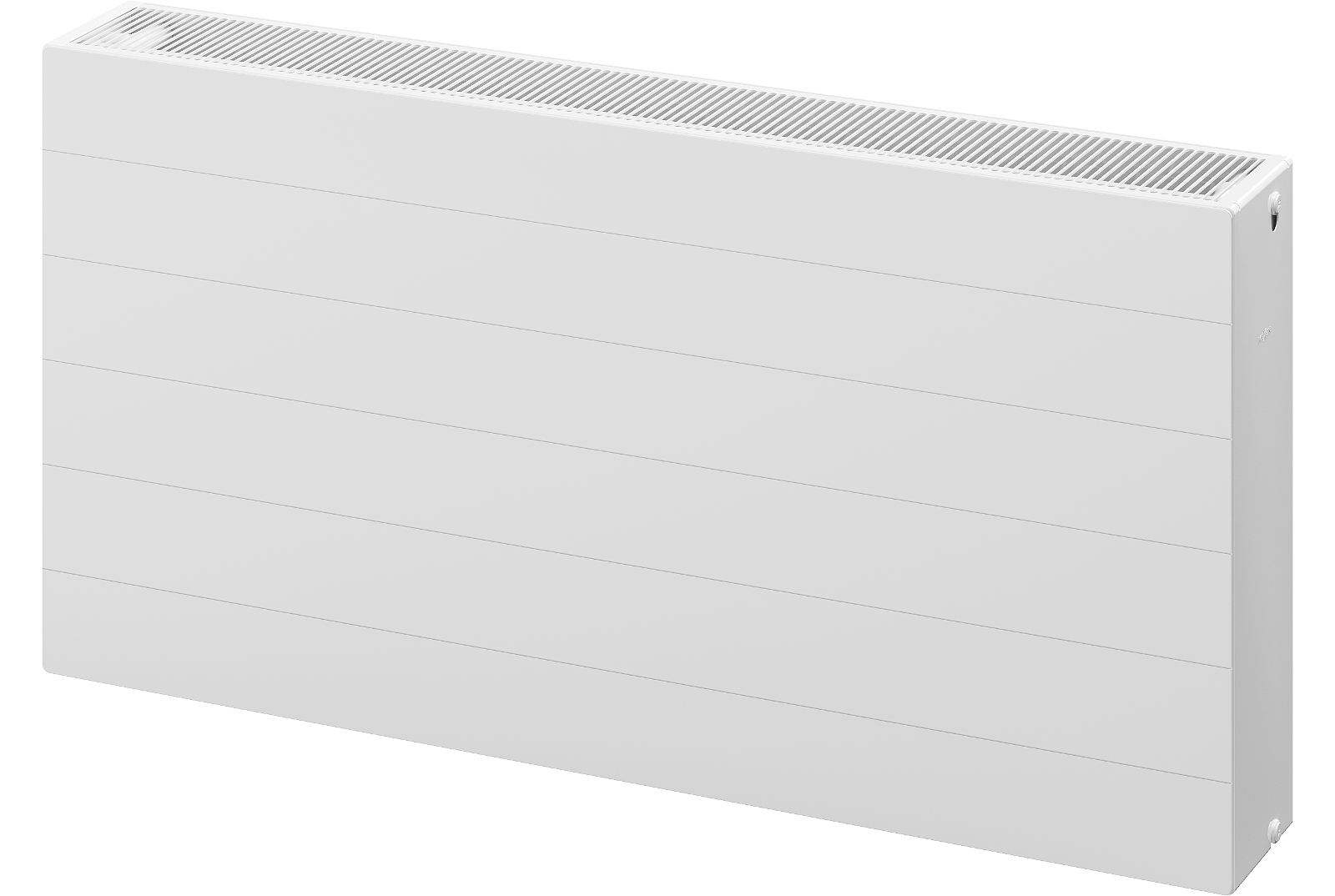

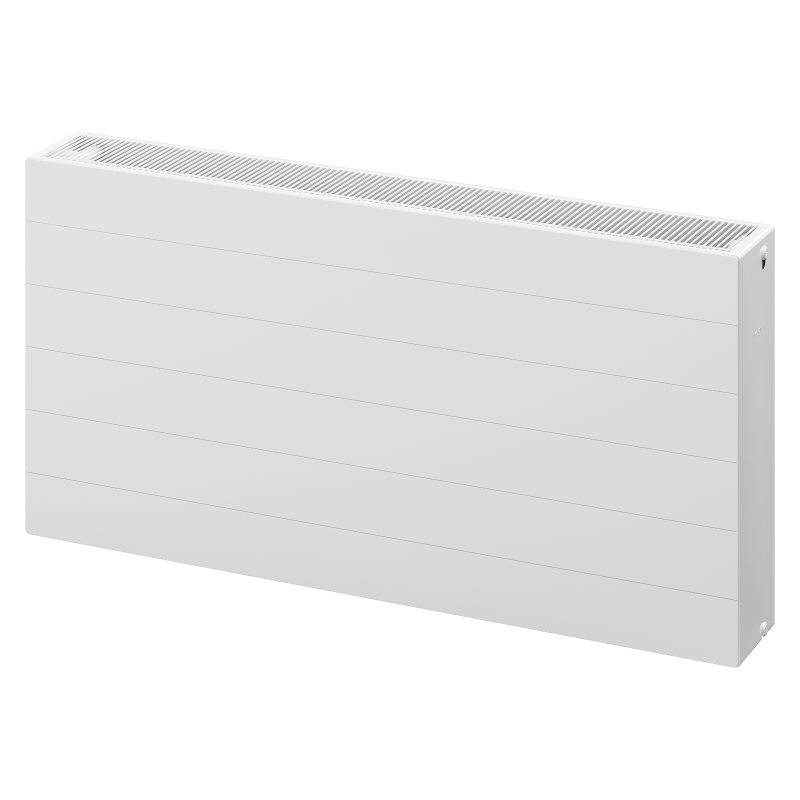

The photos show the radiator in the size of 600 x 1200 mm.
