Mexen Line CVL33 is a high-quality plate radiator with dimensions of 400 x 900 mm, which perfectly combines modern design with heating efficiency. Its width and height, combined with a depth of 164 mm, fit perfectly into various interiors. The radiator provides a heating power of up to 1423 W at a temperature of 75/65/20°C, offering consistent thermal comfort. Solid steel construction and a white coating in RAL 9016 ensure aesthetics and durability. With compatible bottom and side connections and a mounting kit, installation is simple and quick. The product features a maximum operating temperature of 110°C and an operating pressure of up to 10 bar, making it a reliable choice for any home.

Technical data:

Height (Y): 400 mm

Width (X): 900 mm

Depth: 164 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Max operating pressure: 10 bar

Max test pressure: 13 bar

Heating power:

- 55/45/20 °C 744 W

- 75/65/20 °C 1423 W

- 90/70/20 °C 1794 W

Connections:

- 2xG ½″ from below on the right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

It has a side cover and a removable top cover

Included: brackets, mounting kit, plug caps, air vent, and valve insert

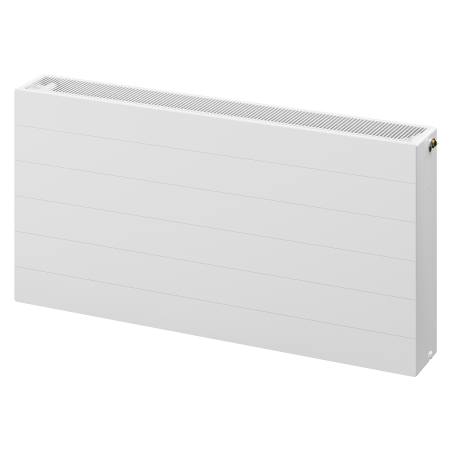

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL33
Width
900 mm
Height
400 mm
Depth
164 mm
Type
Plate / Panel
Heating power
1423 W
Color
White
Material
Steel
Type
33
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
