Mexen CL33 Plate Radiator Line 500 x 1600 mm, Side Connection, 3041 W, White - W433L-050-160-00

The Mexen Line CL33 plate radiator is an excellent choice for those who value efficient and aesthetic heating solutions. With dimensions of 500 x 1600 mm and power up to 3041 W, it ensures thermal comfort in any room. Its white color (RAL 9016) and solid steel construction guarantee durability and an elegant appearance. The radiator offers side connections, a side cover, and a removable top cover. The set includes hangers, an assembly kit, and an air vent. Ideal for demanding users.

Technical specifications:

Height (Y): 500 mm

Width (X): 1600 mm

Depth: 164 mm

Connection spacing: 45 cm

Spacing of vertical water channels: 33.3 mm

Color: White RAL 9016

Material: Steel

Working temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1583 W

- 75/65/20 °C 3041 W

- 90/70/20 °C 3839 W

Connections:

- 4xG ½'' side

High-quality, durable paint coating - DIN 99500

Includes a side cover and a removable top cover

Includes: hangers, assembly kit, sealing plugs, and air vent

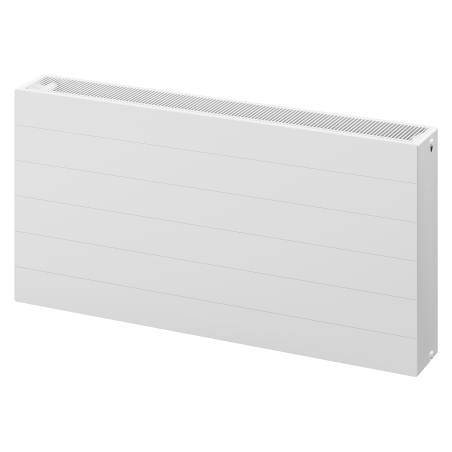

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CL33
Width
1600 mm
Height
500 mm
Depth
164 mm
Type
Plate / Panel
Heating power
3041 W
Color
White
Material
Steel
Type
33
Installation Orientation
Universal
Connection spacing
45 cm
Connection
Side
Orientation
Horizontal
