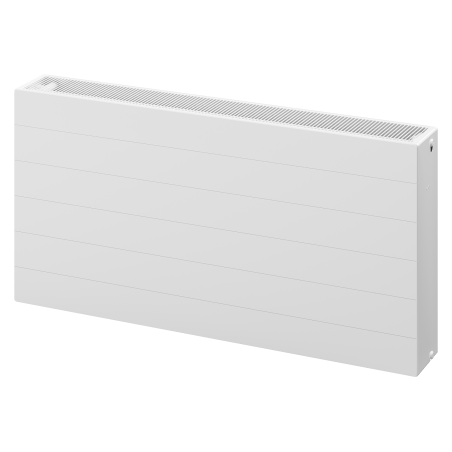

Mexen Line CL33 is a modern panel radiator measuring 900 x 1500 mm, providing efficient heating with a power of 4501 W with side connection. Built from durable steel, it offers reliability and an aesthetic look in white RAL 9016. Its depth is 164 mm and the maximum operating temperature up to 110 °C indicates high performance. The set includes necessary mounting accessories, and the durable lacquer finish ensures long life.

Technical data:

Height (Y): 900 mm

Width (X): 1500 mm

Depth: 164 mm

Connection Distance: 85 cm

Vertical Water Channel Distance: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating Temperature: max 110 °C

Maximum Operating Pressure: 10 bar

Maximum Test Pressure: 13 bar

Heating Power:

- 55/45/20 °C 2304 W

- 75/65/20 °C 4501 W

- 90/70/20 °C 5717 W

Connections:

- 4xG ½" side

High-quality, durable lacquer finish - DIN 99500

Includes side cover and removable top cover

Includes: brackets, installation kit, sealing plugs, and air vent

Pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CL33
Width
1500 mm
Height
900 mm
Depth
164 mm
Type
Plate / Panel
Heating power
4501 W
Color
White
Material
Steel
Type
33
Installation Orientation
Universal
Connection spacing
85 cm
Connection
Side
Orientation
Horizontal
