The Mexen Line CVL33 plate radiator 600 x 1400 mm is an ideal solution for efficient room heating. With dimensions of 600 mm height and 1400 mm width, it fits perfectly into various spaces. The white steel construction (RAL 9016) ensures a modern look and durability. The heating power of this model reaches 3081 W at a temperature of 75/65/20 °C, guaranteeing quick heating. The product features a high-quality paint coating (DIN 99500), side and bottom connections, and a removable top cover, simplifying installation and maintenance. The maximum operating temperature is 110 °C, and the working pressure is 10 bar, ensuring safe and efficient operation. The set also includes all necessary mounting elements, such as hangers and an air vent.

Technical data:

Height (Y): 600 mm

Width (X): 1400 mm

Depth: 164 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1596 W

- 75/65/20 °C 3081 W

- 90/70/20 °C 3896 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side cover and removable top cover

Included: hangers, installation kit, sealing plugs, air vent, and valve insert

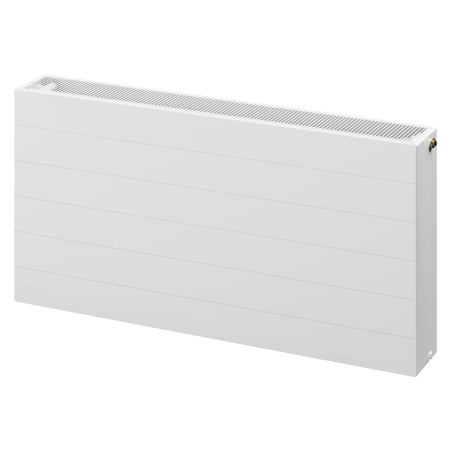

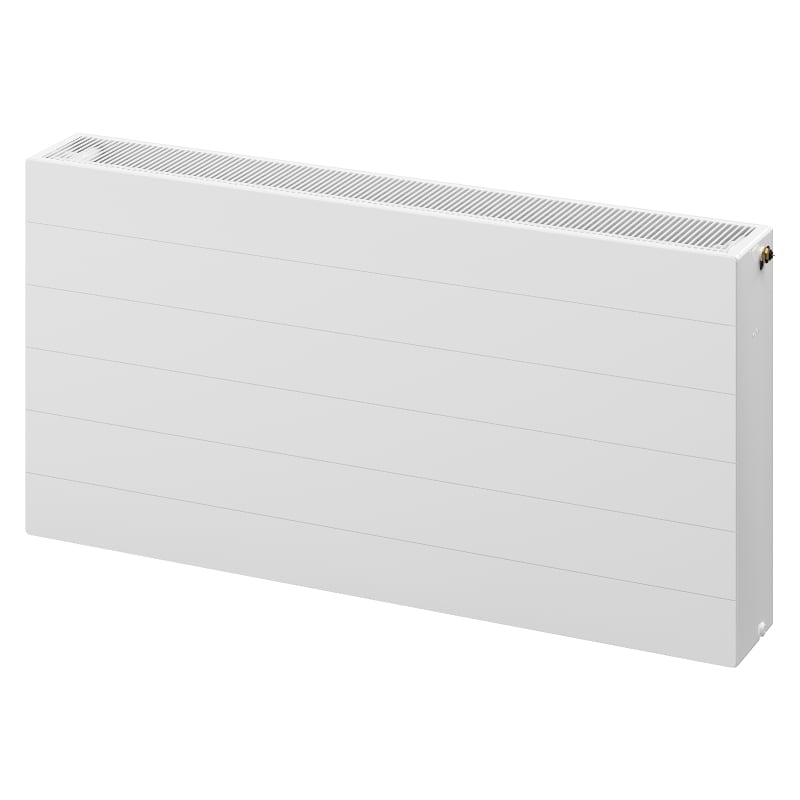

Photos show a radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVL33
Width
1400 mm
Height
600 mm
Depth
164 mm
Type
Plate / Panel
Heating power
3081 W
Color
White
Material
Steel
Type
33
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
