Mexen CVF11 Flat panel radiator 500 x 700 mm, bottom connection, 478 W, white - W611F-050-070-00

Mexen Flat CVF11 panel radiator 500 x 700 mm is an excellent combination of modern design and efficiency. Its compact dimensions: height 500 mm and width 700 mm, make it a perfect fit for various rooms. The white RAL 9016 color adds elegance, and the steel construction ensures durability. With a bottom connection spacing of 5 cm and a maximum power of 478 W (75/65/20 °C), this radiator provides optimal heating. Additionally, the high-quality paint coating guarantees longevity. The radiator operates at a maximum temperature of 110 °C and a working pressure of 10 bar. The set includes all necessary mounting accessories, simplifying installation.

Technical specifications:

Height (Y): 500 mm

Width (X): 700 mm

Depth: 59 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 255 W

- 75/65/20 °C 478 W

- 90/70/20 °C 598 W

Connections:

- 2xG ½″ from the bottom right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features a side cover and removable top cover

Includes: hangers, installation kit, sealing plugs, air vent, and valve insert

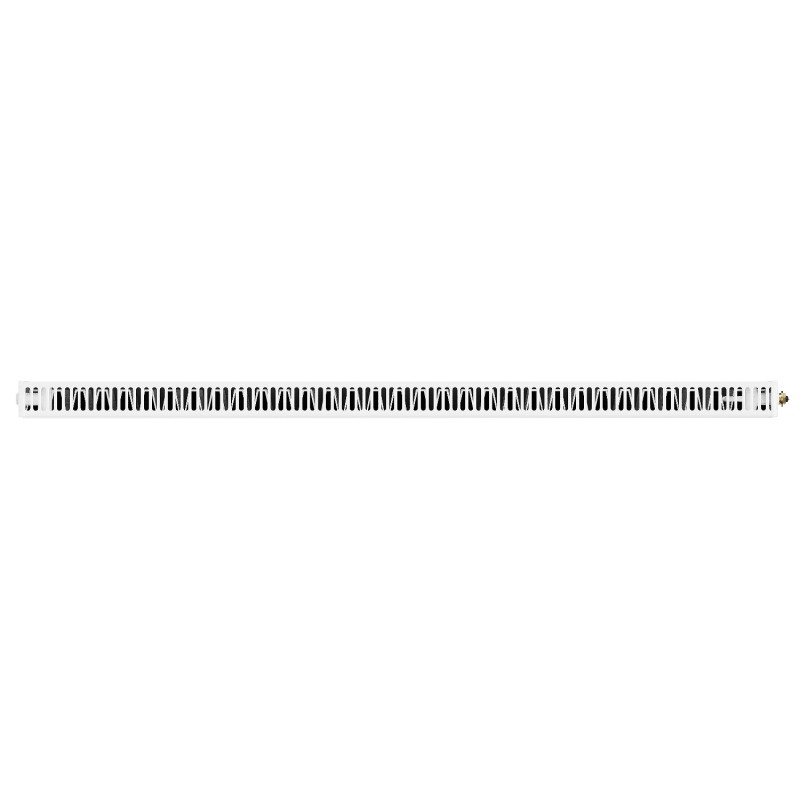

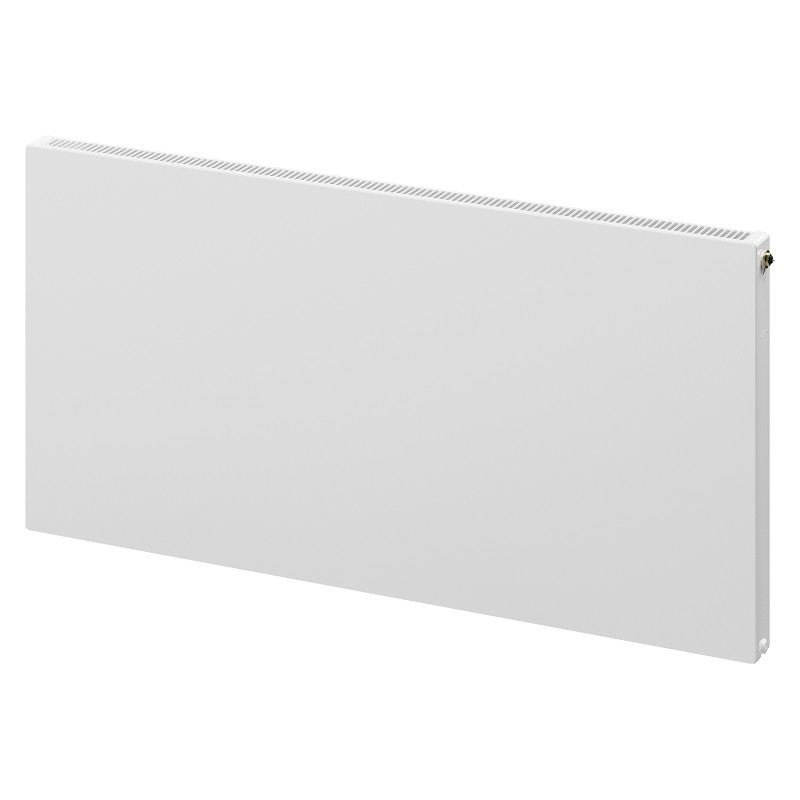

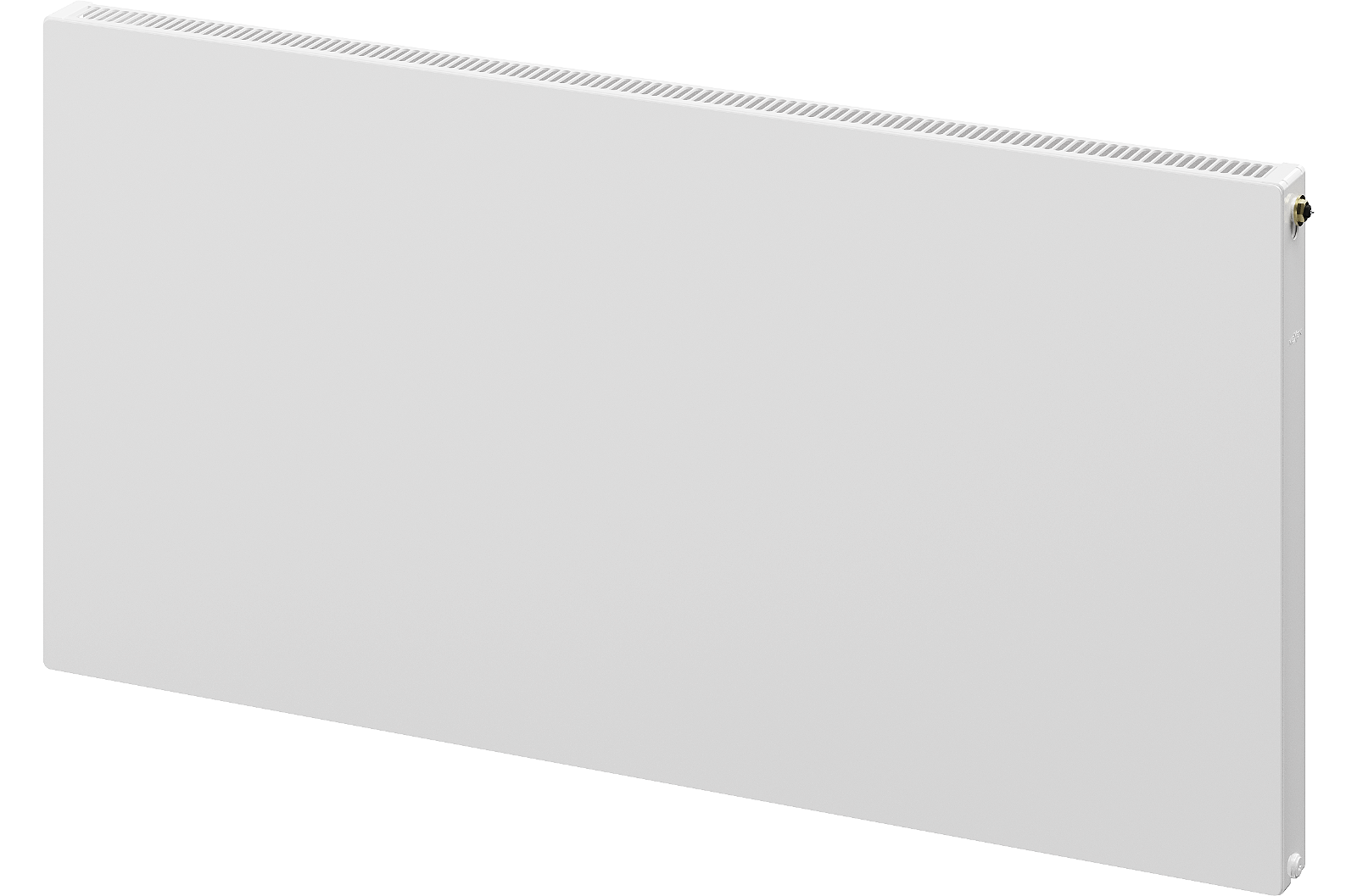

The pictures show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF11
Width
700 mm
Height
500 mm
Depth
59 mm
Type
Plate / Panel
Heating power
478 W
Color
White
Material
Steel
Type
11
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
