Mexen CVF21 Flat panel radiator 500 x 600 mm, bottom connection, 605 W, white - W621F-050-060-00
Mexen Flat CVF21 is a panel radiator with compact dimensions of 500 x 600 mm and a sleek white color RAL 9016. Made of steel, it offers excellent heating efficiency up to 605 W at 75/65/20 °C. Its durable paint coating DIN 99500 ensures longevity and aesthetics. The bottom connection provides easy installation, and the maximum working pressure of 10 bar makes it safe to use. The set includes all necessary installation accessories for easy setup.

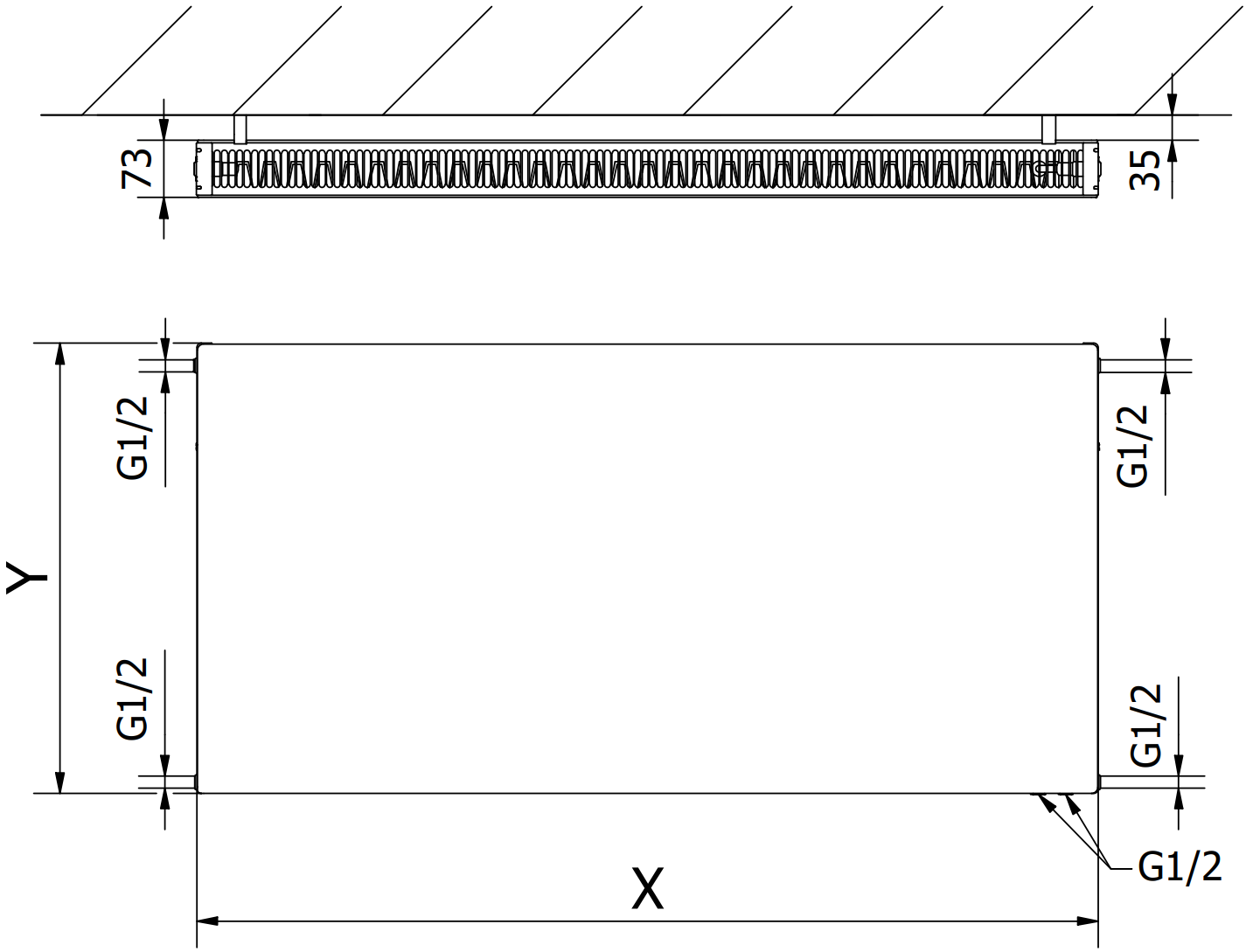

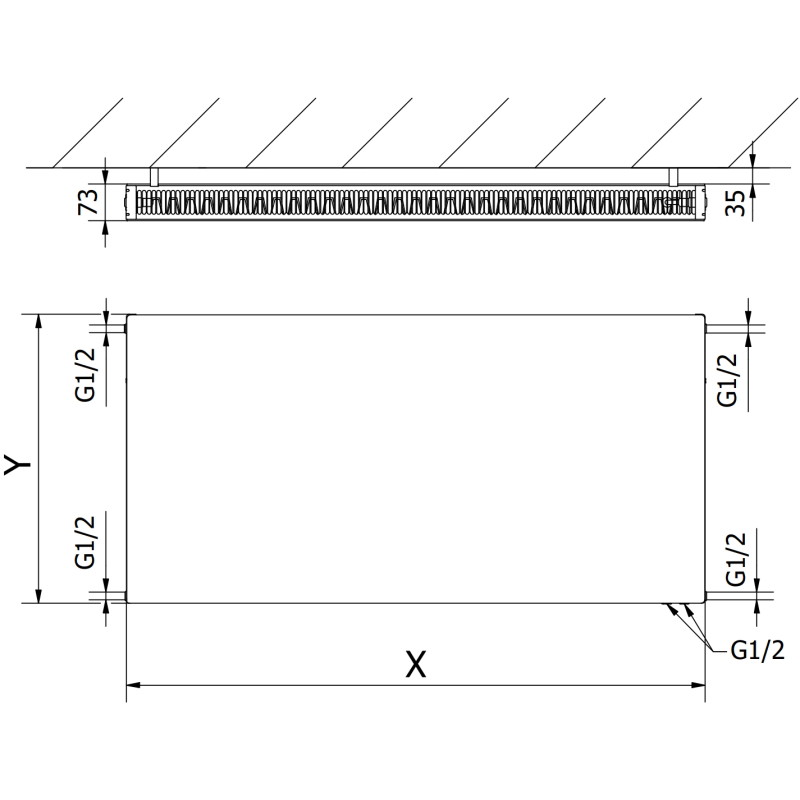

Technical data:
Height (Y): 500 mm
Width (X): 600 mm
Depth: 73 mm
Connection spacing: 5 cm
Spacing of vertical water channels: 33.3 mm
Color: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 321 W
- 75/65/20 °C 605 W
- 90/70/20 °C 758 W
Connections:
- 2xG ½″ from the bottom, right or left side
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features a side cover and removable top cover
Includes: mounts, installation kit, sealing plugs, air vent, and valve insert

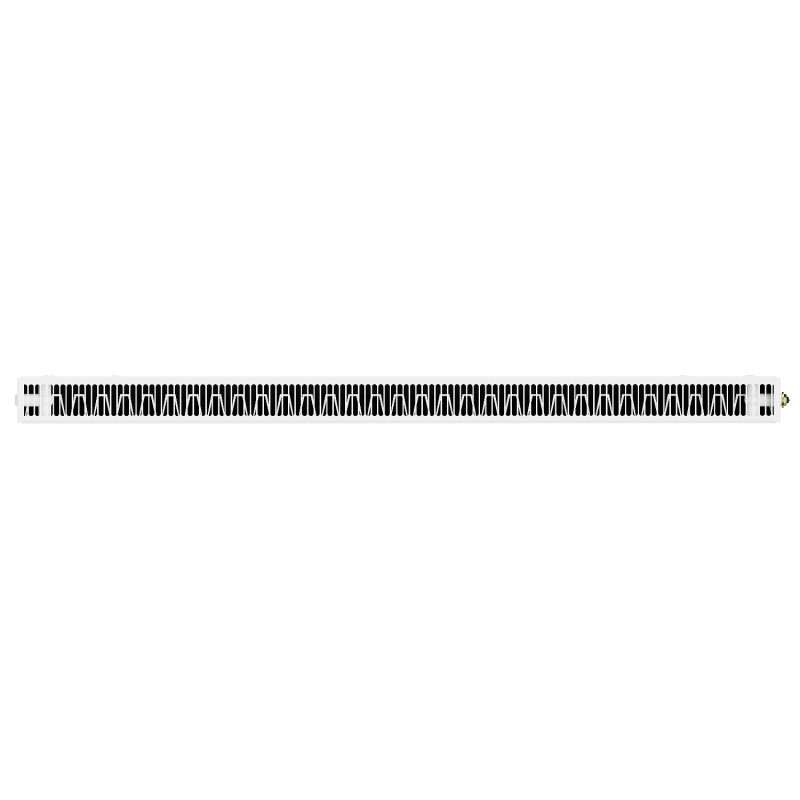

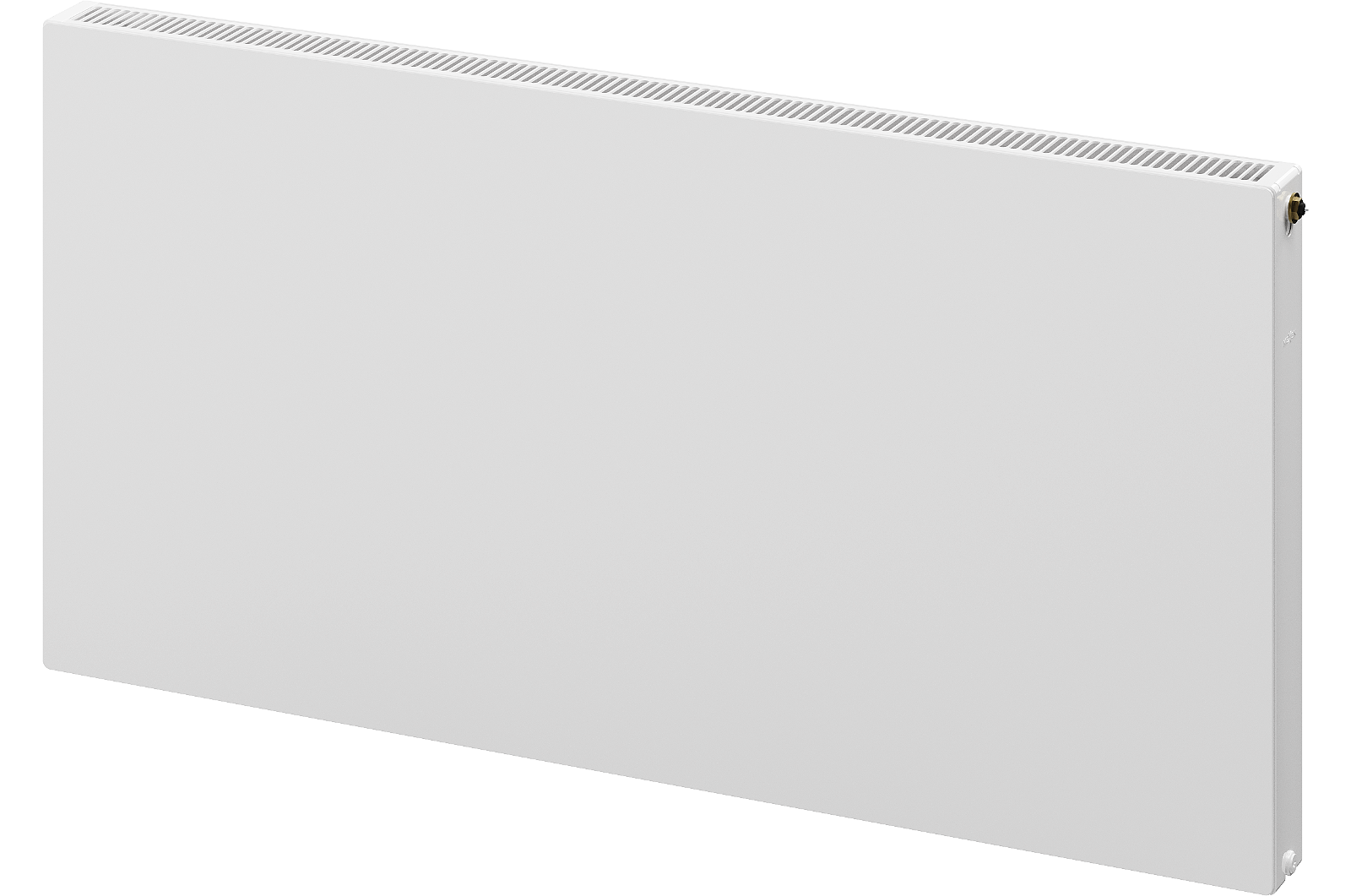

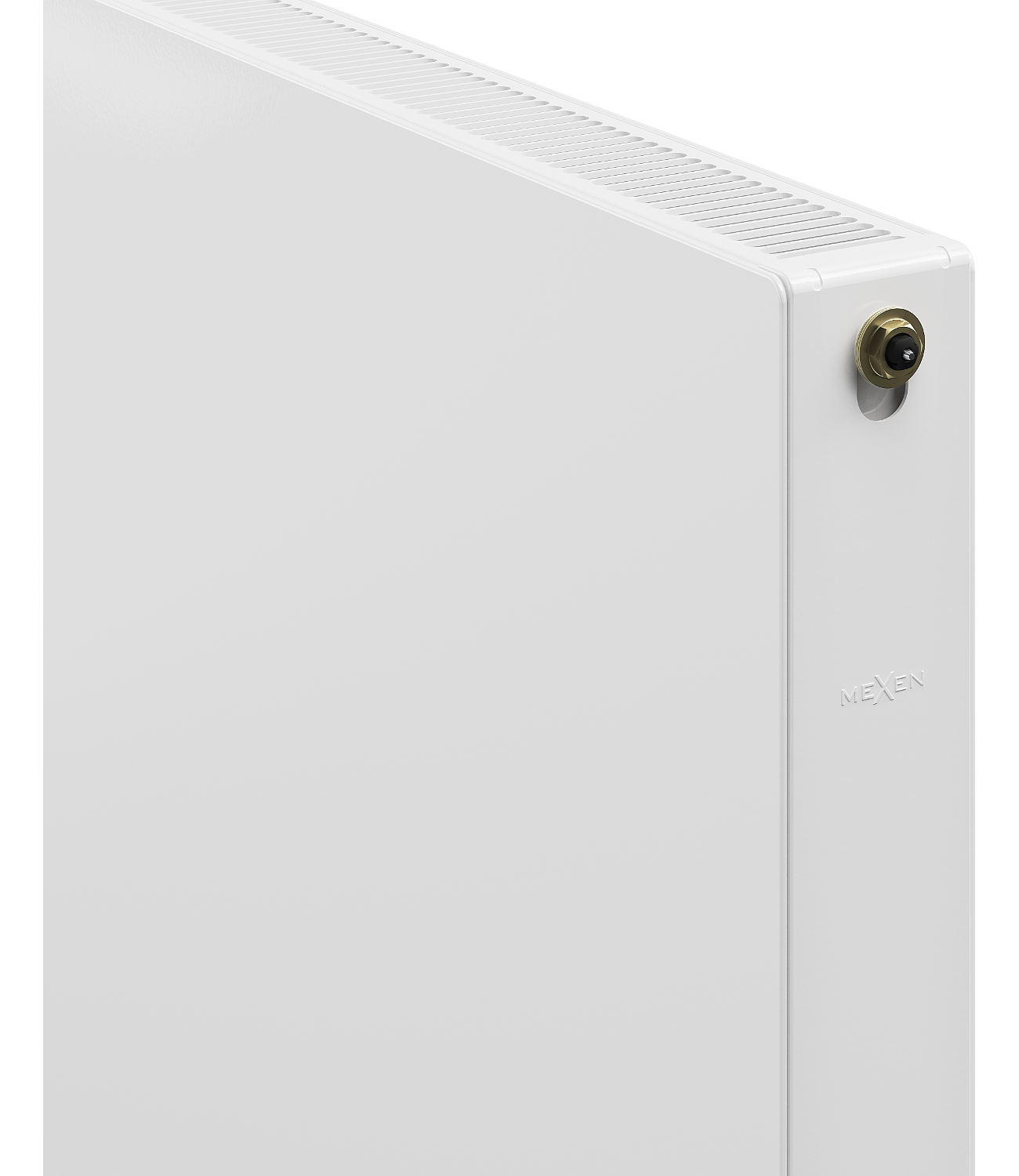

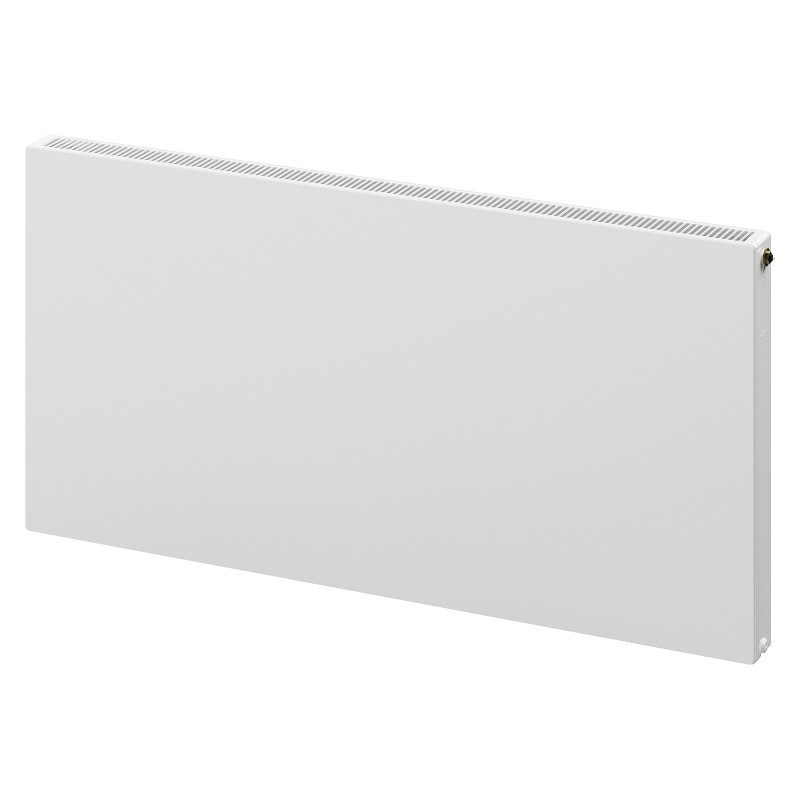

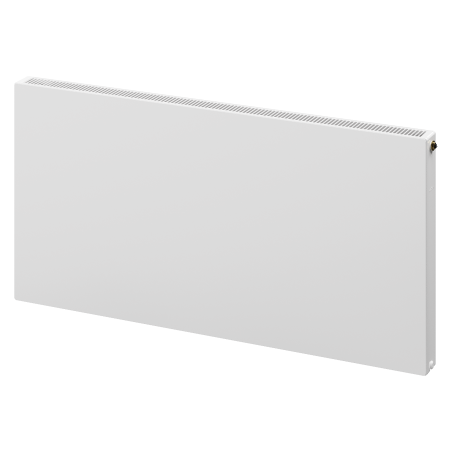

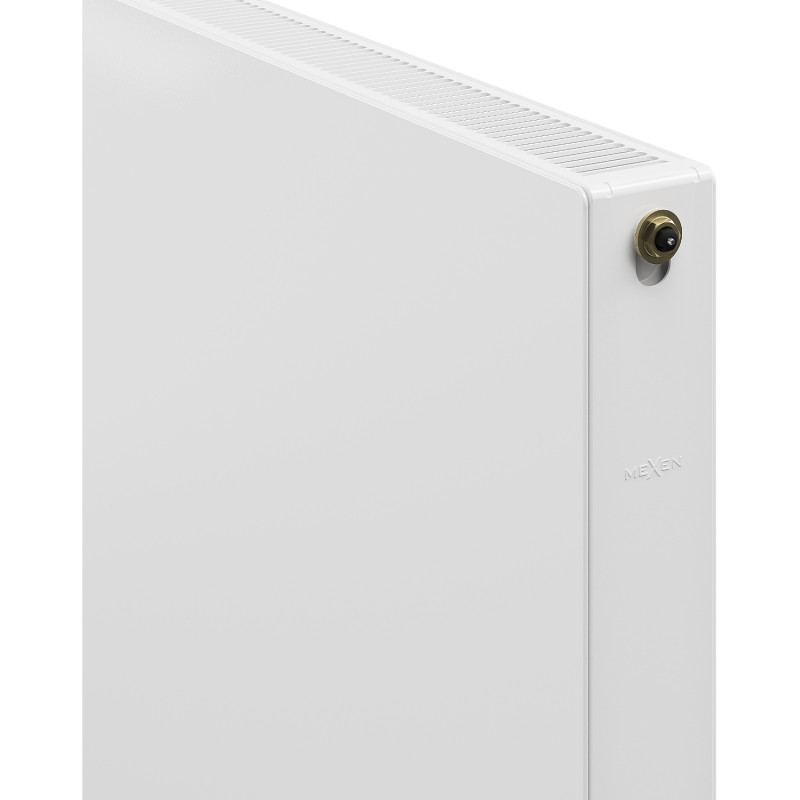

The photos show a 600 x 1200 mm radiator.
