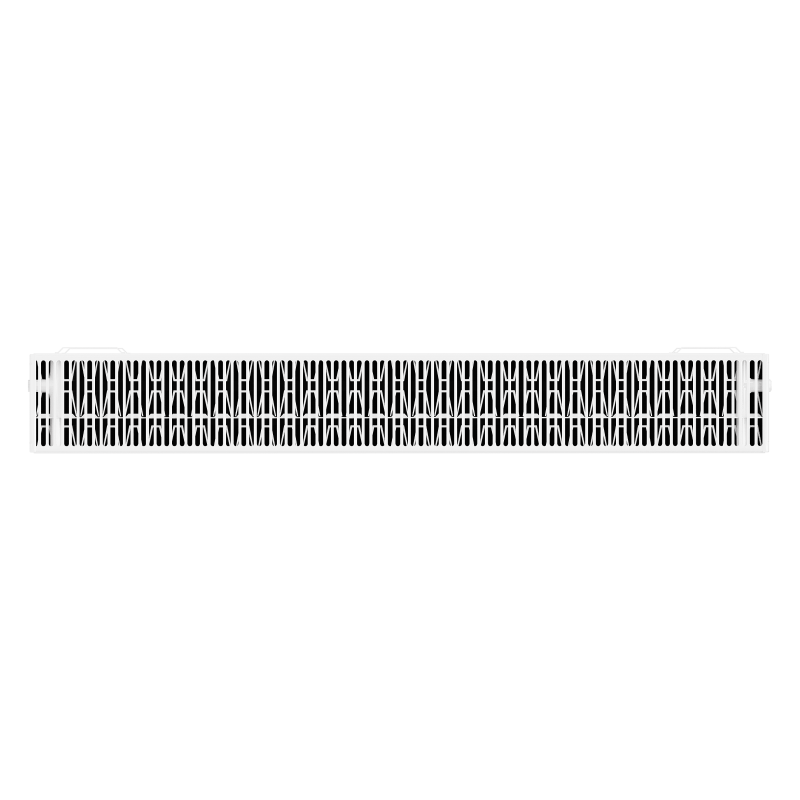

Mexen Flat CF33 flat radiator 300 x 1100 mm, side connection, 1364 W, white - W433F-030-110-00
Technical data:
Height (Y): 300 mm
Width (X): 1100 mm
Depth: 164 mm
Connection distance: 25 cm
Distance between vertical water channels: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 717 W
- 75/65/20 °C 1364 W
- 90/70/20 °C 1717 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Equipped with a side cover and removable top cover
Includes: brackets, installation kit, blanking plugs and air vent

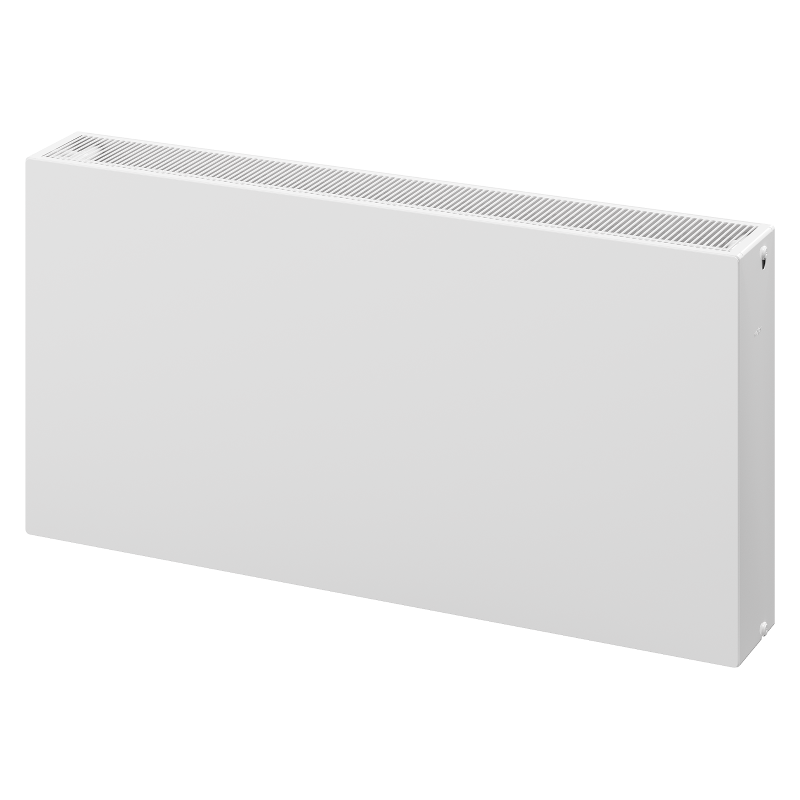

The photos show a radiator in the size 600 x 1200 mm.
