Mexen CVF22 Flat Panel Radiator 300 x 600 mm, Bottom Connection, 540 W, White - W622F-030-060-00

The Mexen Flat CVF22 radiator with dimensions of 300 x 600 mm is an excellent choice for modern interiors, combining elegance and functionality. It features a heating power reaching 540 W at 75/65/20°C, ensuring optimal heating. Its white color (RAL 9016) and steel construction provide durability and aesthetics. Thanks to the bottom connection and universal connectors (2xG ½″ right or left side, 4xG ½″ side), installation is straightforward. The radiator includes a side cover, removable top cover, and installation kit, perfect for those who value quality and modern design.

Technical data:

Height (Y): 300 mm

Width (X): 600 mm

Depth: 103 mm

Connection Spacing: 5 cm

Vertical Water Channels Spacing: 33.3 mm

Color: White RAL 9016

Material: Steel

Operating Temperature: max 110 °C

Maximum Working Pressure: 10 bar

Maximum Test Pressure: 13 bar

Heating power:

- 55/45/20 °C 284 W

- 75/65/20 °C 540 W

- 90/70/20 °C 680 W

Connections:

- 2xG ½″ from the bottom on the right or left side

- 4xG ½″ side

High-quality, durable paint finish - DIN 99500

Features side covers and removable top cover

Includes: brackets, installation kit, blind plugs, vent, and valve insert

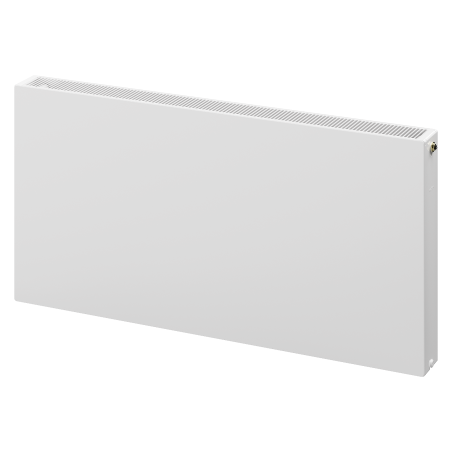

Photos show radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF22
Width
600 mm
Height
300 mm
Depth
103 mm
Type
Plate / Panel
Heating power
540 W
Color
White
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See
