Mexen CV21 panel radiator 600 x 2000 mm, bottom connection, 2564 W, anthracite - W621-060-200-66

The Mexen CV21 panel radiator is an excellent choice for those who appreciate efficiency and elegance in one. With a heating power of 2564 W at a temperature of 75/65/20 °C, it provides effective room heating. The 600 x 2000 mm size makes it ideal for large spaces, and the anthracite color RAL 7016 adds a modern character. Durable steel and high-quality paint coating DIN 99500 ensure longevity. Additional equipment included in the set facilitates installation and use.

Technical data:

Height (Y): 600 mm

Width (X): 2000 mm

Depth: 73 mm

Connection spacing: 5 cm

Vertical water channel spacing: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1322 W

- 75/65/20 °C 2564 W

- 90/70/20 °C 3248 W

Connections:

- 2xG ½″ bottom from the right or left side

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Comes with a side cover and a removable top cover

Set includes: hangers, mounting kit, blind plugs, air vent, and valve insert

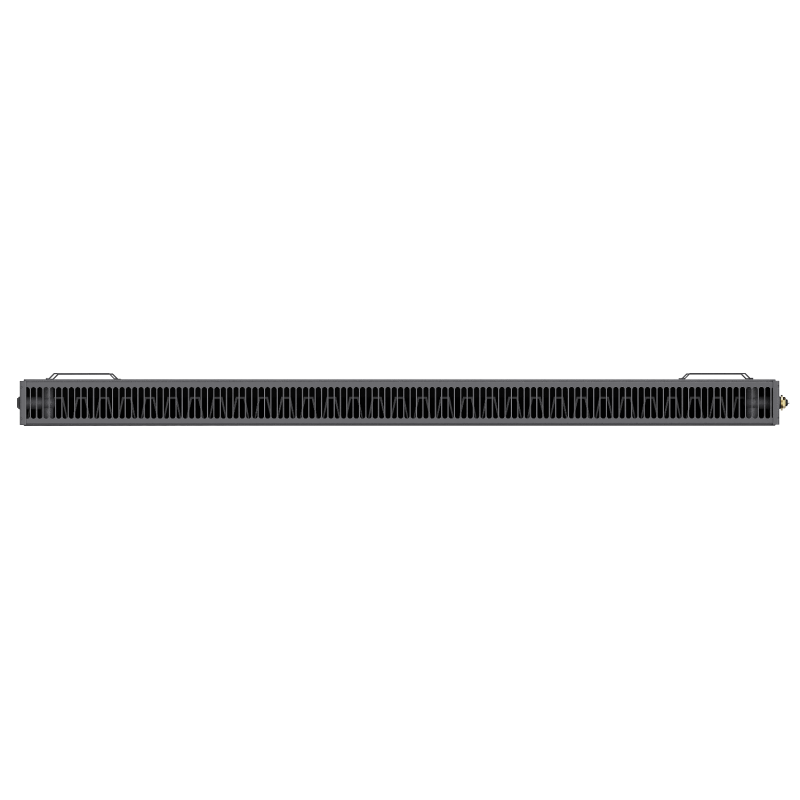

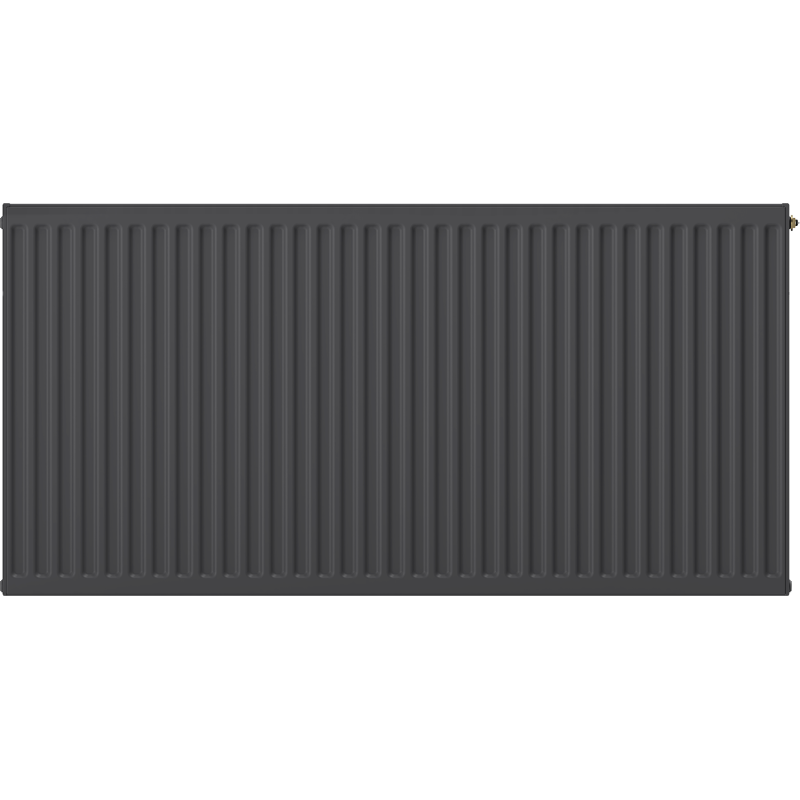

Images show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CV21
Width
2000 mm
Height
600 mm
Depth
73 mm
Type
Plate / Panel
Heating power
2564 W
Color
Anthracite
Material
Steel
Type
21
Installation Orientation
Universal
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
