Mexen CV21 plate radiator 900 x 1400 mm, bottom connection, 2486 W, anthracite - W621-090-140-66
The Mexen CV21 plate radiator is an excellent solution for those seeking efficient and aesthetically pleasing heating. This model, measuring 900 x 1400 mm, offers bottom connection and impressive heating power up to 2486 W at a temperature of 75/65/20 °C. With its anthracite color (RAL 7016) and solid steel construction, it fits modern interiors. Maximum operating temperature is 110 °C at a working pressure up to 10 bar. The set includes mounting accessories, plugs, and an air vent.

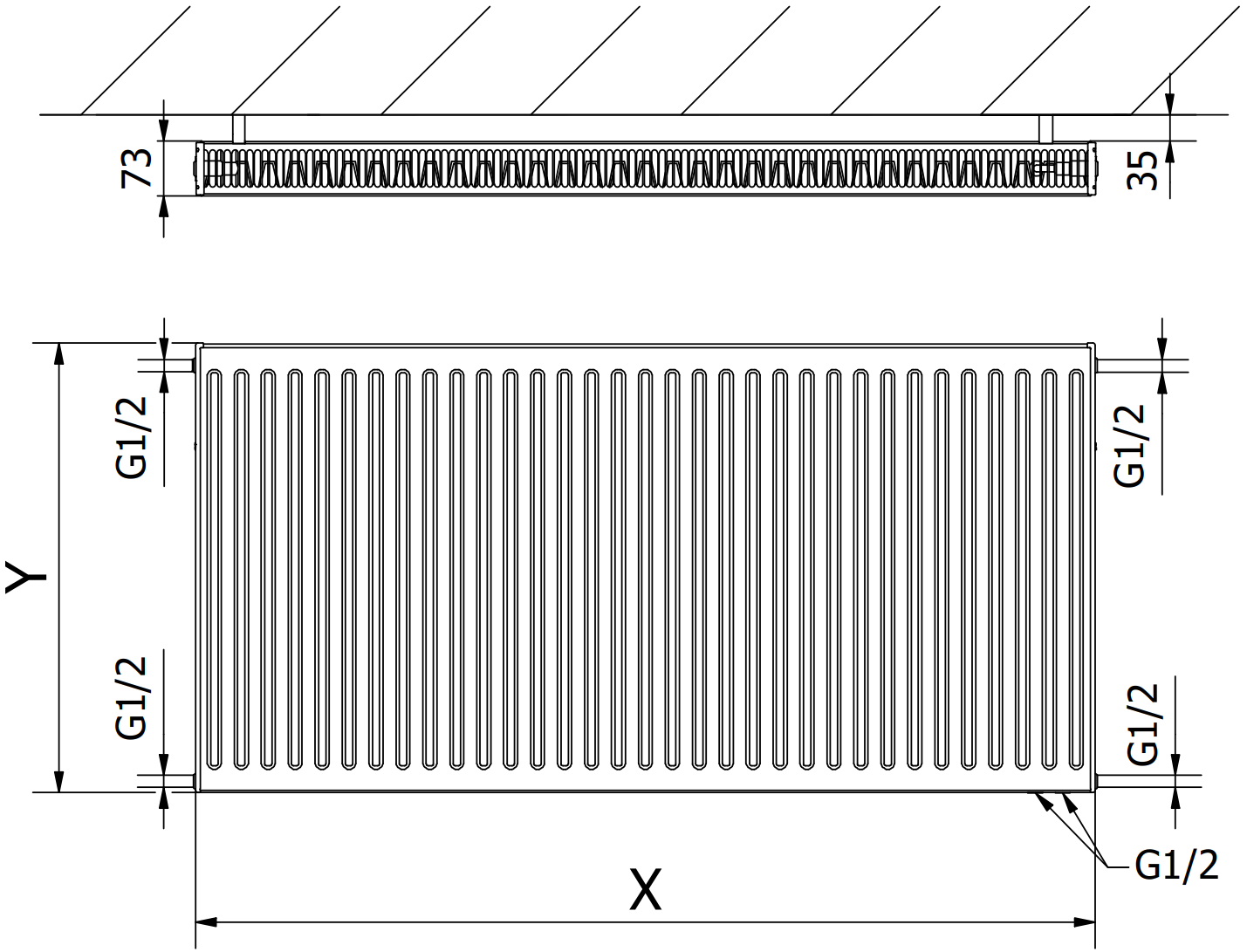

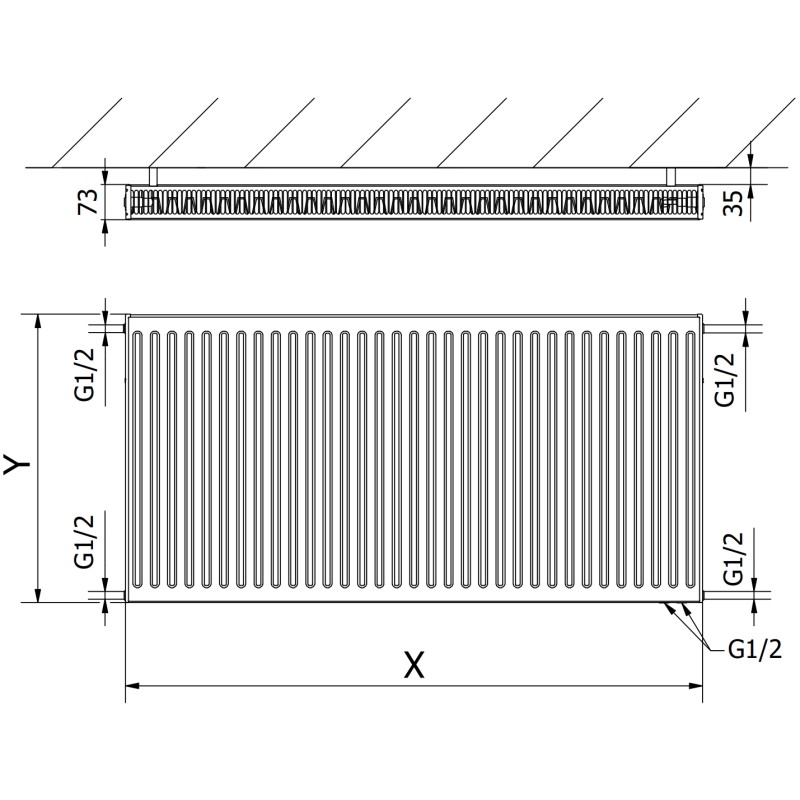

Technical data:
Height (Y): 900 mm
Width (X): 1400 mm
Depth: 73 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1273 W
- 75/65/20 °C 2486 W
- 90/70/20 °C 3157 W
Connections:
- 2xG ½” from the bottom on the right or left side
- 4xG ½” lateral
High-quality, durable paint coating - DIN 99500
Includes side cover and removable top cover
Includes: hangers, installation kit, blanking plugs, air vent, and valve insert

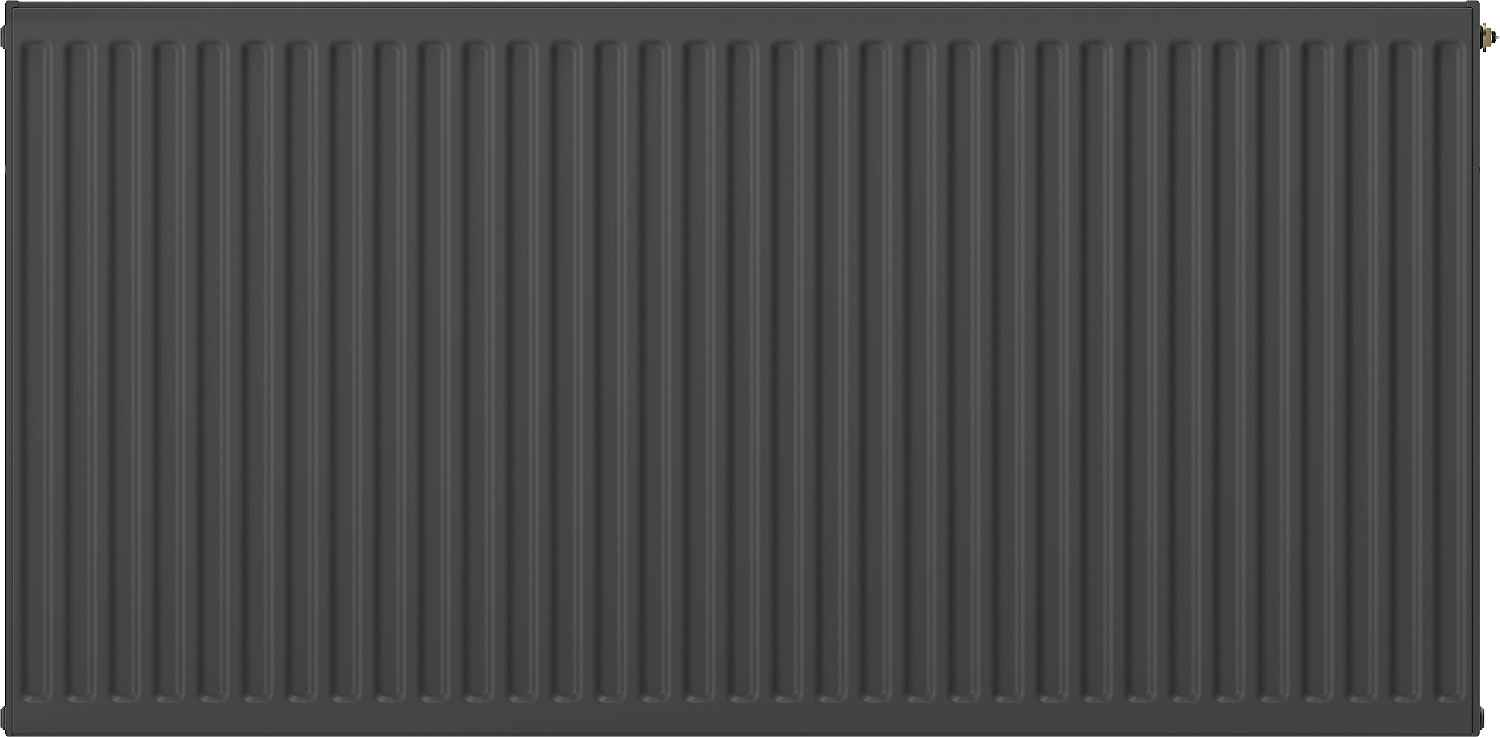

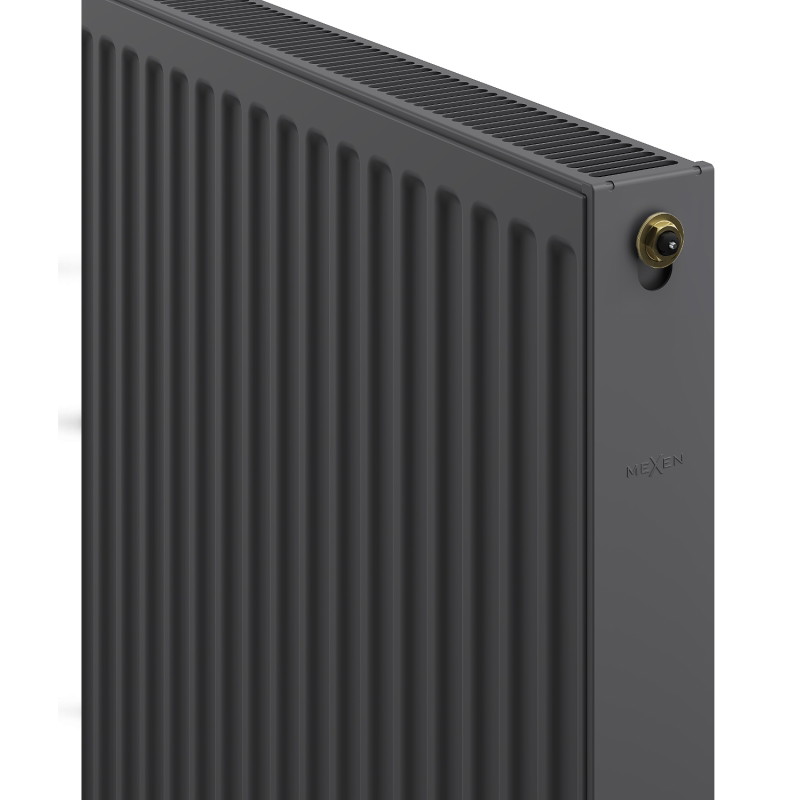

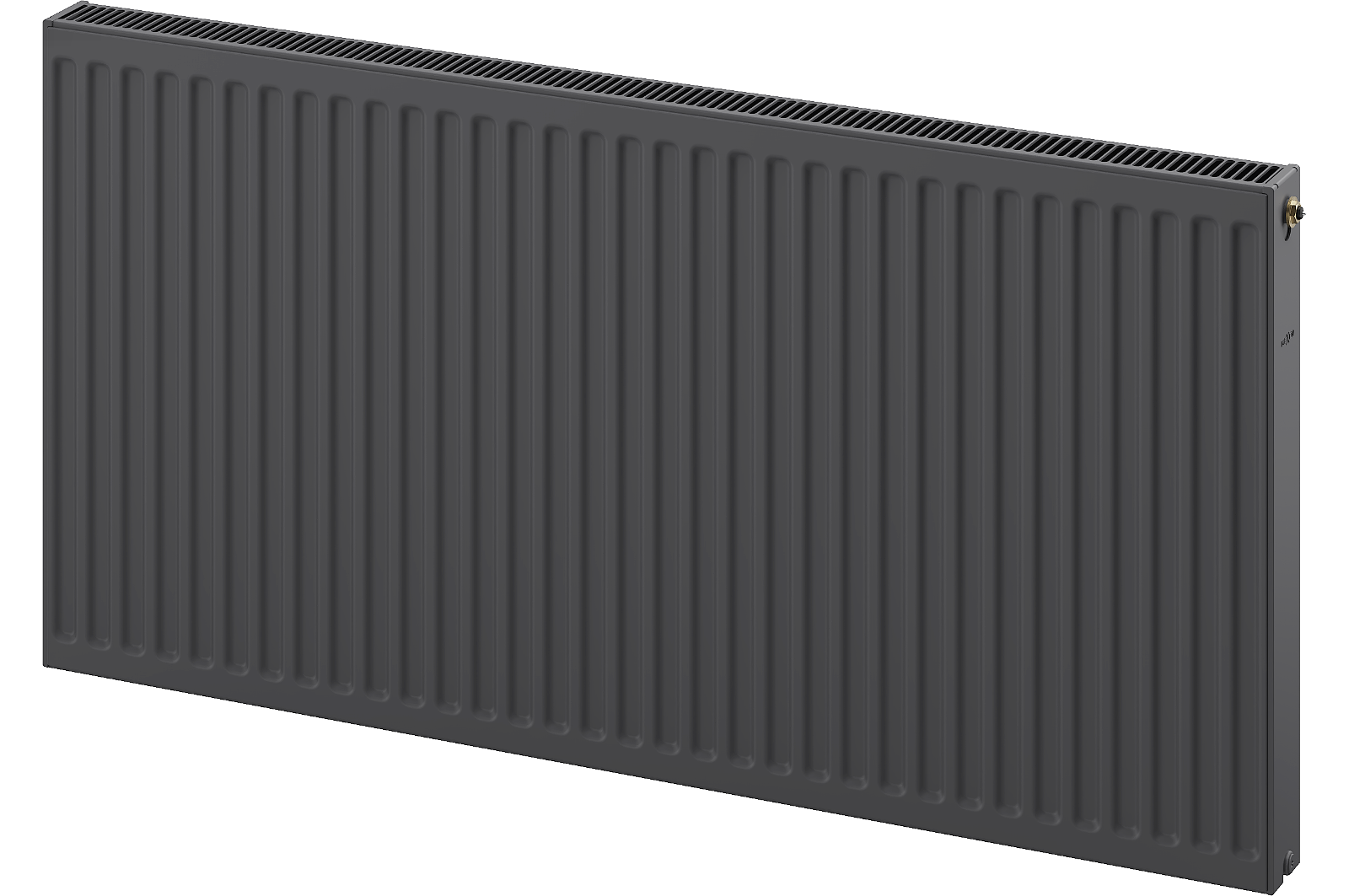

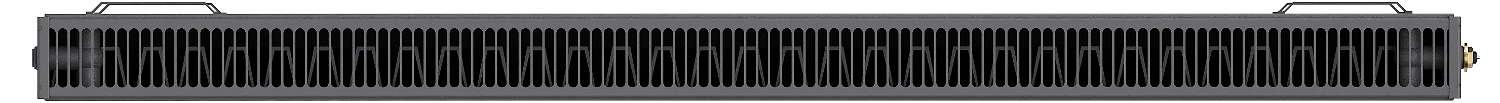

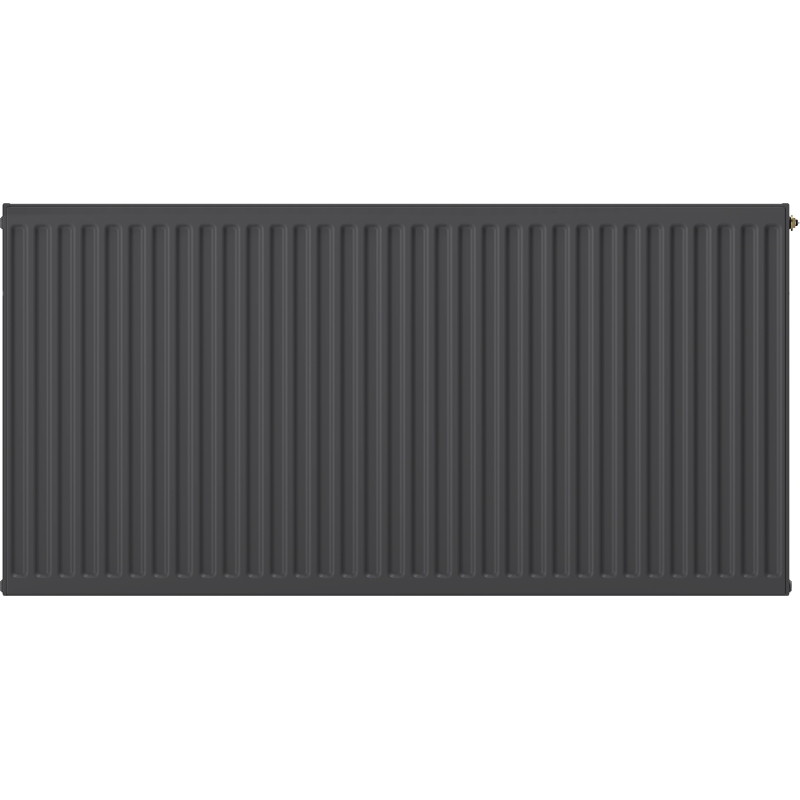

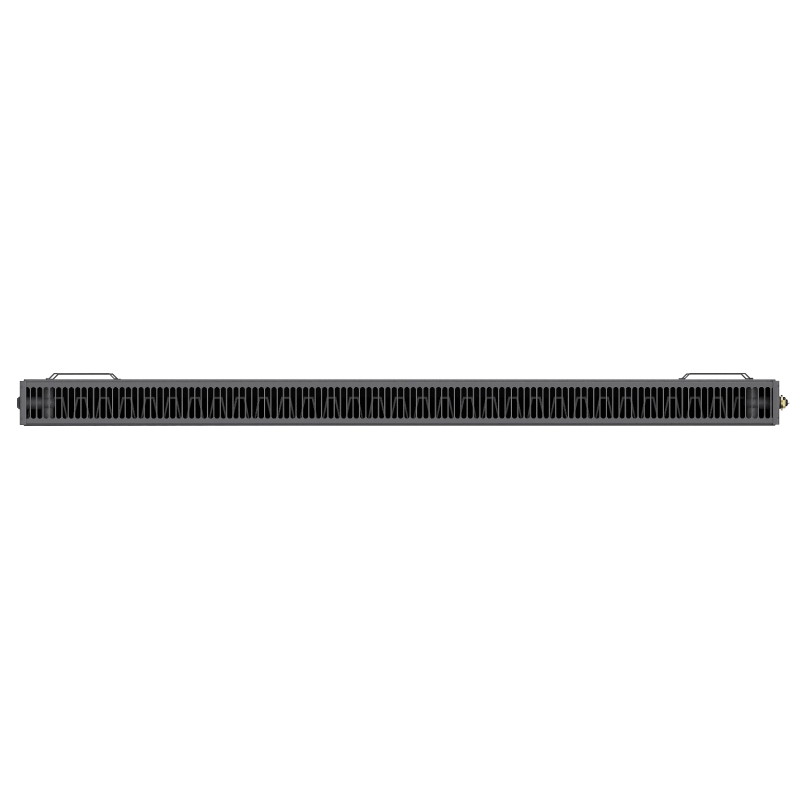

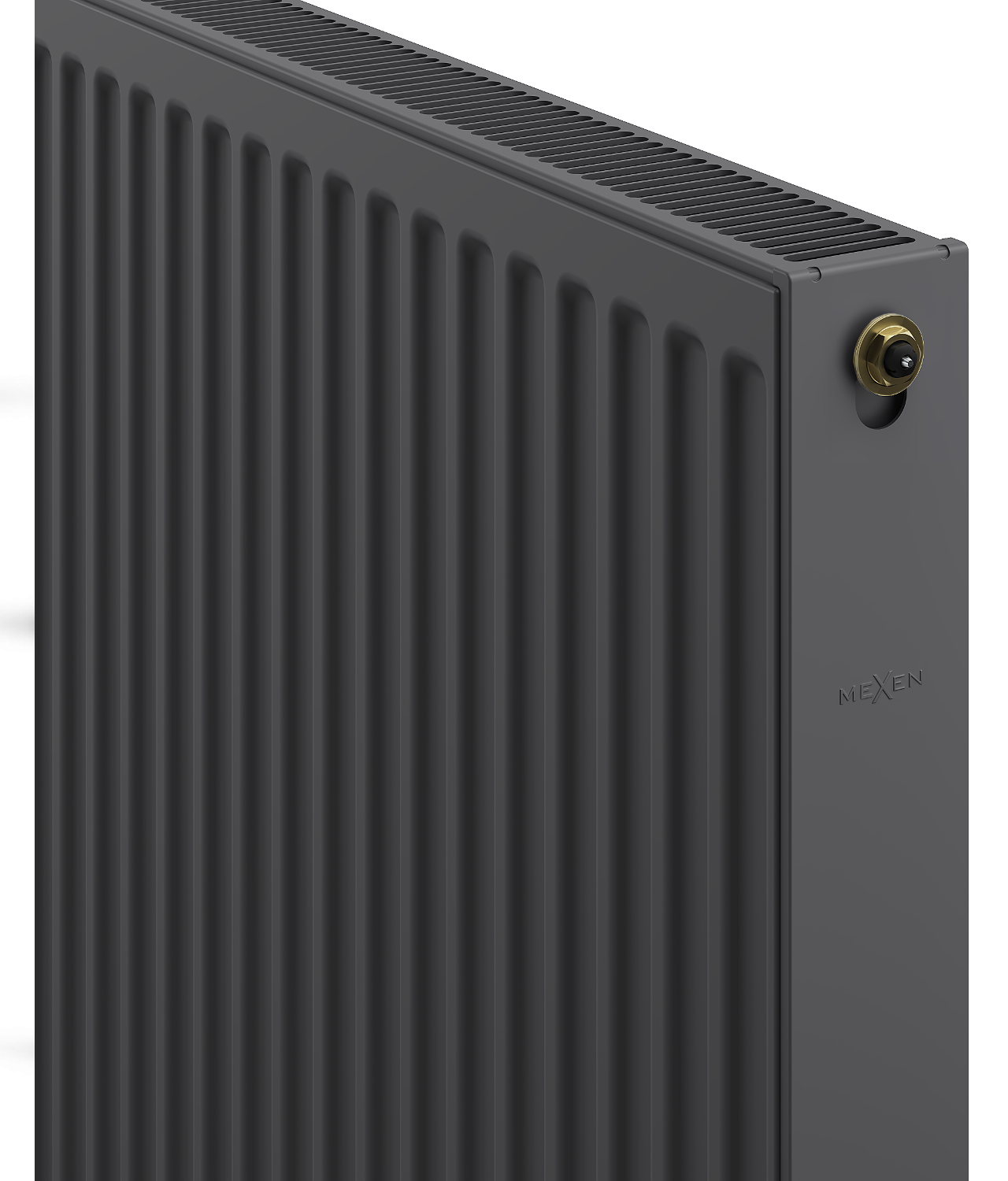

Photos show the radiator in size 600 x 1200 mm.
