Mexen CV33 plate radiator 900 x 3000 mm, bottom connection, 9546 W, anthracite - W633-090-300-66

The Mexen CV33 plate radiator stands out with impressive dimensions of 900 x 3000 mm and a high heating power of up to 9546 W at a temperature of 75/65/20 °C, making it an ideal choice for large rooms. Made of steel, in an elegant anthracite color RAL 7016, it ensures durability and aesthetics. Thanks to the bottom connection 2xG ½″ and side connections, the installation is extremely versatile. The maximum operating temperature is 110 °C, and the maximum operating pressure is 10 bar. Necessary installation accessories are included.

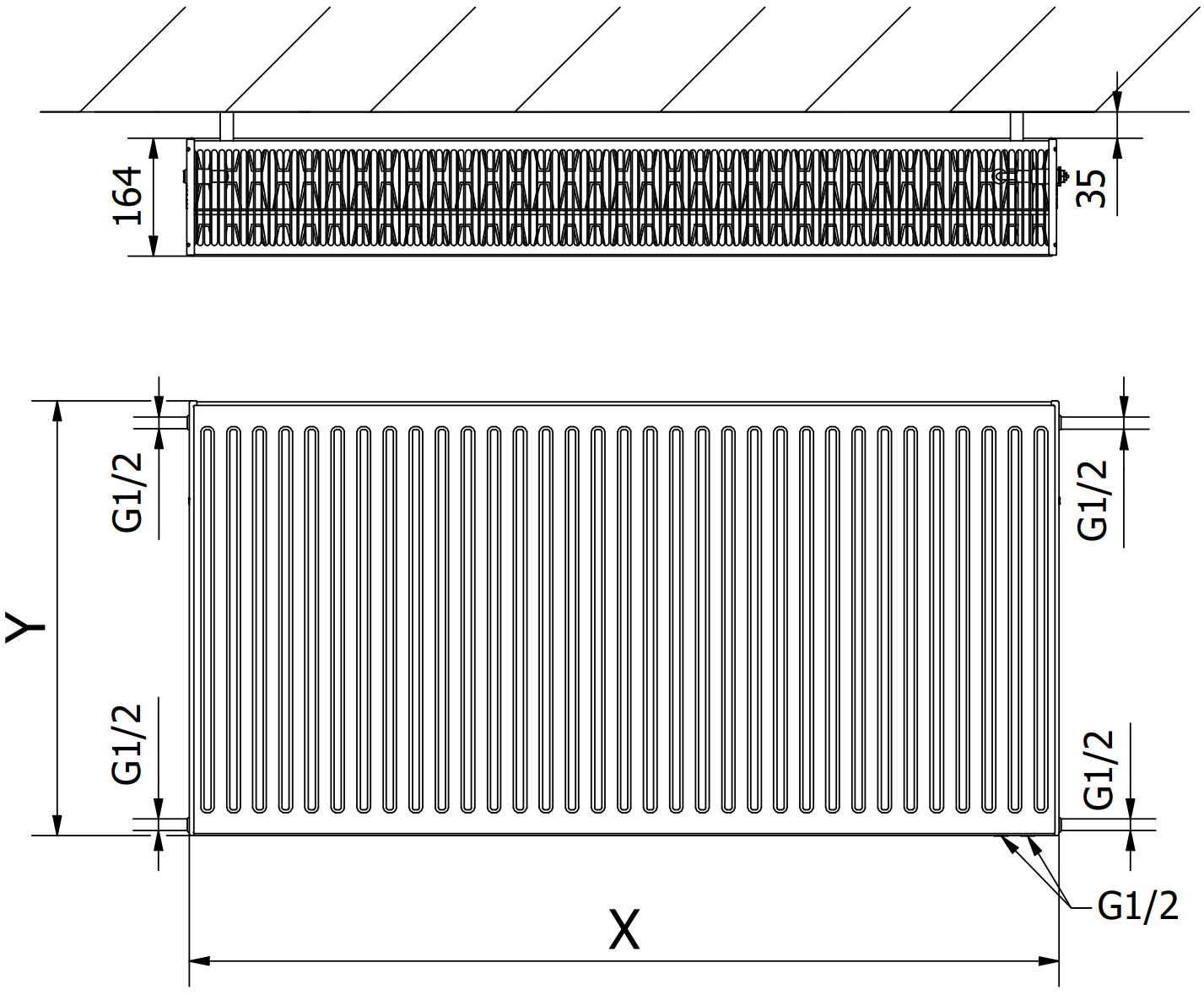

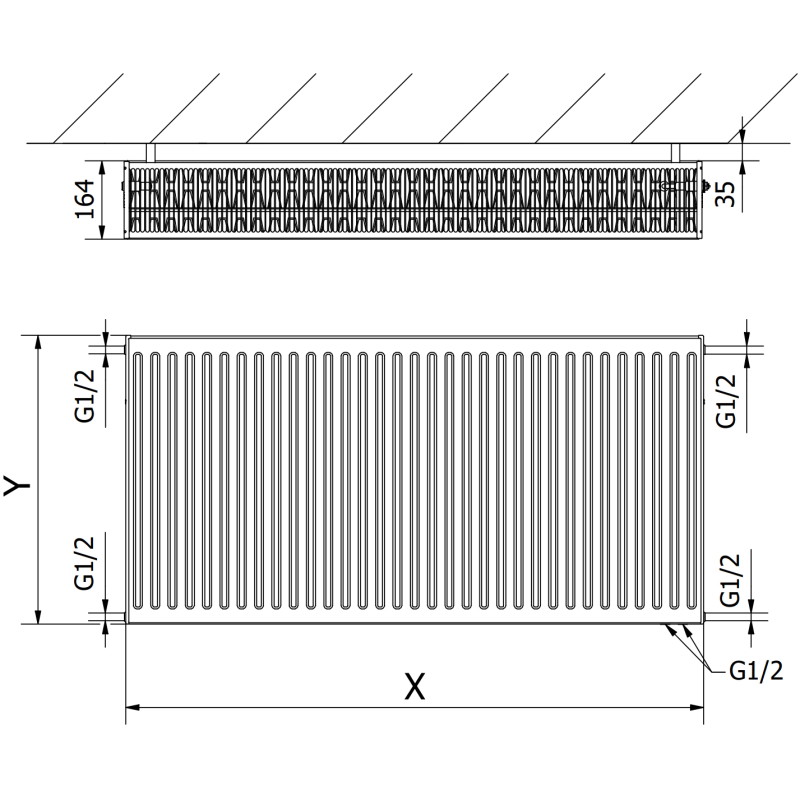

Technical data:

Height (Y): 900 mm

Width (X): 3000 mm

Depth: 164 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 4839 W

- 75/65/20 °C 9546 W

- 90/70/20 °C 12166 W

Connections:

- 2xG ½″ from the bottom on the right

- 4xG ½″ side

High quality, durable paint coating - DIN 99500

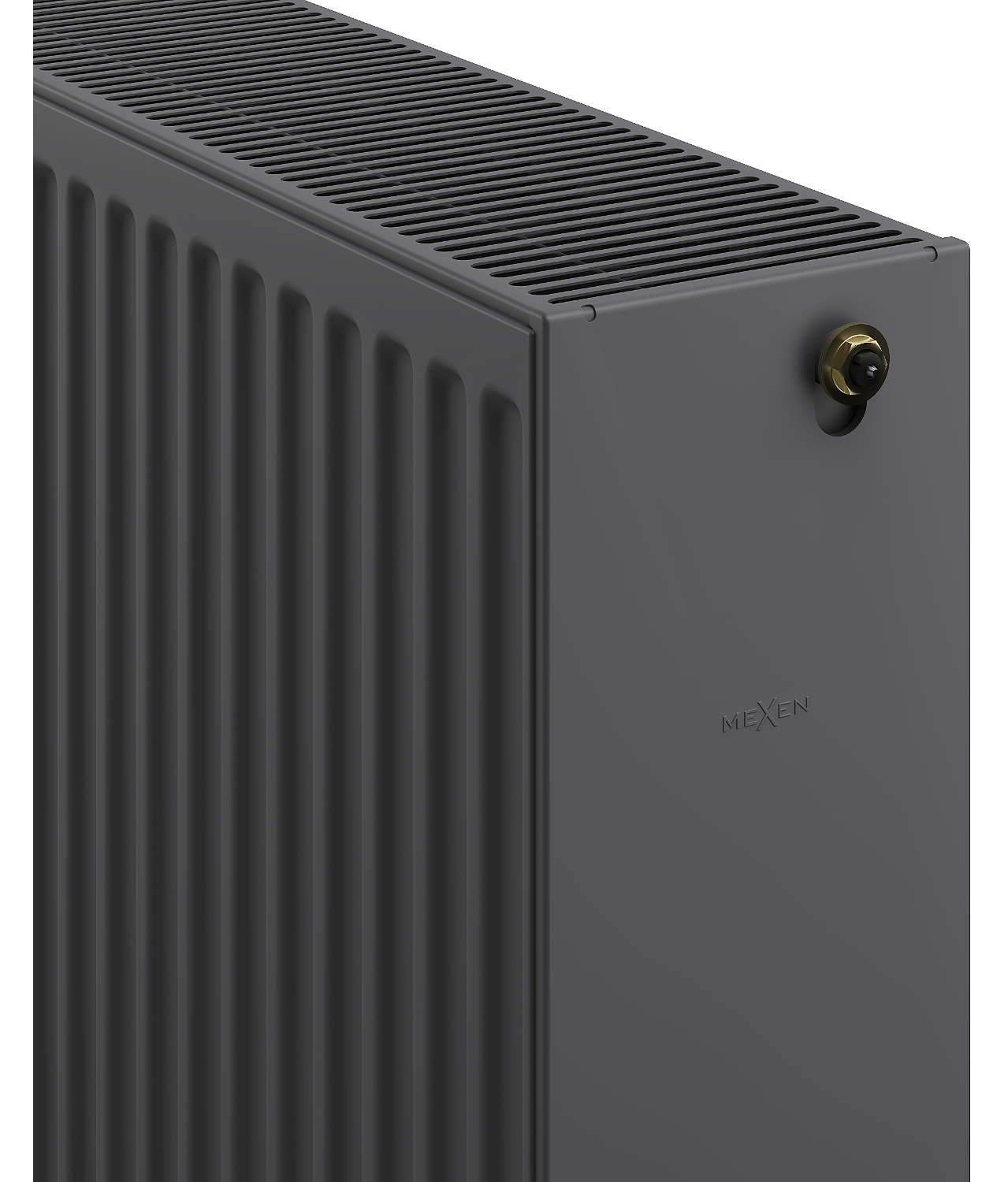

Features side cover and removable top cover

Includes: hangers, installation kit, sealing plugs, air vent, and valve insert

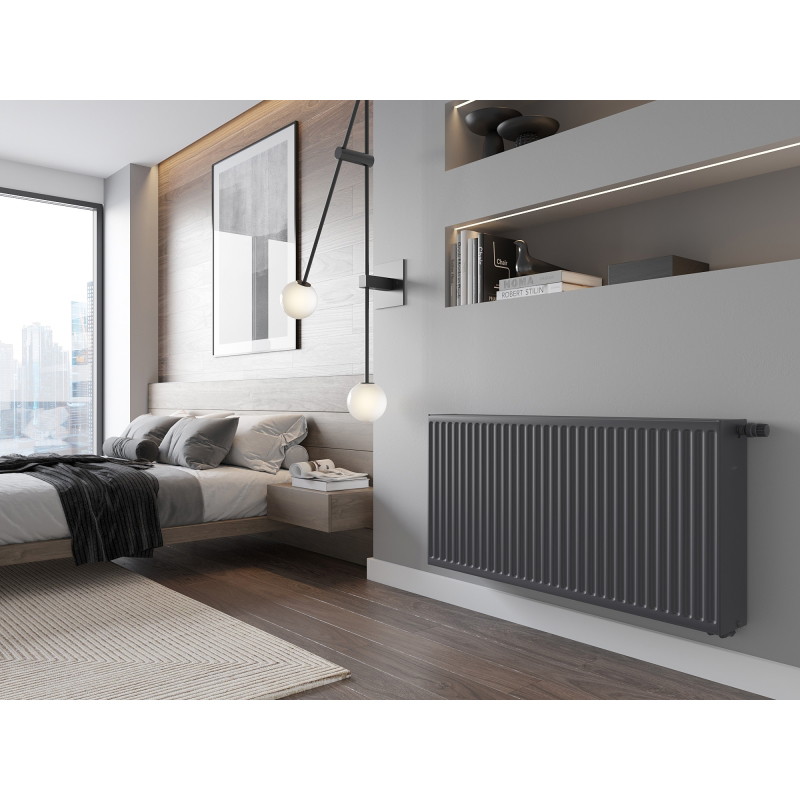

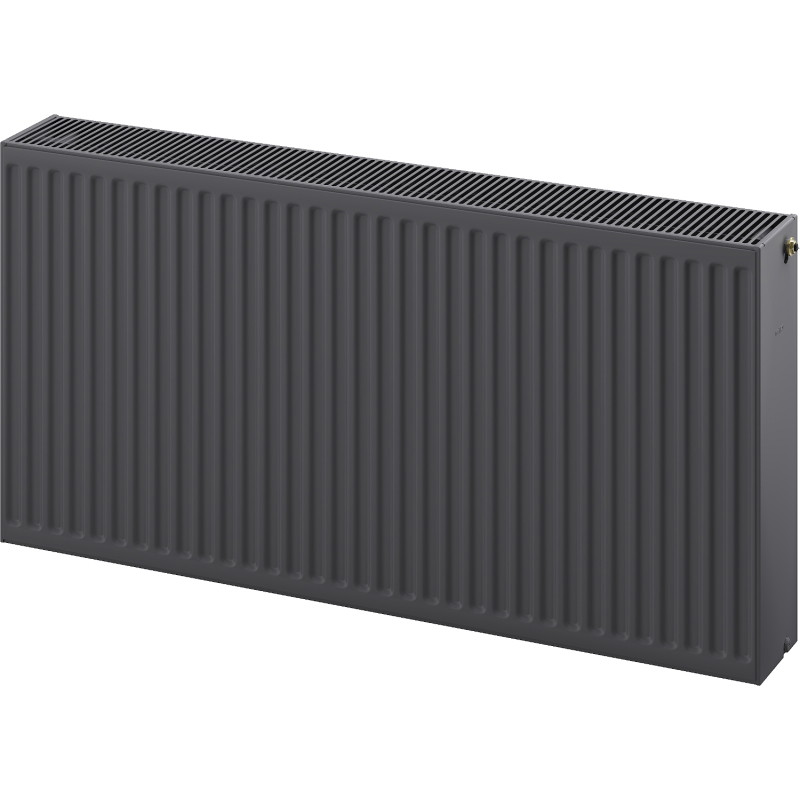

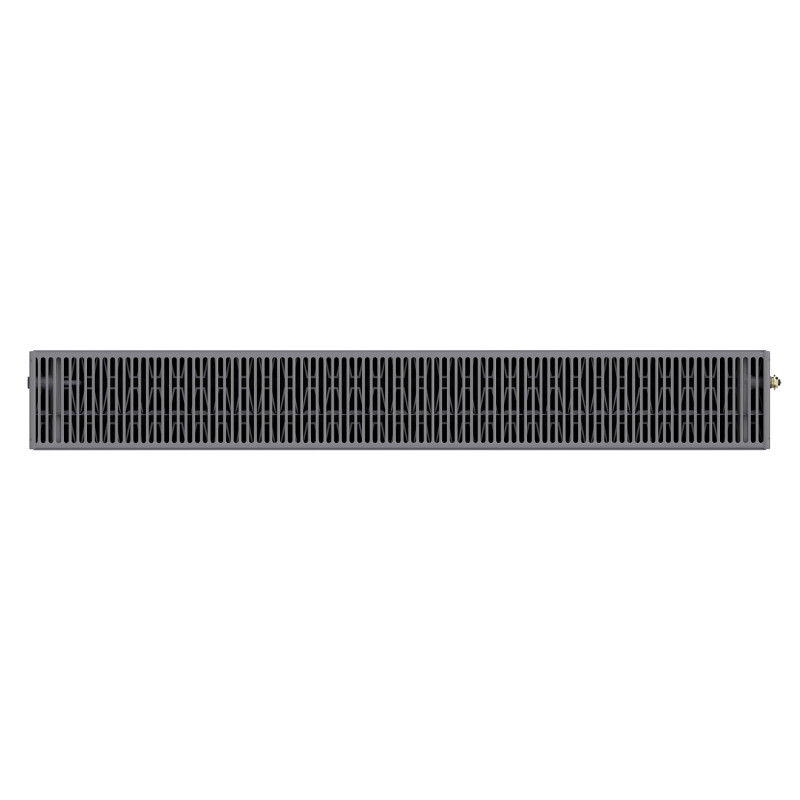

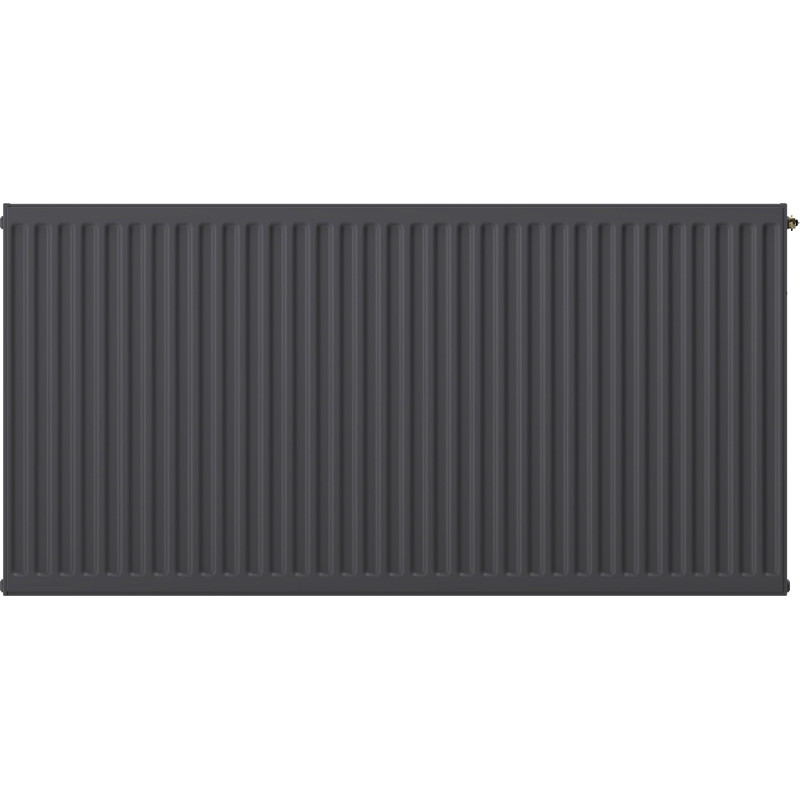

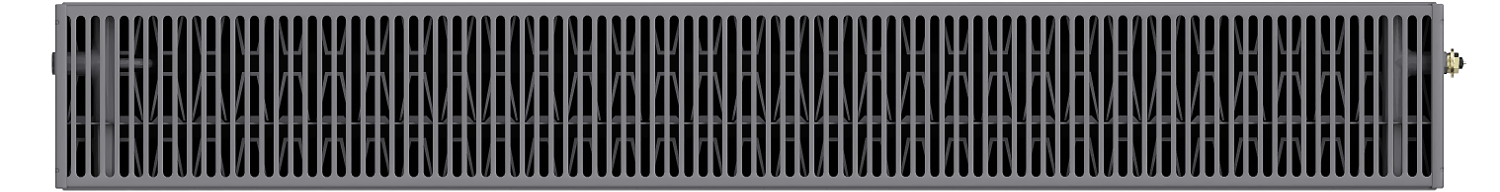

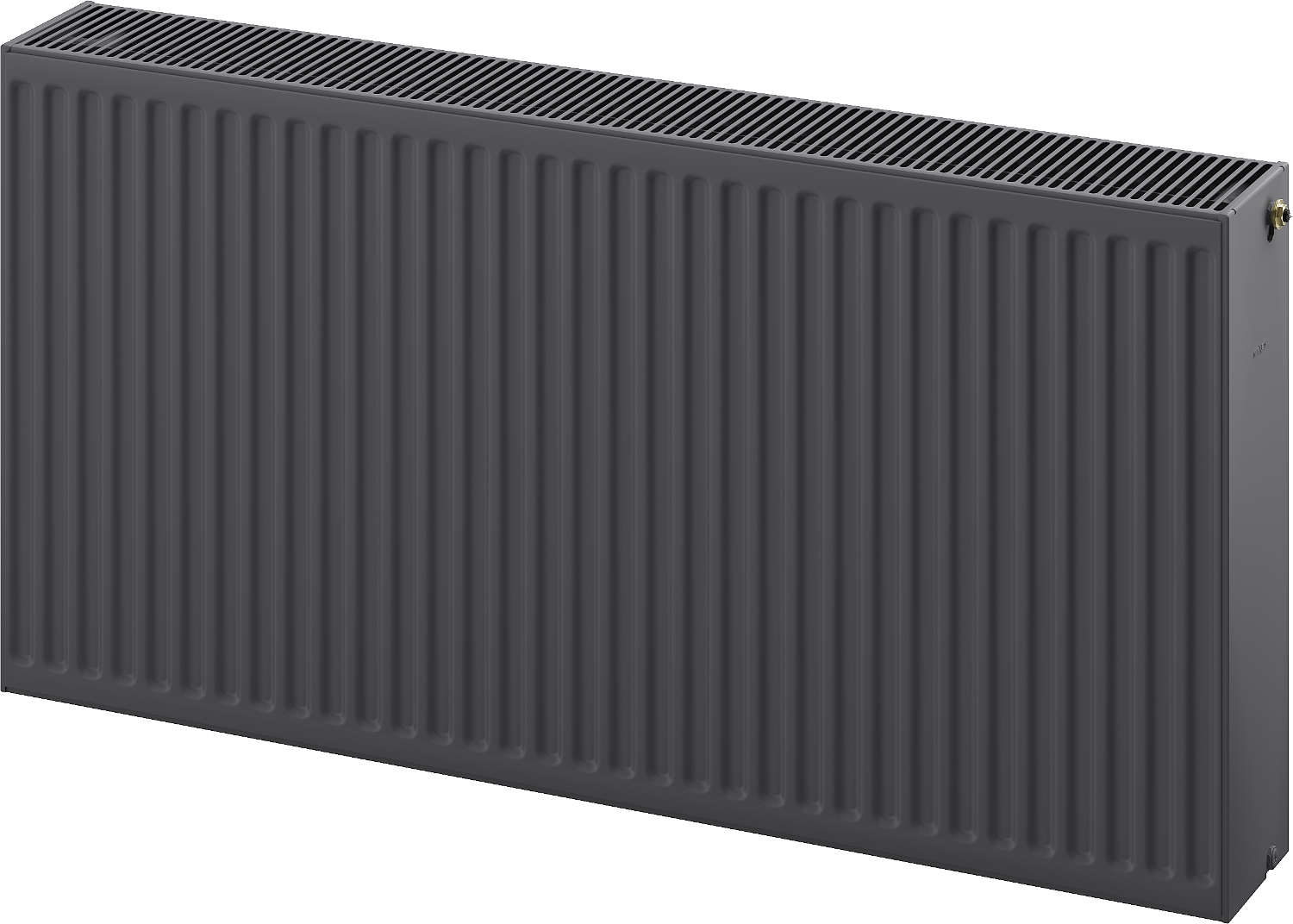

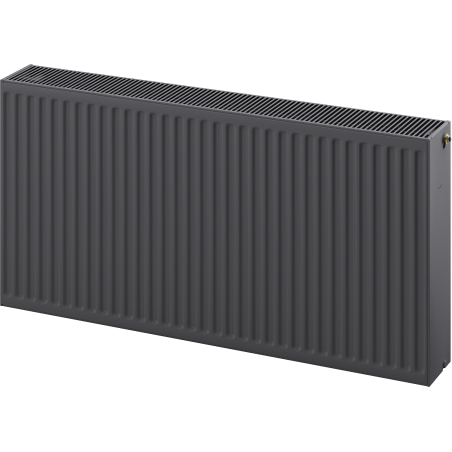

Photos show the radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
CV33
Width
3000 mm
Height
900 mm
Depth
164 mm
Type
Plate / Panel
Heating power
9546 W
Color
Anthracite
Material
Steel
Type
33
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
