Mexen C22 panel radiator 600 x 2200 mm, side connection, 3636 W, black - W422-060-220-70

Mexen C22 is a modern panel radiator in black, perfect for your interior. Dimensions of 600 x 2200 mm and side connection make it fit perfectly in various spaces. With a heating power of up to 3636 W at a temperature of 75/65/20 °C, it provides efficient heating. Made of high-quality steel, coated with a durable paint finish compliant with DIN 99500, it guarantees long-lasting durability. Additionally, it has a side cover and a removable top cover.

Technical specifications:

Height (Y): 600 mm

Width (X): 2200 mm

Depth: 103 mm

Connection spacing: 55 cm

Spacing of vertical water channels: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1880 W

- 75/65/20 °C 3636 W

- 90/70/20 °C 4601 W

Connections:

- 4xG ½” side

High-quality, durable coating - DIN 99500

Features a side cover and removable top cover

Included: mounts, installation kit, sealing plugs, and air vent

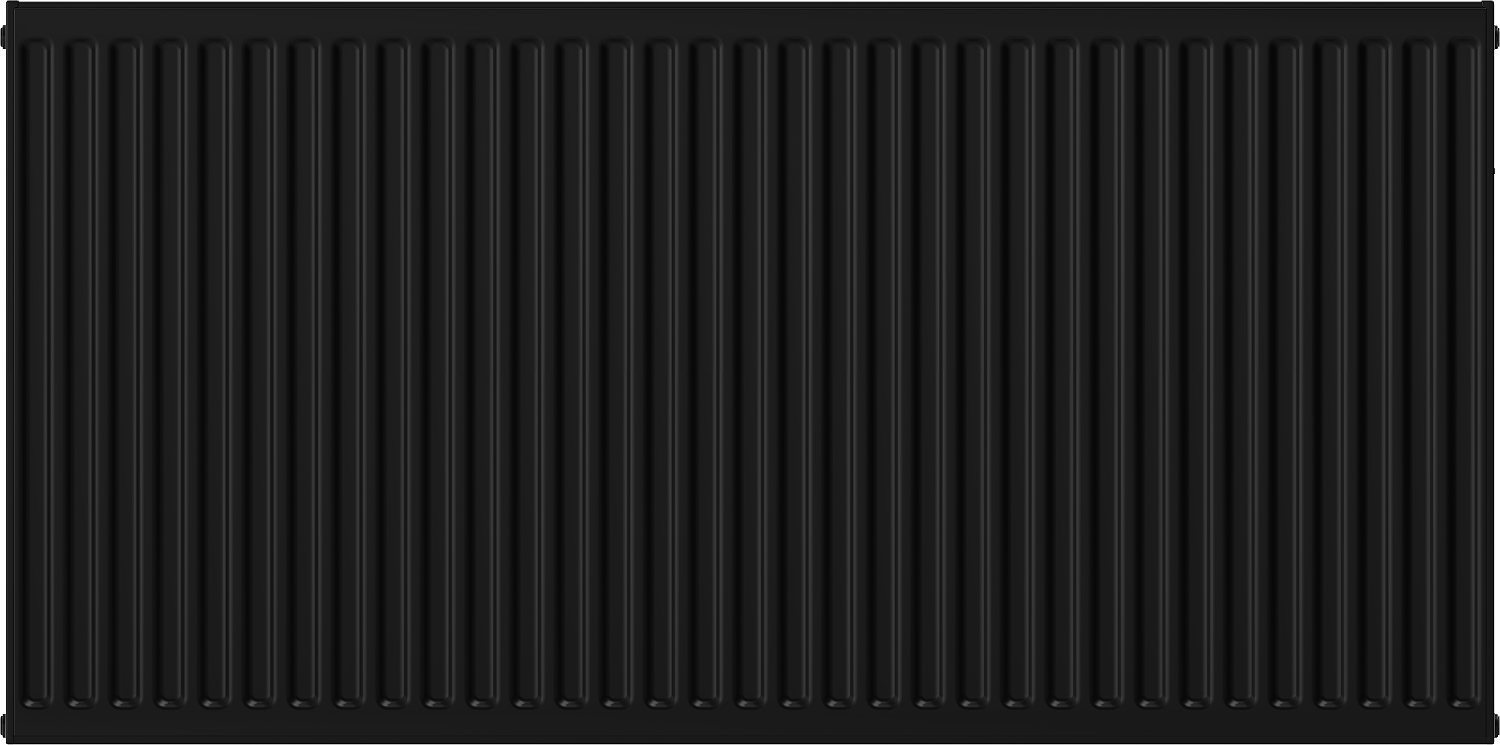

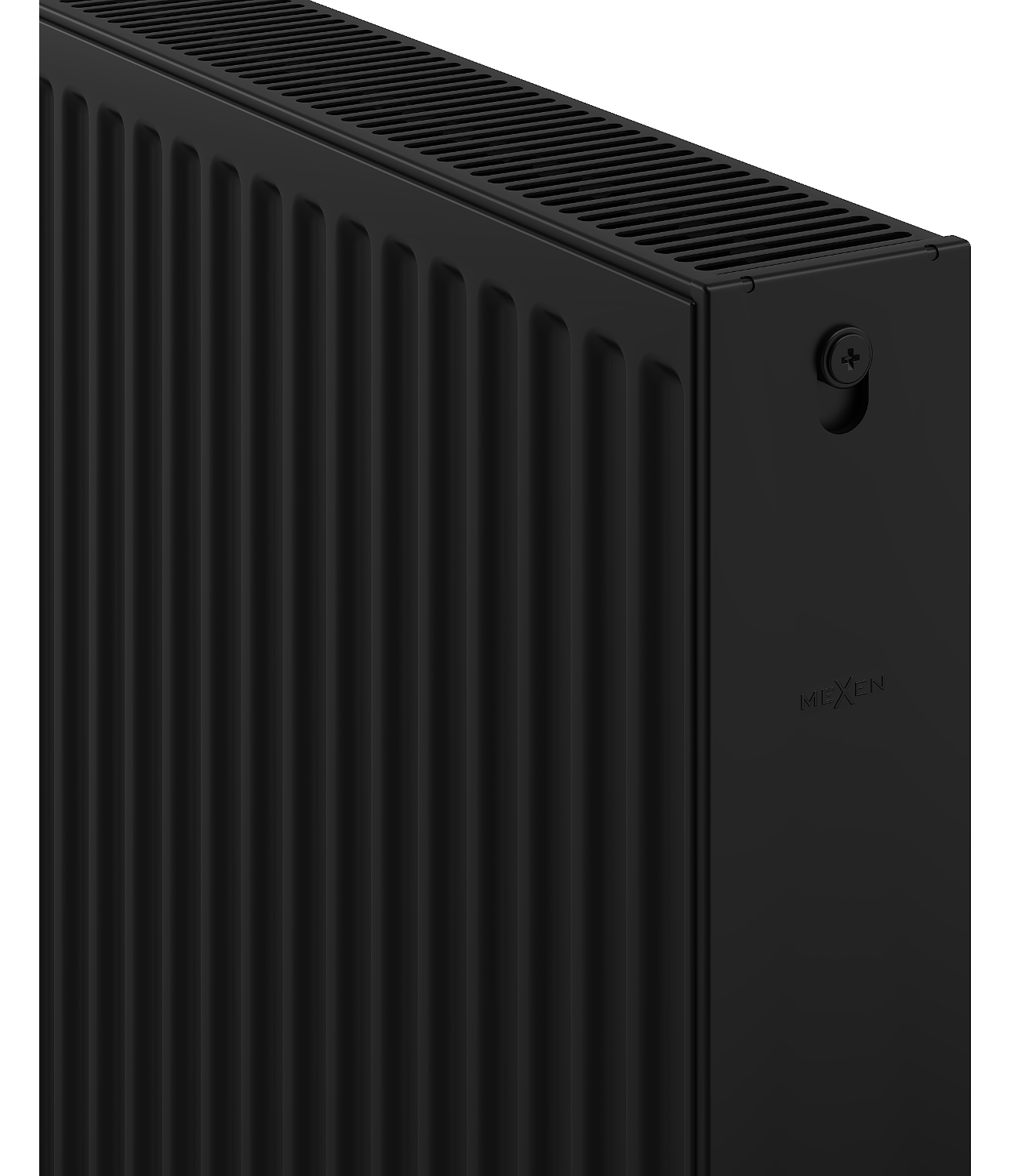

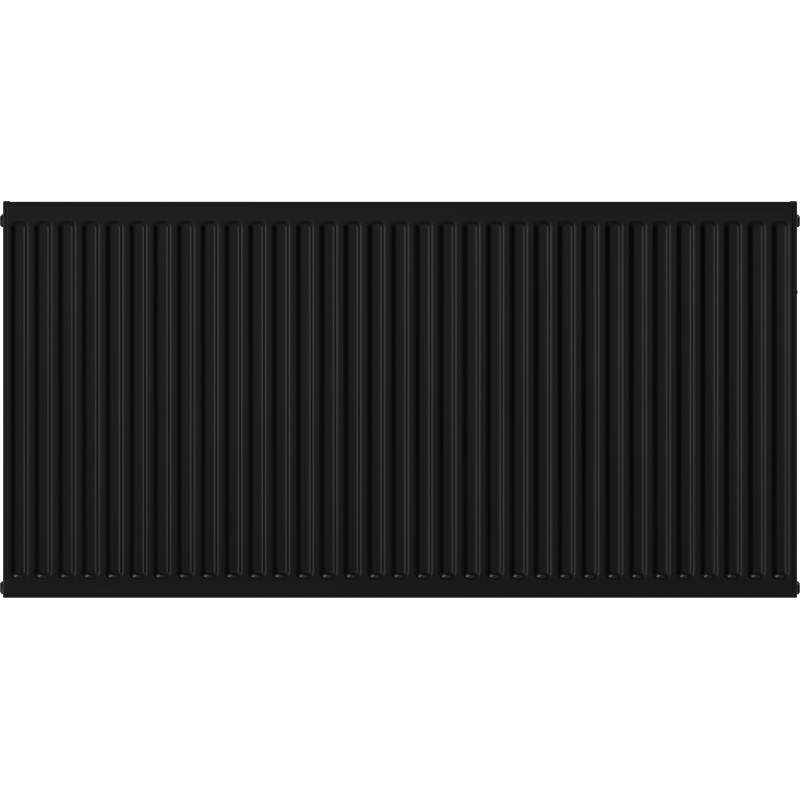

Photos show the radiator in the size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

PZH Hygiene Certificate

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - it indicates that it does not negatively affect human health or the natural environment in any way. nr B.BK.60112.0464.2022 valid until 13.02.2028

Series
C22
Width
2200 mm
Height
600 mm
Depth
103 mm
Type
Plate / Panel
Heating power
3636 W
Color
Black
Material
Steel
Type
22
Installation Orientation
Universal
Connection spacing
55 cm
Connection
Side
Orientation
Horizontal
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
