Mexen CVF33 Flat panel radiator 300 x 500 mm, bottom connection, 620 W, black - W633F-030-050-70

The Mexen Flat CVF33 is an elegant flat panel radiator measuring 300 x 500 mm with a bottom connection, offering a heating power of 620 W at 75/65/20 °C. Finished in intense black RAL 9005, it wonderfully complements modern interiors. Thanks to its steel construction and high-quality durable coating meeting DIN 99500 standards, it guarantees longevity and resistance to damage. Its compact size and efficient power allow for effective room heating while saving space. The maximum operating temperature is 110°C, and the working pressure is up to 10 bar. Includes brackets, mounting kit, and necessary connection elements.

Technical data:

Height (Y): 300 mm

Width (X): 500 mm

Depth: 164 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 326 W

- 75/65/20 °C 620 W

- 90/70/20 °C 780 W

Connections:

- 2xG ½″ from the bottom on the right

- 4xG ½″ side

High quality, durable coating - DIN 99500

It has a side cover and a removable top cover

Includes: brackets, mounting kit, blanking plugs, air vent, and valve insert

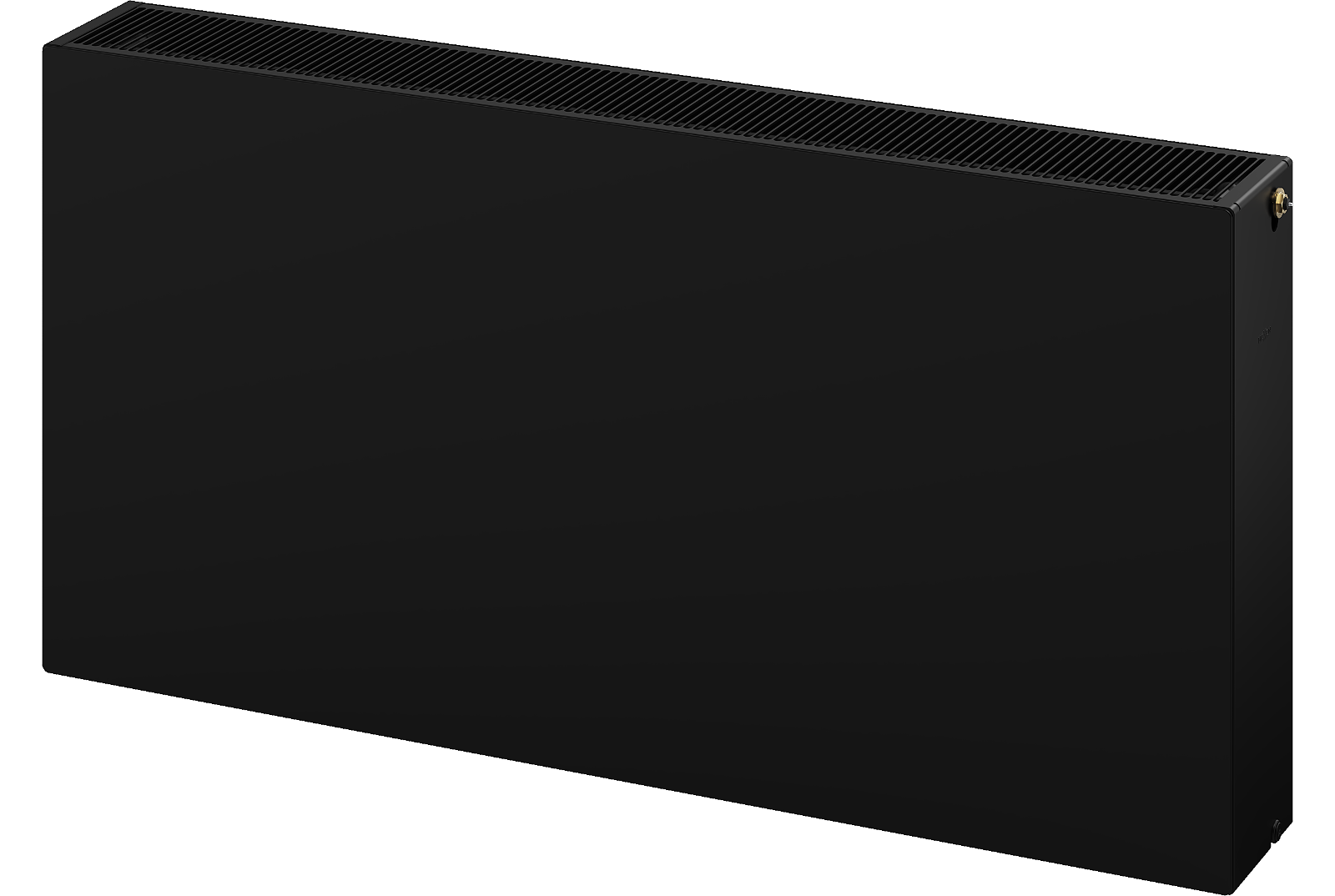

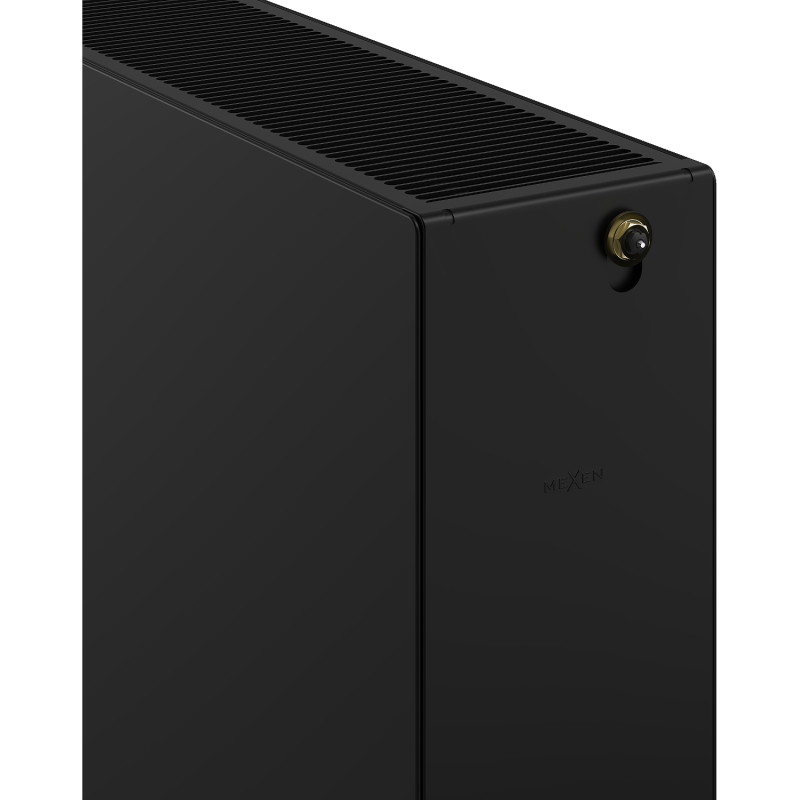

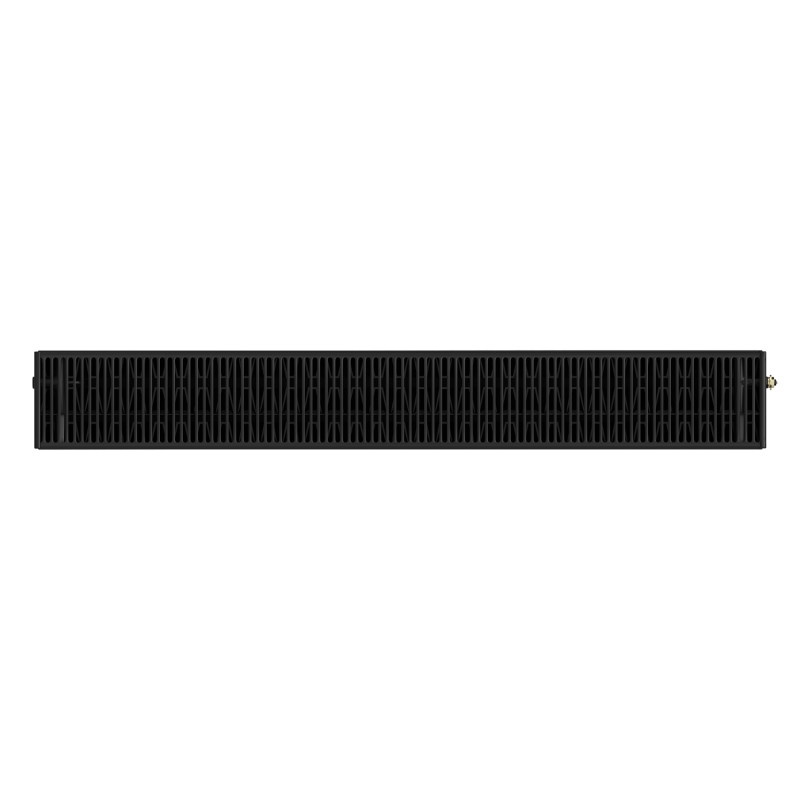

The pictures show a radiator in size 600 x 1200 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The option to detach the top cover allows for easier maintenance of the radiator. Convenient access to the interior enables cleaning, ensuring not only an aesthetic appearance but also greater user safety.

1 Mpa

The maximum working pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. It allows for effective and efficient room heating while ensuring safety for users and the surface surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
CVF33
Width
500 mm
Height
300 mm
Depth
164 mm
Type
Plate / Panel
Heating power
620 W
Color
Black
Material
Steel
Type
33
Installation Orientation
Right
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
