Mexen CC11 Panel Radiator 400 x 2800 mm, Bottom Centre Connection, 1814 W, White - W6C11-040-280-00

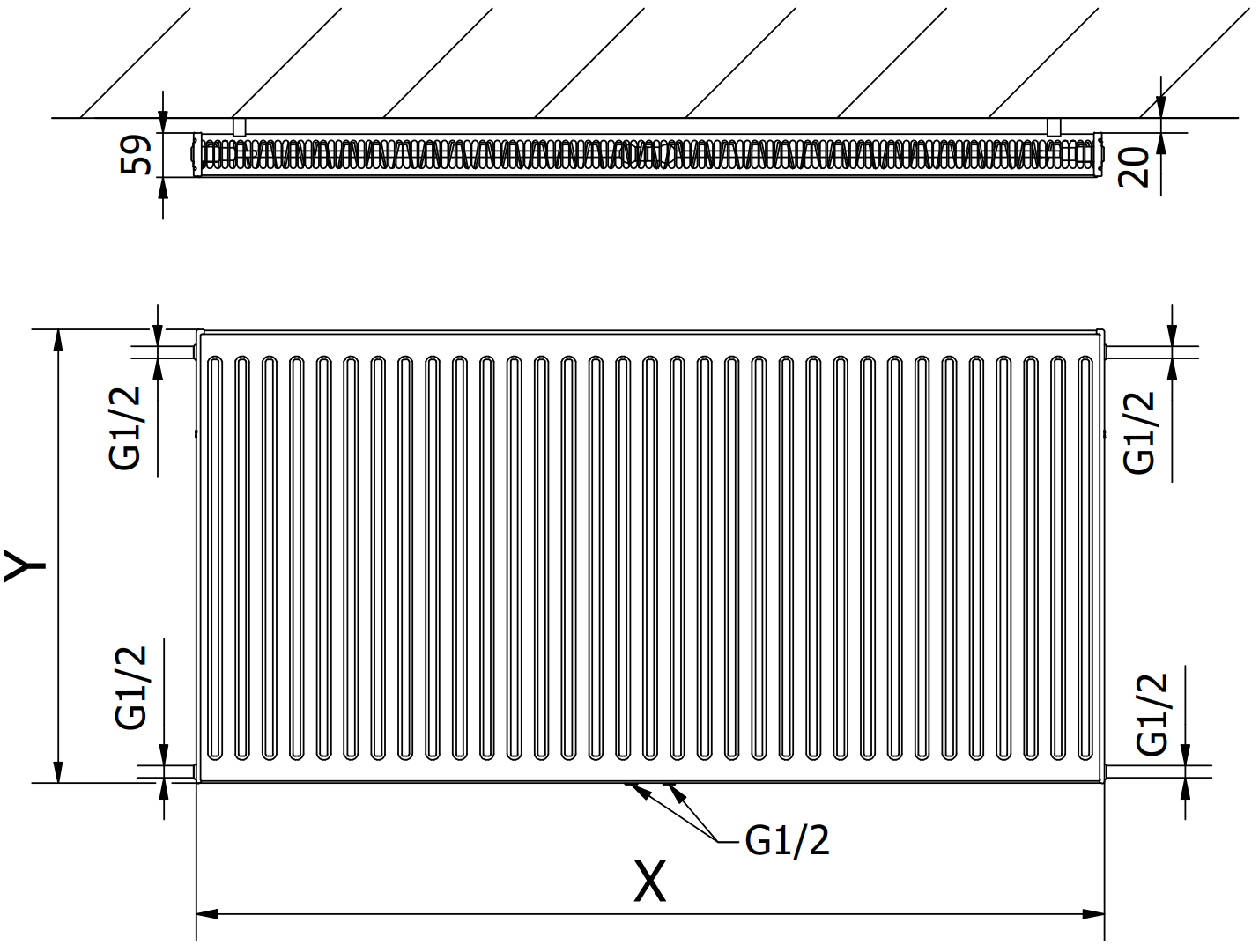

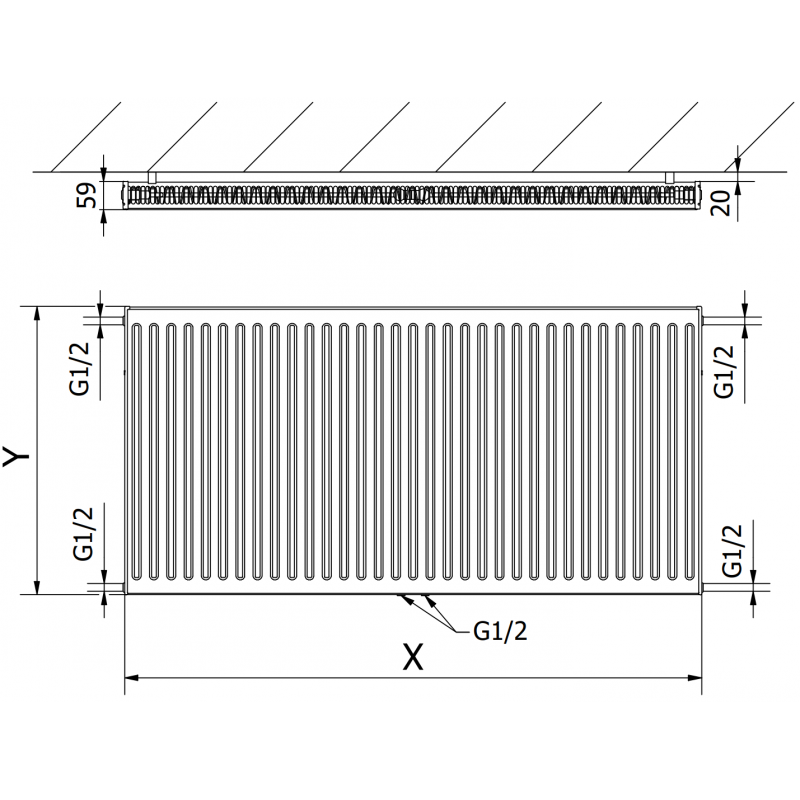

Technical data:
Height (Y): 400 mm
Width (X): 2800 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 947 W
- 75/65/20 °C 1814 W
- 90/70/20 °C 2288 W
Connectors:
- 2xG ½″ bottom centre
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Equipped with a side cover and removable top cover
Included: hangers, installation kit, sealing caps, air vent, and valve insert

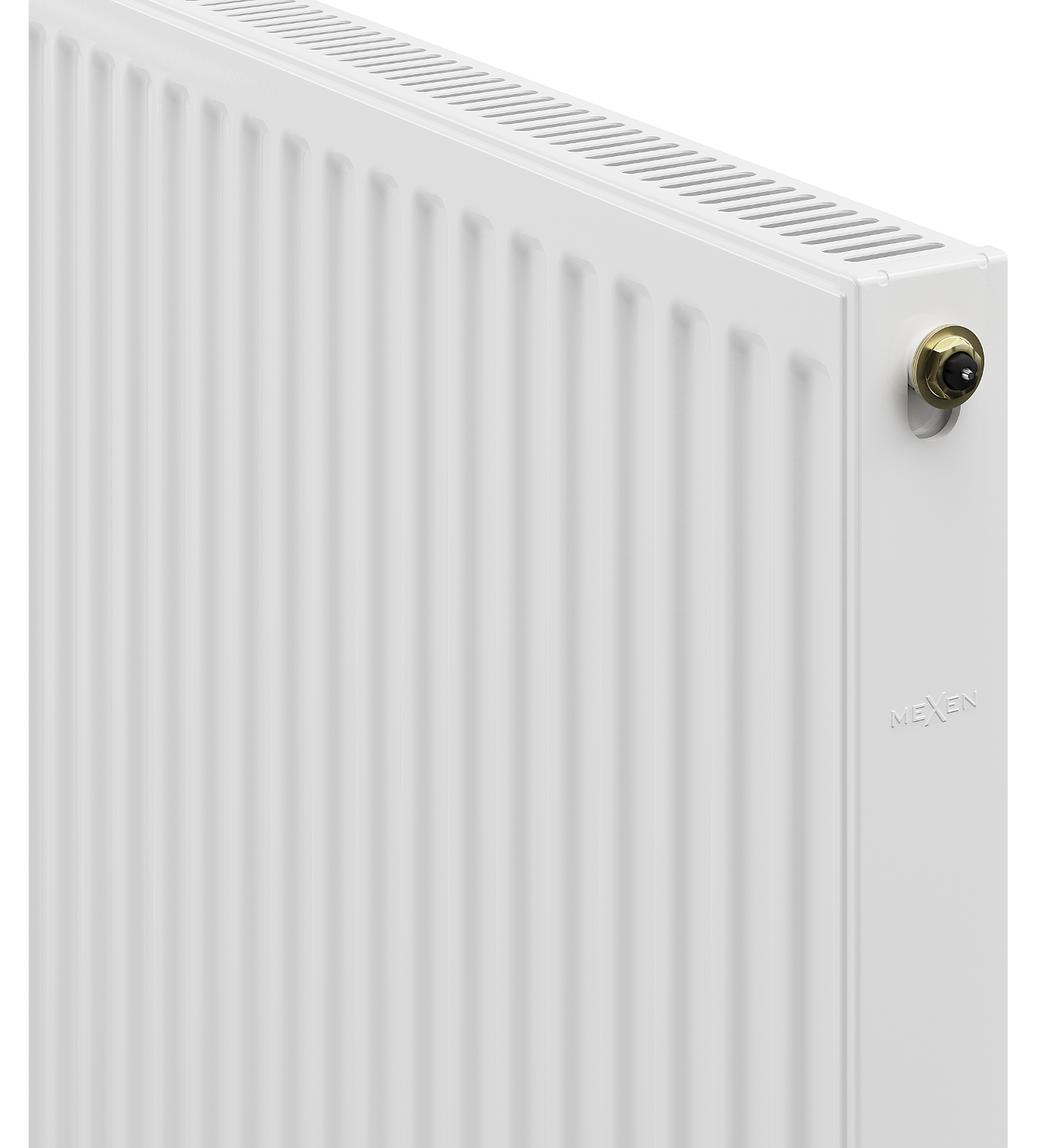

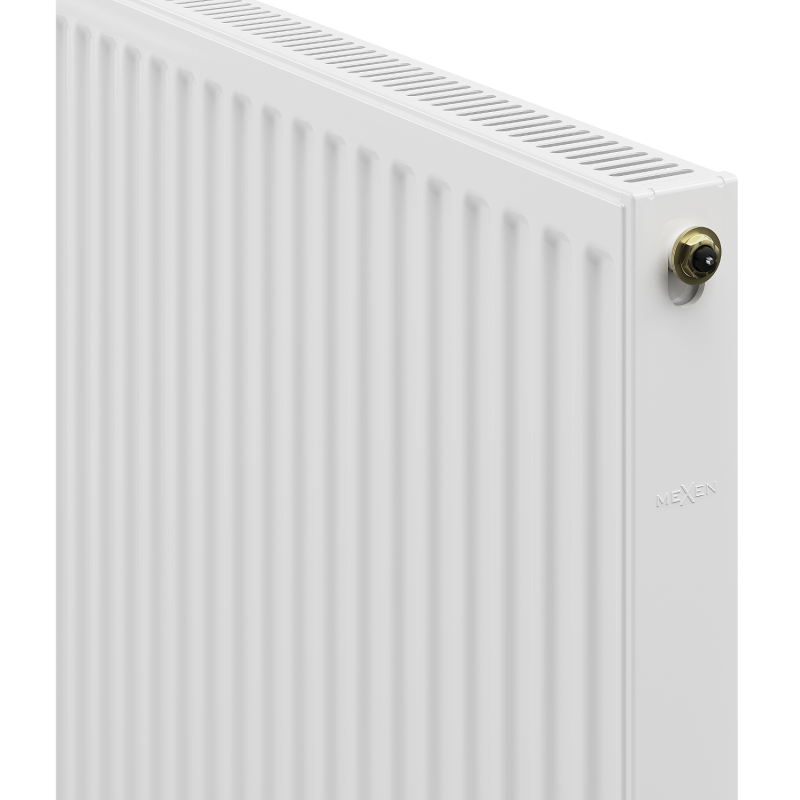

Photos show the radiator in size 600 x 1200 mm.
