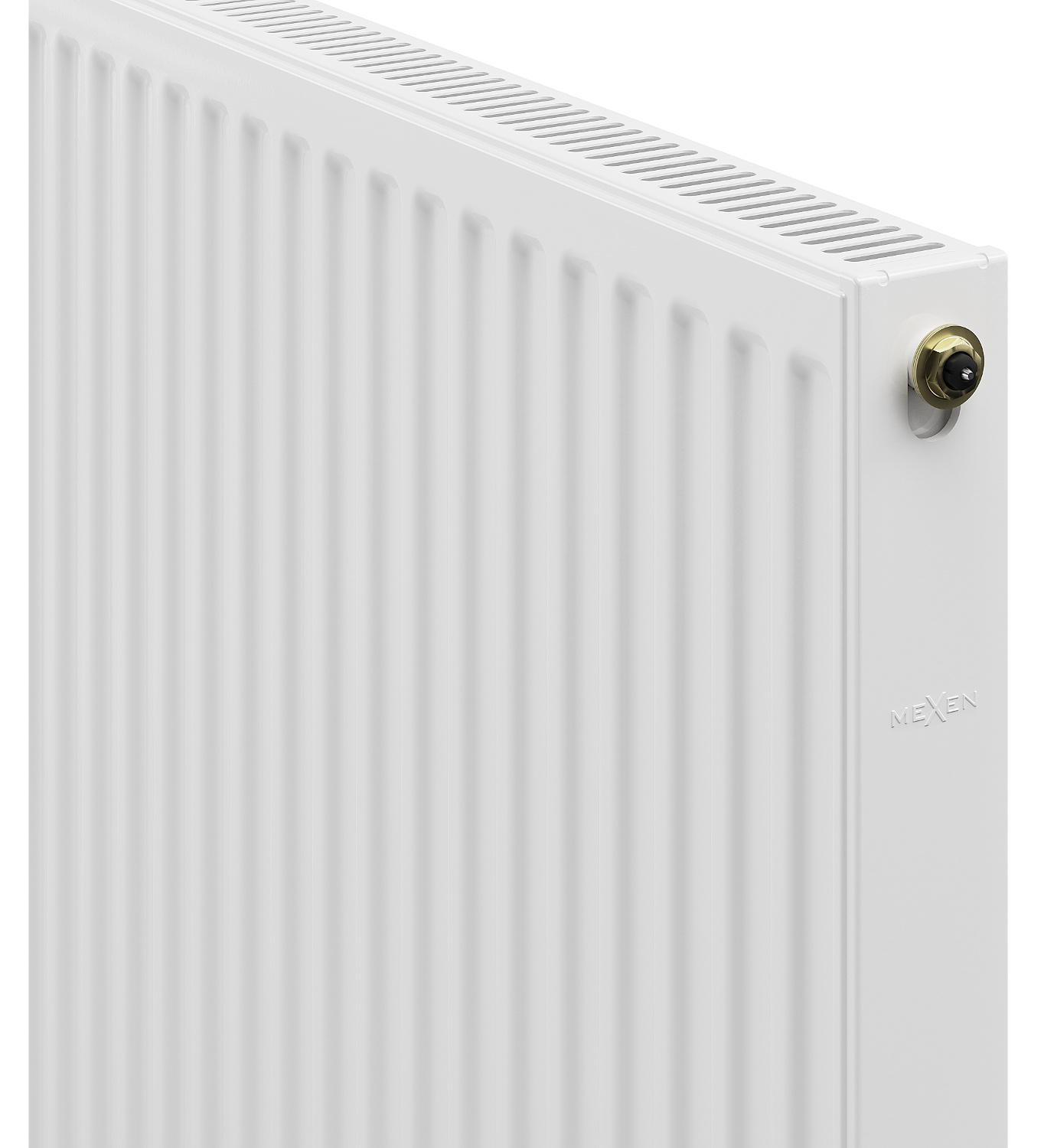

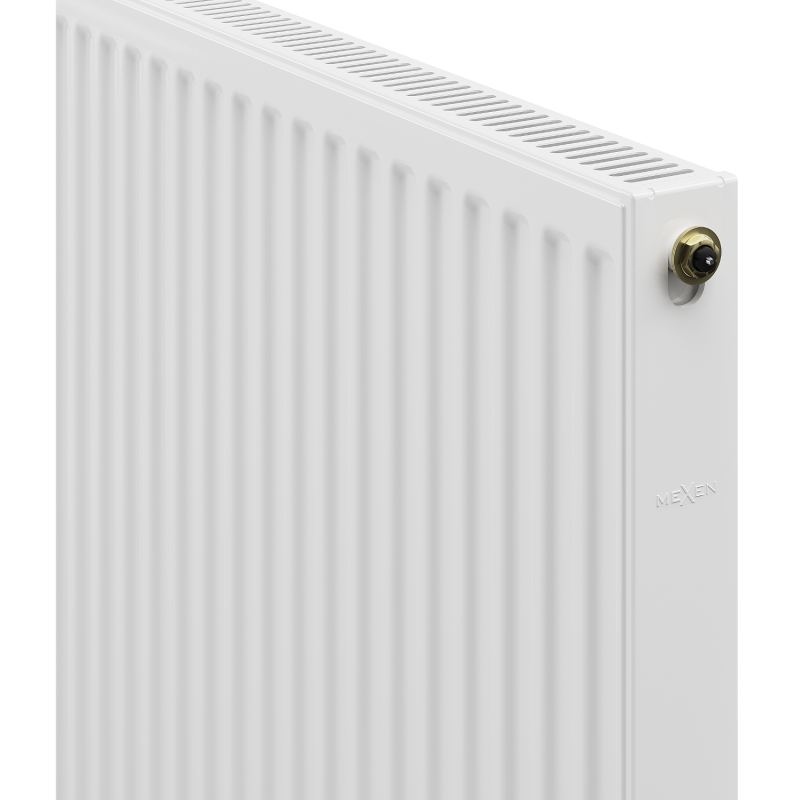

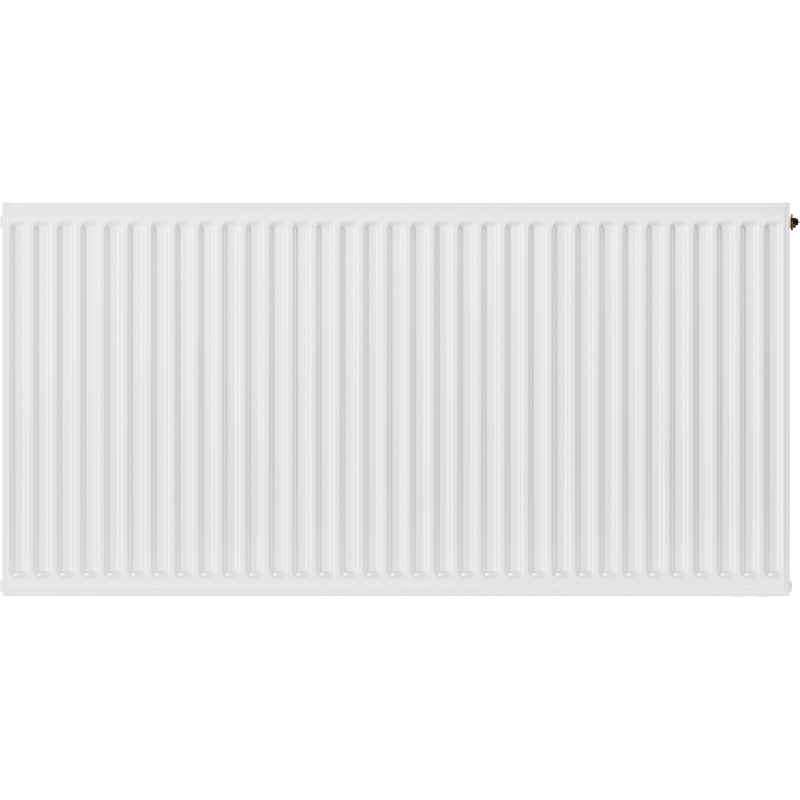

Mexen CC11 Panel Radiator 900 x 2600 mm, Middle Bottom Connection, 3311 W, White - W6C11-090-260-00
Technical data:

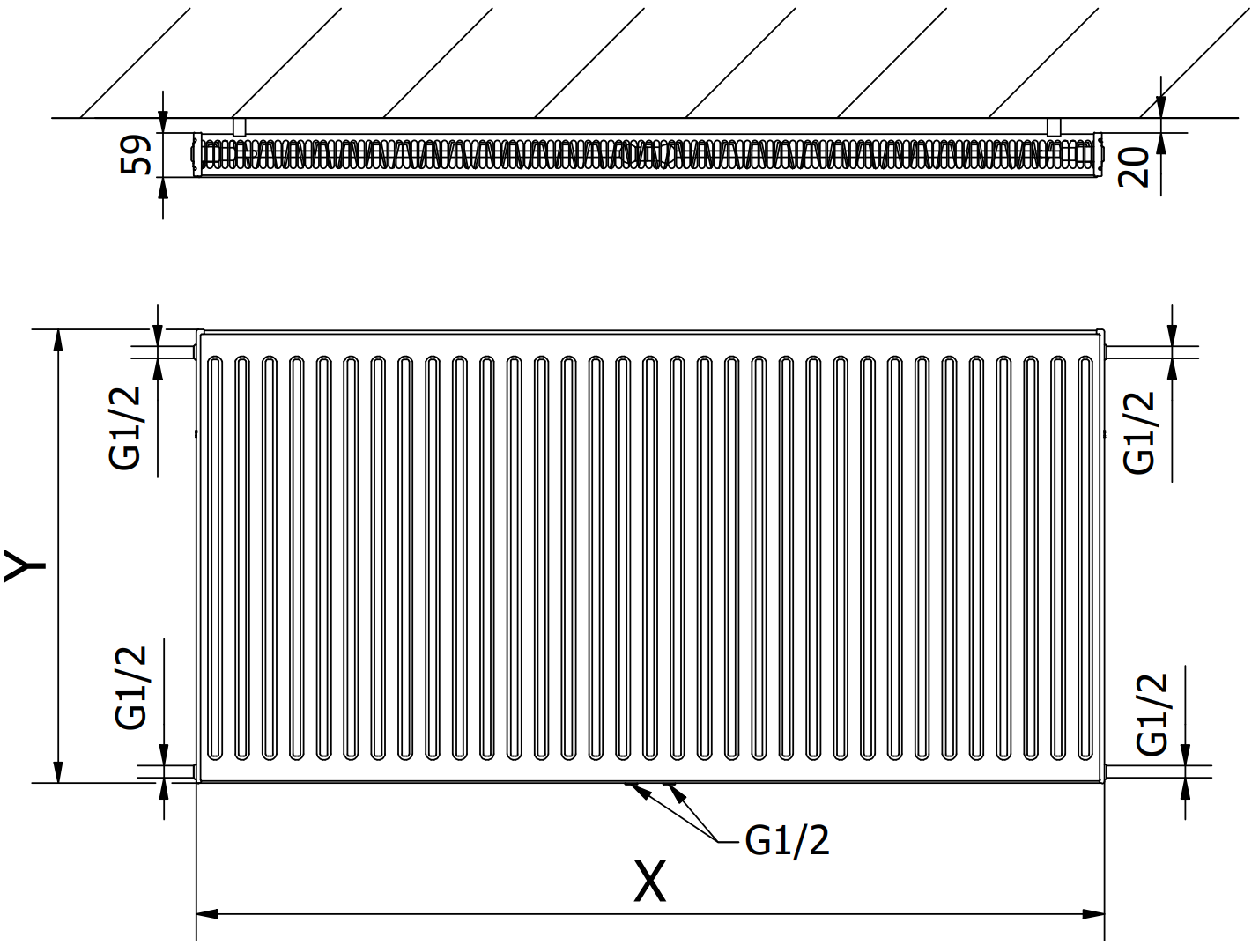

Height (Y): 900 mm
Width (X): 2600 mm
Depth: 59 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1728 W
- 75/65/20 °C 3311 W
- 90/70/20 °C 4176 W
Connections:
- 2xG ½″ middle bottom
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features a side cover and a removable top cover
Includes: brackets, installation set, sealing plugs, air vent and valve insert

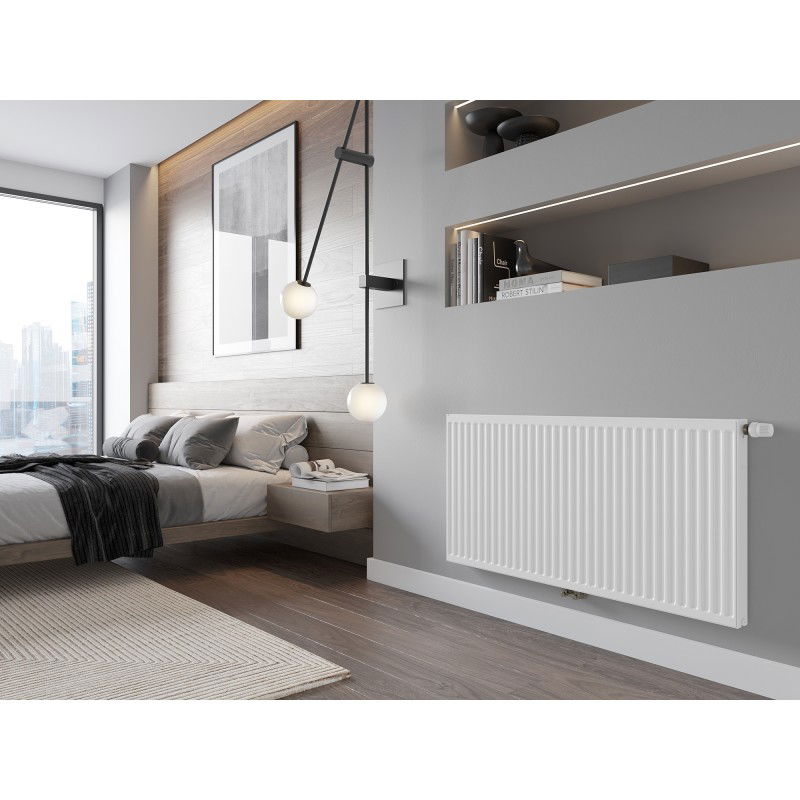

Photos show the radiator in the size of 600 x 1200 mm.
