Mexen Flat CCF21 panel radiator 500 x 1400 mm, bottom middle connection, 1412 W, white - W6C21F-050-140-00

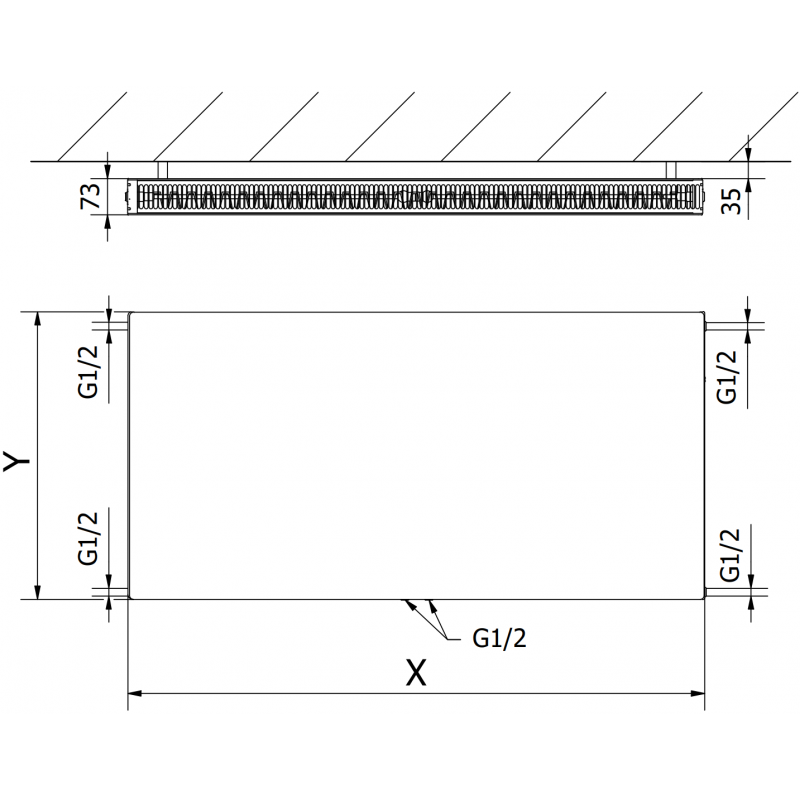

Technical data:
Height (Y): 500 mm
Width (X): 1400 mm
Depth: 73 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Working temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 750 W
- 75/65/20 °C 1412 W
- 90/70/20 °C 1769 W
Connections:
- 2xG ½″ bottom middle
- 4xG ½″ side
High-quality, durable coating - DIN 99500
Features side covers and removable top cover
Includes: brackets, installation kit, blanking caps, air vent, and valve insert

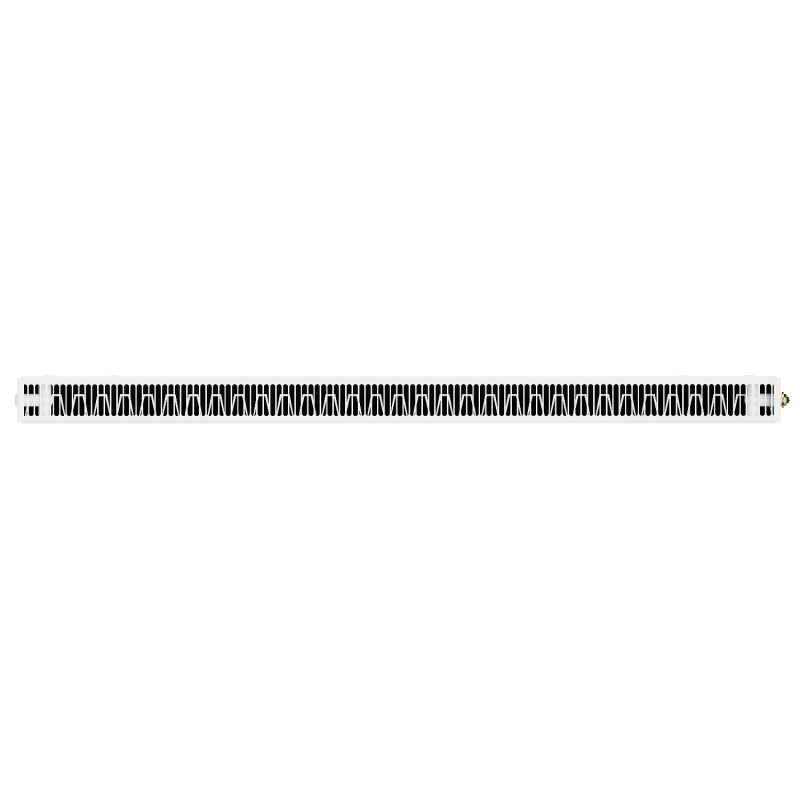

Photos show the radiator in the size 600 x 1200 mm.
