Mexen Flat CCF22 Panel Radiator 900 x 1100 mm, Central Bottom Connection, 2419 W, White - W6C22F-090-110-00
Technical Data:
Height (Y): 900 mm
Width (X): 1100 mm
Depth: 103 mm
Connection spacing: 5 cm
Spacing of vertical water channels: 33.3 mm
Colour: White RAL 9016
Material: Steel
Working temperature: max 110 °C
Maximum operating pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1249 W
- 75/65/20 °C 2419 W
- 90/70/20 °C 3063 W
Connections:
- 2xG ½″ bottom central
- 4xG ½″ side
High-quality, durable paint finish - DIN 99500
Features a side cover and removable top cover
Includes: brackets, installation set, blanking plugs, air vent, and valve insert

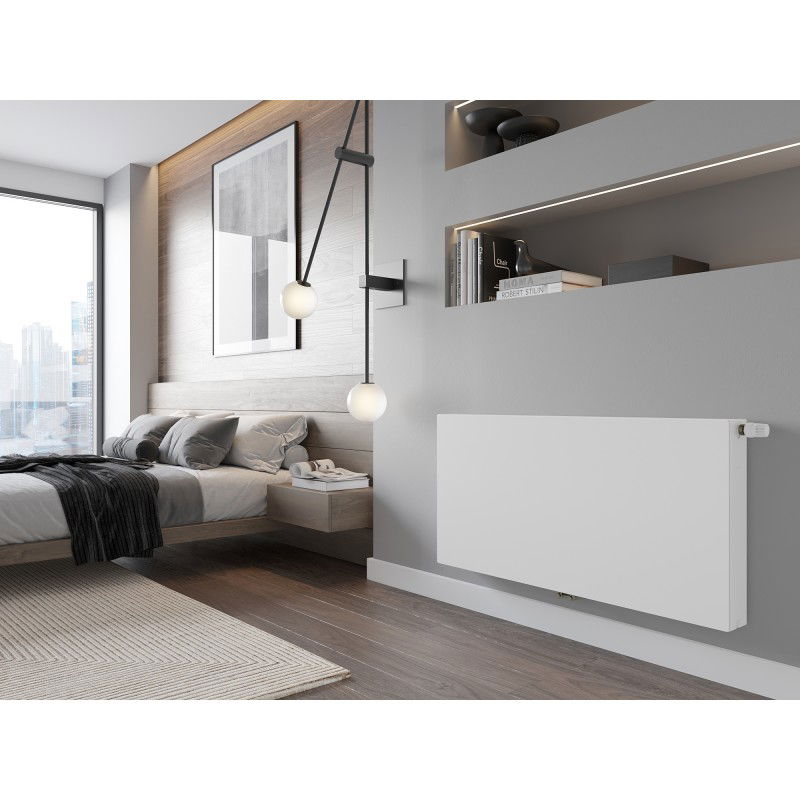

Images show the radiator in size 600 x 1200 mm.
