Mexen G00 angled thermostatic set, Duplex, DN50, gold - W907-900-50
Mexen G00 angled thermostatic set, Duplex, DN50, gold - W907-900-50 Mexen G00 angled thermostatic set, Duplex, DN50, gold - W907-900-50 Mexen G00 angled thermostatic set, Duplex, DN50, gold - W907-900-50
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G00
Ean:
5905315236791
Index:
W907-900-50
Type:
Angle
Series:
G00
Color:
Gold
Inlet Diameter:
G 1/2"
Color - Gold - ()

Mexen G00 angled thermostatic set, Duplex, DN50, gold - W907-900-50

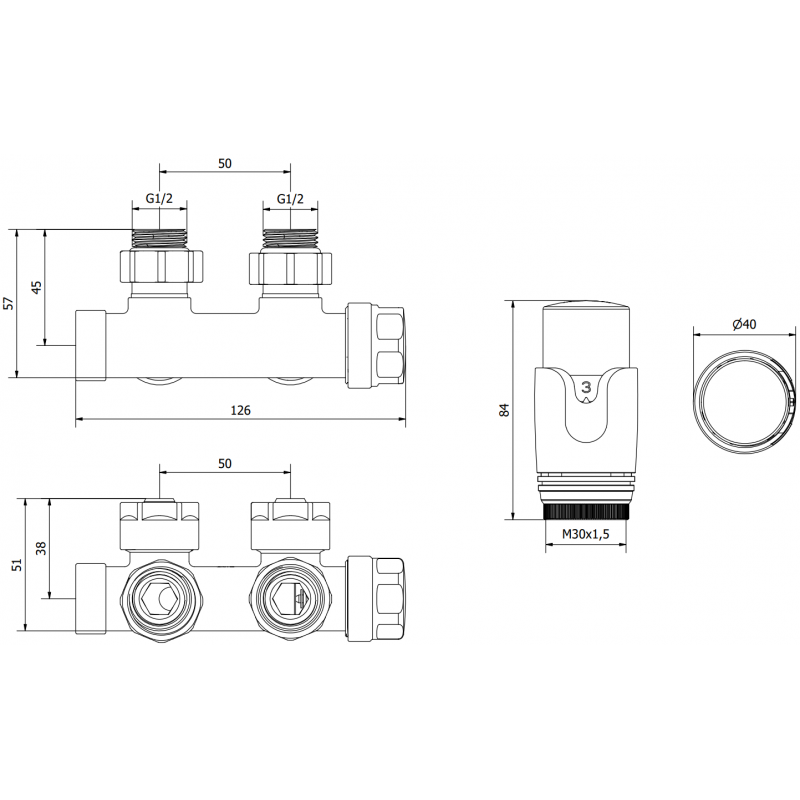

The Mexen G00 angled thermostatic set, Duplex, DN50, gold, offers excellent technical parameters. Made of brass and available in an elegant gold colour, the valve has a connection diameter of G 1/2", maximum operating pressure of 10 bar, and operating temperature up to 120°C. With a bottom connection spacing of 50 mm and a head thread M30 x 1.5 mm, the set ensures easy installation. Temperature regulation system from 0 to 29°C and frost protection at 5°C are additional advantages.

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and cut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head on the left or right side of the valve

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G00
Type
Angle
Color
Gold
Inlet Diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
