Mexen G00 angled thermostatic set with R cover, gold - W901-900-904-50

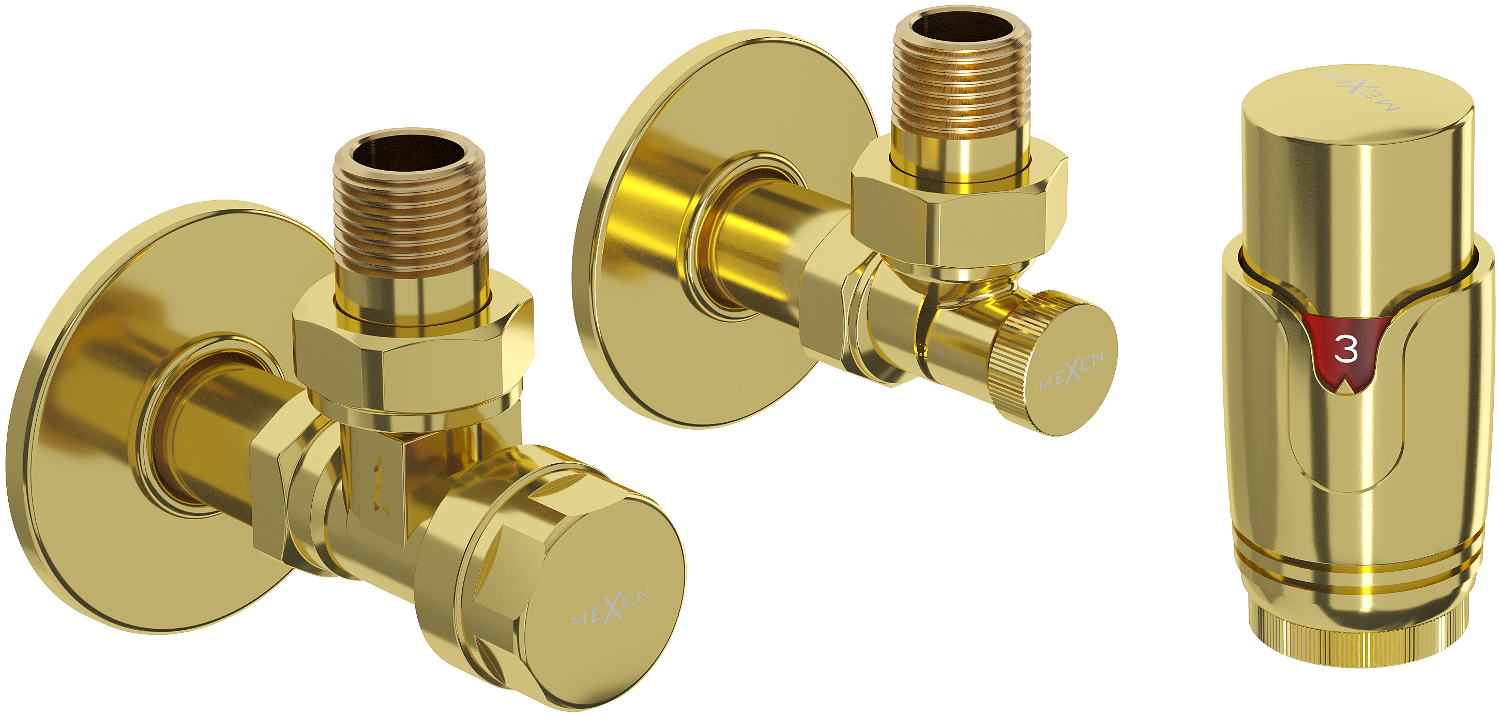

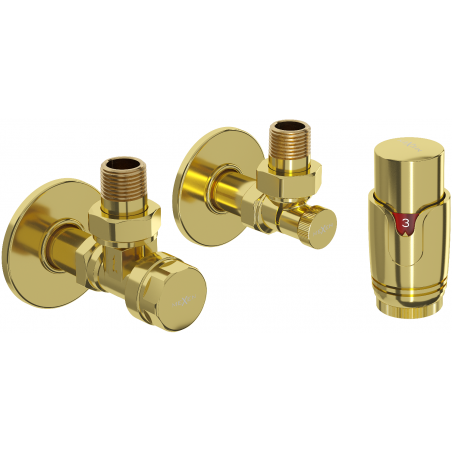

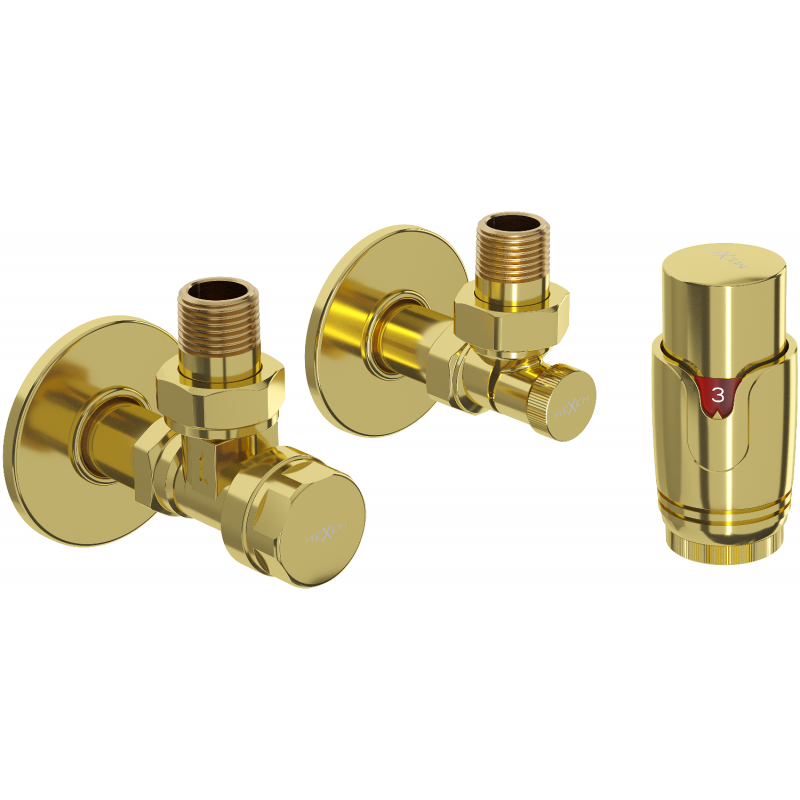

Mexen G00 angled thermostatic set with R cover, gold is the perfect solution for those who value elegance and functionality. Made of brass, it ensures durability and strength. The gold-coloured valves and head add a luxurious look. It operates at temperatures up to 120°C and a maximum pressure of 10 bars. Thanks to frost protection and precise temperature adjustment of 0-29°C, it guarantees comfort of use. The cover with stainless steel rosettes completes the whole, ensuring a neat appearance.

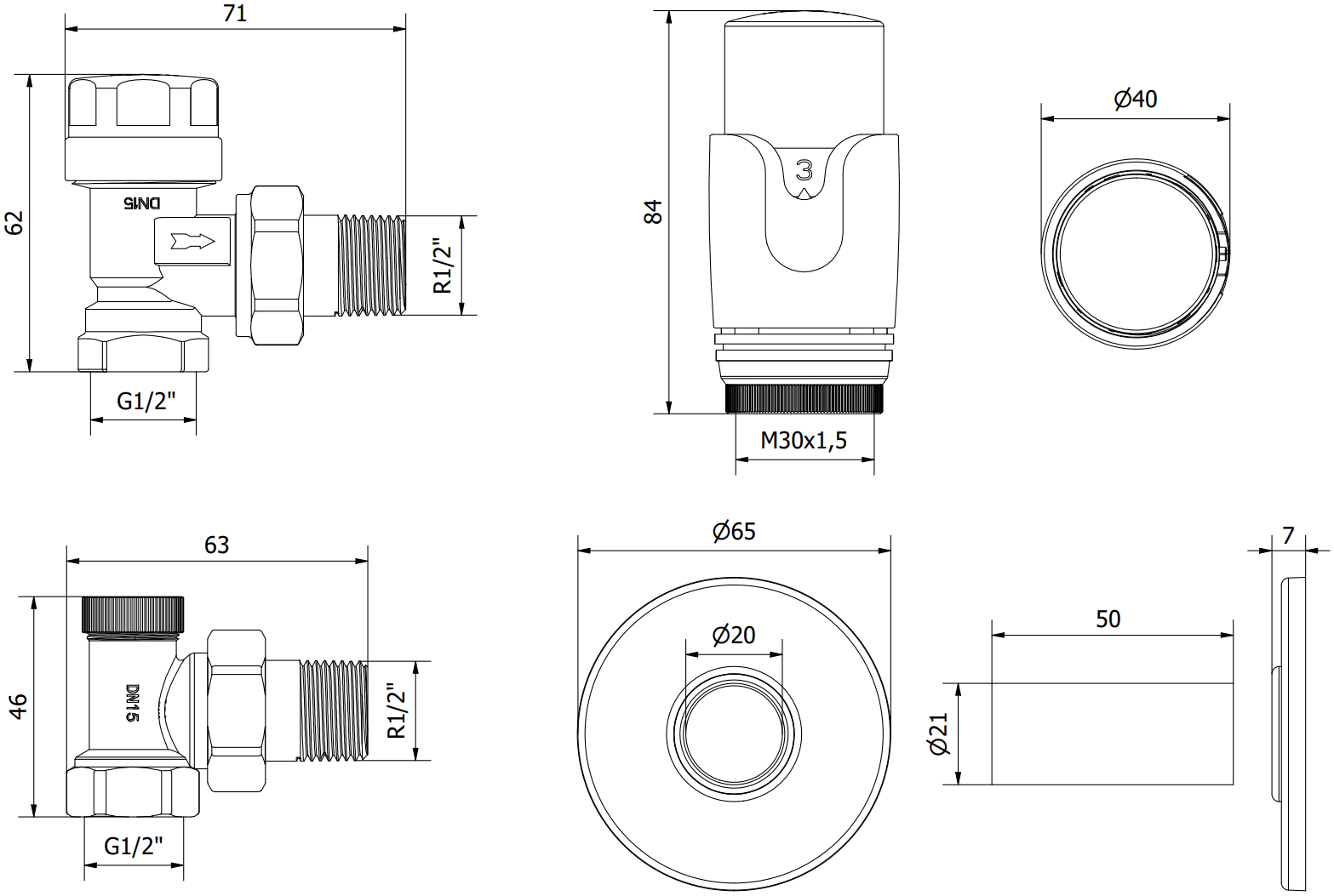

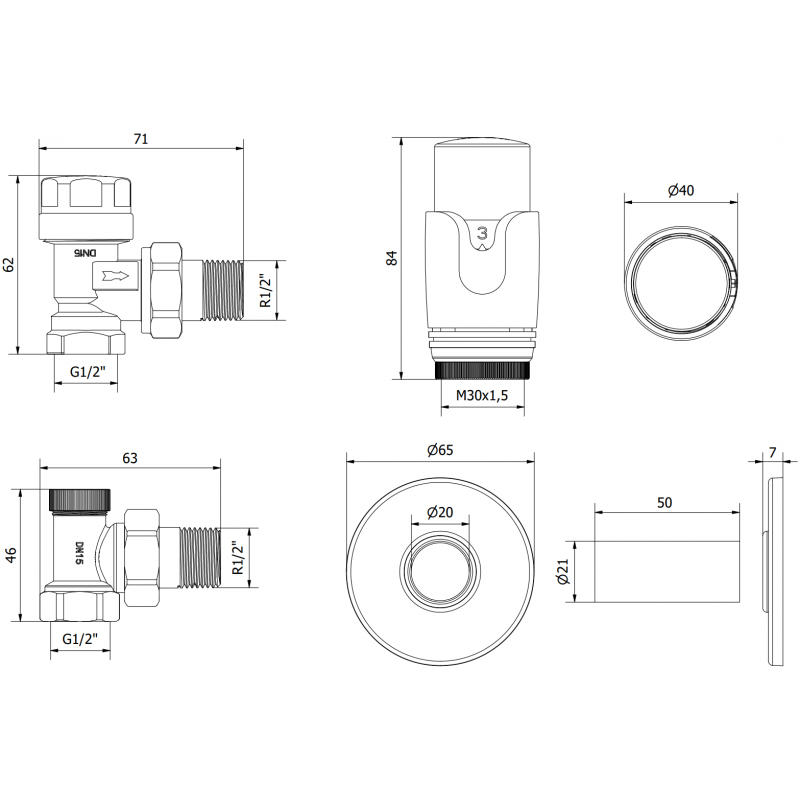

Technical data:

Valve material: Brass

Valve colour: Gold

Connection diameter of valves: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Gold

Rosette material: Stainless steel

Rosette outer diameter: 65 mm

Rosette height: 7 mm

Inner diameter of hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

The cover consists of two single rosettes and a sleeve

Includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Angular
Colour
Gold
Connection diameter
G 1/2"
Cover
Yes
