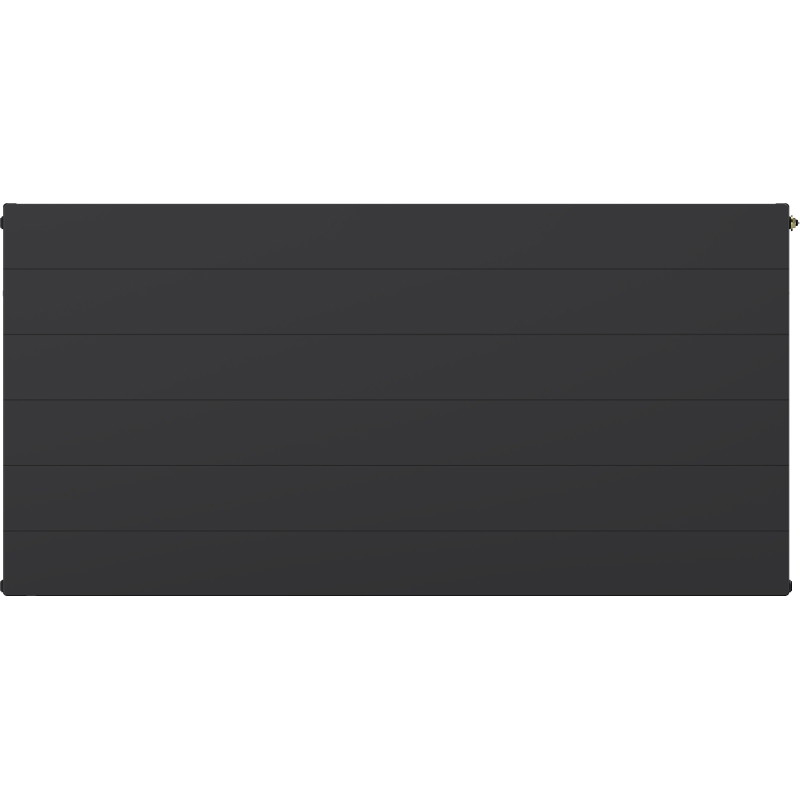

Mexen CCL33 Flat Panel Radiator Line 400 x 1300 mm, Central Bottom Connection, 2056 W, Anthracite - W6C33L-040-130-66
Mexen Line CCL33 is an exceptional flat panel radiator with dimensions of 400 x 1300 mm, ideal for modern interiors thanks to its elegant anthracite RAL 7016 color. Made of steel, it guarantees durability and efficient heating with up to 2056 W power at 75/65/20 °C. Central bottom connection ensures easy installation, while side covers and a removable top cover enhance aesthetics and functionality. Adapted for working pressure up to 10 bar, with a high-quality paint coating compliant with DIN 99500, Mexen Line CCL33 offers reliable use and modern style.

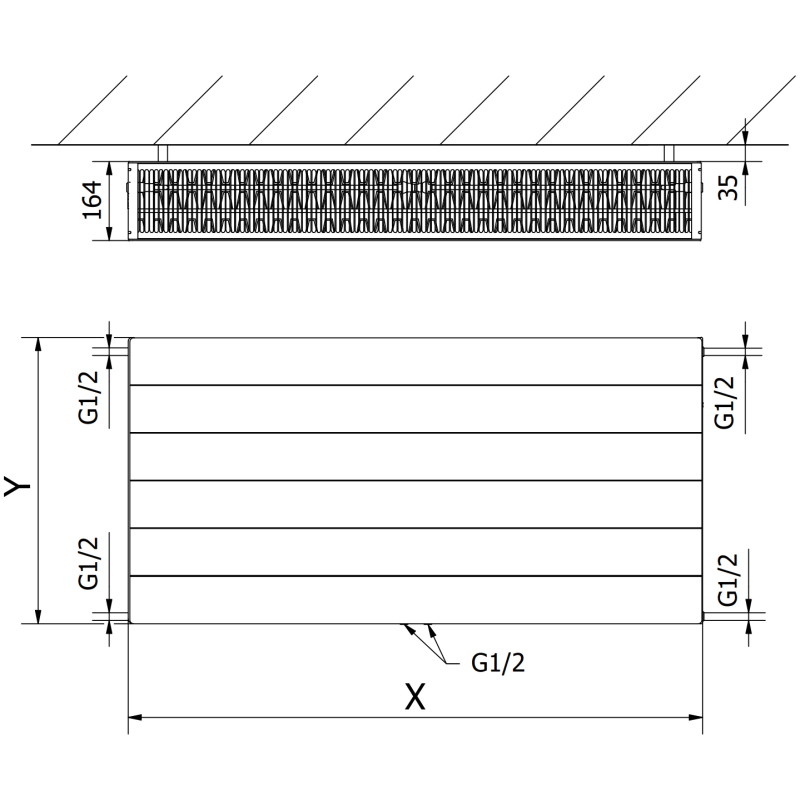

Technical data:
Height (Y): 400 mm
Width (X): 1300 mm
Depth: 164 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Color: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1075 W
- 75/65/20 °C 2056 W
- 90/70/20 °C 2591 W
Connections:
- 2xG ½″ central bottom
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Features side covers and a removable top cover
Includes: hangers, installation kit, blanking plugs, air vent, and valve insert

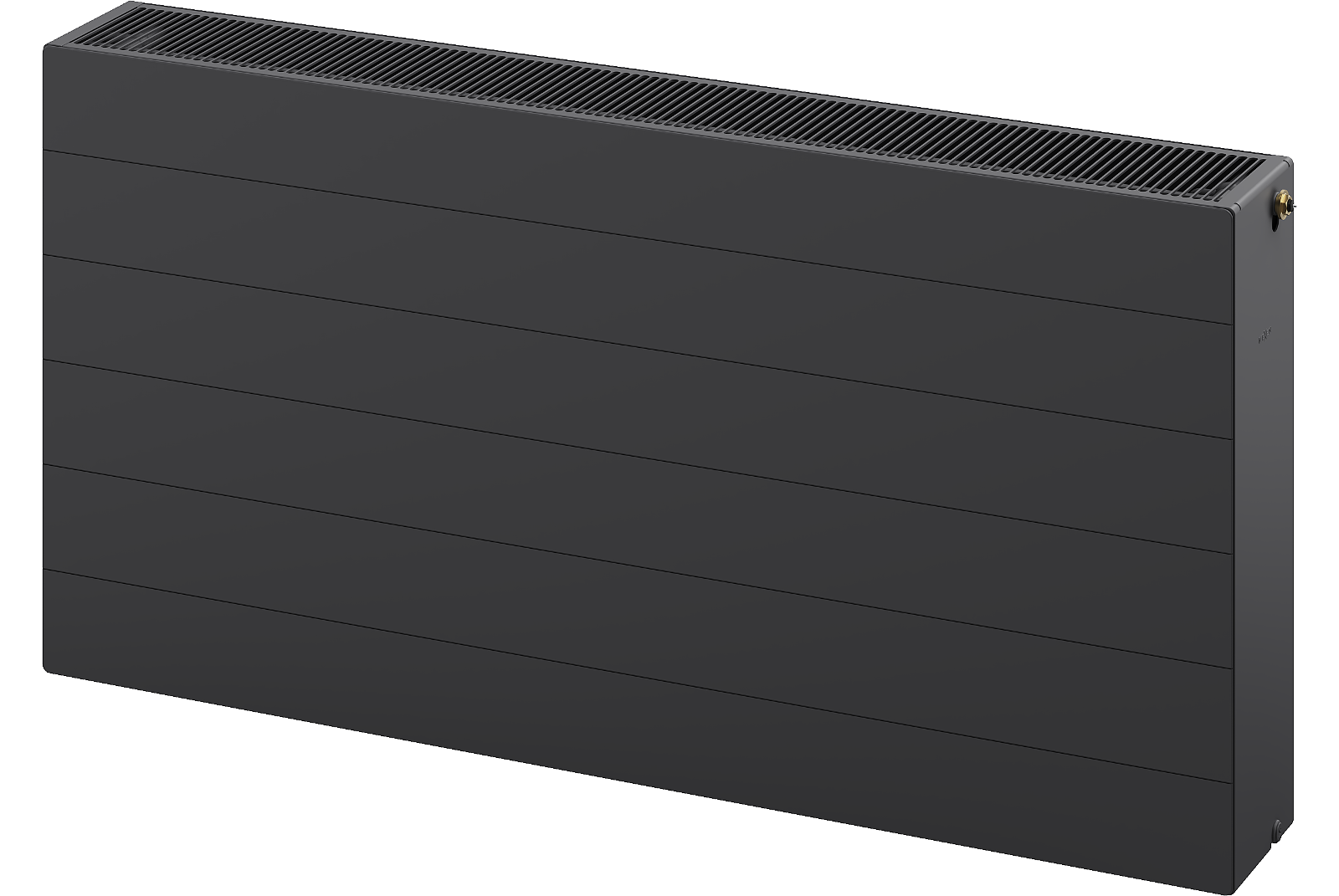

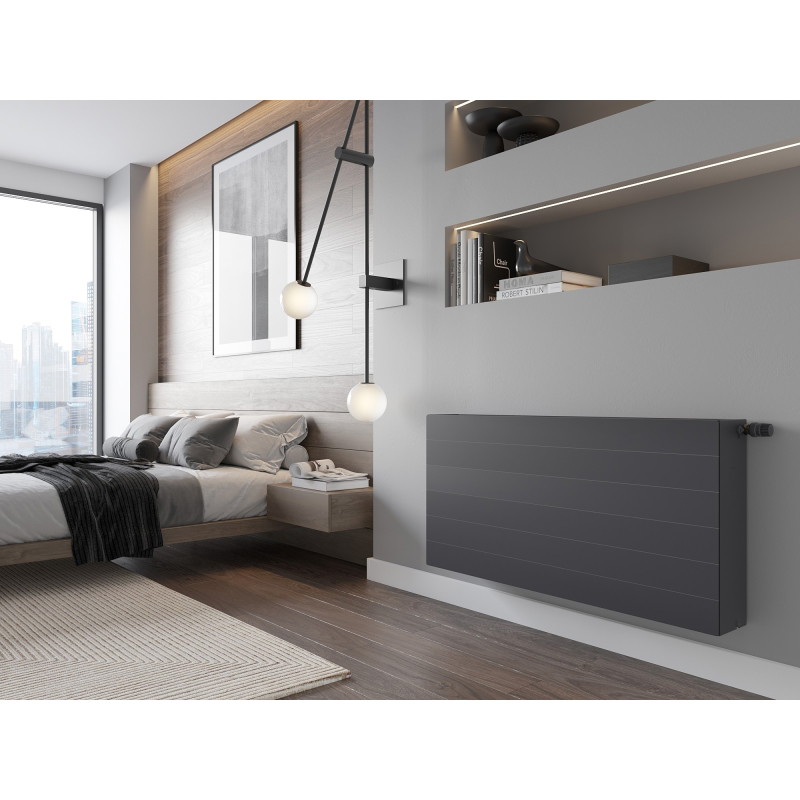

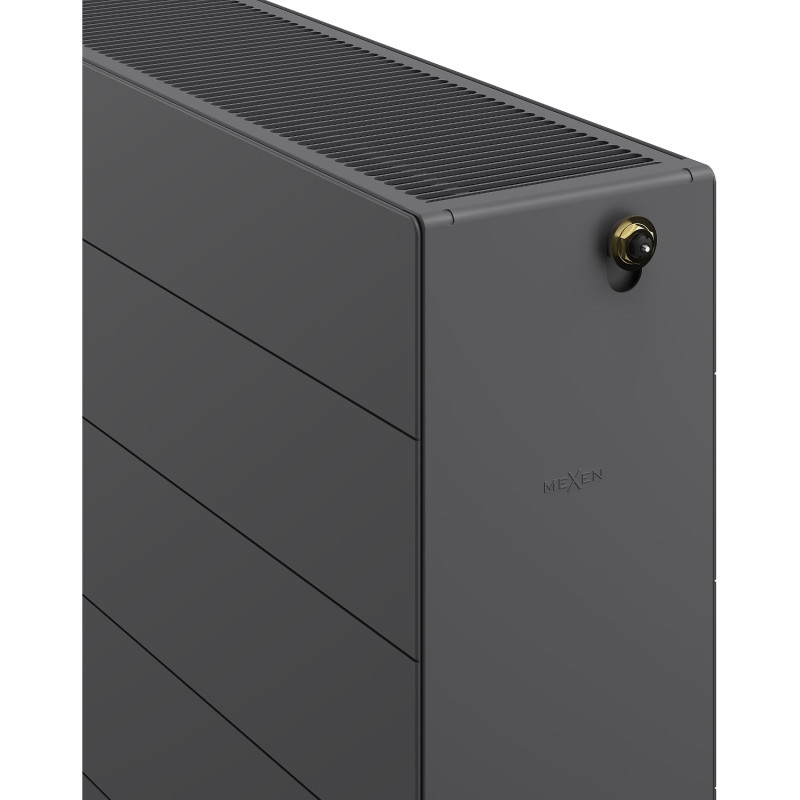

Photos show the radiator in size 600 x 1200 mm.
