Mexen Line CCL22 panel radiator 500 x 1000 mm, bottom centre connection, 1364 W, black - W6C22L-050-100-70

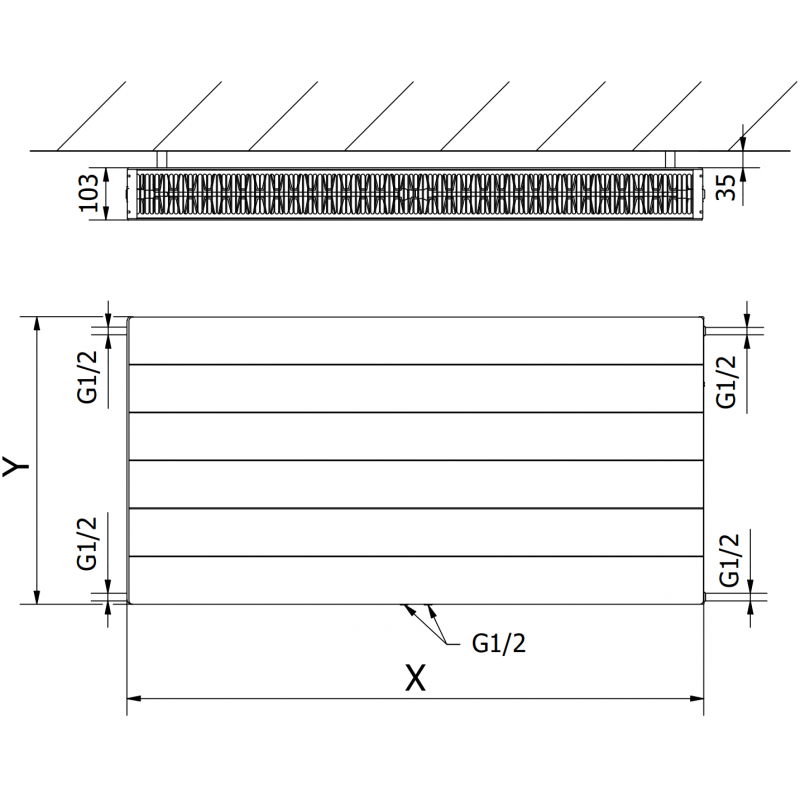

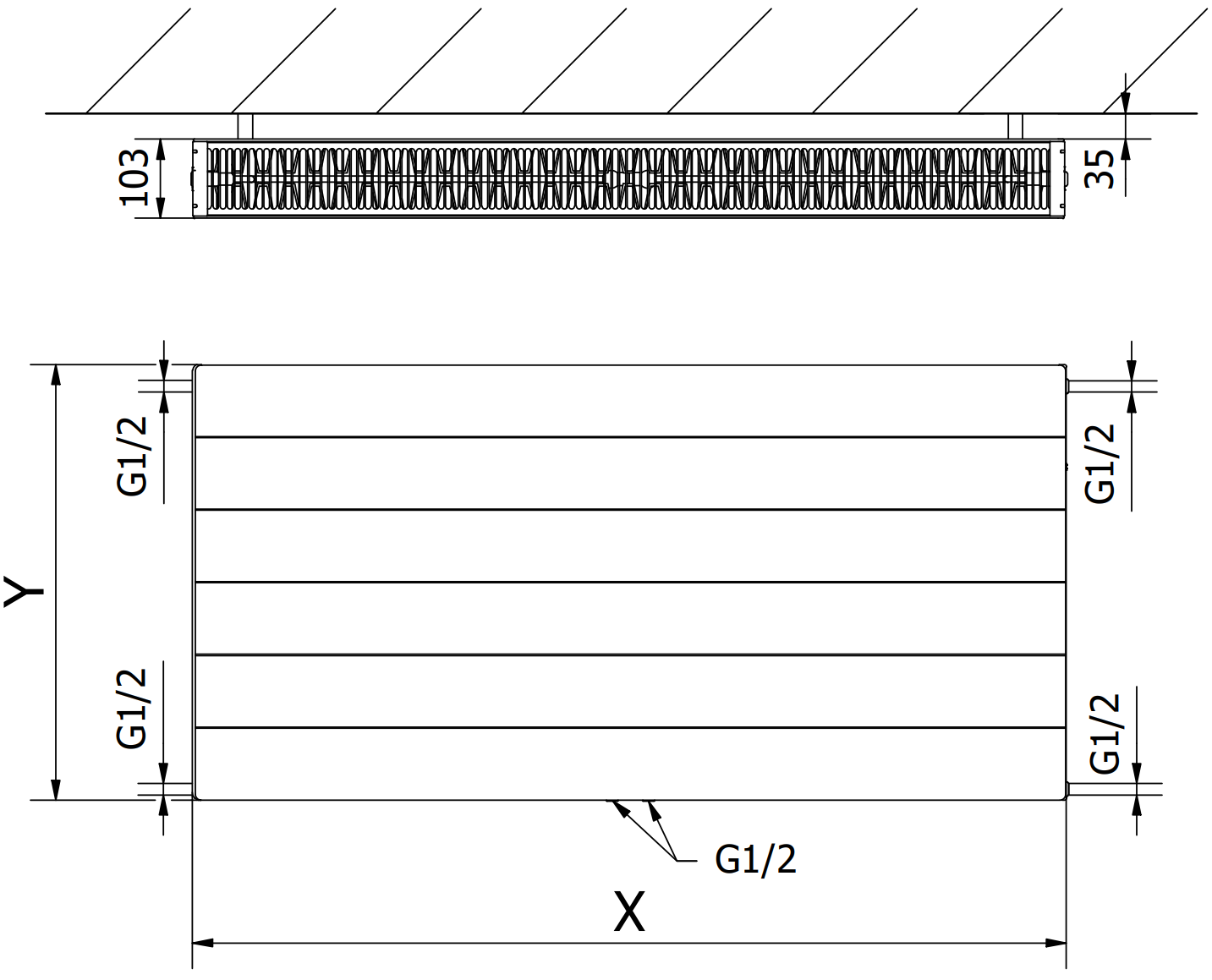

Technical data:
Height (Y): 500 mm
Width (X): 1000 mm
Depth: 103 mm
Connection spacing: 5 cm
Spacing of vertical water channels: 33.3 mm
Colour: Black RAL 9005
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 714 W
- 75/65/20 °C 1364 W
- 90/70/20 °C 1719 W
Connections:
- 2xG ½″ bottom centre
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Includes a side cover and a removable top cover
Includes: brackets, installation kit, sealing plugs, air vent and valve insert

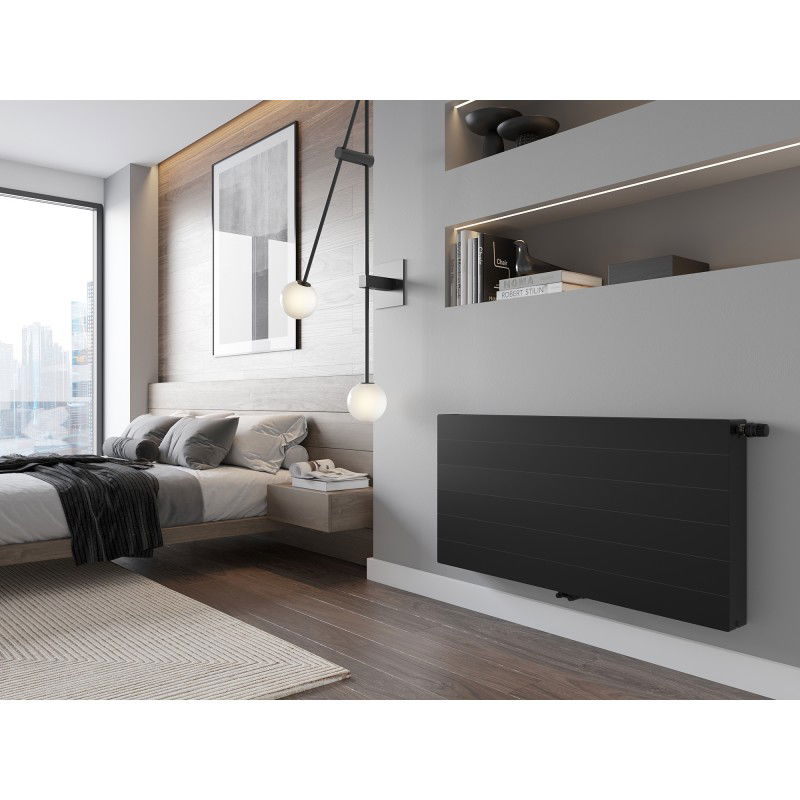

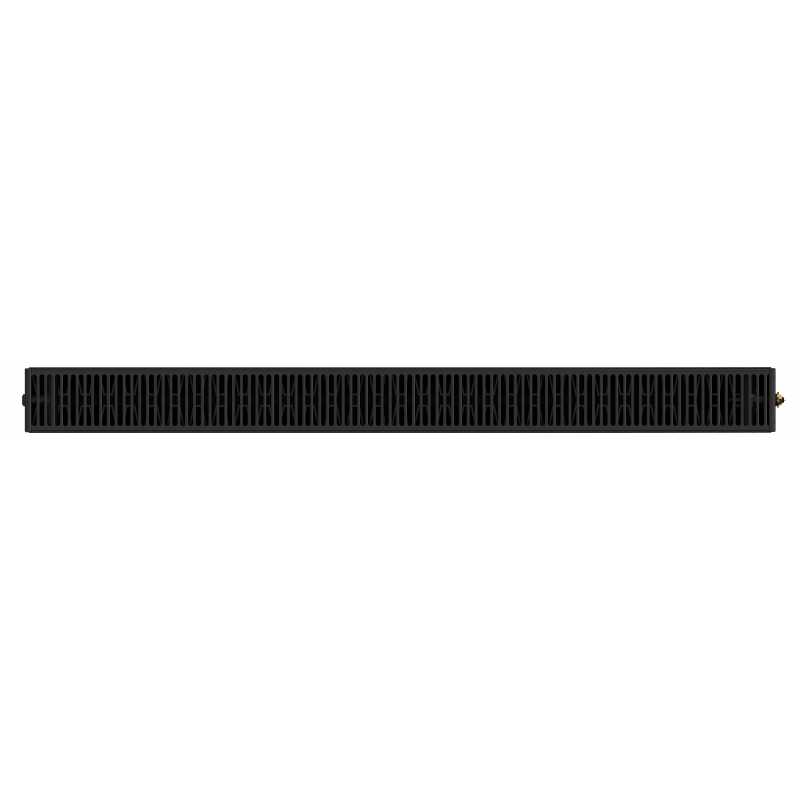

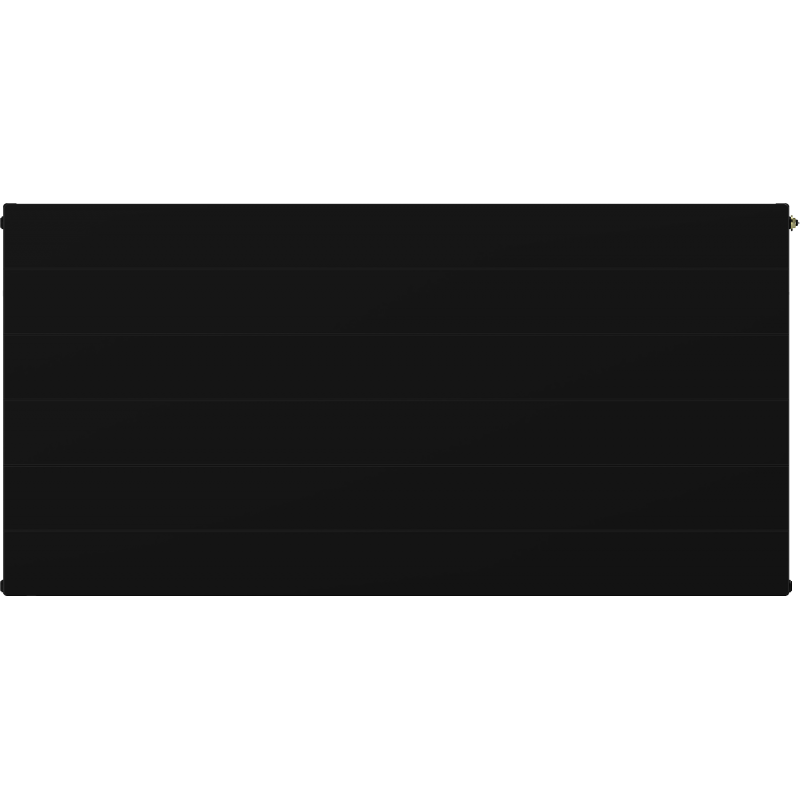

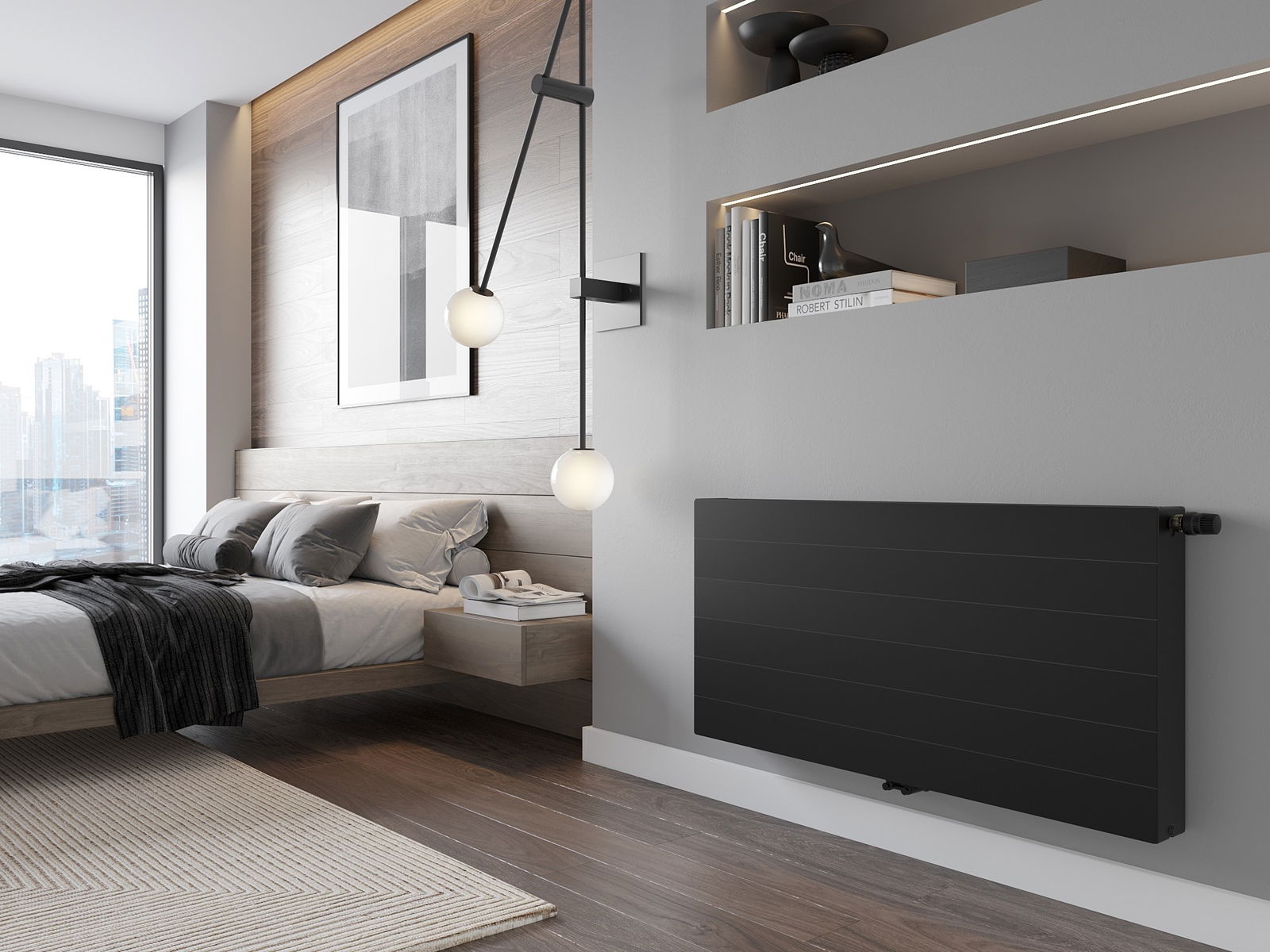

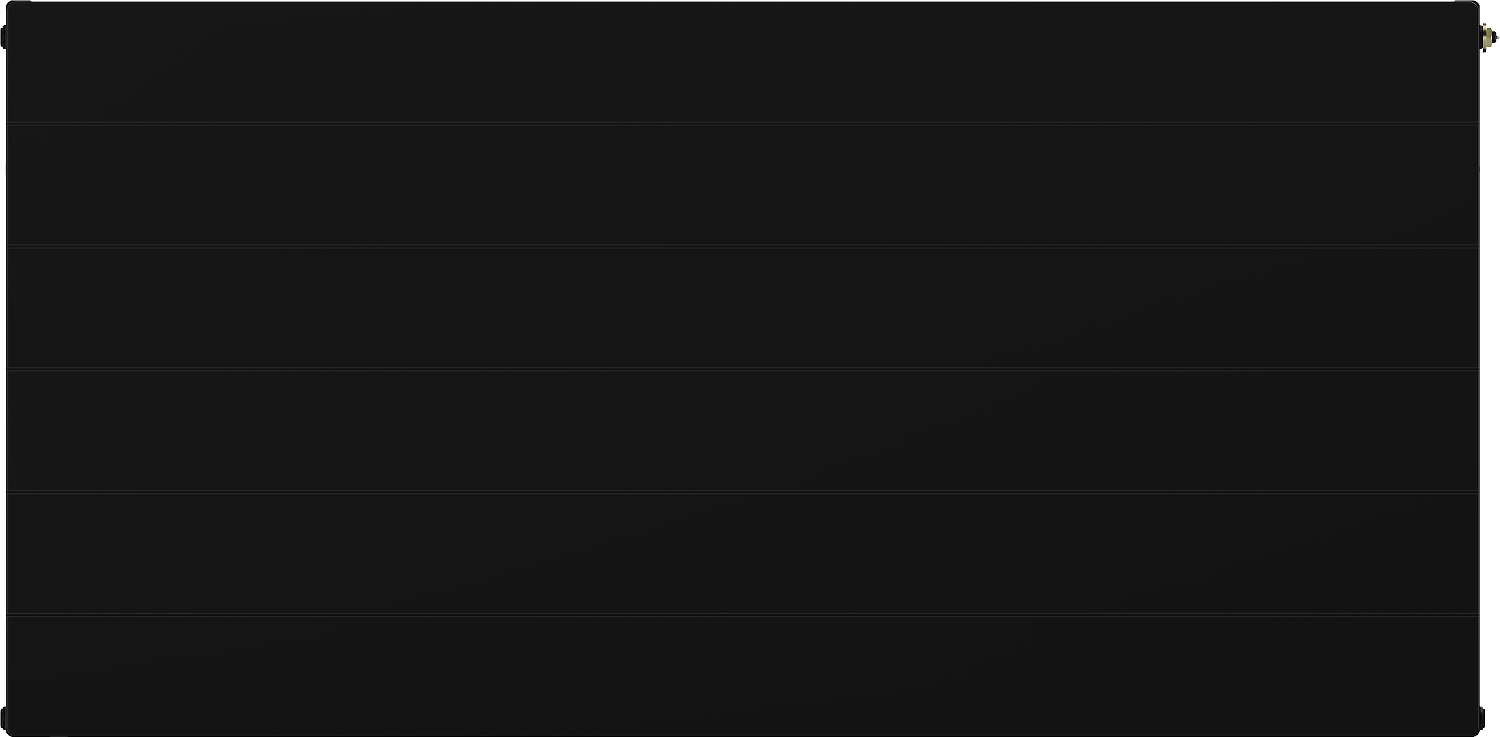

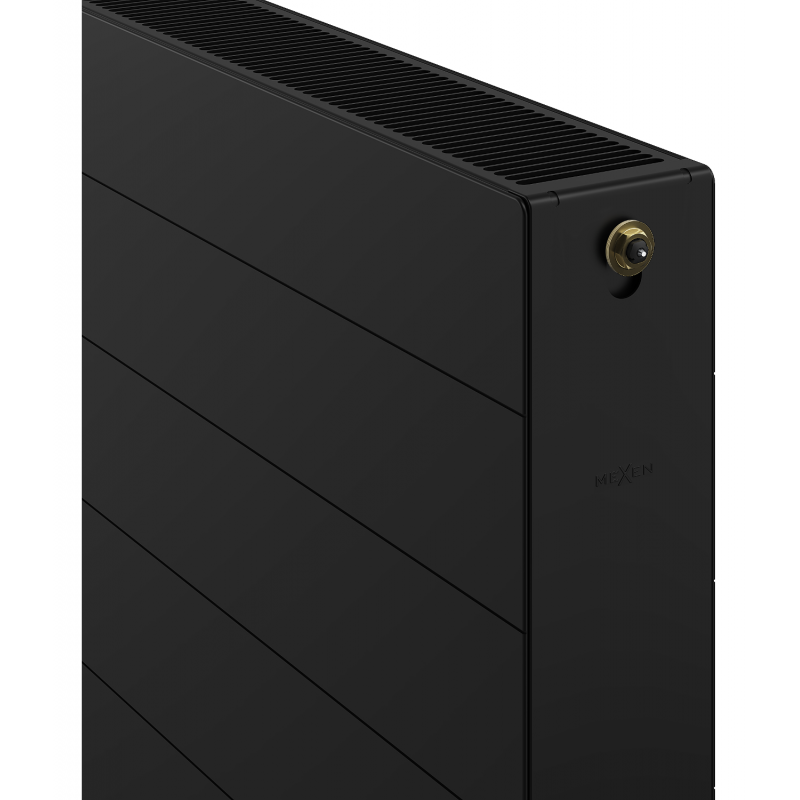

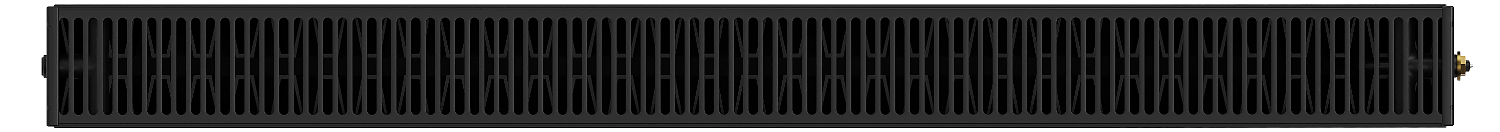

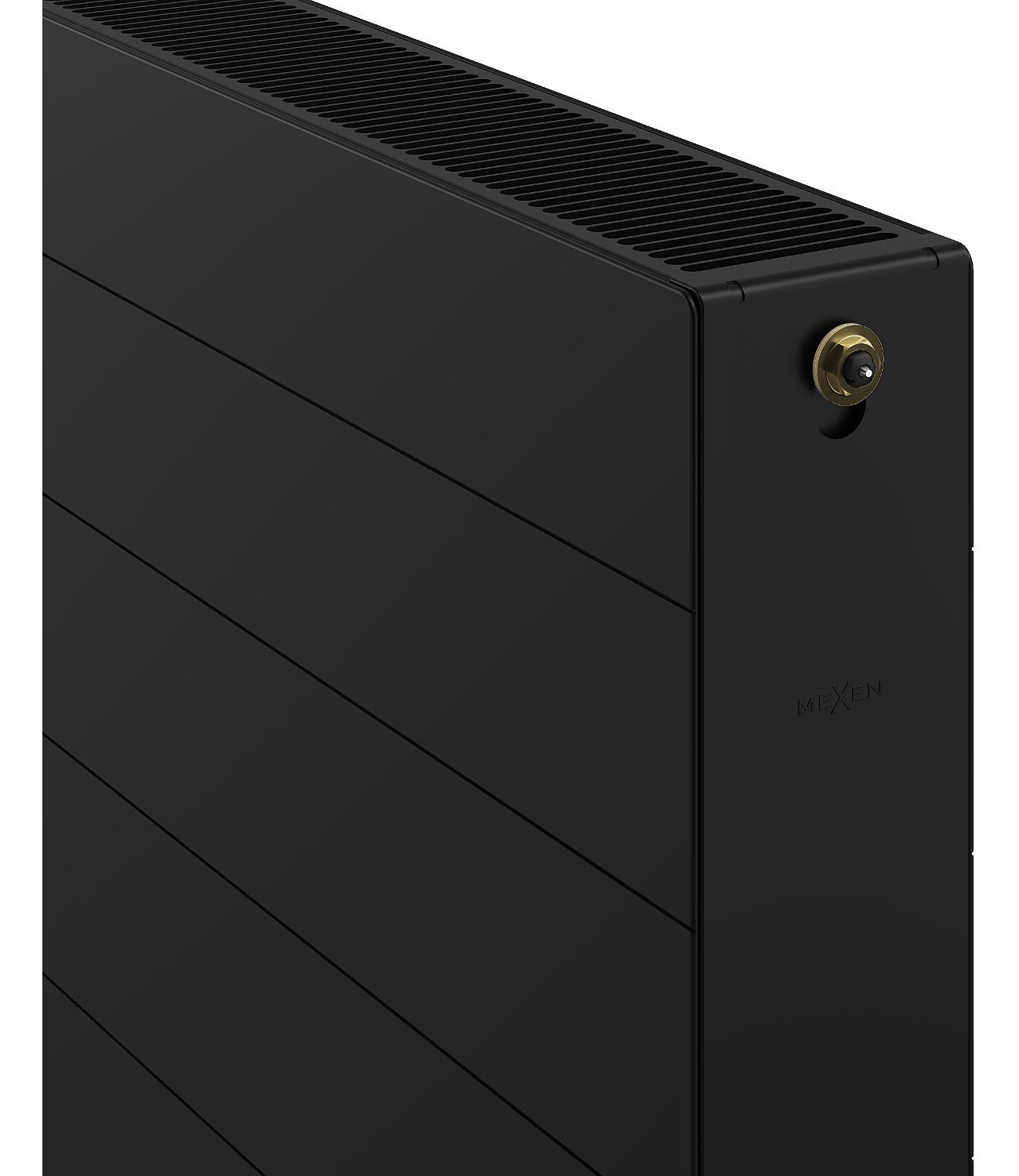

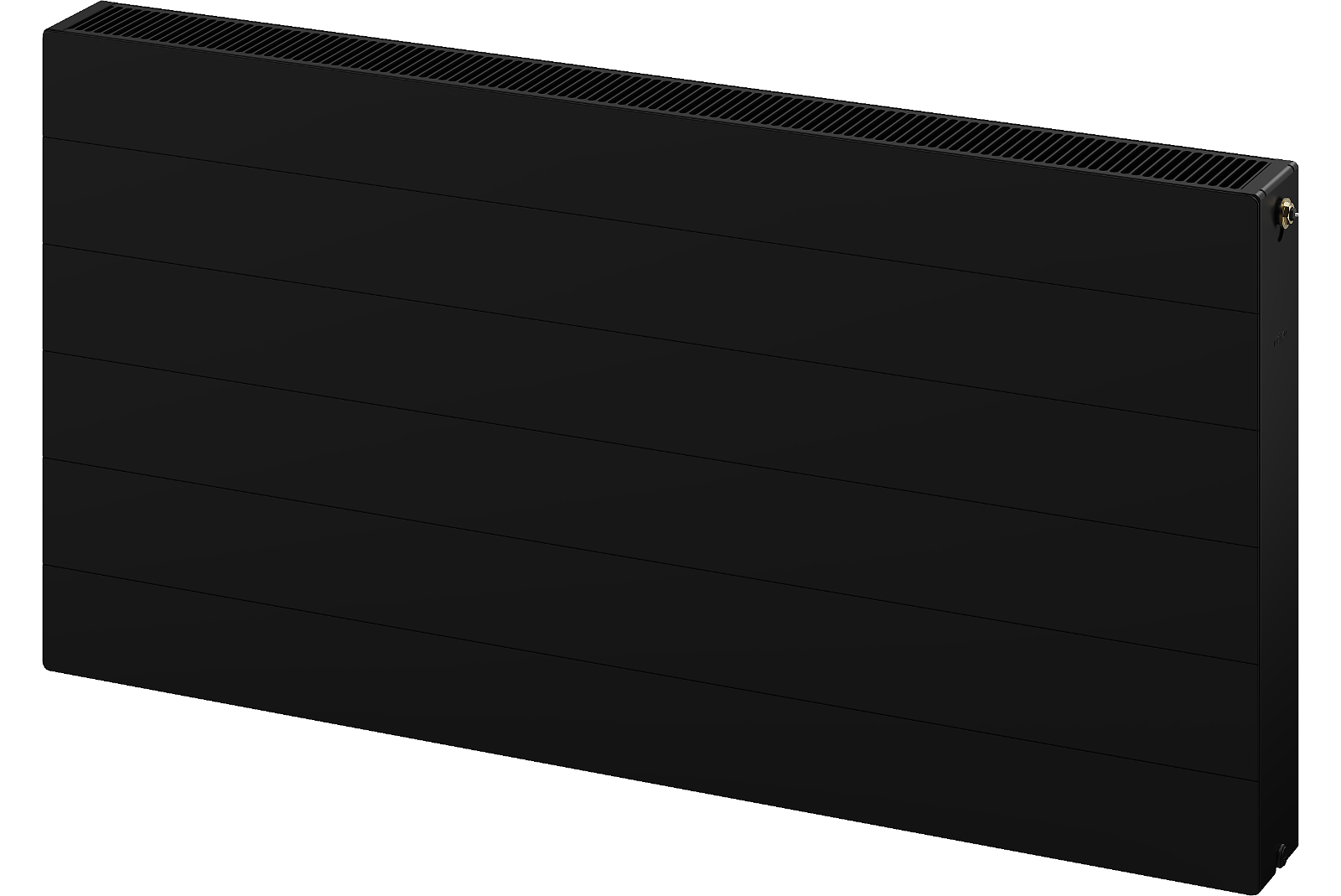

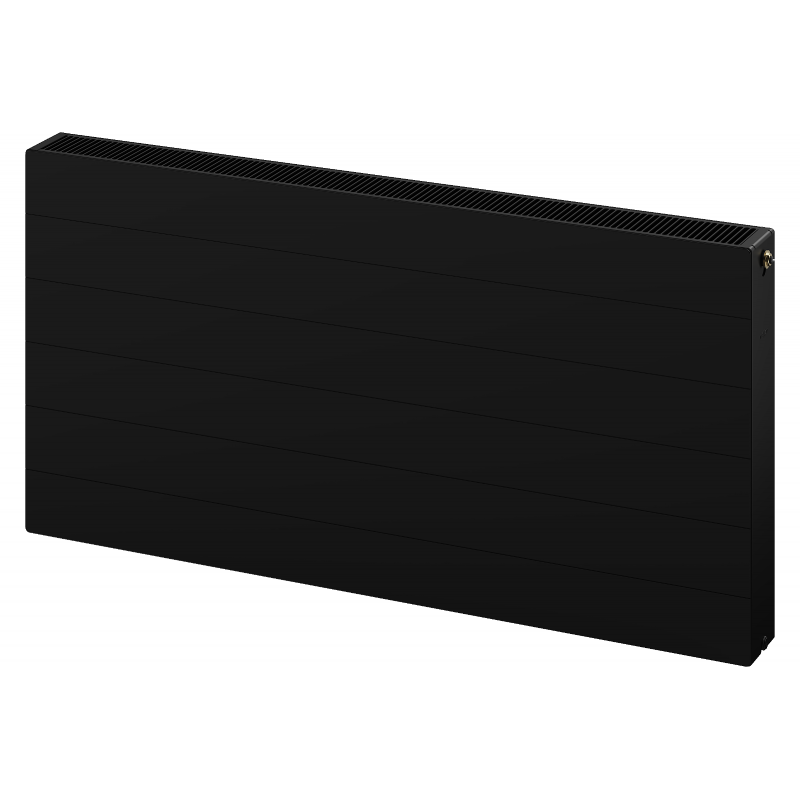

Photos represent the radiator in size 600 x 1200 mm.
