Mexen CH10 Hygiene Panel Radiator 500 x 1300 mm, Side Connection, 689 W, White - W410H-050-130-00
Technical Specifications:
Height (Y): 500 mm
Width (X): 1300 mm
Depth: 59 mm
Connection Gap: 45 cm
Vertical Water Channel Gap: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating Temperature: max 110 °C
Maximum Operating Pressure: 10 bar
Maximum Test Pressure: 13 bar
Heating Power:
- 55/45/20 °C 359 W
- 75/65/20 °C 689 W
- 90/70/20 °C 869 W
Connections:
- 4xG ½″ side
High-quality, durable paint coating - DIN 99500
Designed for rooms with enhanced hygienic standards
Included: brackets, installation kit, sealing plugs, and air vent

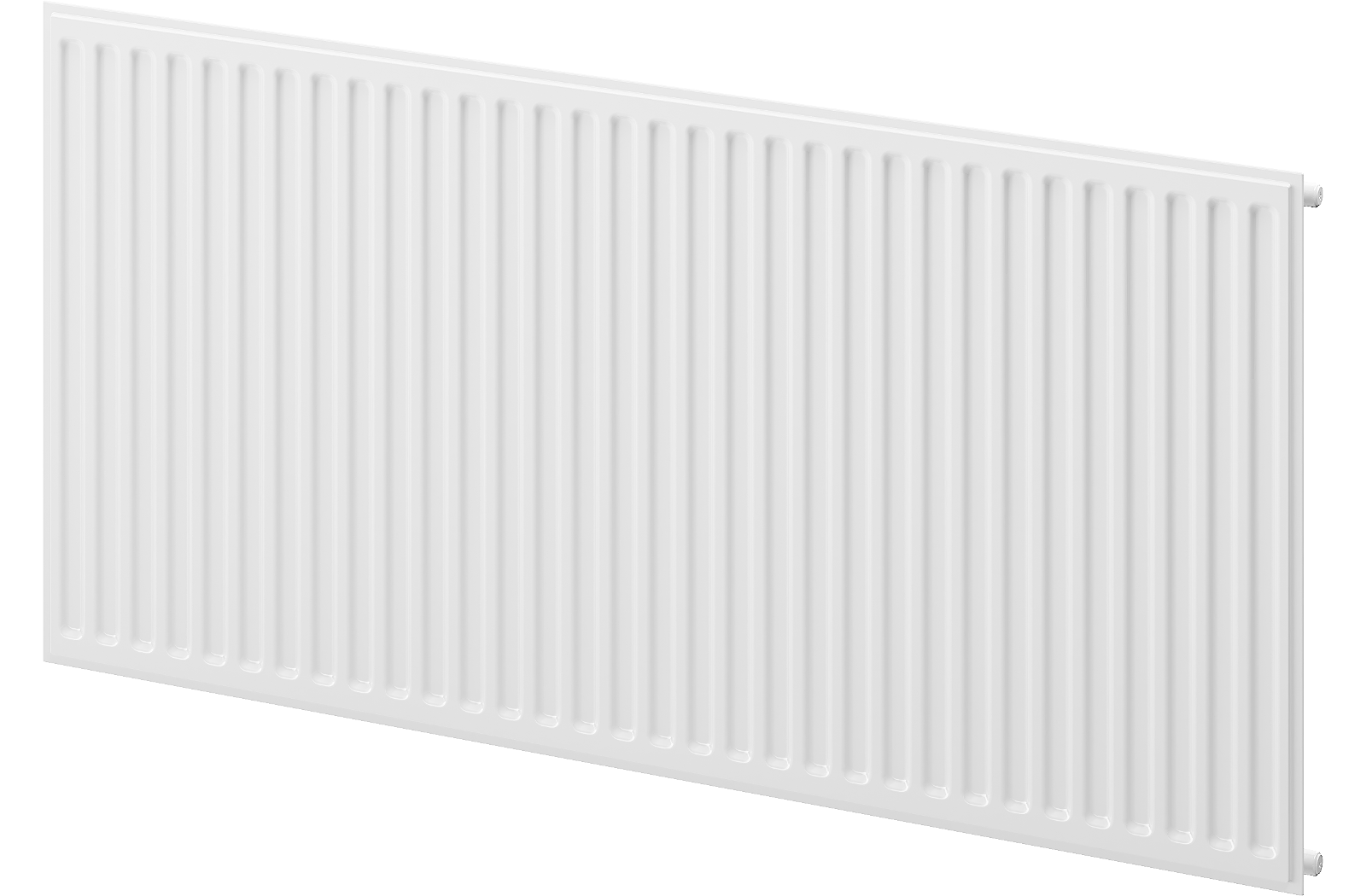

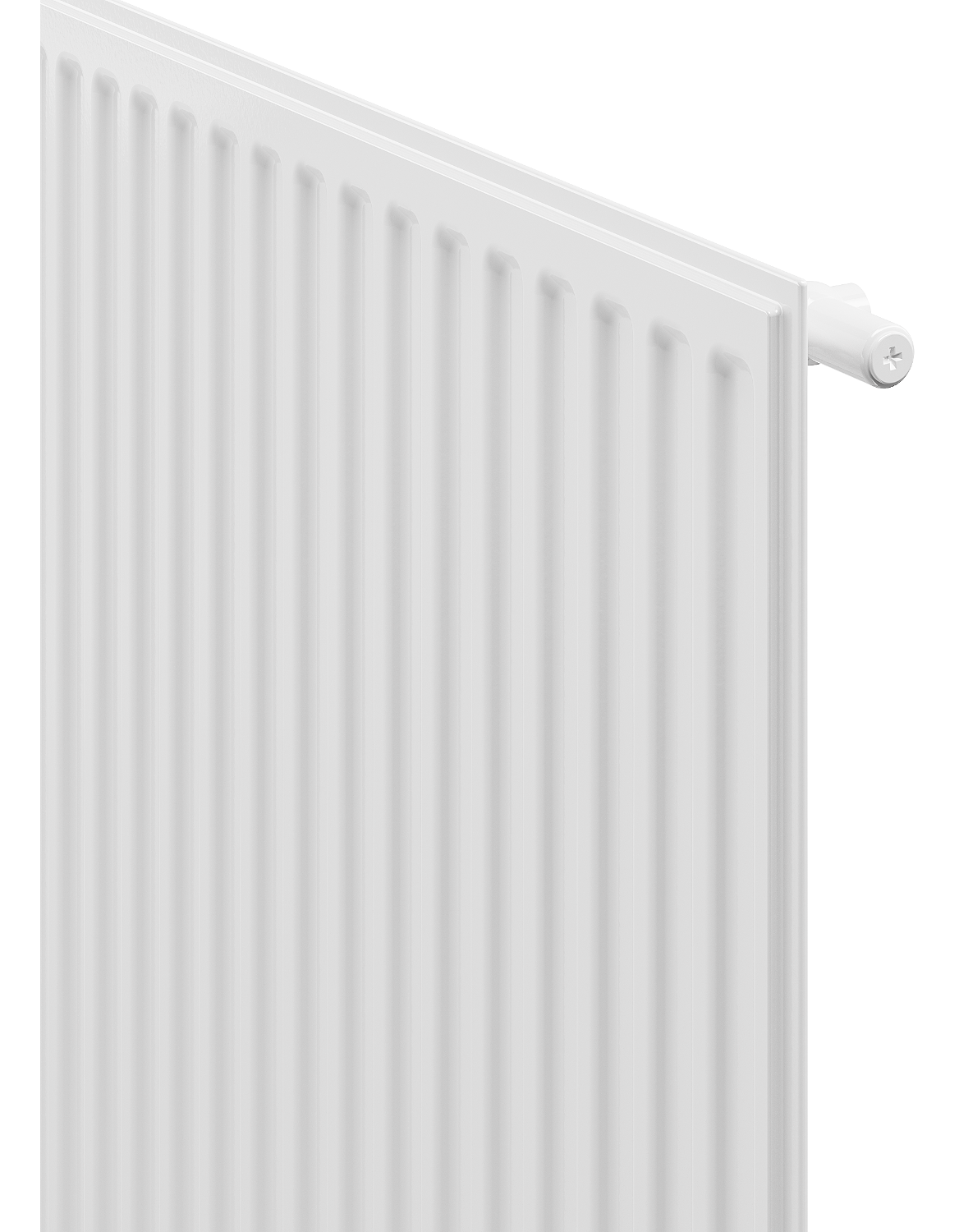

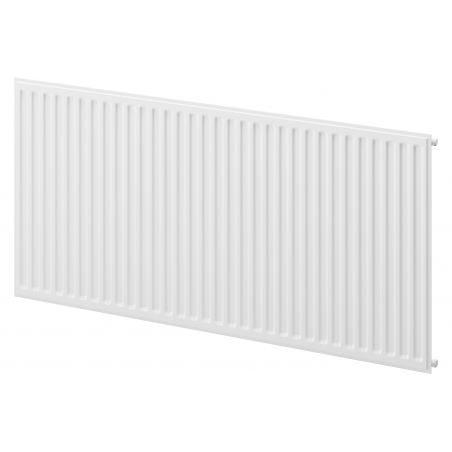

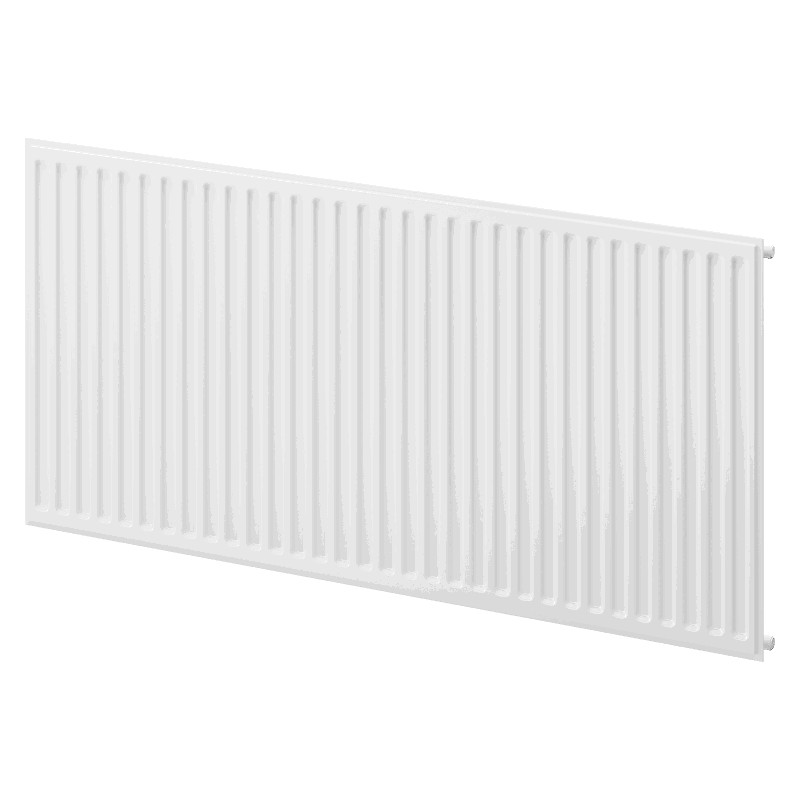

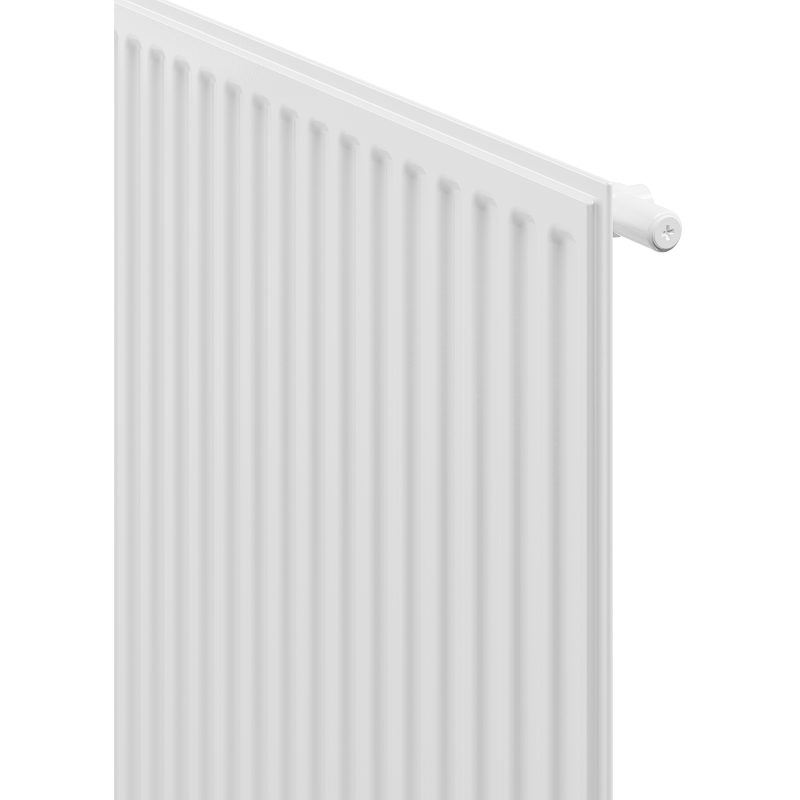

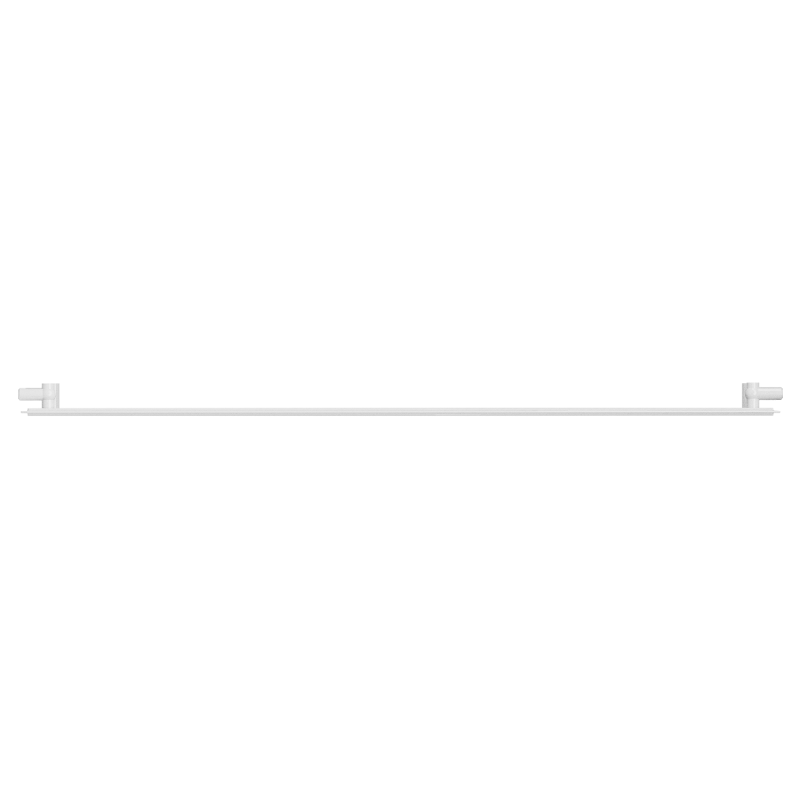

Images show the radiator in size 600 x 1200 mm.
