Mexen CVHF20 Hygiene Flat Panel Radiator 400 x 1100 mm, Bottom Connection, 791 W, White - W620HF-040-110-00
Technical Specifications:
Height (Y): 400 mm
Width (X): 1100 mm
Depth: 103 mm
Connection Spacing: 5 cm
Vertical Water Channel Spacing: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating Temperature: max 110 °C
Maximum Working Pressure: 10 bar
Maximum Test Pressure: 13 bar
Thermal Output:
- 55/45/20 °C 434 W
- 75/65/20 °C 791 W
- 90/70/20 °C 980 W
Connections:
- 2xG ½″ from the bottom right
- 4xG ½″ side
High-quality, Durable Paint Finish - DIN 99500
Intended for rooms with high hygiene standards
Includes: brackets, installation kit, end caps, air vent, and valve insert

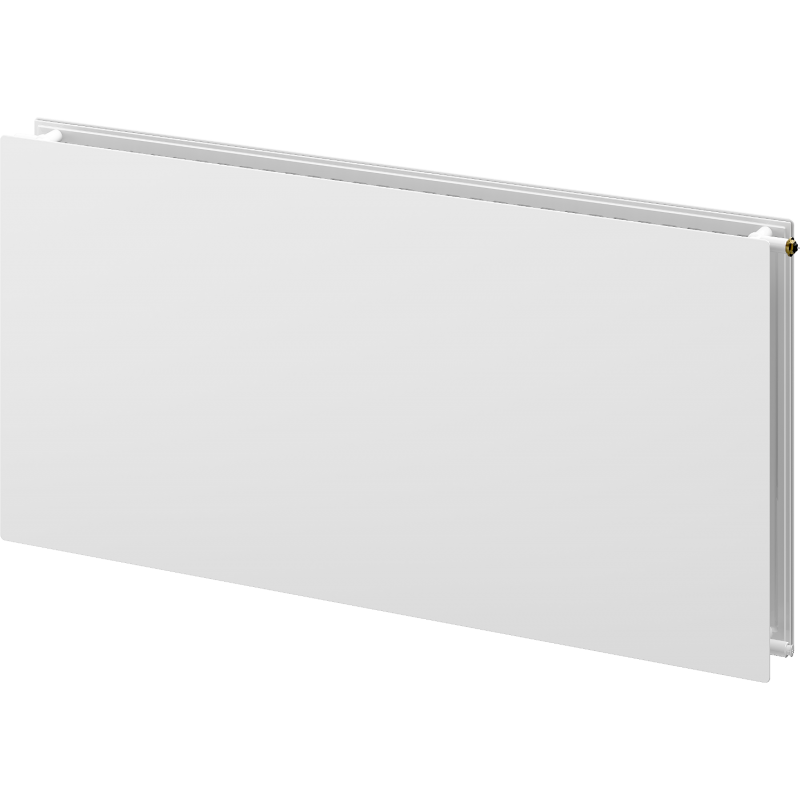

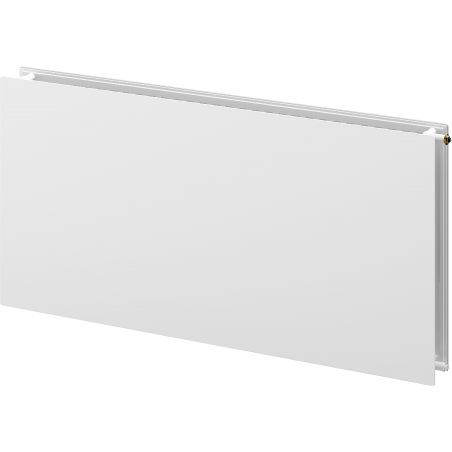

Images show the radiator in size 600 x 1200 mm.
