Mexen CH20 Hygiene panel radiator 600 x 3000 mm, side connection, 3298 W, white - W420H-060-300-00
Technical data:
Height (Y): 600 mm
Width (X): 3000 mm
Depth: 103 mm
Connection spacing: 55 cm
Spacing of vertical water channels: 33.3 mm
Colour: White RAL 9016
Material: Steel
Operating temperature: max 110 °C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20 °C 1799 W
- 75/65/20 °C 3298 W
- 90/70/20 °C 4094 W
Connections:
- 4xG ½″ side
High quality, durable paint coating - DIN 99500
Designed for rooms with increased hygienic standards
Includes: hangers, assembly kit, sealing plugs, and air vent

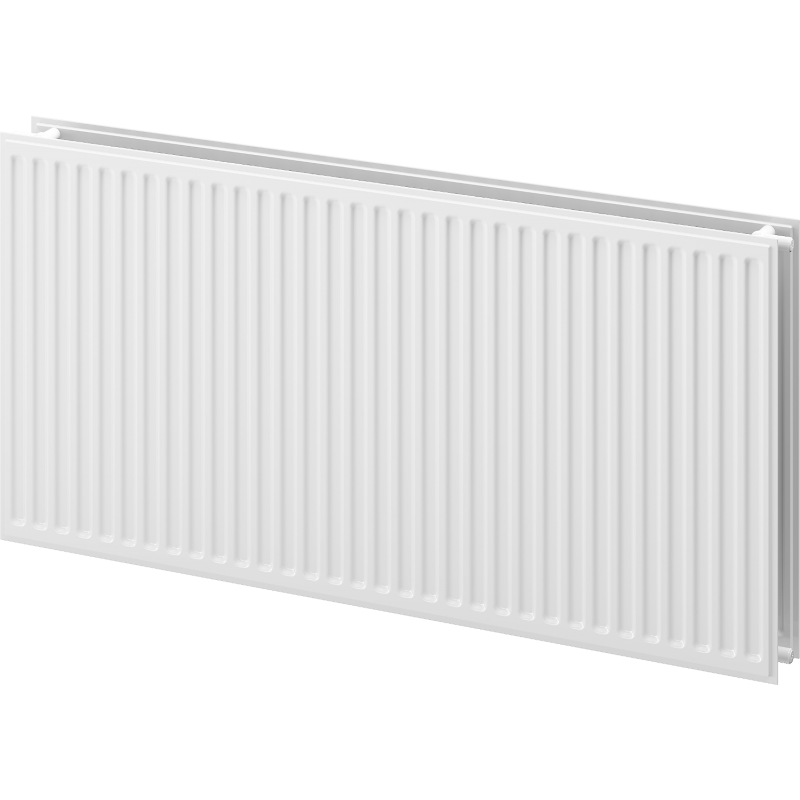

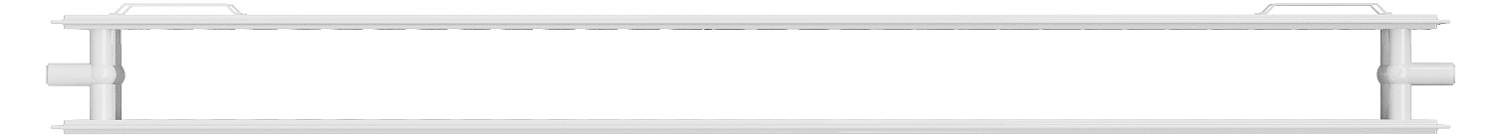

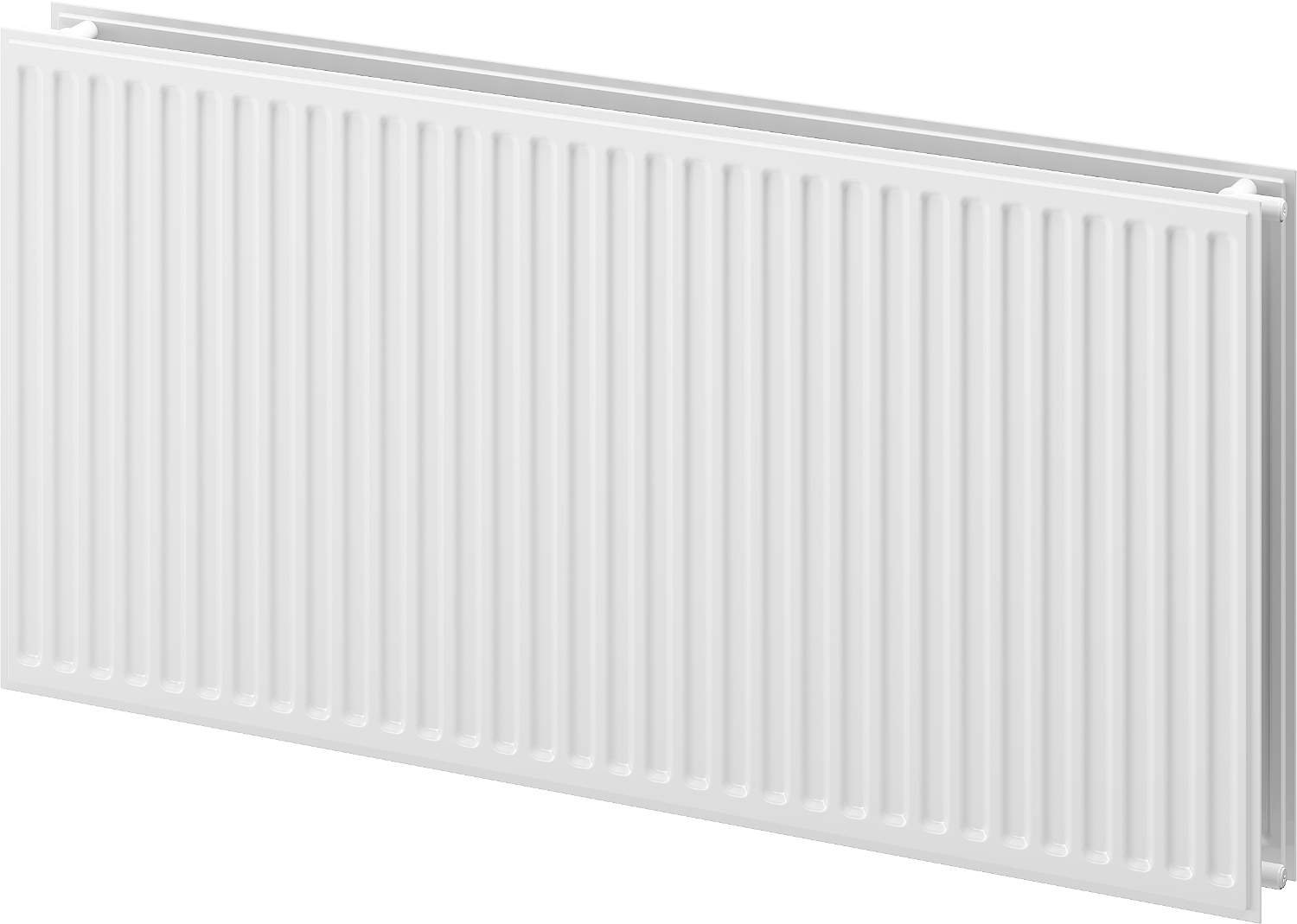

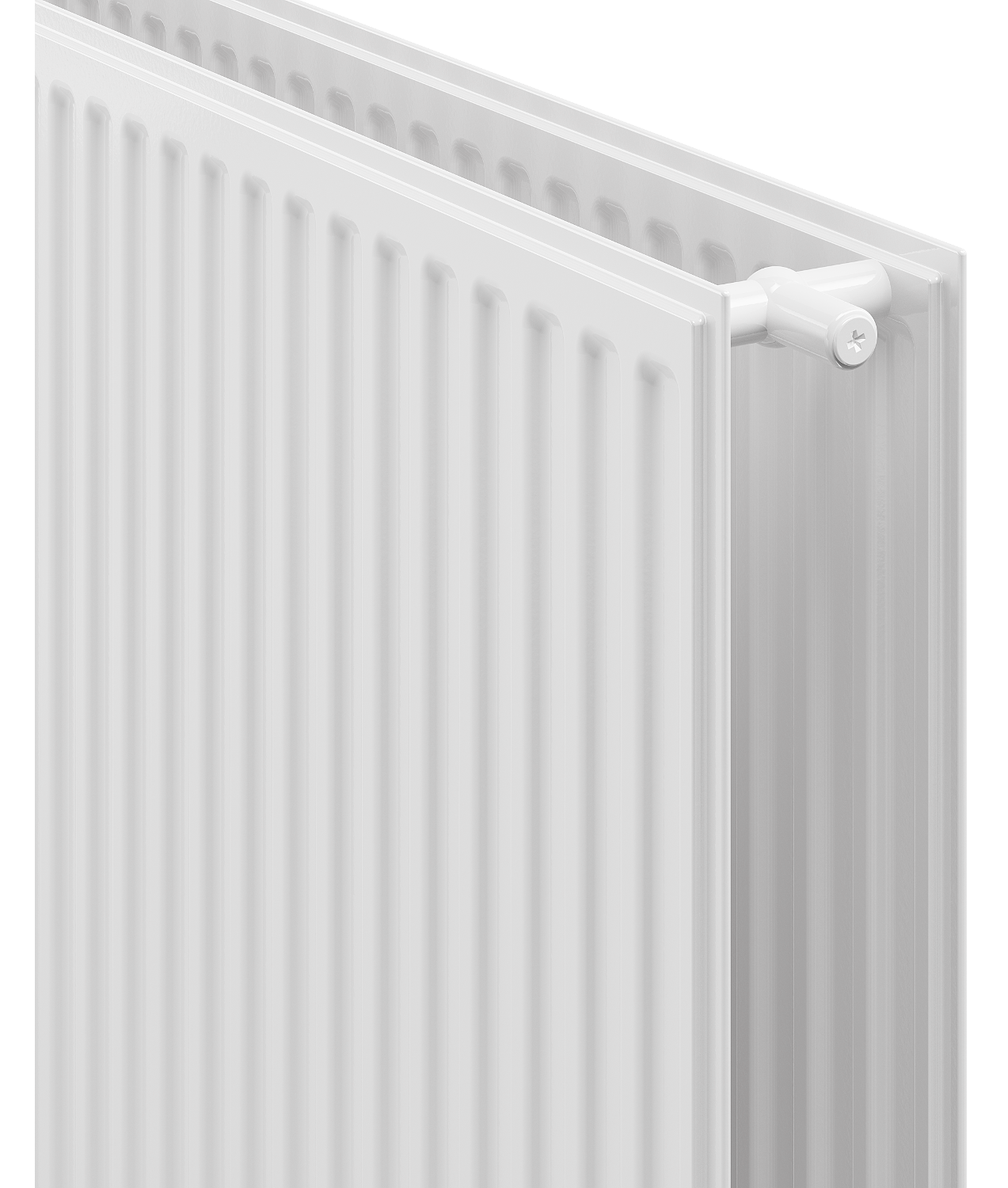

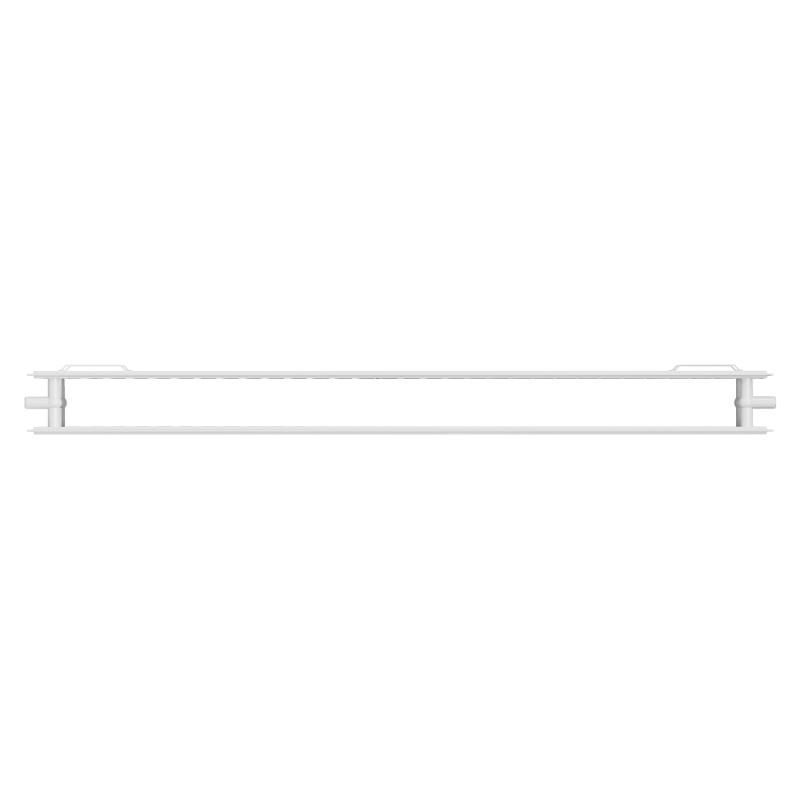

Photos show the radiator in size 600 x 1200 mm.
