Mexen CVHF20 Hygiene Flat Panel Radiator 300 x 1100 mm, bottom connection, 625 W, anthracite - W620HF-030-110-66
Technical specifications:
Height (Y): 300 mm
Width (X): 1100 mm
Depth: 103 mm
Connection spacing: 5 cm
Vertical water channel spacing: 33.3 mm
Colour: Anthracite RAL 7016
Material: Steel
Operating temperature: max 110°C
Maximum working pressure: 10 bar
Maximum test pressure: 13 bar
Heating power:
- 55/45/20°C 346 W
- 75/65/20°C 625 W
- 90/70/20°C 772 W
Connections:
- 2xG ½” from the bottom right
- 4xG ½” side
High-quality, durable paint coating - DIN 99500
Designed for rooms with increased hygiene standards
Included: brackets, installation kit, sealing caps, air vent and valve insert

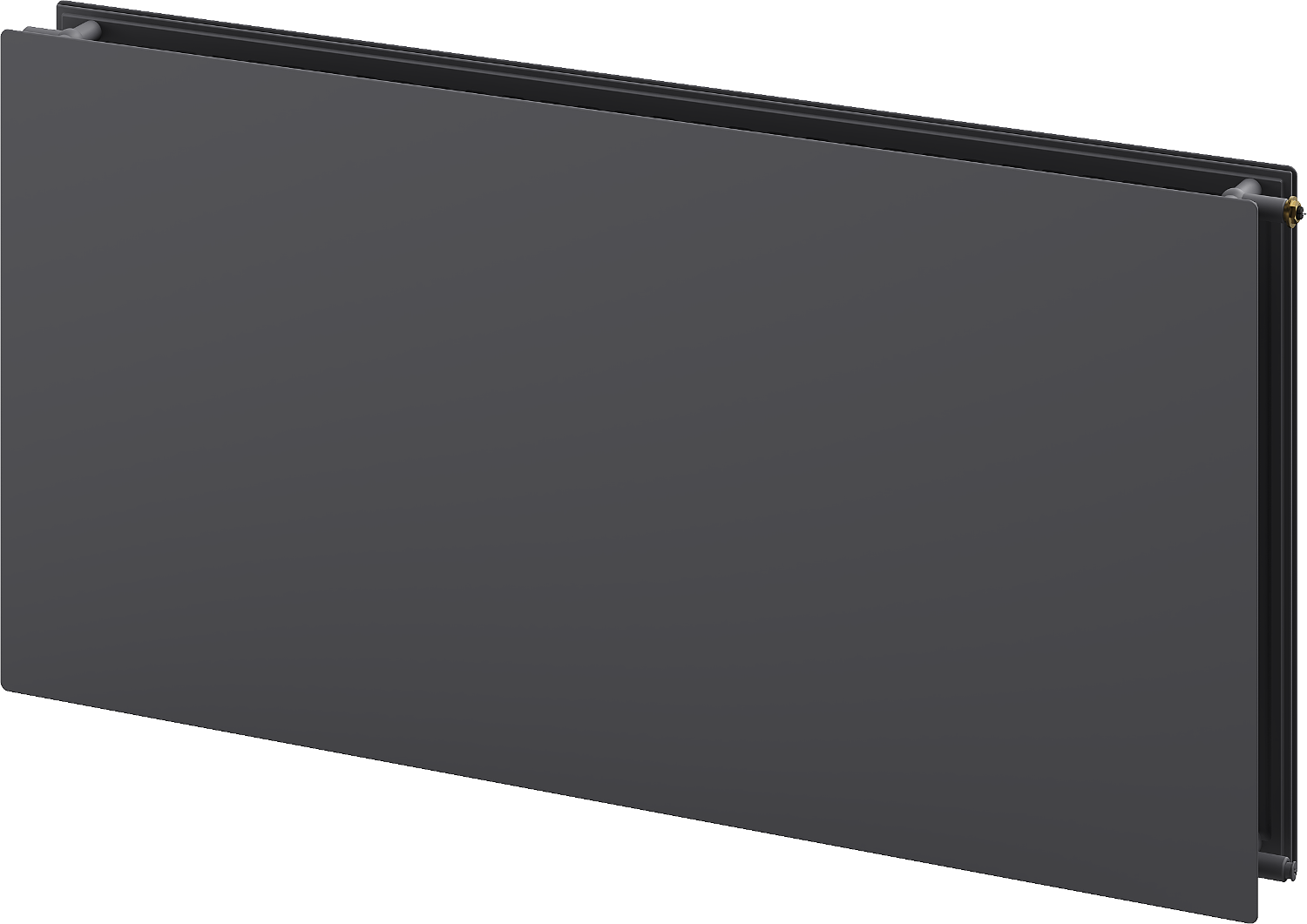

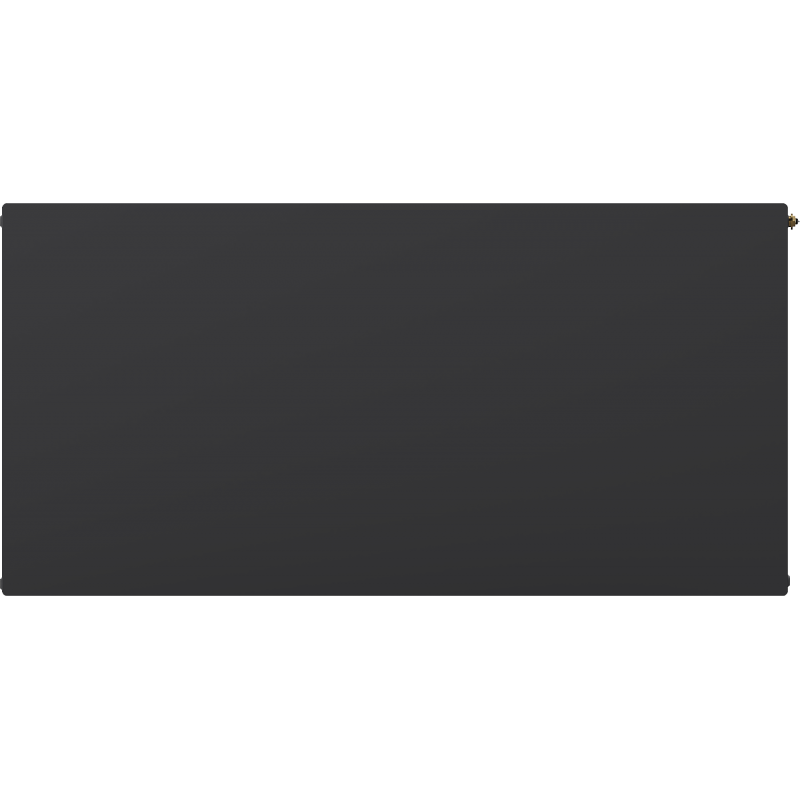

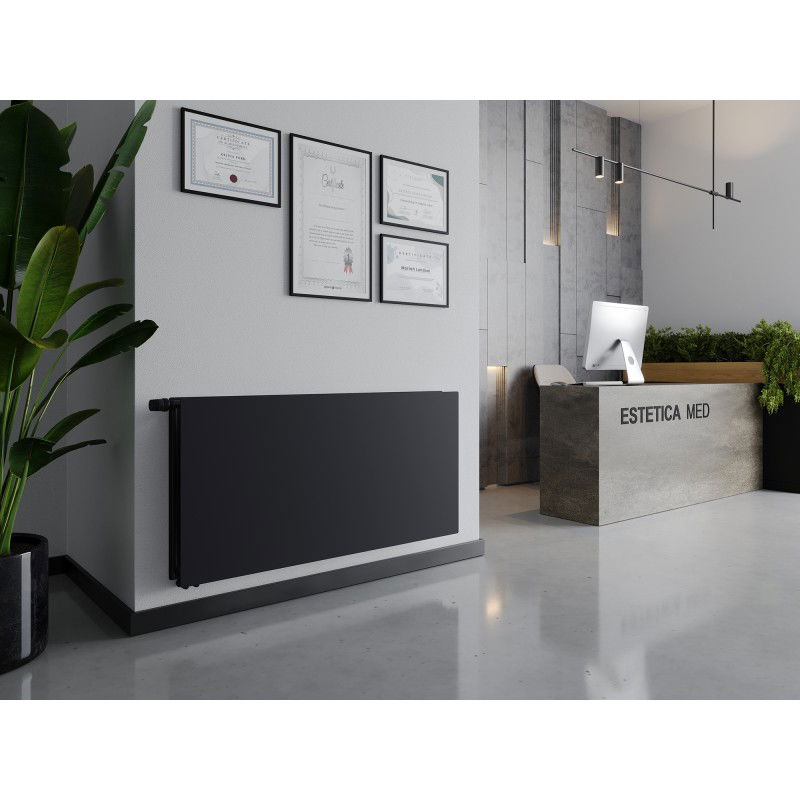

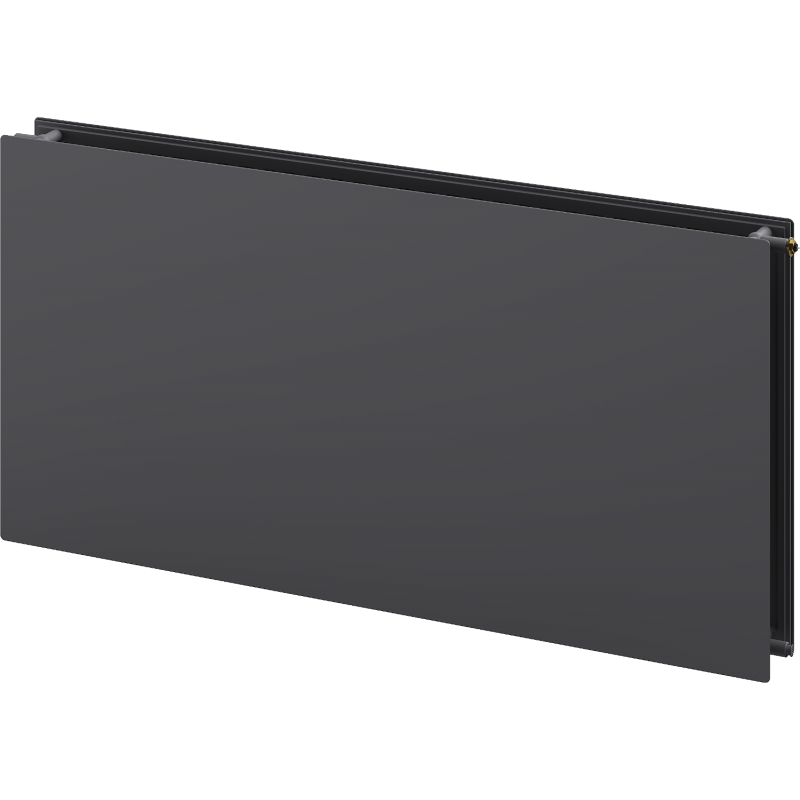

Photos show the radiator in size 600 x 1200 mm.
