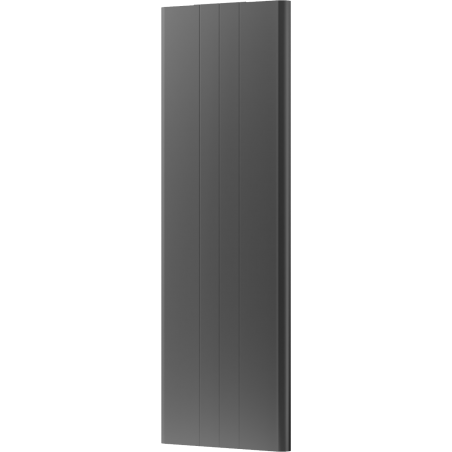

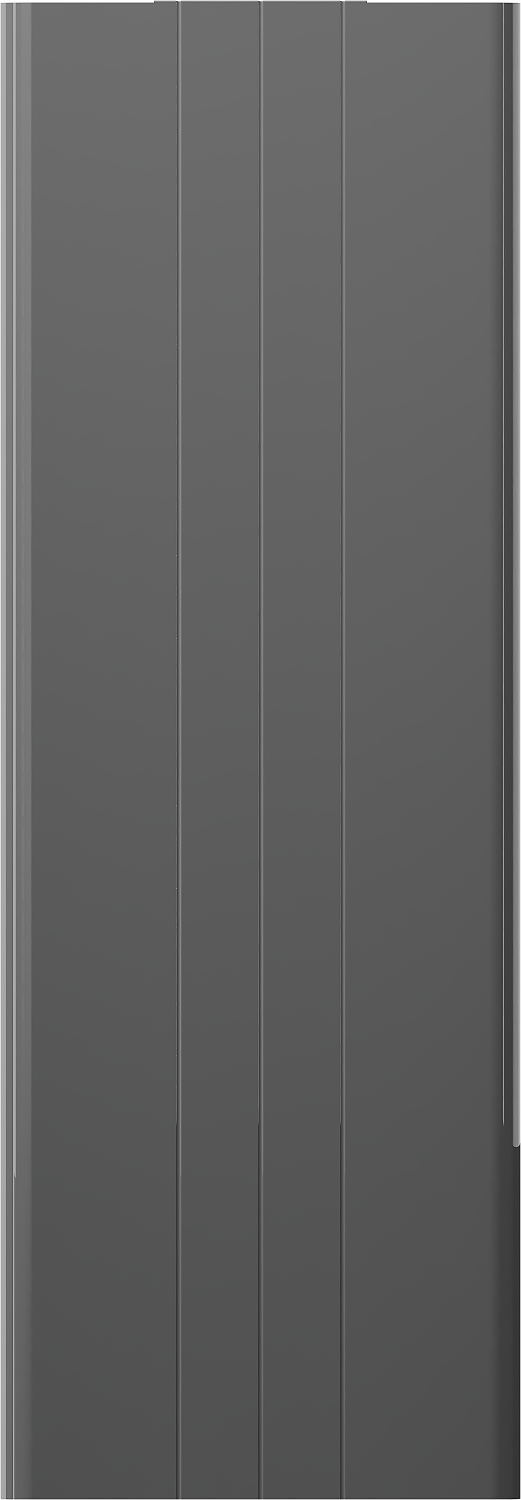

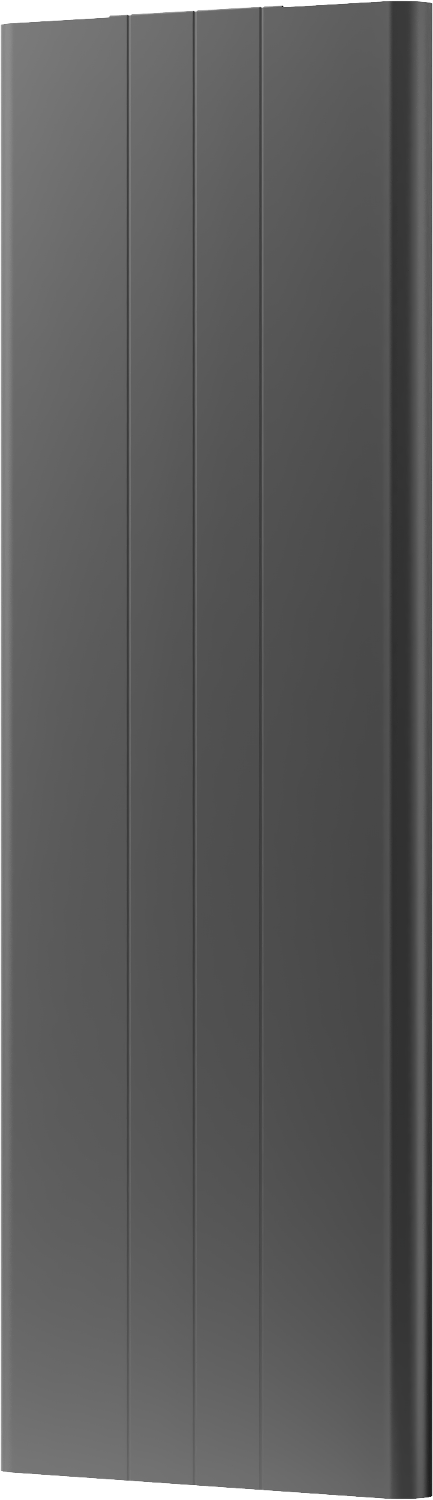

Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66
Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66 Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66 Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66 Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66 Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66 Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66 Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66
Steel Steel
High thermal efficiency High thermal efficiency
Paint Coating: DIN 99500 Paint Coating: DIN 99500
Brand:
Mexen
Series:
VR20SL
Ean:
5905315882028
Index:
W6VR20SL-160-060-66
Height:
1600 mm
Color:
Anthracite
Width:
600 mm
Heating power:
1191 W
Width - 600 mm - ()
300 mm
400 mm
500 mm
600 mm
Height - 1600 mm - ()
1400 mm
1600 mm
1800 mm
2000 mm
Color - Anthracite - ()

Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66

Technical data:

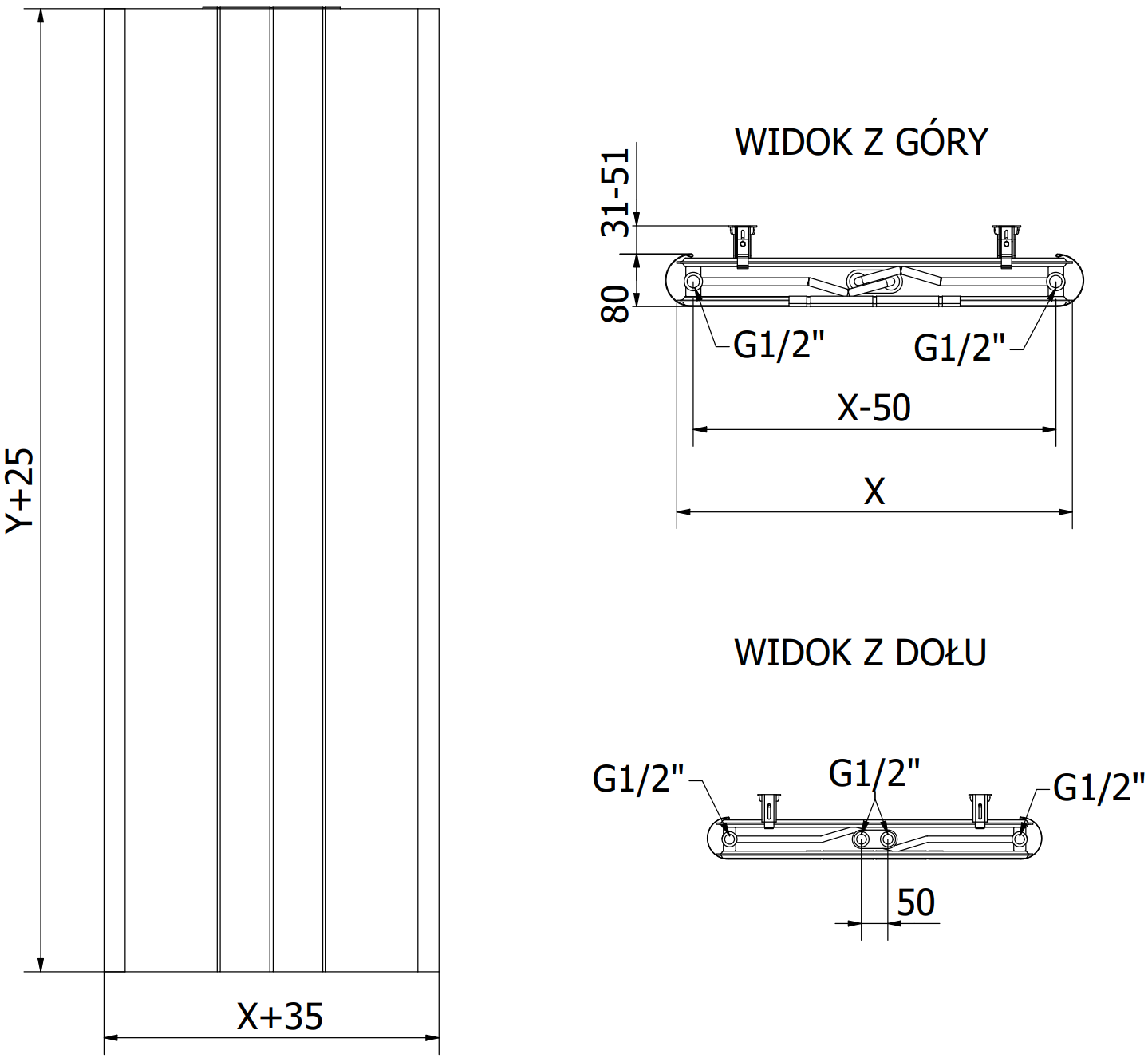

Height (Y): 1600 mm

Width (X): 600 mm

Depth: 80 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: Anthracite RAL 7016

Material: Steel

Working temperature: max 110 °C

Maximum operating pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 624 W

- 75/65/20 °C 1191 W

- 90/70/20 °C 1500 W

Connections:

- 2xG ½” lower middle

- 4xG ½” side

High-quality, durable paint coating - DIN 99500

Included: suspension, mounting kit, plugs, and air vent

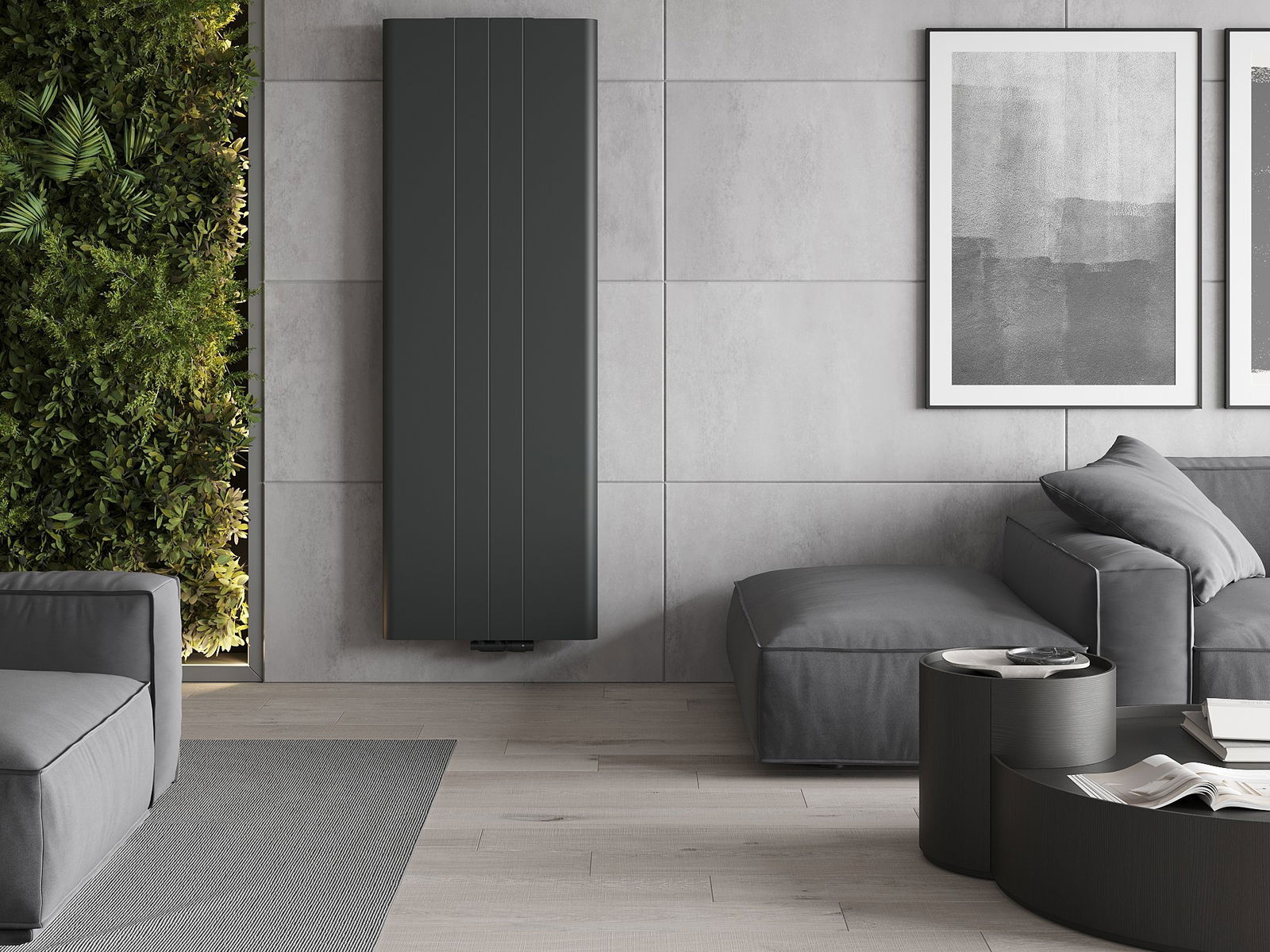

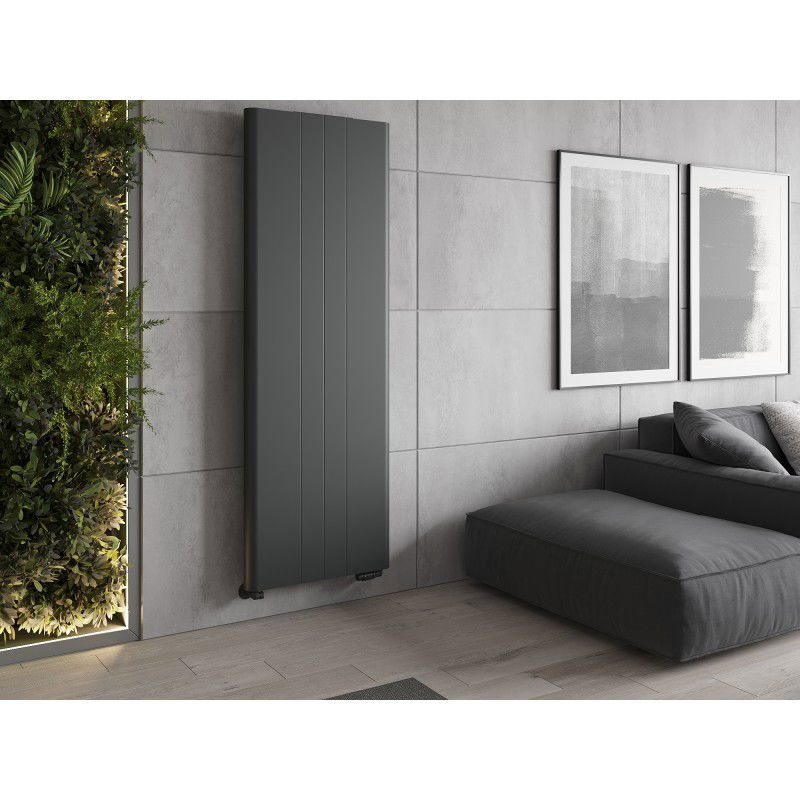

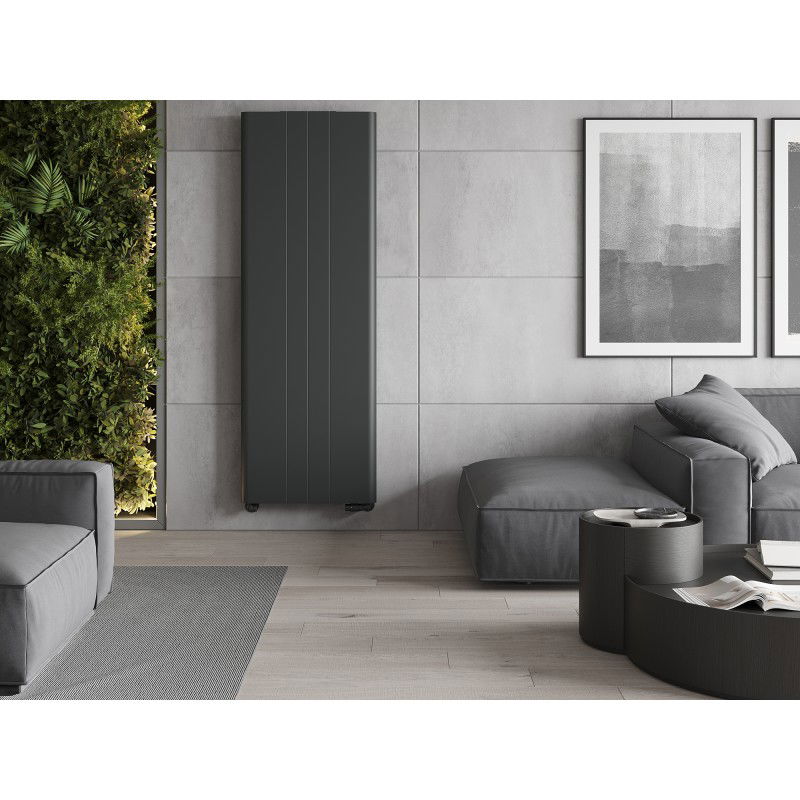

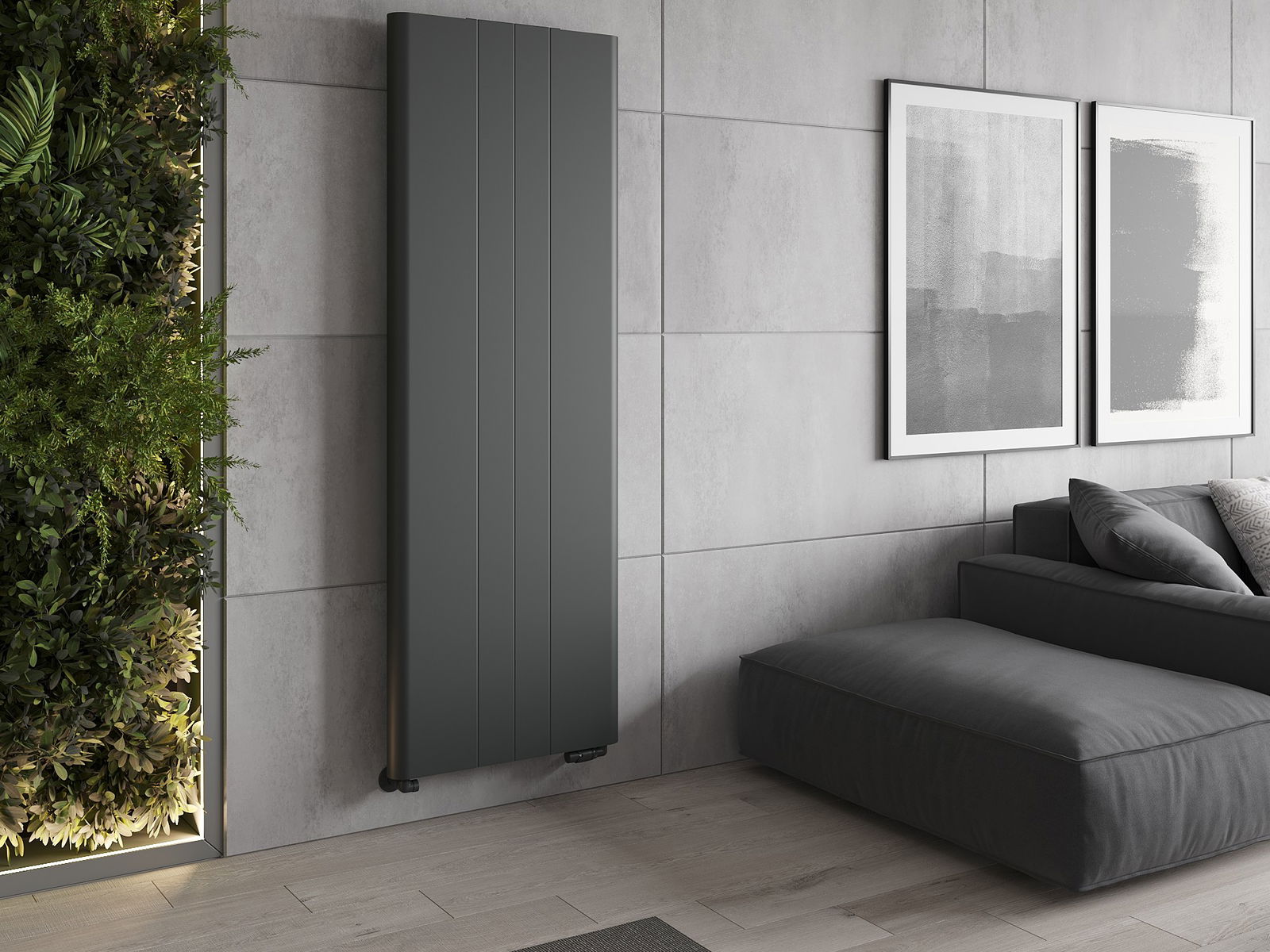

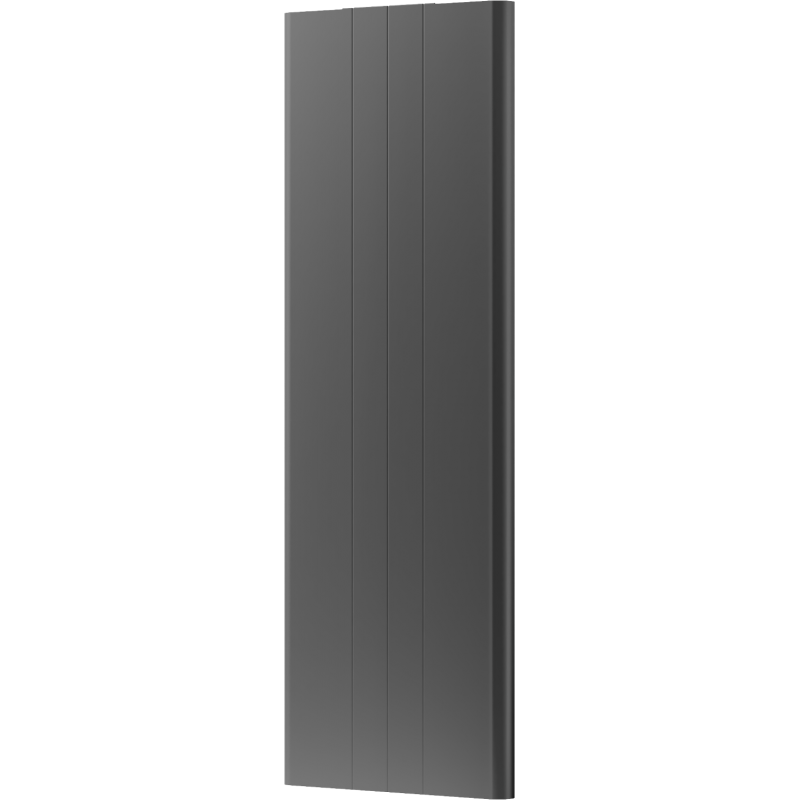

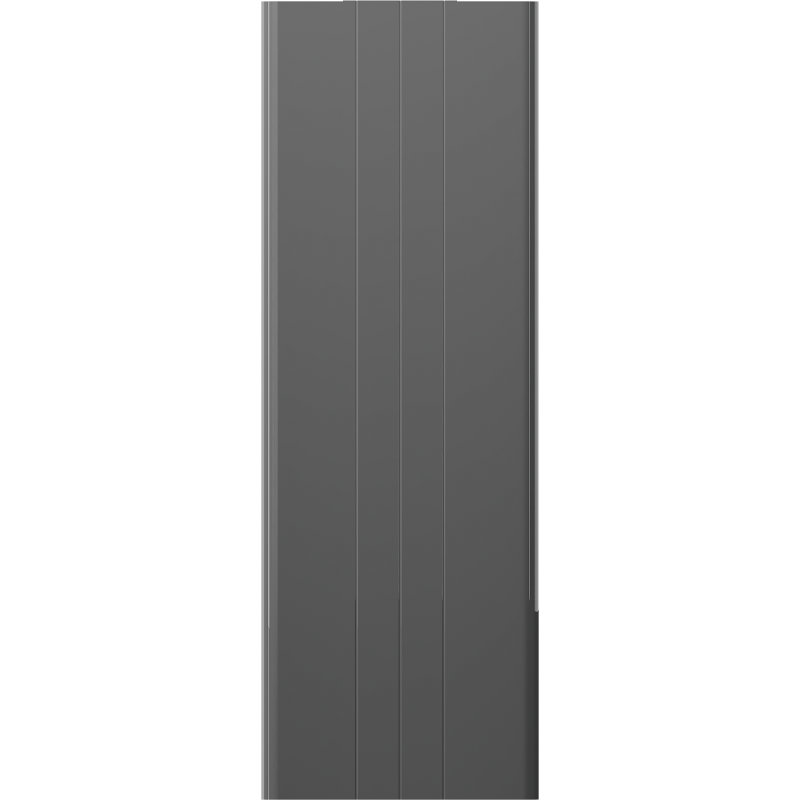

Images show the radiator in the size of 600 x 1800 mm.

Innovative solutions used in this product

Steel

The product is made from high-quality low-carbon steel, which not only contributes to the device's long lifespan and corrosion resistance, but also allows for quick room heating and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technology, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, increasing comfort.

Paint Coating: DIN 99500

High-quality, durable paint coating provides an excellent finish that combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

1 Mpa

The maximum operating pressure is 1 Mpa (10 bars). This means that the radiator can operate safely and efficiently under standard usage conditions. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110°C

The maximum temperature reached by the radiator during operation is 110°C. This allows for effective and efficient heating of the room while ensuring safety for users and the surfaces surrounding the radiator.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
VR20SL
Width
600 mm
Height
1600 mm
Depth
80 mm
Type
Plate / Panel
Heating power
1191 W
Color
Anthracite
Material
Steel
Type
20
Mounting Position
Universal
Connection spacing
5 cm
Connection
Bottom center
Orientation
Vertical
User manual
Download
Safety Information
Download
Warranty conditions
Download
Manufacturer
See

Haven't found the answer?

Write to us

See more questions

Previous
Next
Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66

Mexen Line VR20SL panel radiator 1600 x 600 mm, lower middle connection, 1191 W, anthracite - W6VR20SL-160-060-66

List price: €591.10

€472.89 (tax included)

Cheaper by  €118.21

20%

Lowest price from the last 30 days: €472.89

Availability: 2026-08-19

Delivery from: 219.99 €

Returns up to 100 days

1people bought this product.
