Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
(0)
Questions
(0)

Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70

Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
search
  • Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
  • Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
  • Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
  • Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
  • Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
  • Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70 Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70 Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70 Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70 Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70 Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70
steel steel
High thermal efficiency High thermal efficiency
Paint coating: DIN 99500 Paint coating: DIN 99500
Brand:
Mexen
Ean:
5905315910691
Index:
W611L-090-180-70
Color:
Black
Width:
1800 mm
Height:
900 mm
Heating power:
1963 W
Width - 1800 mm - ()
400 mm
500 mm
600 mm
700 mm
800 mm
900 mm
1000 mm
1100 mm
1200 mm
1300 mm
1400 mm
1500 mm
1600 mm
1800 mm
2000 mm
Height - 900 mm - ()
300 mm
400 mm
500 mm
600 mm
900 mm
Color - Black - ()

Mexen Line CVL11 panel radiator 900 x 1800 mm, bottom connection, 1963 W, black - W611L-090-180-70

Technical specifications:

Height (Y): 900 mm

Width (X): 1800 mm

Depth: 59 mm

Connection spacing: 5 cm

Spacing of vertical water channels: 33.3 mm

Color: Black RAL 9005

Material: Steel

Operating temperature: max 110 °C

Maximum working pressure: 10 bar

Maximum test pressure: 13 bar

Heating power:

- 55/45/20 °C 1045 W

- 75/65/20 °C 1963 W

- 90/70/20 °C 2461 W

Connections:

- 2xG ½″ from below on the right

- 4xG ½″ side

High-quality, durable paint coating - DIN 99500

Features side guard and removable top cover

Included: brackets, installation kit, sealing caps, air vent, and valve insert

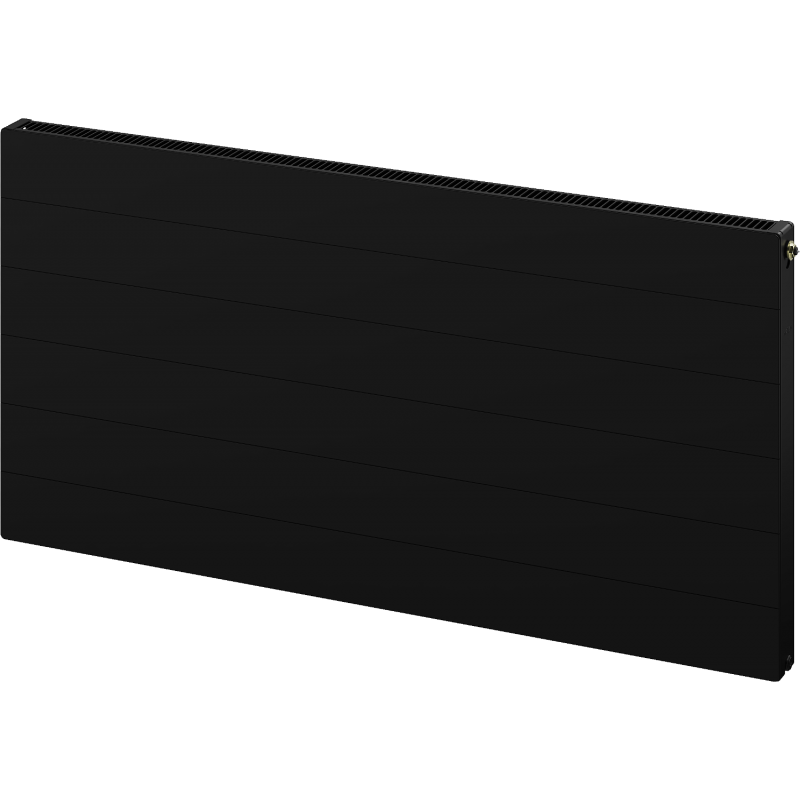

Photos show radiator in size 600 x 1200 mm.

Innovative solutions used in this product

steel

The product was made of high quality low -carbon steel, which not only affects the long life of the device and corrosion resistance, but also allows you to quickly heat the room and provides users with thermal comfort.

High thermal efficiency

Thanks to the use of modern technologies, the radiator heats up quickly, and the panel design ensures effective and even heat distribution throughout the room, which increases the comfort of use.

Paint coating: DIN 99500

The high-quality, durable paint finish combines aesthetics with resistance to mechanical damage. This type of coating meets quality standards, making it an ideal choice for both modern and classic interiors.

Easy cleaning

The ability to remove the upper lid allows you to keep the radiator easier clean. Convenient access to the interior allows it to be cleaned, not only ensuring aesthetic appearance, but also greater user safety.

1 MPa

The maximum working pressure is 1 MPa (10 bar). This means that the radiator can work safely and effectively in standard conditions of use. It provides optimal thermal comfort and a pleasant room temperature.

Max. 110 ° C

The maximum temperature achieved by the radiator during operation is 110 ° C. It allows for effective and efficient heating of the room, while ensuring the safety of users and the surface of the surrounding radiator.

Resistance to matting and corrosion

The product is made of high quality materials resistant to matting and corrosion, thanks to which it maintains its attractive appearance and functionality for a long time, regardless of the level of humidity in the room.

10 years of warranty

The product is covered by a 10-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Width
1800 mm
Height
900 mm
Type
Panel / Panel
Heating power
1963 W
Color
Black
Material
Steel
Type
11
Strength
Right
Depth
59 mm
Connection spacing
5 cm
Connection
Bottom
Orientation
Horizontal
User Manual
Download
Warranty terms
Download
Manufacturer
See
